Datavideo C-AT 2x Auto Tacking HDBaseT PTZ Camera/ 1x 7-Inch 4K LCD Monitor/Streaming/Recording Workflow

Name: Datavideo C-AT 2x Auto Tacking HDBaseT PTZ Camera/ 1x 7-Inch 4K LCD Monitor/Streaming/Recording Workflow
Brand: Datavideo
SKU: DV-C-AT
Price: 11610.00 USD
Availability: PreSale

ITEM #: DV-C-AT MFG #: C-AT

Datavideo

Our Price:

$11,610.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

C-AT - Overview

Streaming & Recording Workflow

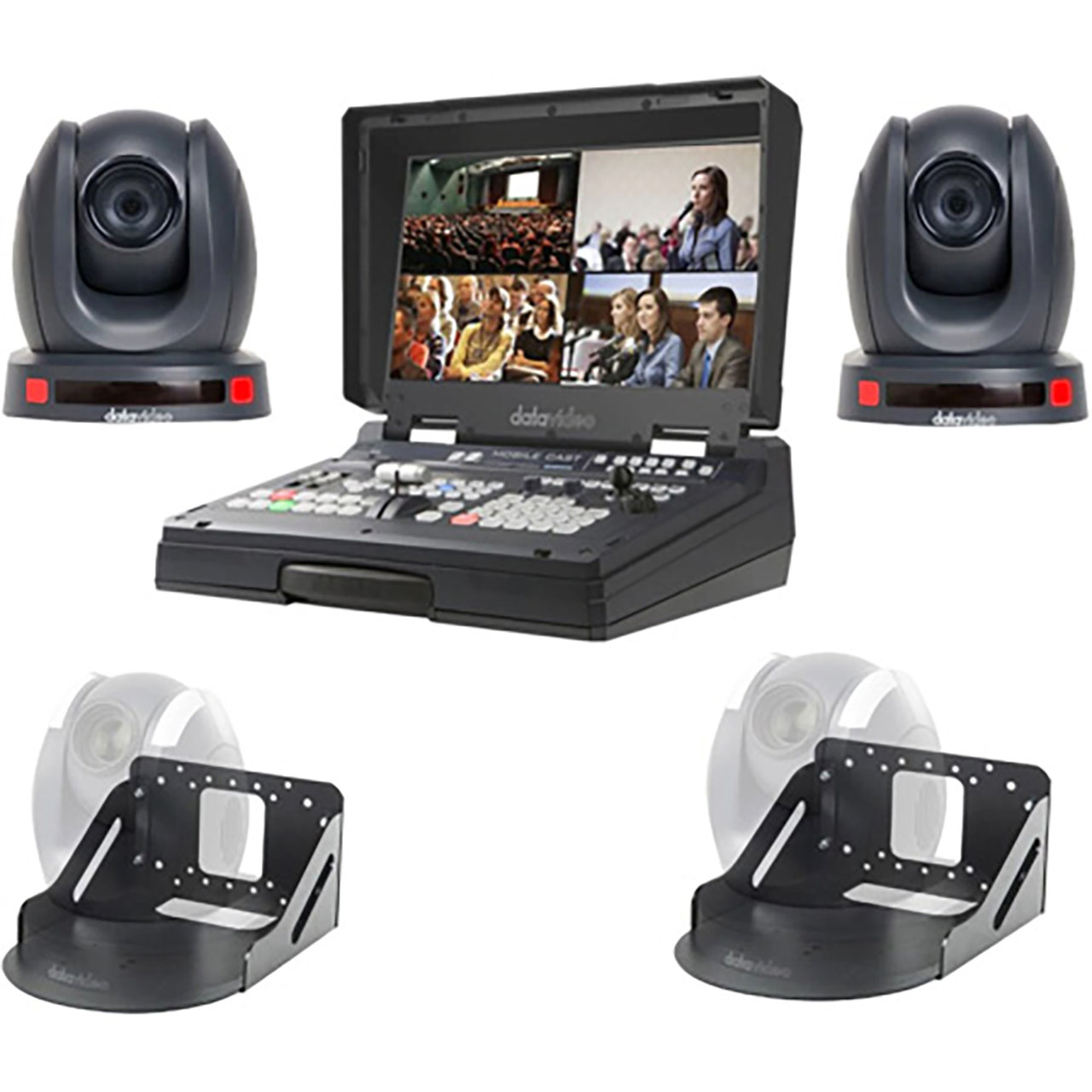

This Datavideo C-AT package uses two Auto Tracking HDBaseT PTZ cameras and a 7" 4K LCD Monitor for a streaming and recording workflow. For white versions of the cameras and mounts, please specify EZ Stream Package CW-AT when ordering.

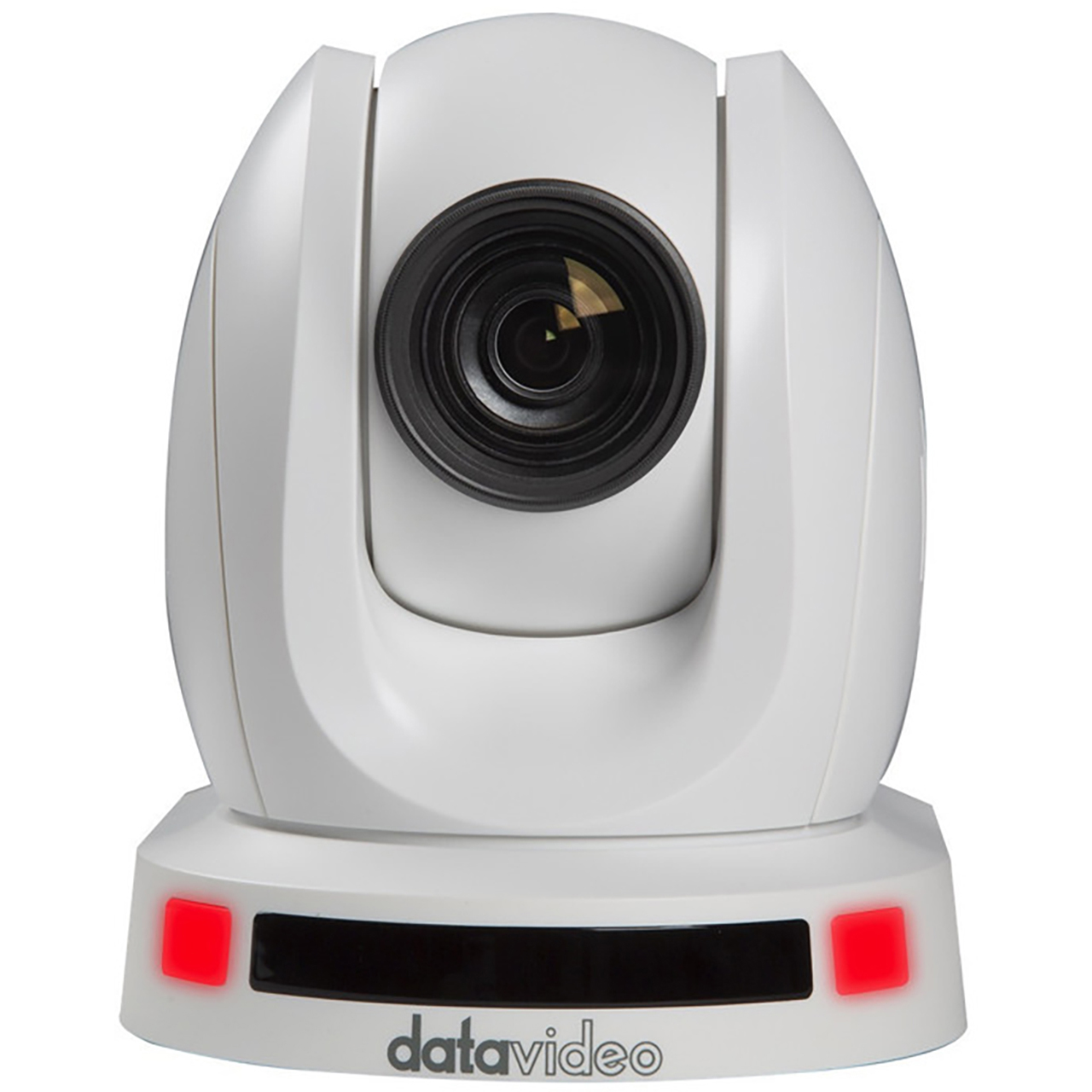

Two PTC-145T Auto Tracking HDBaseT PTZ Camera
Discover the PTC-145T, a PTZ camera blending stunning Full HD resolution with advanced HDBaseT technology for long-distance, high-quality video transmission. Equipped with a 1/2.8" CMOS sensor, it offers superb image quality, 20x optical zoom, and 8x digital zoom.

4-Channel HD/SD HDBaseT Portable Video Streaming Studio
The HS-1600T MARK II brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design and HDBaseT Technology. Now with Auto Tracking camera control, it makes it even easier for the operator. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.

7" 4K LCD Monitor
Datavideo's TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7" screen. The monitor is a 1920x1080 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and outputs.

Professional Wall Mount for PTC Video Camera
The WM-1 can be positioned upside-down or rightside-up to suit the certain application. The three-piece design is easy and steady to install onto any wall using the included mounting kit.

Hard Cases for Equipment
HC-850 for HS-1600T Mark II and HC-800 for auto tracking cameras.

Specifications:
- Video Format/Resolution:
  - 1080p 60/59.94/50/30/29.97/25
  - 1080i 60/59.94/50
  - 720p 60/59.94/50
- Image Sensor: Sony 1/2.8" CMOS
- Effective Pixels (approx.): 2.07 Mega pixels
- S/N Ratio: >50dB
- Min. Illumination: 0.5Lux (F1.8, AGC ON)
- Electronic Shutter: 1/30s - 1/10000s
- Zoom Ratio:
  - 20x Optical Zoom
  - 8x Digital Zoom
- Effective Zoom Ratio: 18.12x
- Iris Control: Auto/Manual
- Digital Noise Reductions: 3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, Manual, One Push
- AGC/Gain Control: Yes
- Mirror/Flip Image: Yes
- Focus Mode: Auto/Manual
- Panning/Tilting Range:
  - Pan: 340°
  - Tilt: +90° - -30°
- Panning/Tilting Speed:
  - Pan: 0.1~60°/sec
  - Tilt: 0.1~30°/sec
- Preset: 255 Position
- Focal Length: f = 5.05mm (wide) to 91.49 mm (tele)F1.8(Wide) ~ F2.9(Tele)
- Field of View: 60°
- Image Compensation: Backlight Compensation
- Video Output:
  - 1x HDBaseT (PoE)
  - 1x RJ-45
- Cable Type: Cat6A Shielded
- Audio Input: 3.5mm Line in
- Tally LED: Dual color (Red, Green)
- Lens Filter: M52.0 x 0.75 Thread with UV Protection
- Control Protocol: Pelco-D/Pelco-P/VISCA/VISCA over IP/DVIP/ONVIF

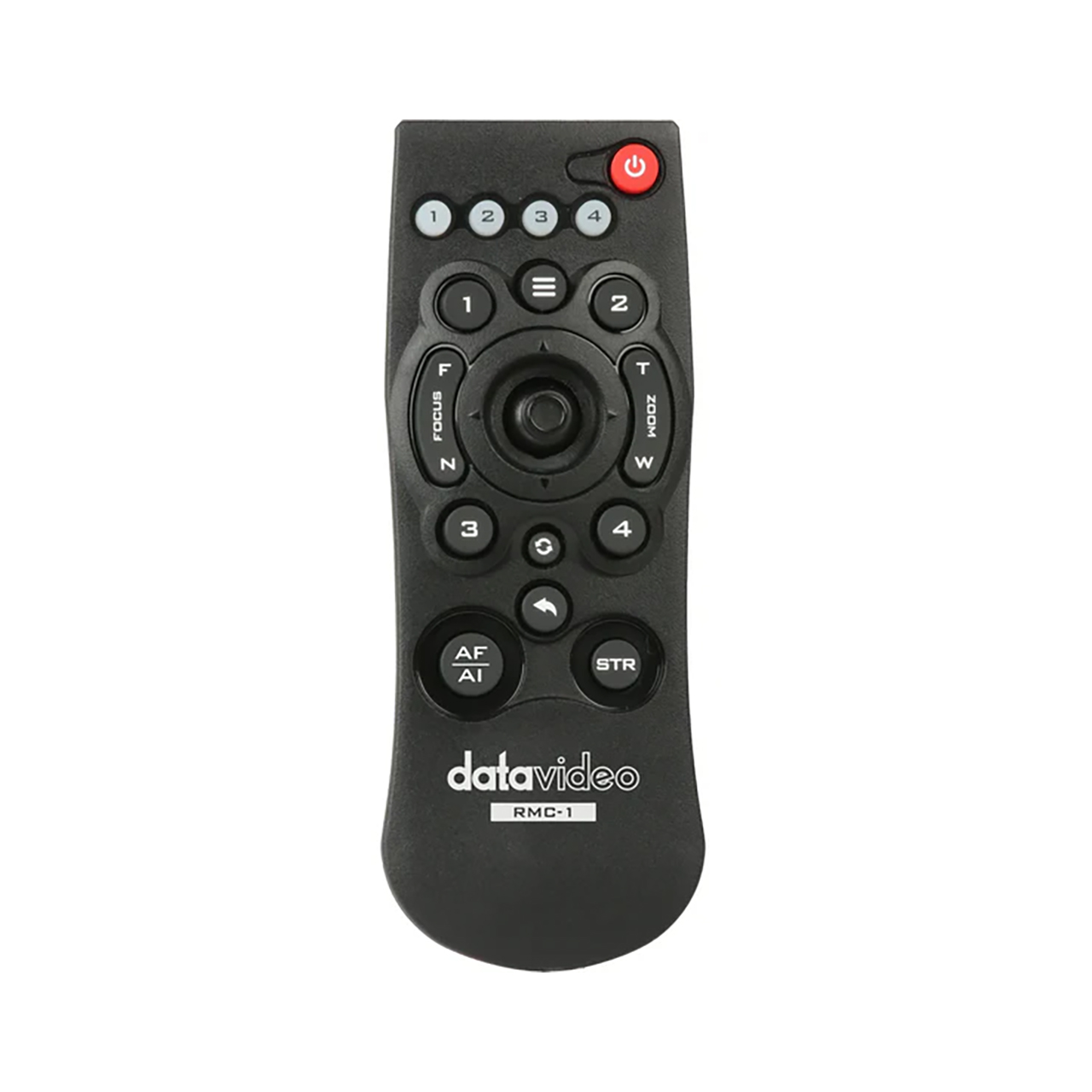

- Remote Control Interface:
  - IR
  - Web GUI
  - RS-422 /RS-232 (RJ45)
  - HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
- Video Compression Format: H.264/H.265/MJPEG
- Audio Compression Format: AAC, G711
- Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
- HD IP Interface: 10/100/1000M (RJ45)
- Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT
- First Stream Supported Resolution:
  - 1920x1080
  - 1280x720
  - 1024x576
  - 960x540
  - 640x480
  - 640x360
- Second Stream Supported Resolution:
  - 720x480
  - 640x480
  - 640x360
  - 320x240
- Video Bitrate: 64Kbps - 50Mbps
- Video Bitrate Mode: VBR, CBR
- Encoding Frame Rate: 50Hz: 1fps - 50fps
- F/W Update: Via Web GUI
- IR Control: Yes

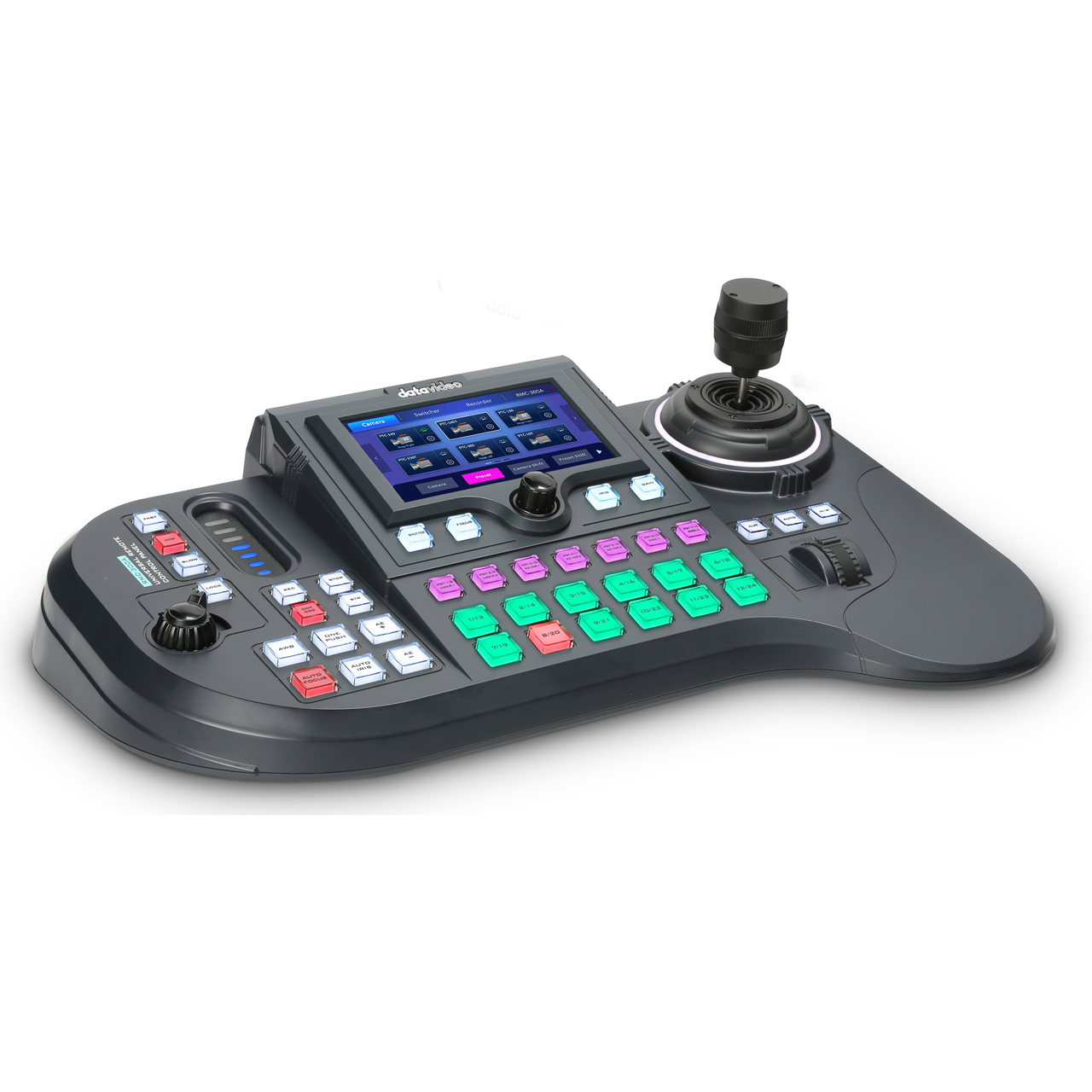

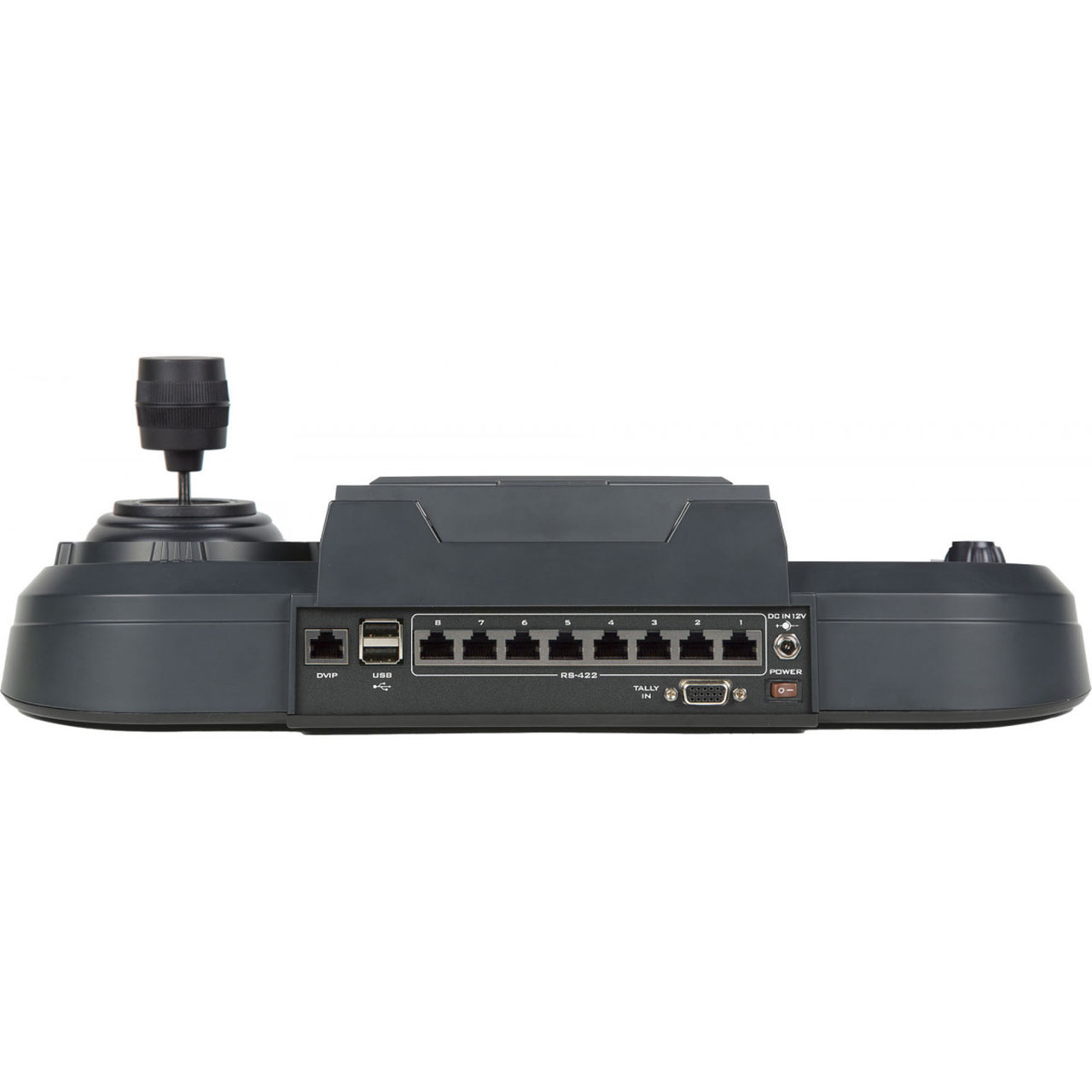

- Camera Control Unit:
  - RMC-2P
  - RMC-180 series
  - RMC-300 series
  -PTZ View Assist APP
- Tripod Mount: ¼"-20 UNC
- Optional Accessories: WM-1/ WM-10/ WM-11
- Color: Black/White
- Dimension (LxWxH): 6.14" x 7.24" x 7.32" (156mm x 184mm x 186mm)
- Weight: 3.52Ibs (1.6kg)
- Operating Temp. Range: 32°F - 104°F (0°C - 40°C)
- Power: DC 12V 12W

  HS-1600T MARK II
- Video Standard: HD & SD
- Video Format:
  - 1080p 50/59.94/60Hz
  - 1080i 50/59.94/60Hz
  - 720p 50/59.94/60Hz
  - 576i/p 50Hz
  - 480i/p 59.94Hz
- Video Input:
  - 3x HDBaseT
  - 1x HDMI
- Computer Graphic Interface
  - 1 via HDMI
- Down-Converted Output: Yes
- Video Output:
  - 3x HDMI PGM
  - 1x HDBaseT PGM
  - 1x STREAM (RJ-45)
- Cable Type: Cat6A shielded
- Analog Audio Input:
  - 2x Balanced XLR
  - 1x Stereo RCA (L/R)
  - 1x De-embedded Digital Audio
- Analog Audio Output:1x Stereo headphone
- Digital Embedded Audio Support: Input 2 channels, Output 2 channels
- USK: +1x USK support Lumakey
- Picture in Picture: 1
- Built-In Audio Mixer: Yes, 4 channels
- Built-In Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pix
- Streaming: H.264/AVC, Main/ High Profile - Configurable Bit-rate up to 10Mbps
- Streaming Audio Encode: AAC-LC - Configurable bit rate range from 32Kbps to 384Kbps
- Sample Rate: 48kHz, 16bit
- Streaming Protocol:
  - TS over TCP/UDP (unicast & multicast)
  - RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
  - RTMP/RTMPS (Publish)
  - HLS
  - SRT
- Streaming Control: Web browser UI for configuration and control Socket commands
- Recording File System: FAT, exFAT, NTFS
- Recording File Format: MP4
- Streaming & Recording Setting Control: Web UI for system configuration and control
- Special Features: 1x Built-in camera controller
- Dimension (LxWxH): 17.9" x 13.9" x 5.27" (455mm x 355mm x 134mm)
- Weight: 17.2lbs (7.8kg), Reinforce Plastic Case
- Power: DC 48V, 4.16A
- Operating Temp. Range: 32°F - 104°F (0°C - 40°C)
Item Includes:
- 2x 20x 1080p PTZ Cameras
- 1x 4-Channel Portable Streaming Studio
- 1x Switcher Controls Cameras
- 2x Wall Mounts
- 2x 100ft Cat 6 Cables
