Datavideo NVS-33 H.264 Video Streaming Encoder and Recorder with HD-SDI & HDMI Inputs

ITEM #: DV-NVS-33 MFG #: NVS-33

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:


Availability: In Stock
iAvailability Description Popup

    NVS-33 - Overview

    Stream Video in RTMPS, RTMP, RTSP & TS Formats!

    Datavideo NVS-33 is a H.264 video streaming server which is designed for different applications and network environments by different bit-rate settings. The NVS-33 combines recording and streaming functions into one single unit. Moreover, it supports various features including SDI x 1 and HDMI x 1 video input interfaces, external connected RCA Unbalanced Audio signals. Furthermore, the NVS-33 supports NTFS and FAT file systems for video recording. So, it allows users to record a single video file which the file size is larger than 4GB.

    • Features:

      • H.264 Streaming and Recording Simultaneously: Supports different bitrates for recording and streaming
      • 1x SDI / HDMI Input: NVS-33 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.
      • Support RCA Unbalanced Audio Input: Also support SDI / HDMI embedded audio
      • Streaming Videos in RTMPS, RTMP, RTSP, and TS Formats: Easy stream to YouTube, Facebook, and many other platforms.
      • Record on SD Card: Easy to store. The NVS-33 can record MP4 or TS file to an SD card
      • Supports FAT /NTFS File System: Recording to SD Card with either NTFS and FAT file system to keep the continuous recording without file size limitation.
      • Remotely Controlled by Windows or Mac: Remotely controlled using a Windows / Apple PC or mobile device with a web browser.
    • Specifications:

      • NVS-33 H.264 Video Streaming Encoder and Recorder
      • Video Input: (1) HDMI (1) SDI
      • Supported Video Input Resolution:
        1080p 60/59.94/50
        1080p 30/29.97/25/24/23.98
        1080i 60/59.94/50
        720p 60/59.94/50
        480i 59.94, 576i 50
      • Audio Input: SDI & HDMI embedded audio; RCA L/R x1
      • Encode: H.264/AVC, Main/High Profile
      • Video Bitrate:
        Record Only: Up to 16Mbps (1080p50/60)
        Stream Only: Up to 10Mbps (1080p50/60)
        Rec+Stream: 10Mbps (1080p25/30)
      • Video Rate Mode: CBR/VBR
      • Audio Mode: Stereo/Mono
      • Audio Bitrate: Stereo: 64-384Kbps; Mono: 32-192Kbps
      • Streaming Protocols:
        TS over TCP/UDP (unicast & multicast)
        RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
        RTMP/RTMPS (Publish)
      • Recording File Format: MP4, TS
      • Storage: SD Card x1 (File System: NTFS, FAT)
      • Power Supply: DC 12V
      • Dimension (LxWxH): 8.66 x 3.74 x 1.85" (220 x 95 x 47mm)
      • Weight: 1.54Lbs (0.7kg)
      • Operating Temp. Range: 32° to 104°F (0° to 40°C)

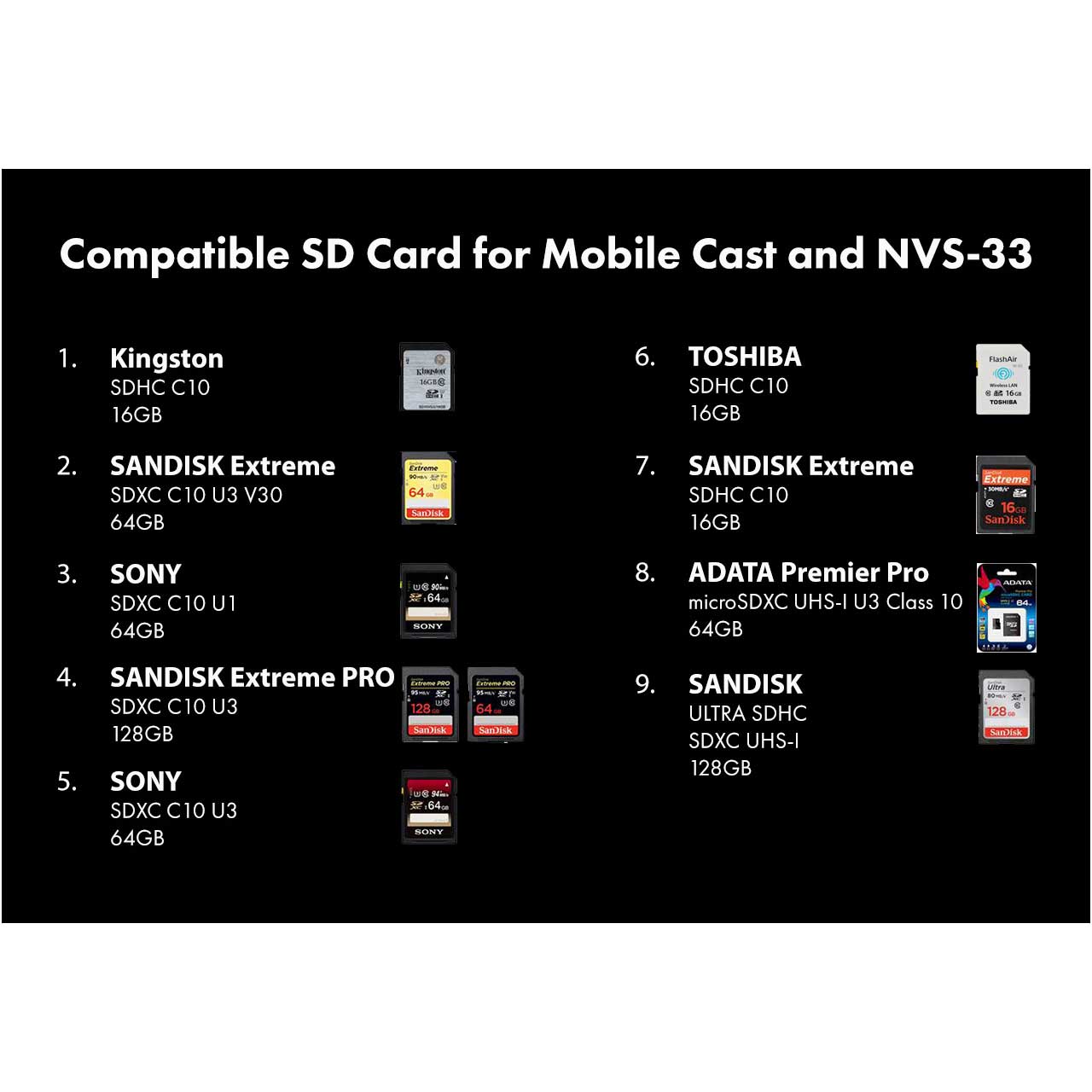

        Verified Compatible SD Cards
      • Kingston: SDHC C10 (16GB)
        Extreme SDXC C10 U3 V30 (64GB)
        Extreme PRO SDXC C10 U3 (128GB)
        Extreme SDHC C10 (16GB)
        Ultra SDHC/SDXC UHS-1 (128GB)
      • Sony:
        SDXC C10 U1 (64GB)
        SDXC C10 U3 (64GB)
      • Toshiba: SDHC C10 (16GB)
      • ADATA: Premiere Pro microSDXC UHS-1 U3 Class 10 with SD adapter (64GB)
      • Unirex: SDHC UHC 1, U1 Class 10
      • Samsung: EVO microSD Card (SD Adapter) UHS-1 Speed Class 1 (U1), Class 10
    • Item Includes:

      • 1x NVS-33 product
      • 1x AD Switch DC 12V
      • 1x Thank You Card
