    PTC-140W - Overview

    The Datavideo PTC-140W is a cost-effective SDI/HDMI PTZ camera, which features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution 20x optical zoom, 10 digital zoom allows you to mount it near or far and still get great, sharp shots. The PTC-140's onboard streaming encoder can encode up to 2 simultaneous streams to any cloud service, including Datavideo's own DVS-200. It supports H.264 /H.265 video compression and dual stream output. Advanced 2D/3D noise reduction function supports advanced digital noise reduction, even in less-than-perfect lighting conditions. The PTC-140 can use Datavideo RMC-300C and RMC-180 as the controllers for distant controlling.

    • Features:

      • 1/2.8 inch CMOS sensor.
      • Resolution is up to 1920x1080 with frame rate up to 60fps
      • 20x Optical Zoom, 10x Digital Zoom
      • Simultaneously video output: SDI and HDMI
      • Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness
      • Audio 3.5mm Line Input Interface
      • Dual color Tally light included
      • Camera preset position: 255
      • Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding
      • Supports H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression
      • Multiple Network Protocol: support RTSP, RTMP protocols, easy to link streaming media server
      • Remote controllable by RMC-300C and RMC-180 PTZ Camera Controller
      • Support upside down installation and image flipping

    • Specifications:

      • Video format: 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/50/30/25/59.94/29.97
      • Image Sensor: 1/2.8 inch high quality HD CMOS Sensor
      • Effective Pixels (approx.): 2.07 Mega pixels
      • S/N Ratio: >55dB
      • Min. Illumination: 0.5Lux (F1.8, AGC ON)
      • Electronic Shutter: Auto/ Manual
      • Zoom Ratio: 20 x Optical Zoom 10 x Digital Zoom
      • Gamma Control: Off/ Normal
      • Iris Control: Auto/ Manual
      • Digital Noise Reductions: Yes
      • On-Screen Display (OSD): English, Simplified Chinese
      • White Balance: Auto/Manual/OnePush/3000K/4000K/5000K/6500K
      • AGC / Gain Control: Auto/ Manual0
      • Mirror / Flip Image: Yes
      • Focus Mode: Auto / Manual
      • Panning/Tilting Range Pan: 340°
      • Tilt: +90° to -30°
      • Panning/Tilting Speed Pan: 0.1~60°/sec
      • Tilt: 0.1~30°/sec
      • Presets: 255 Position
      • Focal Length: f=5.2 (wide) ~98 (tele) mm F1.6 to F3.5
      • Field of View (Horizontal, Wide): Approx. 54.7° (wide) / 3.3° (tele)
      • Video Compensation Format: H.264, H.265, Dual Stream Output
      • Video Output: SDI x 1 HDMI x 1
      • Audio Input: 3.5mm Line In
      • Audio Compression Format: AAC/ MP3/ PCM Audio Compression
      • Tally LED: Dual Color (Red, Green)
      • Filter: M52.0 x 0.75 Thread with UV Protection
      • Protocol: RTSP, RTMP
      • Camera Control Unit: RMC-300C
      • Dimension (H x W x D): 185.8 x 156 x 181.9mm
      • Weight: 1.62 Kg
      • Size of Screw Hole for Tripod: 1/4-20 UNC
      • Color: White

    • Item Includes:

      • 1x PTC-140 Unit

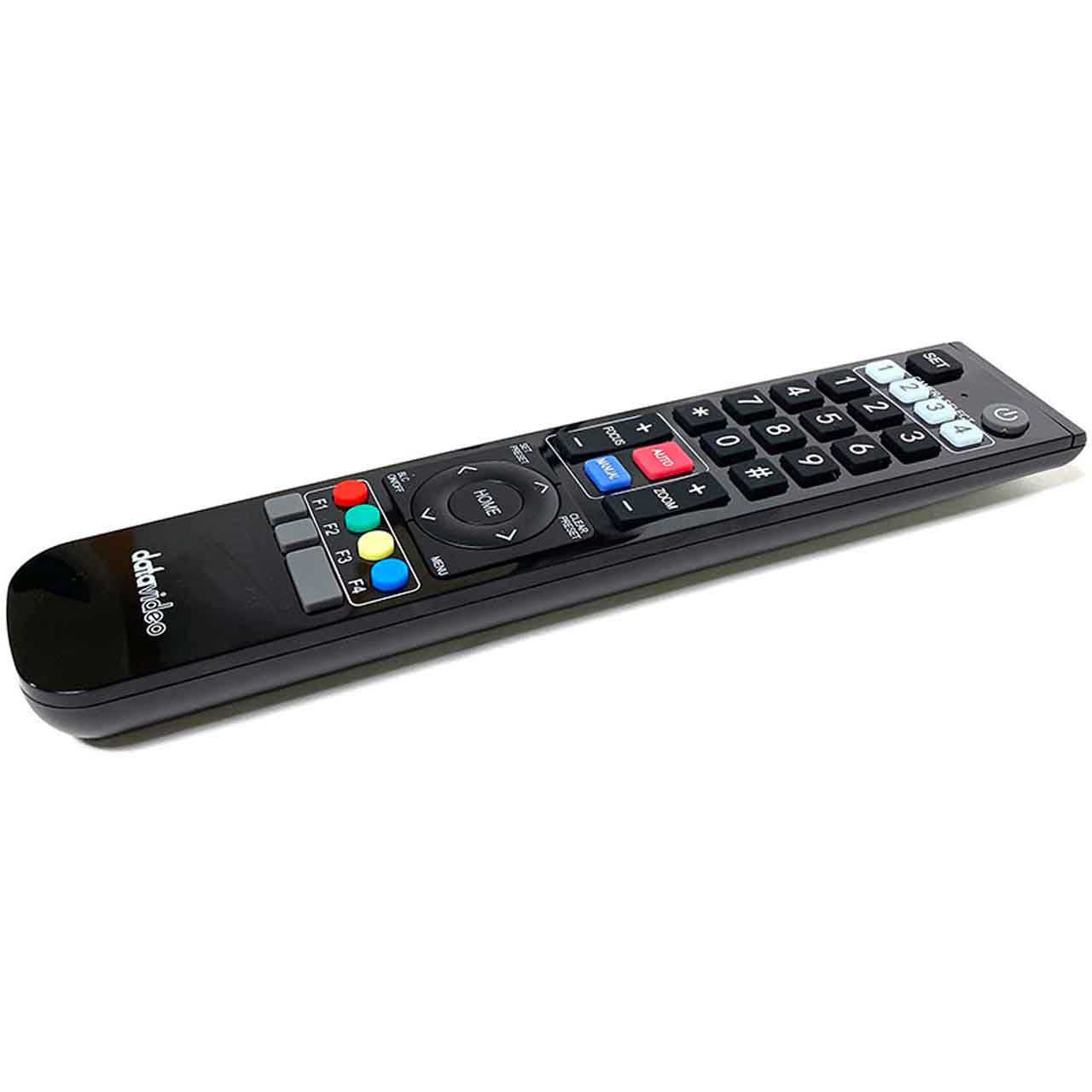

      • 1x IR remote controller
      • 1x PTC-140 Thank You Card
      • 1x Ceiling mount bracket -A
      • 1x Ceiling mount bracket -B
      • 6x Ceiling mount bracket screw M3*4mm
      • 1x DC 12V Power Adaptor
      • 1x Power Cord
      • 1x A tightrope
