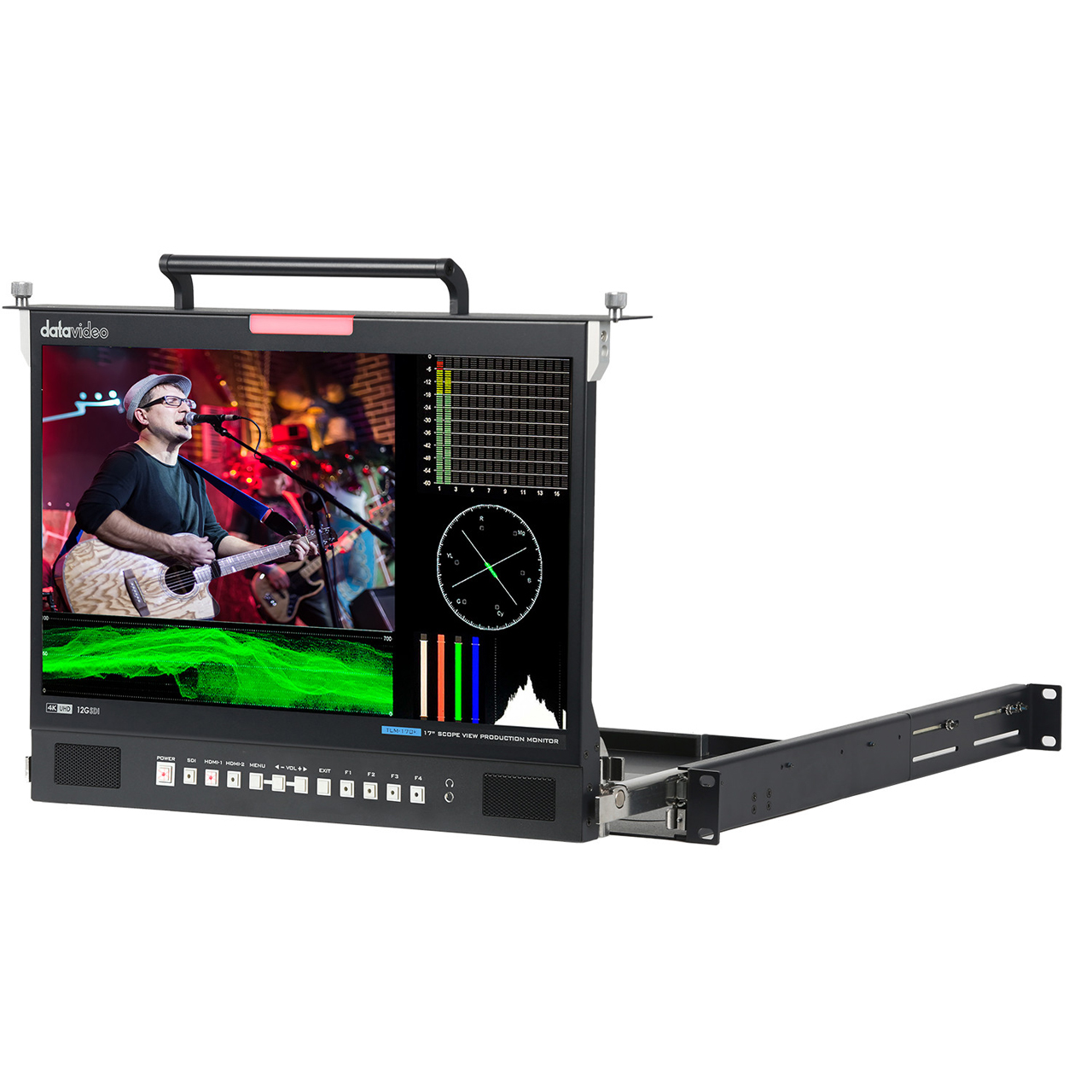

The Datavideo TLM-170KM is a pull-out 17" 4K UHD LCD monitor which comes with an UHD 3840x2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300cd/m² and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.

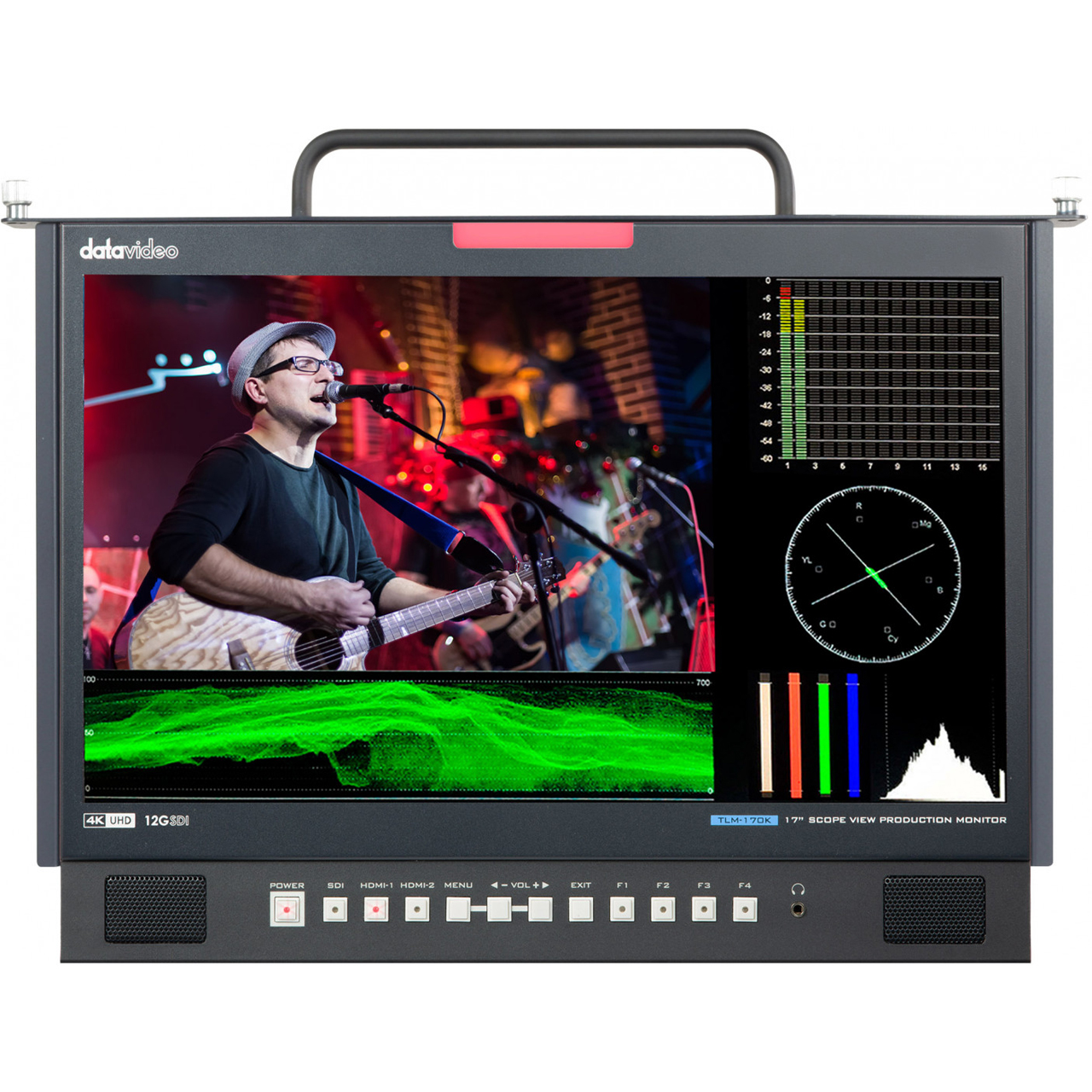

The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.

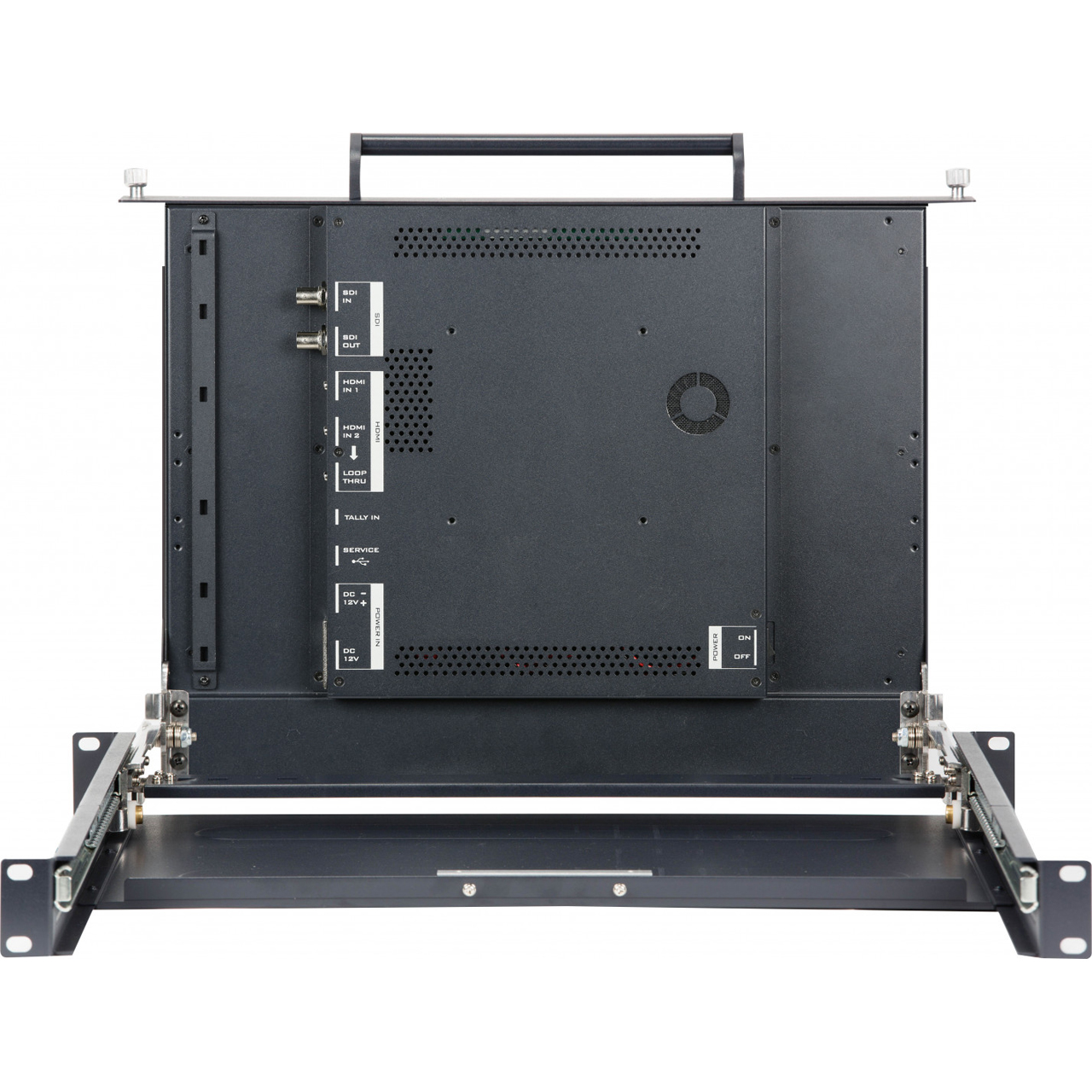

The TLM-170KM offers a UHD 3840x2160 LCD Panel which provides a wide viewing angle of 178°, 300cd/m² brightness, and 1000:1 contrast ratio. It features a 12G-SDI input and two HDMI 2.0 inputs with one loop through output allowing connection of up to DCI 4K and Ultra HD video sources. It is equipped with various functions such as waveform, vector scope, false color filter, histogram, peaking filter, zoom, screen markers, etc. The unit also has two HDR transfer functions which are HLG and SMPTE 2084. The color space includes options such as Rec 709 and DCI P3 Cinema. Designed specifically for broadcast and field production applications.
