EasySplicer MK2 Portable Automatic Fiber Fusion Splicer for Singlemode & Multimode with Built-in Oven

ITEM #: EASY-SPLICER MFG #: EASY-SPLICER

close - X

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$1,640.00

Our Price:

$1,265.00

Availability: In Stock
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


EASY-SPLICER - Overview

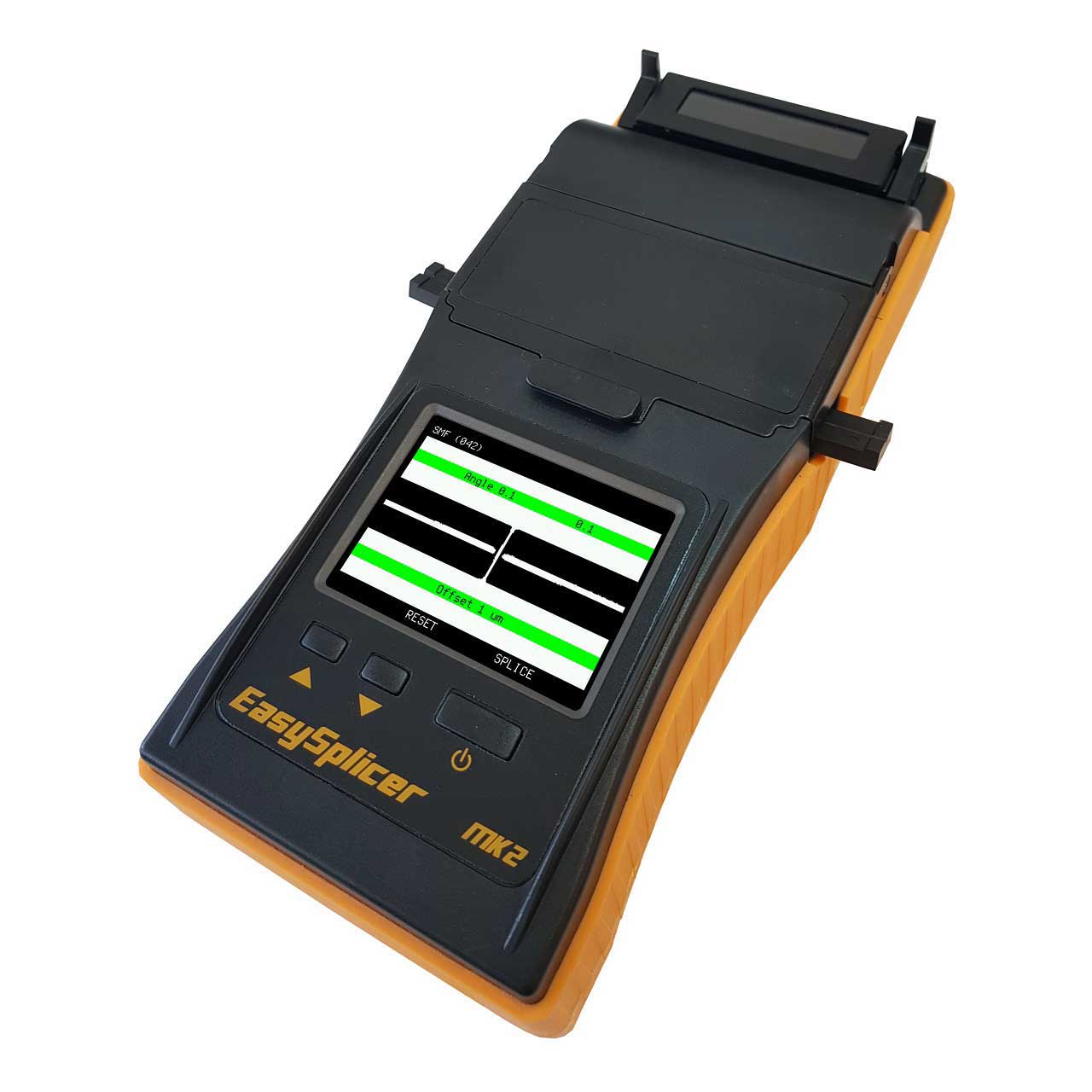

The EasySplicer mk2 is a precision, Swedish made Fiber Optic Fusion Splicer, created for onsite installations. It's designed to be portable, rugged and allows you to solve fiber issues in the field.

EasySplicer mk2 differs a bit from other Fiber Optic Fusion Splicers, it's specifically made for the on the job installer and end-user. Many of the Splicers on the market are difficult to use and require a lot of education before they can be easily operated. EasySplicer mk2 is easy to learn, in most cases you're up and running within an hour.

EasySplicer mk2 functions are simple too, three buttons total and most functions only require the use of the main button for splicing. Still, the precision of the unit is extremely high. A typical splice only has a loss of 0,03 dB (Single mode). After splicing it pull tests the splice and makes a loss estimation and troubleshoots your work. Warnings are also provided before splicing (like; Bad fiber, Dirty fiber and offset).

The on board battery-pack, small yet powerful, allows you to perform some 60 splices before you need to recharge. Extra battery-packs are sold separately and are easily swapped out onsite.

EasySplicer mk2 constantly calibrates itself for environmental changes like moisture, air pressure and temperature. This can also be done manually, and calibration is performed within seconds to make sure the splice is perfect.

EasySplicer mk2 uses the V-grove method for splicing and is simple to service and maintain, it's easily one of the most inexpensive splicers on the market yet still boasts a performance rate 3-4 times beyond more expensive units!
