Elation RDMX6S 6-Way RDM/DMX Datasplitter Featuring a 5pin XLR Input 5pin XLR Thru Output (6) 5pin XLR Outputs
  • Elation RDMX6S 6-Way RDM/DMX Datasplitter Featuring a 5pin XLR Input 5pin XLR Thru Output (6) 5pin XLR Outputs
  • Elation RDMX6S 6-Way RDM/DMX Datasplitter Featuring a 5pin XLR Input 5pin XLR Thru Output (6) 5pin XLR Outputs
  • Elation RDMX6S 6-Way RDM/DMX Datasplitter Featuring a 5pin XLR Input 5pin XLR Thru Output (6) 5pin XLR Outputs
  • Elation RDMX6S 6-Way RDM/DMX Datasplitter Featuring a 5pin XLR Input 5pin XLR Thru Output (6) 5pin XLR Outputs
  • Elation RDMX6S 6-Way RDM/DMX Datasplitter Featuring a 5pin XLR Input 5pin XLR Thru Output (6) 5pin XLR Outputs

Questions? Ask a Markertek Expert:
800-522-2025 Email

Elation RDMX6S 6-Way RDM/DMX Datasplitter Featuring a 5pin XLR Input 5pin XLR Thru Output (6) 5pin XLR Outputs

Manufacturer: Elation

Item #: ELAT-RDMX6S   •   MFG #: RDMX6S



List Price:$500.00
Our Price:$400.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

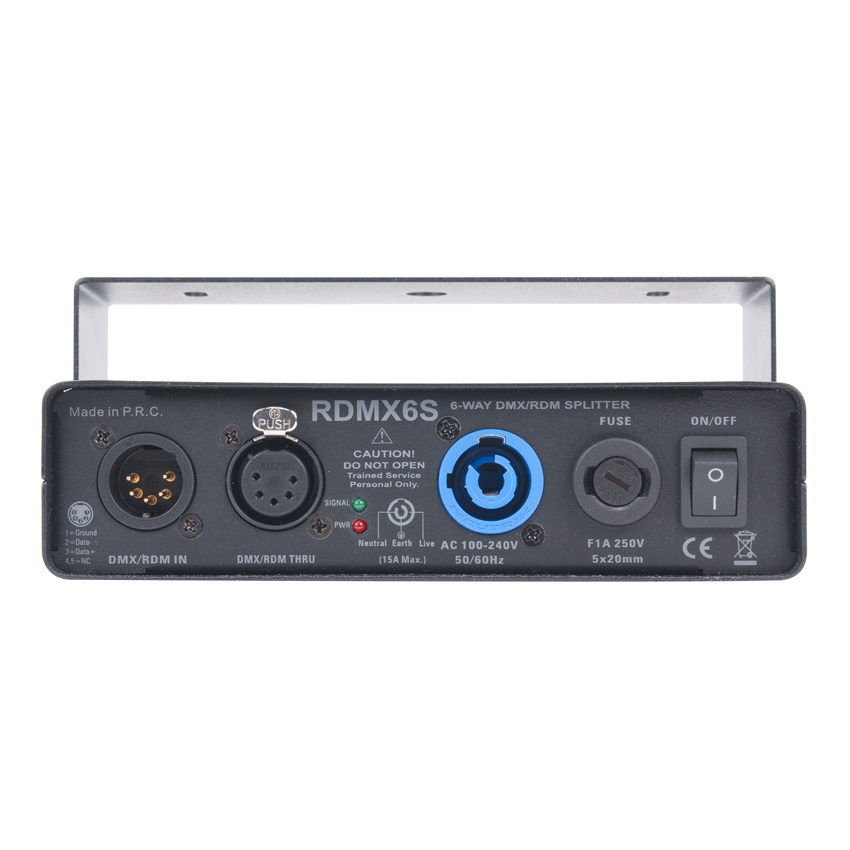

    The RDMX6S is an easy-to-use RDM E1.20 compliant 6-way RDM/DMX data splitter featuring a 5pin DMX input, a 5pin DMX loop thru output with built-in termination, and (6) opto-isolated 5pin DMX outputs. Housed in a die-cast aluminum housing, it features a multi-voltage universal auto switching power supply (100-240v), and includes a single unit mounting bracket for truss/clamp installation. Optional single and dual unit rack mount kits are available.


    • Features

      • RDM E1.20 Compliant
      • 5pin DMX Loop Thru Output with Built-In Termination

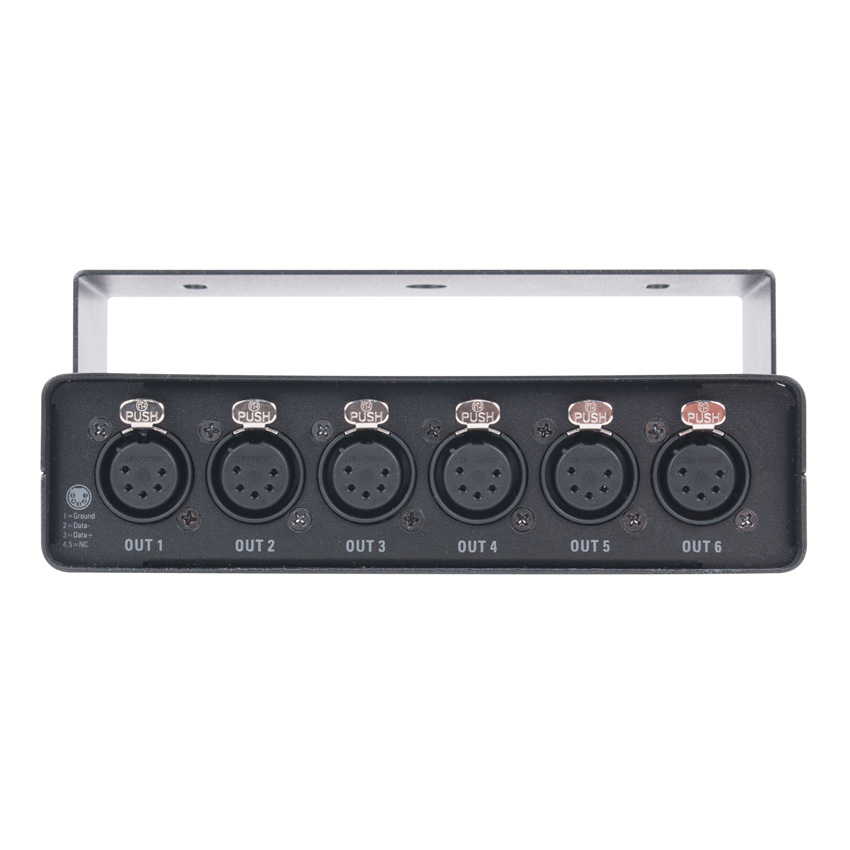

      • (6) Opto-Isolated 5pin DMX Outputs
      • powerCON In
      • Universal Multi-Voltage Auto Switching Power Supply

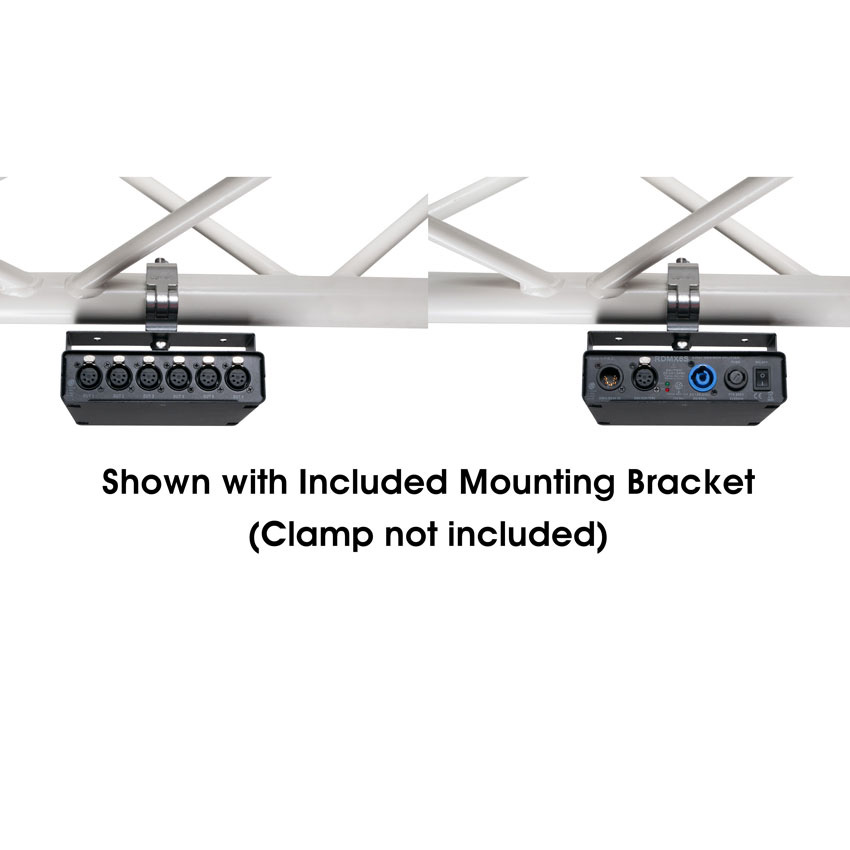

      • Mounting Bracket for Truss/Clamp Installation Included

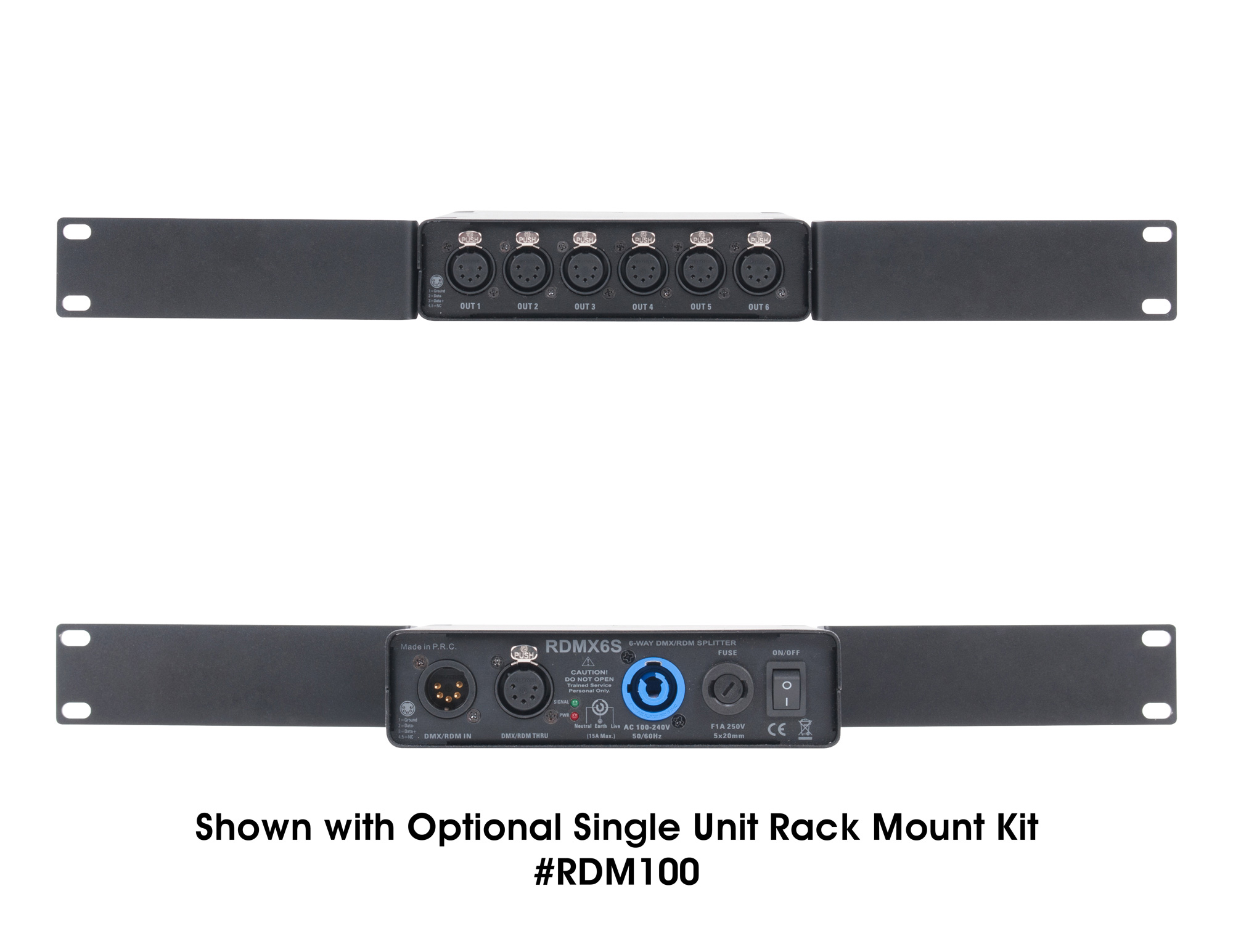

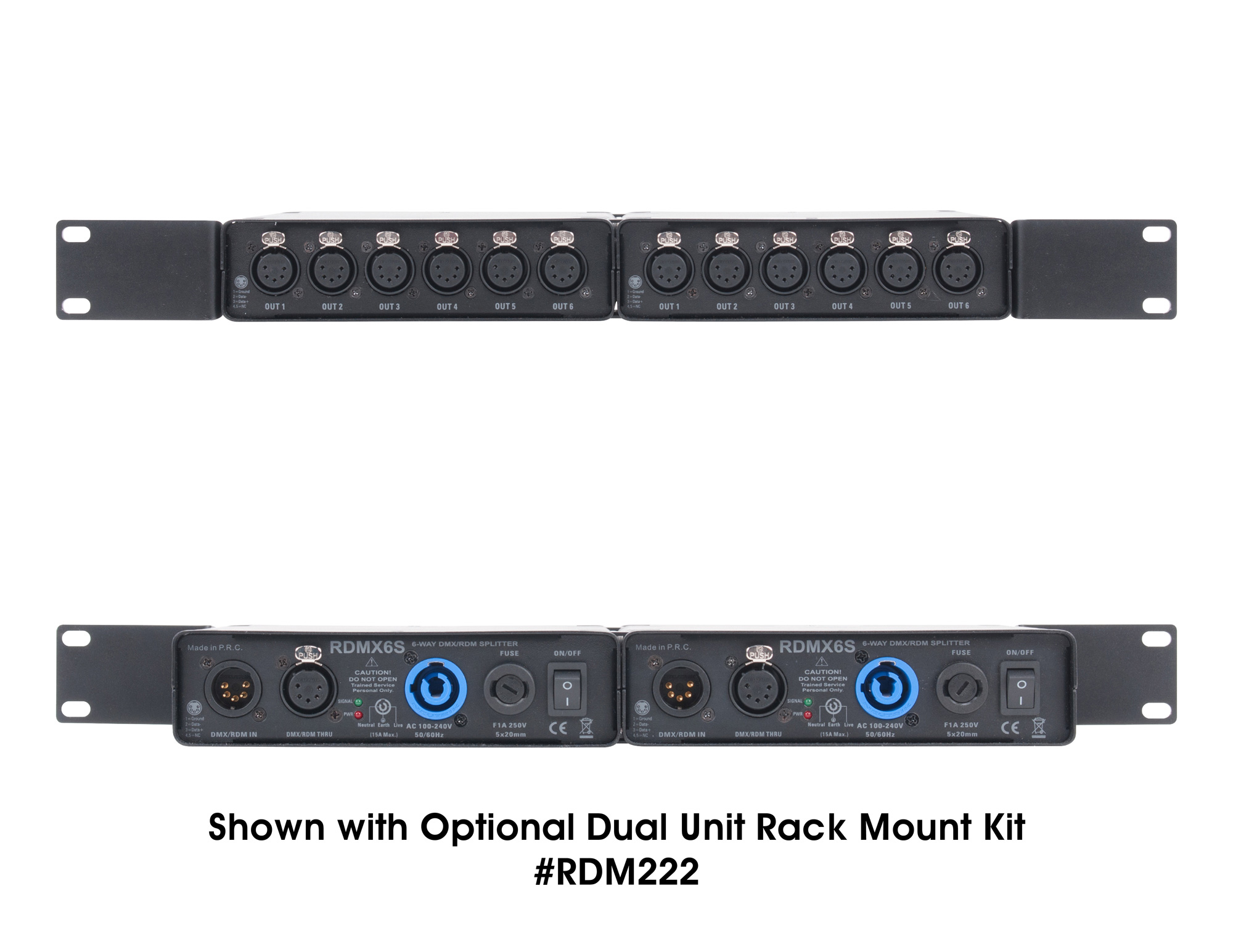

      • Optional Single and Dual Unit Rack Mount Kits Available

    • Specifications

      • CONTROL / CONNECTIONS
      • 5pin DMX Input
      • 5pin DMX Lopp Thru Output w/Built-In Termination
      • (6) 5pin Opto-Isolated DMX Outputs
      • powerCON In

      • SIZE / WEIGHT
      • Length: 6.8" (173mm)
      • Width: 6.7" (170mm)
      • Vertical Height: 2.9" (74mm) (with mounting bracket)
      • Weight: 2.1 lbs. (1.0kg)

      • ELECTRICAL / THERMAL
      • AC 100-240V - 50/60Hz
      • 3W Max Power Consumption
      • 14°F (-10°C) to 113°F (45°C)

      • APPROVALS / RATINGS
      • CE | RoHs

    • GTIN:

      0837874019261
