DVI2PCIE DUO ESP0705 - Overview

High-performance Dual-input PCIe capture card for professional applications

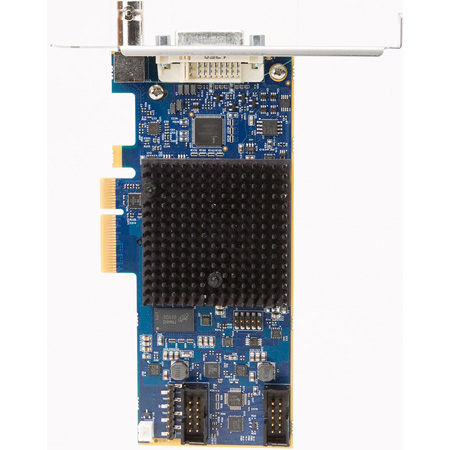

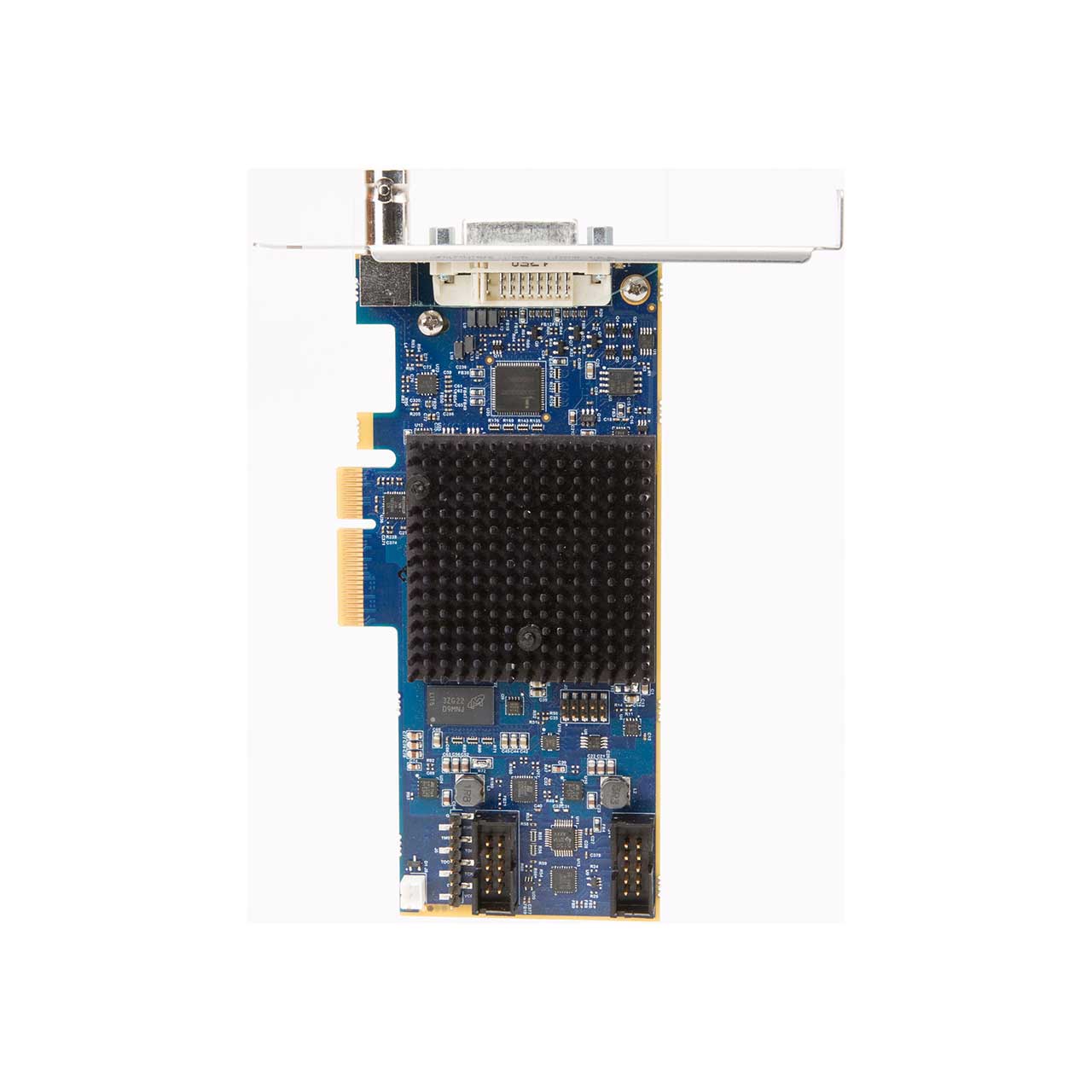

The Epiphan Video DVI2PCIe Duo is an internal PCIe video grabber capable of capturing lossless video from dual-link and single-link DVI video sources, VGA/HDMI™, and SDI video sources, and audio from SDI and unencrypted HDMI sources. Install the optional EPIP-DVI2PCIEAVK (sold separately) DVI2PCIe AV Kit to add capture for S-Video/composite, analog audio, and balanced or unbalanced TRS Audio.

Flawless capture for Windows and Linux

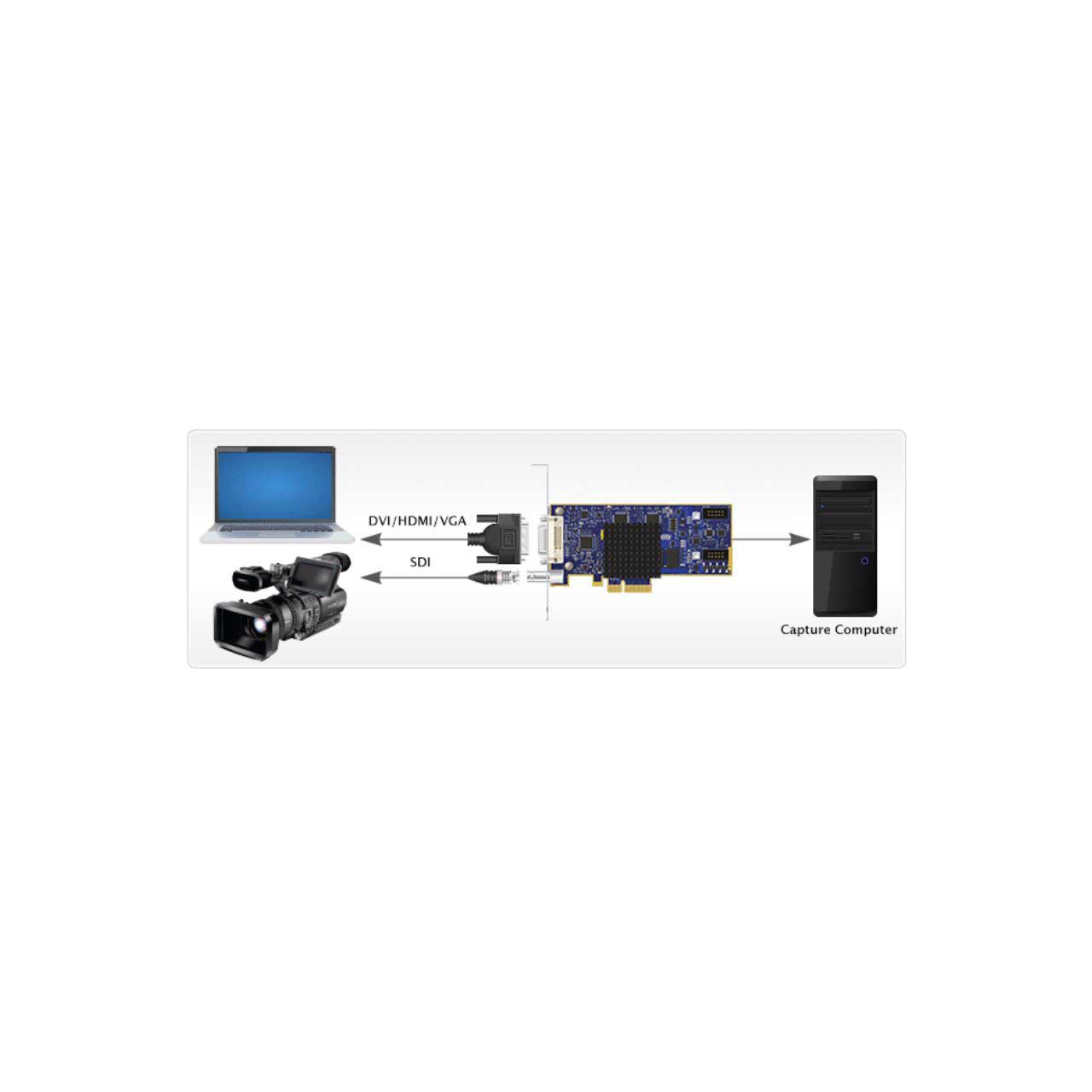

Capture professional-quality video directly from SDI or DVI sources in up to 2048x2048 resolution and 85 fps. Use DVI2PCIe Duo's uncompressed, dual-channel video capture with third-party recording, streaming, conferencing, and video analysis applications running on Windows- or Linux-based systems. Built for 2U cases, this low-profile capture card also includes a bracket for installation in full-height cases.

High-quality output
Whether it's slow-moving or fast-moving video, DVI2PCIe Duo captures at a consistent frame rate. And with zero compression, DVI2PCIe Duo will capture and transfer every pixel of the frame.

Easy to install
Designed for AV professionals who require an express card to fit into an existing desktop solution, DVI2PCIe Duo easily fits into any PCIe expansion slot. Full and half-height installation options are available to suit your desktop configuration.

Included capture tool and drivers
All Epiphan capture cards include our free capture software and drivers, which interface seamlessly with a range of industry-standard encoding and streaming software. Firmware upgrades are also available free of charge; your Epiphan video capture device will notify you when one is available for download.

Integrates with multimedia applications
DVI2PCIe Duo saves captured images and videos to the most widely used file formats, like AVI.
