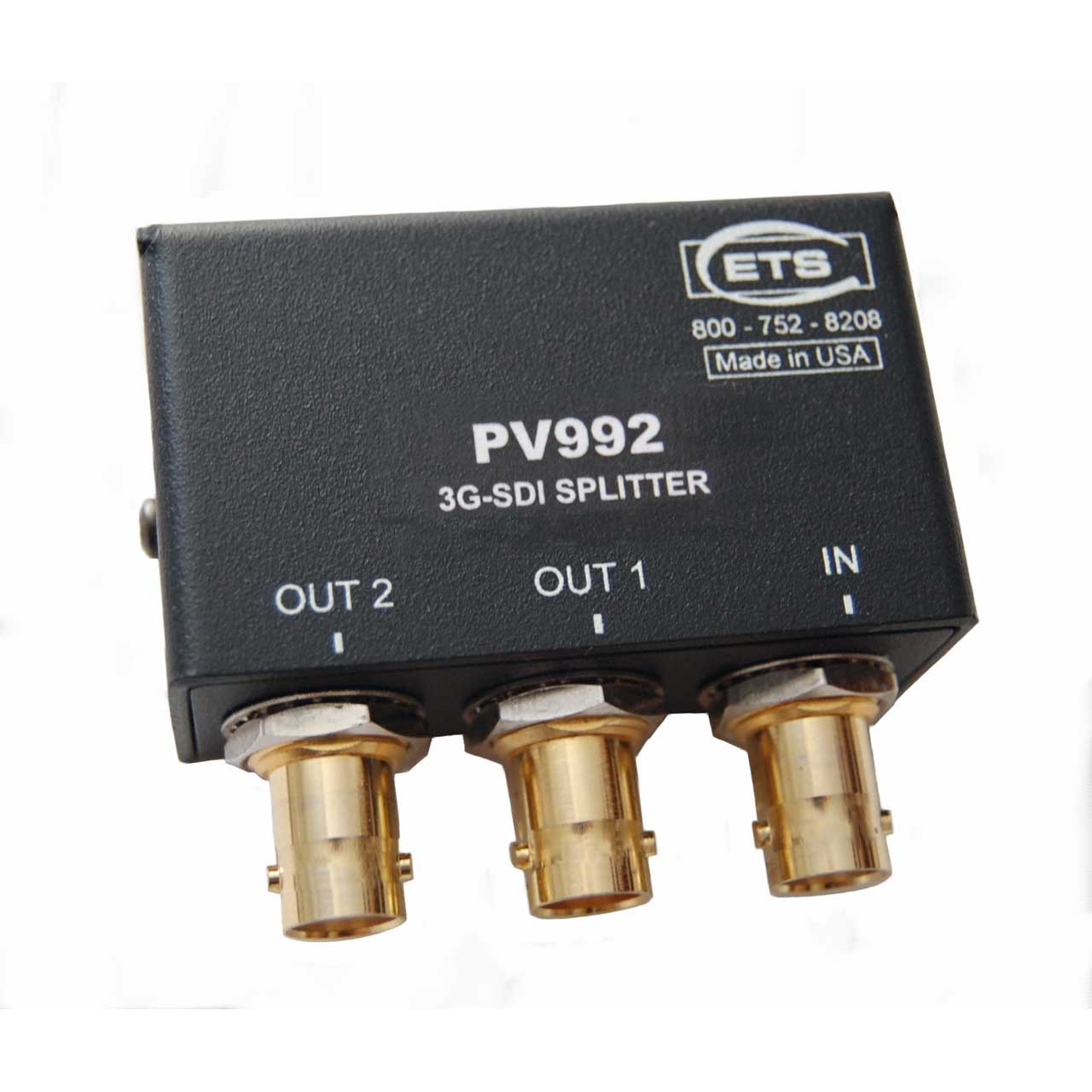

ETS PV992 3G HD-SDI 1x2 Splitter 1 Female BNC to 2 Female BNC

ITEM #: ETS-PV992 MFG #: PV992

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    PV992 - Overview

    Energy Transformation Systems does it again. Featuring the ETS PV992 3G SDI 1X2 Splitter. This passive, versatile and easy-to-use video splitter is designed for studio use, on-location productions, as well as live performance venues. The SDI Splitter can be used for monitoring in a wide variety of installations and locations. The small, compact solution can be easily integrated into most sytems easily and discreetly.

    The PV991 1x2 3G SDI Splitter supports all standard serial digital video data rates up to 3Gbps and is designed to split a SMPTE video signal into two full-quality broadcast video signals and send them to video monitors or other digital devices over RG6 or RG59U coax cable. Distance varies depending on the type of cable, source and display equipment used in the system.

    • Features:

      • Enables two outputs from a single source without interference or impedancemismatch.
      • Passive device with superior reliability and simplicity: no power required.
      • Individual splitter or in rackmount panel up to 16 units across.
      • Expandable according to production studio requirements.
      • Sturdy compact anodized plated metal case.
      • 100% tested and USA-made.
    • Specifications:

      • Data Rate: Up to 3 GBps
      • Video Format: SMPTE 259M, SMPTE 292M & SMPTE 424M
      • Connectors: 75 ohm Female BNC all ports
      • Impedance: 75 ohm
      • Insertion Loss: < 4 dB
      • Return Loss: -20dB
      • Media: RG6 or RG59 cables
      • Operating Temp: -40C to 85 degrees C
      • Dimensions: 63 mm x 58 mm x 26 mm
      • Net Weight: 0.10 Kg
