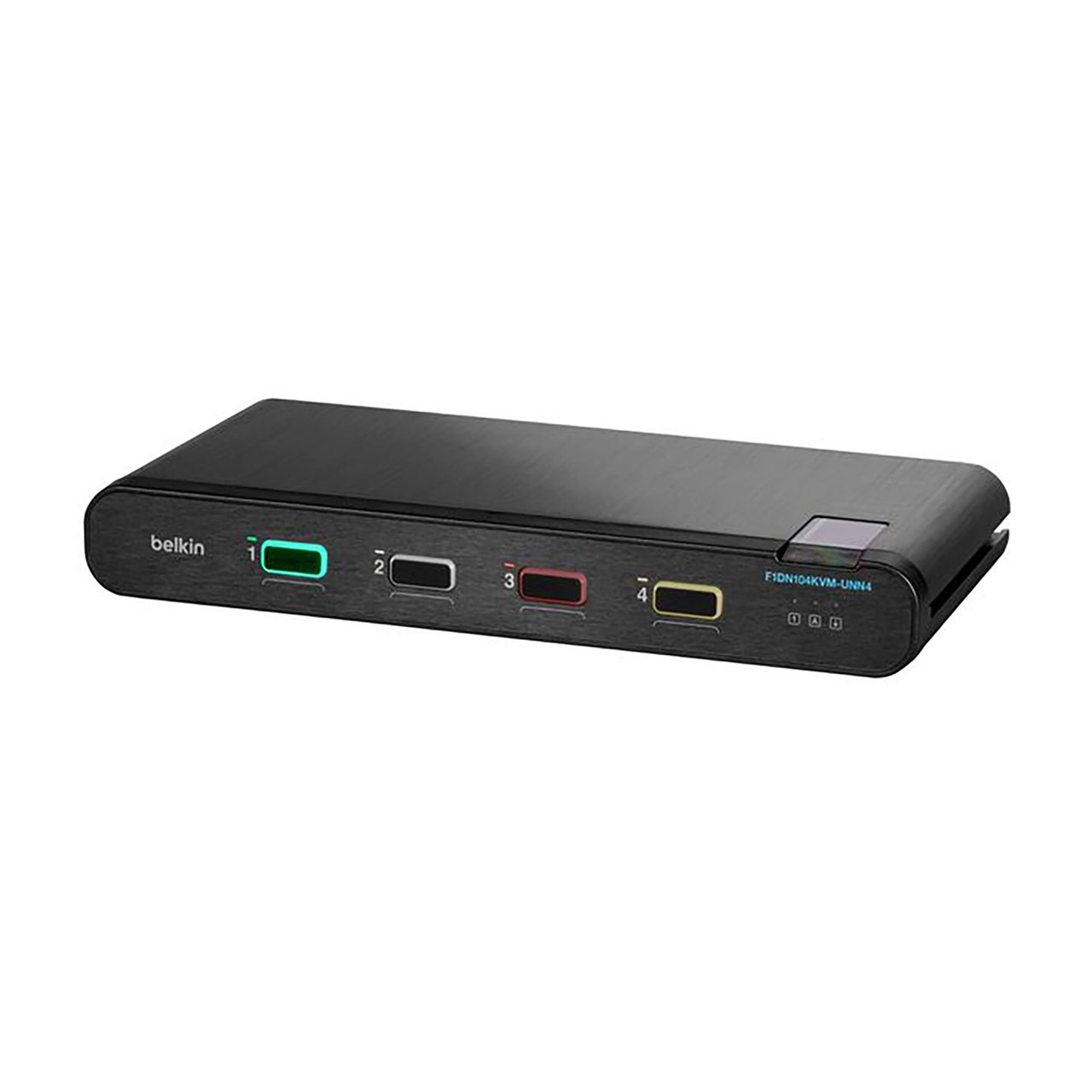

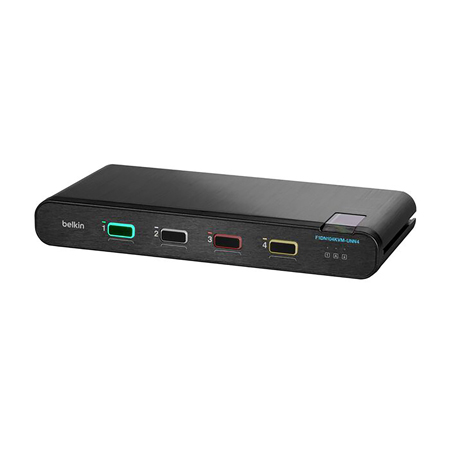

Belkin F1DN104KVM-UNN4 Universal Second Gen Secure KVM Switch - 4-Port Single Head - No CAC - 4 Computers/1 Local User

ITEM #: F1DN104KVM-UNN4 MFG #: F1DN104KVM-UNN4

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,130.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


F1DN104KVM-UNN4 - Overview

Created to deliver a streamlined user experience when working across security enclaves, the Belkin F1DN104KVM-UNN4 are universal 2nd generation secure KVM switches. These SKVM switches are designed to meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements. Compatible with the optional Belkin Secure KVM Remote Control with Integrated Keyboard, the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen Secure KVM series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems. Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen Secure KVMs. US-manufactured and TAA-compliant, these Secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions-including government, military, and healthcare applications.

  • Features:

    • Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
    • Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
    • Display security: Protected display interface prevents data leakage via the monitor
    • Analog audio via 3.5mm jack with ultrasonic audio filtering
    • Peripheral management: USB device detection prevents unauthorized peripheral usage
    • Active Anti-tampering and Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
    • Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
    • Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport
    • Designed for NIAP Protection Profile PSD 4.0 Compliance
    • Combo connector video support for up to 4K (3840x2160), @60hz refresh

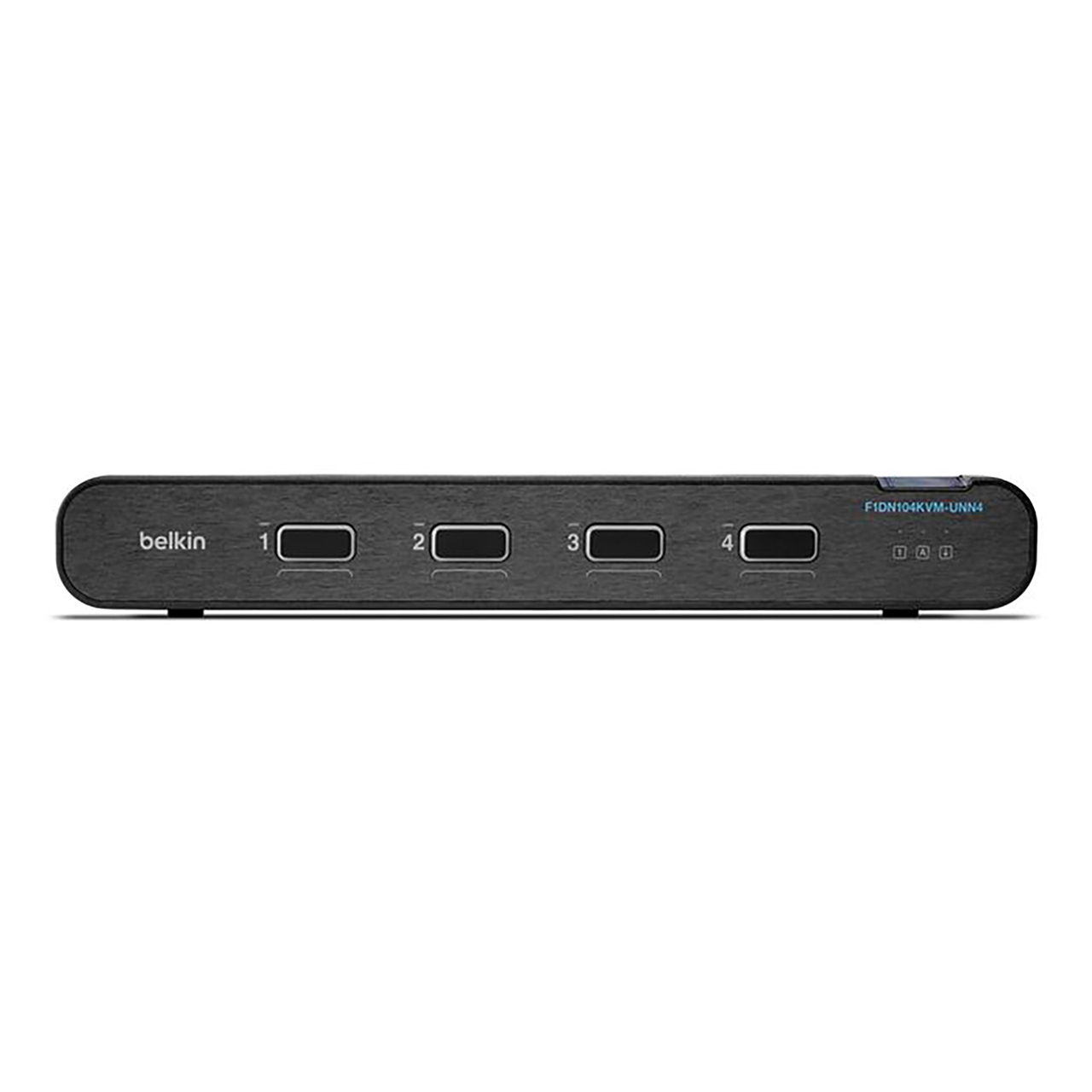

    • Customizable port coloring and naming on the front panel: Facilitates port identification and reduces user switching errors. Color coding mimicked by Belkin KVM Remote Control with Integrated Keyboard
    • Supports TAA combo and video cables for easy deployment
    • Supports up to four host computers
    • Supports one display for the user

  • Specifications:

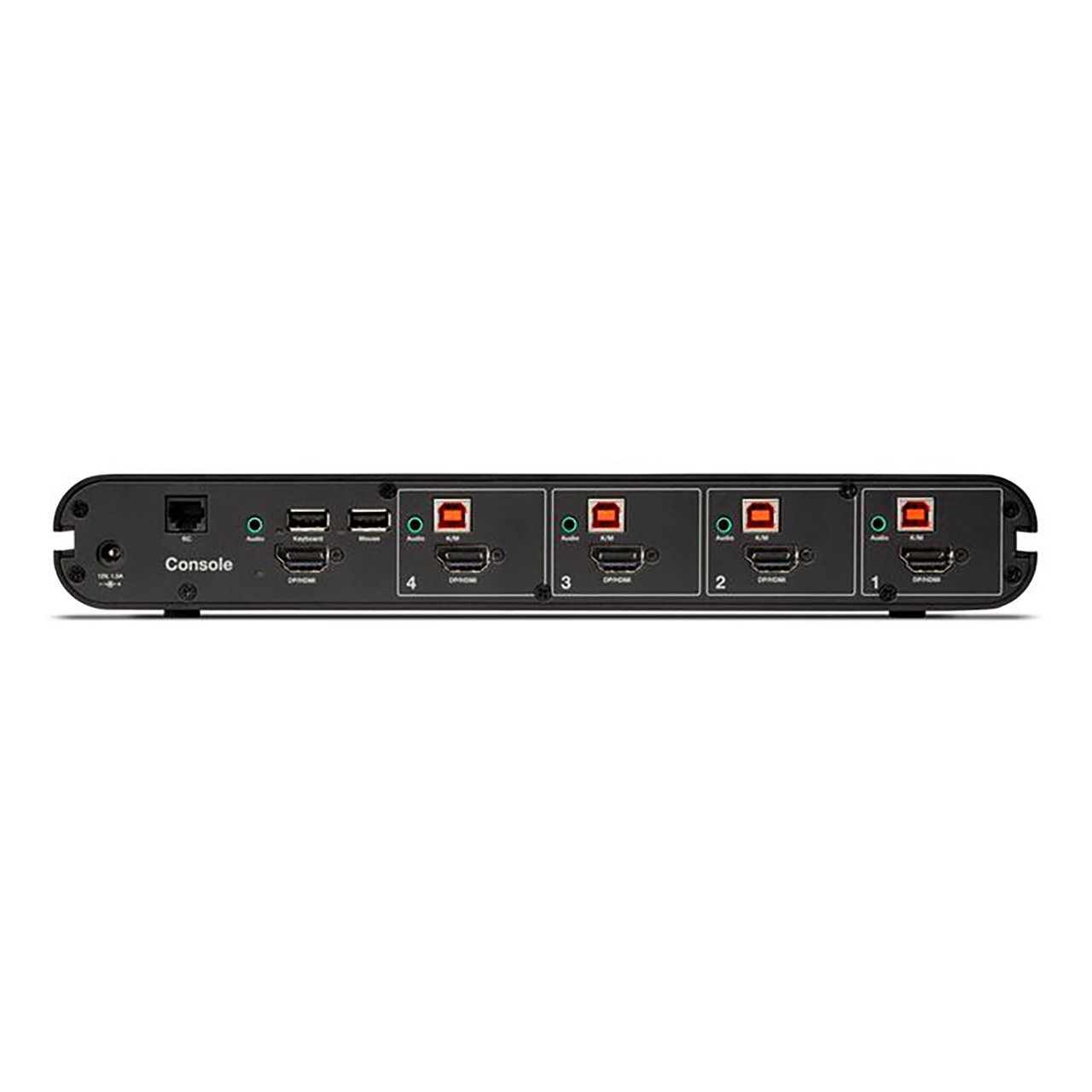

    • PC Ports:
      - 4x Display Port/HDMI
      - 4x Host Ports
      - Supported Audio Fortmat: 4x 3.5mm Analog
    • Console Ports:
      - 1x Display Port/HDMI monitor
      - 2x USB Keyboard/Mouse connections
      - 1x Audio 3.5mm Analog
      - 1x Remote
    • Remote Control Included: No
    • Housing Type: Extruded Aluminum
    • Certifications: FCC Class A UL CE RoHS ICES RCM
    • TAA Compliant: Yes

  • Item Includes:

    • 1x Belkin F1DN104KVM-UNN4 monitor switch
    • 1x 12V, 1.5A universal power supply with worldwide adaptors
    • 1x Set of port naming labels
    • 1x Quick start guide and compliance documentation

  • Warranty:

    • 2-Year Limited Warranty
