Grass Valley PTZ-35X-HD Professional UHD/HD/SD NDI/HX Broadcast Conference & Streaming PTZ Camera

ITEM #: GVLY-PTZ-35X-HD MFG #: PTZ-35X-HD

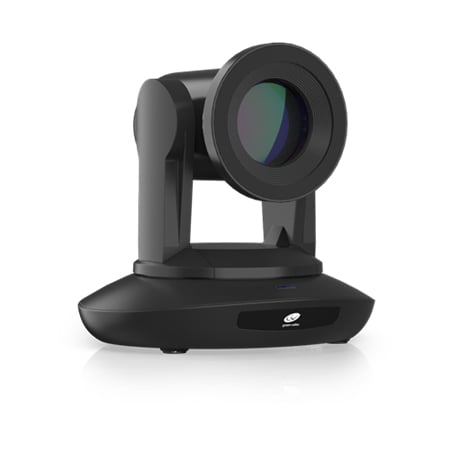

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GVLY-PTZ-35X-HD

PTZ-35X-HD - Overview

The Grass Valley is a professional UHD/HD/SD NDI/HX broadcast conference & streaming PTZ camera. There are many situations that require video capture, but where sending in a camera operator is not feasible. When you need a small and unobtrusive camera that you can "set and forget," the Grass Valley pan-tilt-zoom camera provides a versatile and affordable way to capture images in situations that are not suited to larger cameras, with the image quality you expect from a Grass Valley camera.

Operating the camera is simple. The PTZ 35X HD reduces production complexity with remote control from any of Grass Valley's Kula switchers or automated as a part of GV Pace pre-set scenes. Images from the PTZ 35X can be intermixed with images from Grass Valley's LDX cameras without the audience seeing noticeable shifts in image quality.

  • Features:

    • Adopts the most advanced Image Signal Processing, with a 1/1.7-in. 12.4 MP sensor, providing 3840x2160p30 Ultra HD video resolution
    • 4K wide angle optical lens: 35x optical zoom and 2x digital zoom, with a wide 60.5° horizontal angle of view
    • 4K video over IP, H.264, H.265 encoding
    • Supports NDI v4.0 video transmission and control
    • NDI|HX, HDMI, 3G-SDI, USB outputs, fit for different application, 4K video streaming over NDI|HX and HDMI
    • White balance, exposure, focus, iris can be adjusted automatically or manually
    • Supports PoE: one single CAT5/6 to get video, control and power supply
    • Special focusing algorithm: fast and precise focusing performance when zooming or moving
    • Smooth PTZ mechanical design, accurate pan tilt motor control
    • 128 presets supported - exposure parameter and white balance parameter can be saved in presets (in manual mode)
    • Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP
    • Daisy chain supported, max. 7 cameras connected in VISCA protocol
    • Image flip function, supports upside-down installation
    • Fast video format switch: less than 3 seconds
    • Supported field upgrade for ISP, ARM, FPGA and USB
    • USB 3.0 port compatible with USB 2.0 output
    • Supports RS-232/RS-485/UVC control

  • Specifications:

    • Video Interface: HDMI (v1.4), SDI, NDI|HX, USB3.0, USB2.0
    • Zoom: f5.8~20 3 mm (35X), f1.5 - 4.8; View angle: 60° (far) - 2.02° (near)
    • Sensor: 1/1.7-in. 12.4 MP CMOS sensor
    • Rotation Angle:
      Pan: -170° ~ +170°
      Tilt: -30° ~ +90°
    • Rotation Speed:
      Pan: 0°~120°/s
      Tilt: 0°~80°/s
    • Preset
      Remote controller: 10
      RS-232: 128
      Accuracy: 0.1°

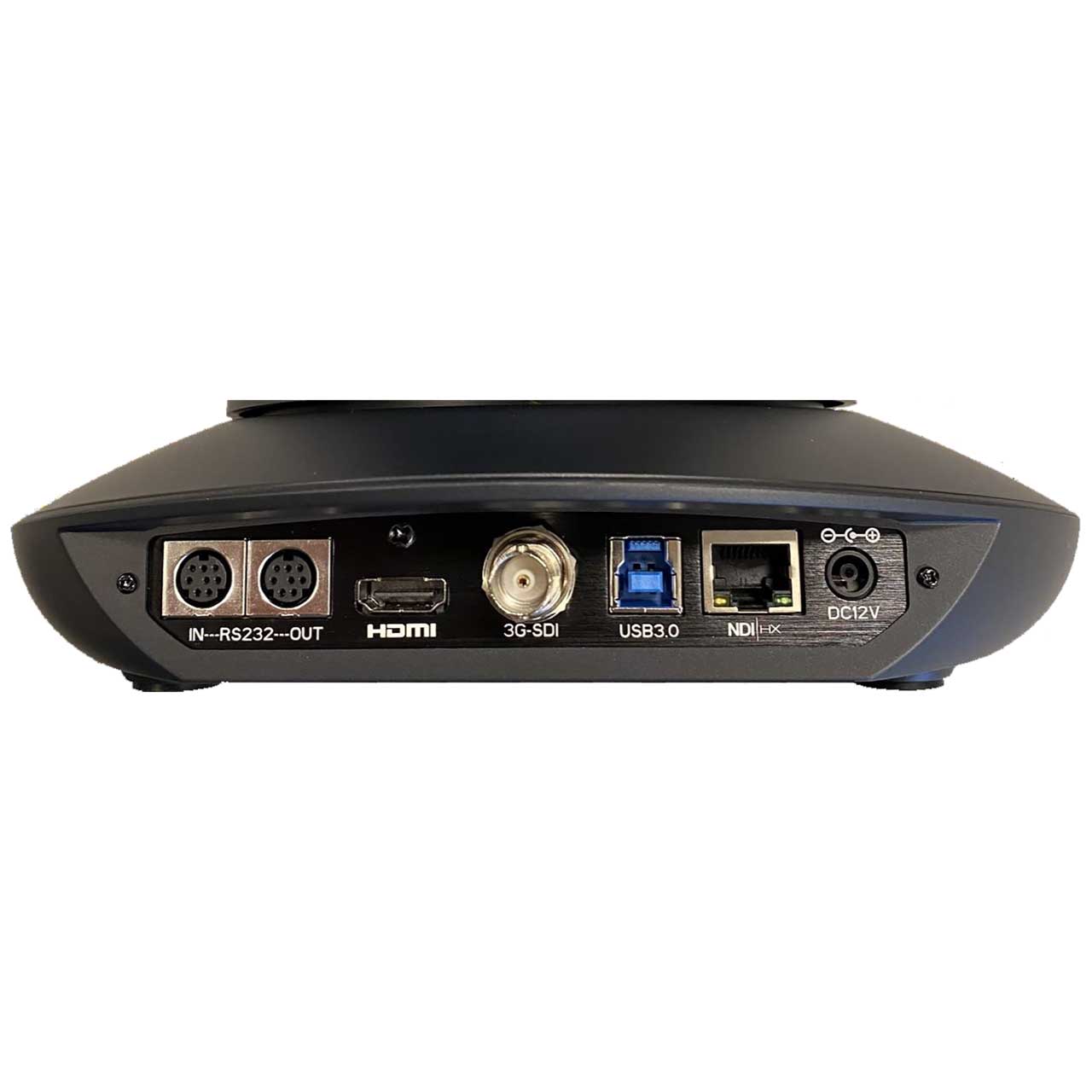

    • Control Port: RS-232, RS-485, NDI|HX (VISCA over IP), USB 3.0 (UVC1.5), USB 2.0 (UVC1.1)
    • Network Speed: 1000 Mb/s
    • Video Encode: H.264/H.265
    • Bit Rate Control: Variable bit rate, constant bit rate
    • Video Bit Rate: 1024 kb/s ~ 20480 kb/s
    • Supported Protocol
      TCP/IP, HTTP, RTSP, DHCP, RTMP, ONVIF (2.4), NDI (V4.0)
      VISCA over IP (TCP & UDP), HTML5, VISCA, PELCO P/D
      PoE: Supported, POE+ (IEEE 802.3at)
    • Daisy Chain: Support RS-232 serial daisy chain
    • Minimum Lux: 0.1 lux
    • White Balance: Auto / indoor / outdoor / manual / push / sodium lamp auto / sodium lamp
    • Exposure: Auto / manual / bright / shutter / iris
    • Focus: Auto/manual
    • Iris: Auto / Manual
    • Electric Shutter: Auto / Manual
    • Gamma: Supported
    • WDR: Supported
    • BLC: Supported
    • 2D Noise Reduction: Supported
    • 3D Noise Reduction: Supported
    • Anti-Flicker: OFF/50 Hz/60 Hz
    • Pan Tilt Flip: Supported
    • Input Voltage: DC12V/PoE (IEEE802.3af)
    • Video Formats
    • HDMI (v1.4)
    • 3840x2160p30/25
    • 1920x1080p60/50/30/25/59.94/29.97/24
    • 1920x1080i60/50/59.94
    • 1280x720p60/50/30/25/59.94/29.97
    • SDI
    • 1920x1080p60/50/30/25/59.94/29.97/24
    • 1920x1080i60/50/59.94
    • 1280x720p60/50/30/25/59.94/29.97
    • USB
    • 1920x1080p60/50/30/25 (USB 3.0)
    • 1280x720p60/50/30 (USB 3.0)
    • 1280x720p25 (USB 3.0 & USB 2.0)
    • 1024x576p30 (USB 3.0 & USB 2.0)
    • 960x540p30 (USB 2.0)
    • 640x360p30 (USB 2.0)
    • 512x288p30 (USB 2.0)
    • IP
    • 3840x2160 @1~30 / 1920x1080 @1~30 (main stream)
    • 1280x720 @1~30 / 1027x576 @1~30 / 640x360 @1~30 (sub stream)
    • NDI
    • 3840x2160 @15~30
    • 1920x1080 @15~30
    • 1280x720 @15~30
    • 1027x576 @15~30
    • 640x360 @30 (low bandwidth mode)
