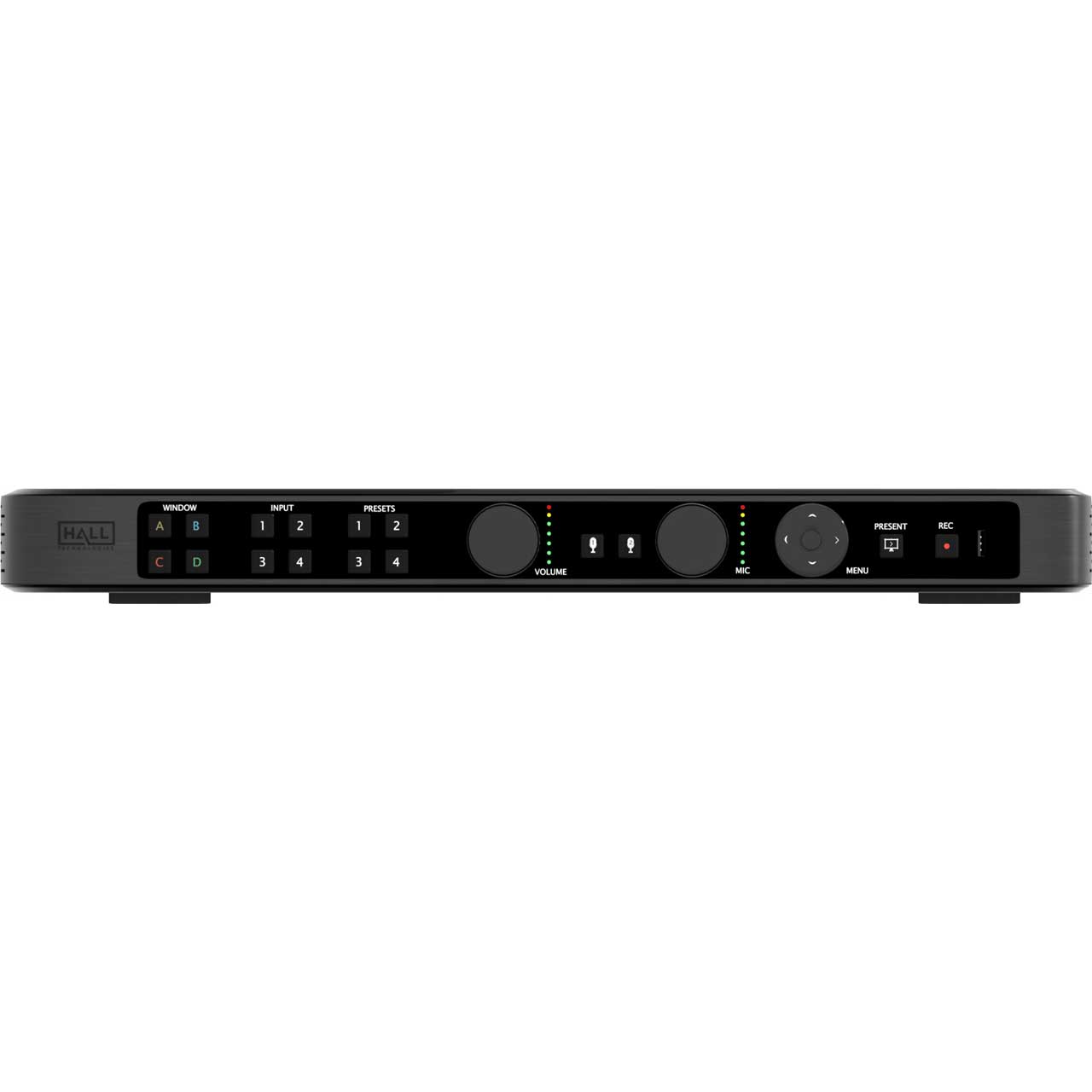

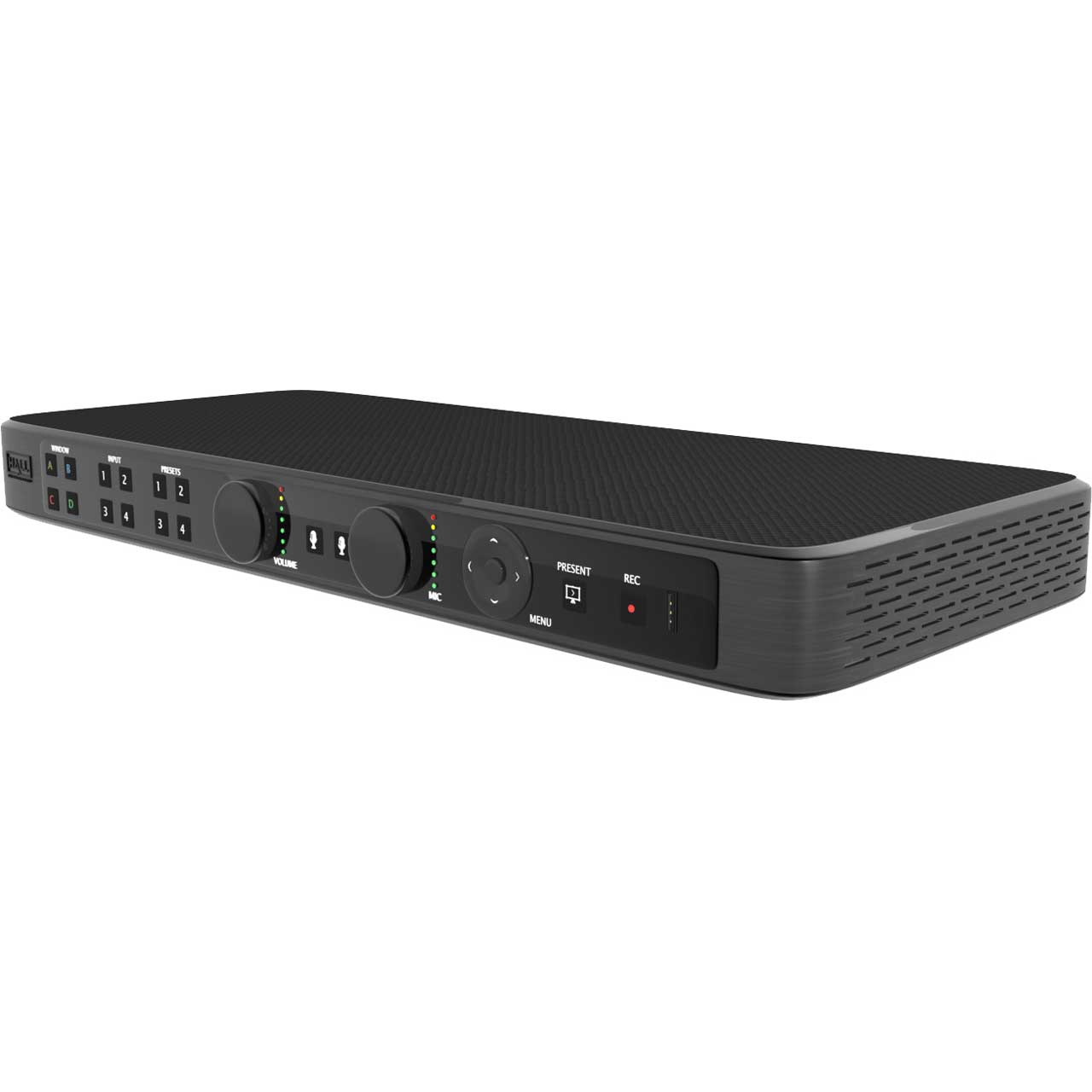

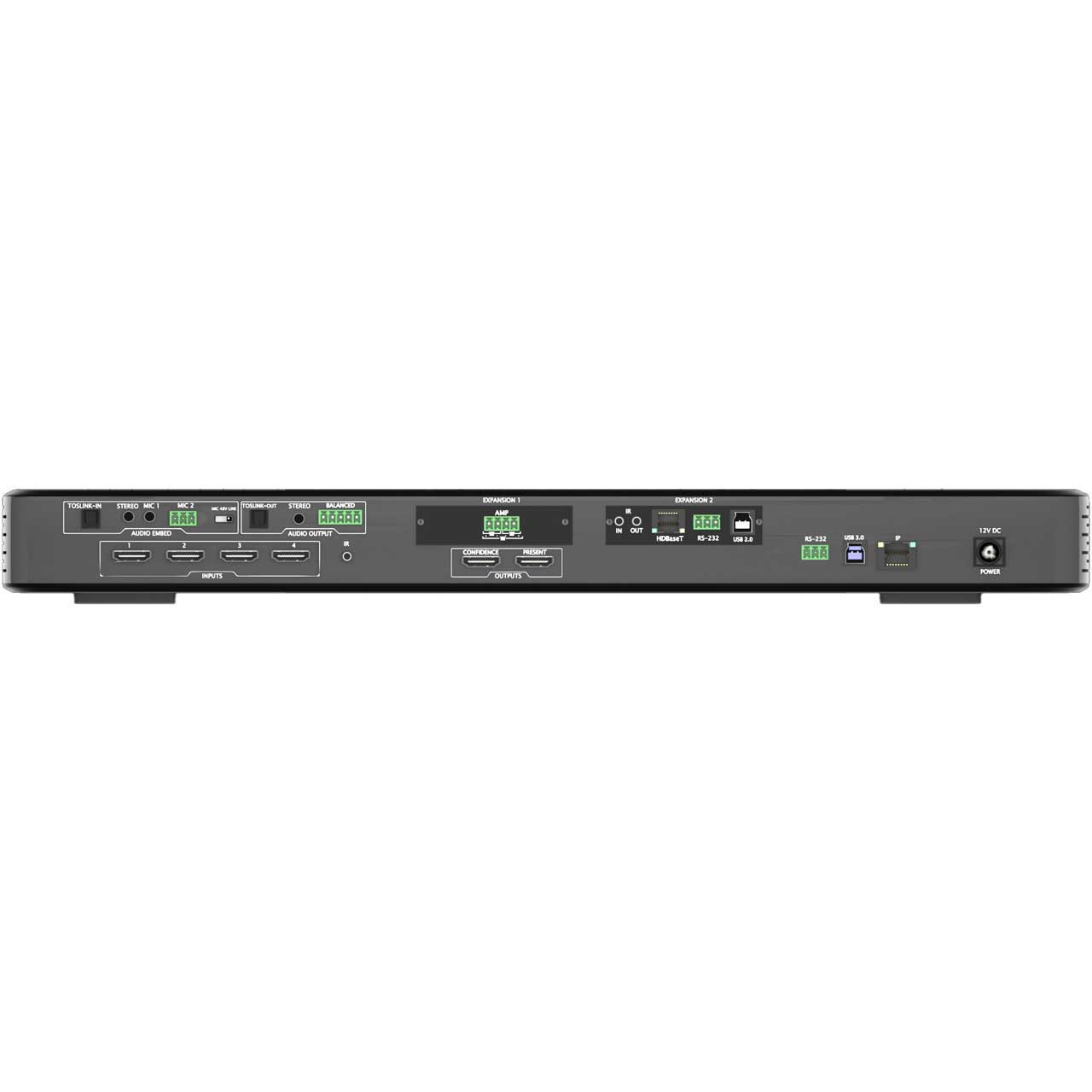

Hall Technologies EMCEE200 18G 4x2 Presentation Switcher with Seamless Switching & 4K/USB3 Capture

ITEM #: HRT-EMCEE200 MFG #: EMCEE200

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$2,638.90

Our Price:

$2,506.96

Availability: In Stock
iAvailability Description Popup


    EMCEE200 - Overview

    Hall Technologies EMCEE200 is a seamless multiview presentation switcher scaler with Picture-in-Picture (PIP) and Picture-Over-Picture (POP) capabilities. It can process up to four 4K@60 video sources with zero latency and gives "CONFIDENCE" and "PRESENT" HDMI outputs in different window layouts. With a built-in dual MIC mixer and a wide range of Audio Embedding and De-Embedding options, EMCEE is a perfect companion for any type of presentation. EMCEE can not only record the presentation to an external storage device but also provides USB3.0 4K capture to stream live with no additional hardware.

    • Features:

      • Seamless Switching
      • 4K@60 4:4:4 on all Inputs and Outputs
      • Picture-In-Picture (PIP) and Picture-Over-Picture (POP) with Multiview
      • Recording and 4K Capture
      • Dual MIC Mixer
      • Audio Embedding and De-Embedding
      • Confidence and Present Output with Splash Screen Support
      • Built-in WEB Page with IR, RS-232, TCP/IP, and Telnet Control
      • HDBaseT™ 3.0 and Amplifier Plugin Module Support

    • Specifications:

      • Video Standards
      • Input: 4x HDMI 2.0 a
      • Output: 2x HDCP 1.4/2.2
      • 18 Gbps Bandwidth
      • Up to 4K2K@60 (4:4:4)
      • USB 3.0 Capture
        USB 3.0 SuperSpeed Type-B Female
        350MBps
        Compatible with Windows 7/8.1/10, Mac, and Linux OS
        Capture up to 4K2K@60 4:4:4 8Bits
      • USB Recording
        USB 2.0 Type-B Female
        1080p@60 Recording

        Audio
      • HDMI
        PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD 16/20/24 bits per sample up to 96kHz Sampling Rate
      • MIC Input
        1x 3.5mm Audio Jack
        1x 3pin Phoenix Connector
        48V Phantom and Line level audio support
      • Embedding
        1x Digital TOSLINK
        1x STEREO L/R 3.5mm Audio Jack
      • De-embedding
        1x Digital TOSLINK
        1x STEREO L/R 3.5mm Audio Jack
        1x BAL-STEREO 6pin Phoenix Connector

        Control
      • RS232: 115200 bps/3pin Phoenix Connector
      • IP: Embedded WEB-GUI, PC-GUI (Window Only)/ TCP/IP, Telnet Commands
      • IR Remote: 36KHz

        Power
      • Supply: 12V 3A DC (US/EU Standards/CE/FCC/UL Certified)
      • Consumption: 32 Watt Max

        Temperature
      • Operation: 0° to 40°C (32° to 104°F)
      • Storage: -20° to 60°C (-4° to 140°F)
      • Relative Humidity: 20 to 90% (non-condensing)

        Mechanical
      • Mount: 1RU Rack
      • Dimensions (WxDxH): 17.30 x 7.80 x 1.8" (440 x 200 x 45mm)
      • Housing: Aluminum
      • ESD: Human body model - ±12kV (air-gap discharge) & ±8kV

    • GTIN:

      0656750712535
