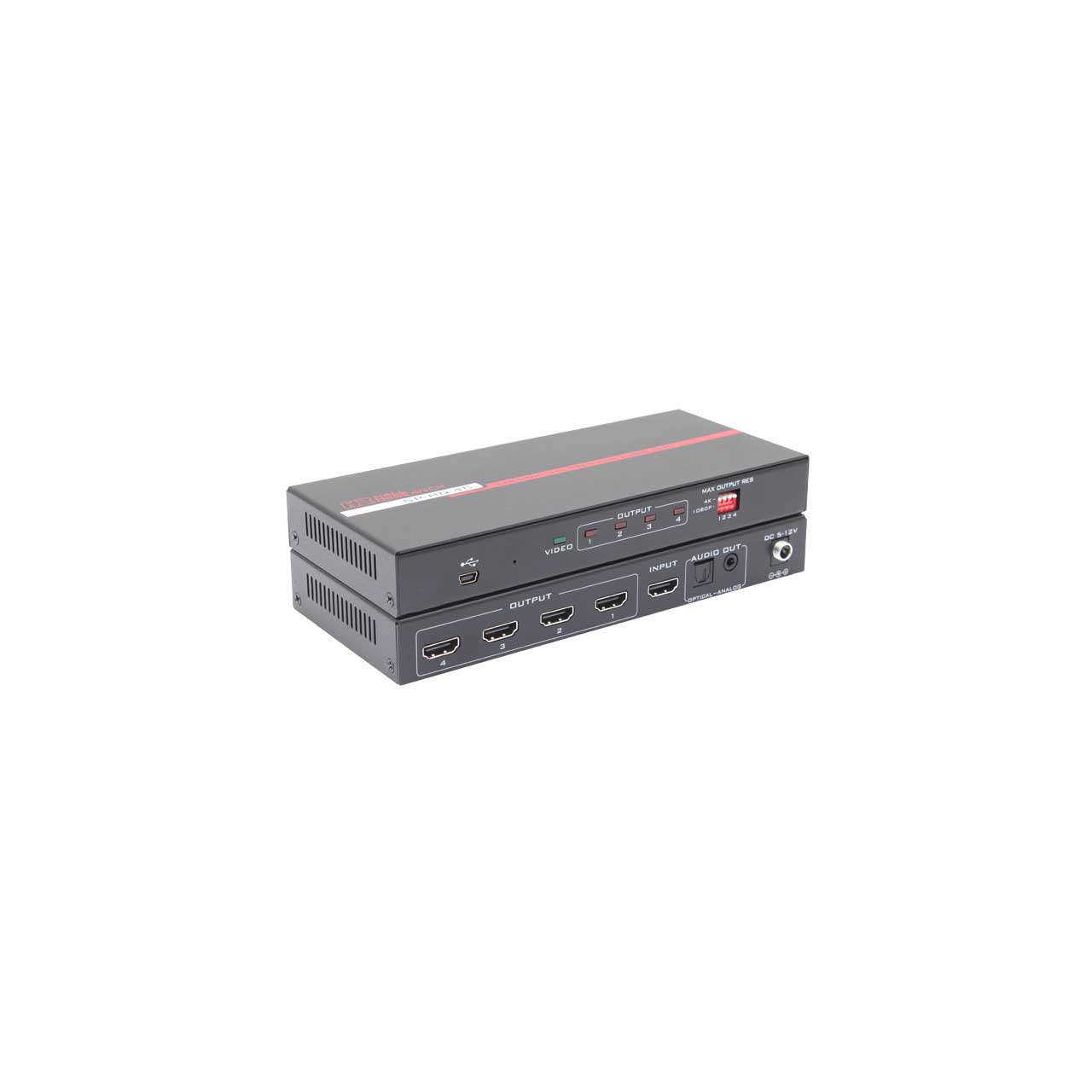

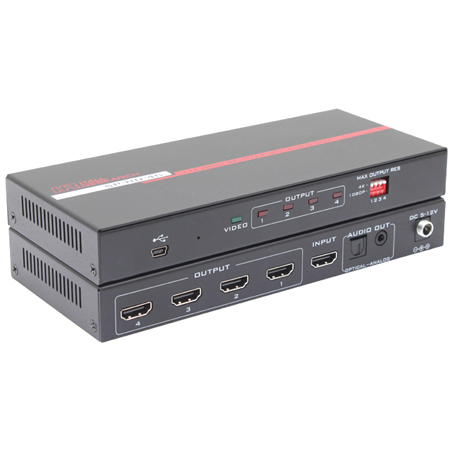

Hall Technologies SP-HD-4C 1x4 HDMI Splitter with 4K 60Hz 4:4:4 HDCP 2.2 Audio Out & Scaler

SP-HD-4C - Overview

• Features:

  • Lossless 18GB UHD/4K distribution to 4 UHD or HD outputs
  • Supports 4K UHD @ 60 Hz 4:4:4, HDCP 2.2 and HDR
  • Provides De-embedded analog and digital audio output
  • High bit-rate digital audio - DTS-HD, Dolby True HD, DTS, Dolby- AC3, LPCM 7.1 and DSD
  • Can Scale 4K to 1080p independently at each output (can mix 4K and 1080p TVs)
  • Locking DC input power supply connector
  • LED status indicators for source signal and 4 output connections
  • Smart EDID management (video blink when you hot plug the outputs)
  • Each of the buffered outputs can run up to 12 meters (40 feet) using quality cables
  • Can be cascaded up to 3 levels
  • Supports 30/36/48 bit color depth
  • Full 3D video support including frame packing up to a 297 MHz TMDS clock


• Specifications:

  • Video Standards: HDMI 2.0a, HDCP 2.2
  • Input Port: (1) HDMI Type A [19-pin female]
  • Output Ports: (4) HDMI Type A [19-pin female]
  • Video Resolutions: Up to 4K@60Hz (4:4:4 3840x2160 @30)
  • 3D Format: 1080P @60Hz
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Color Depth: 30/36/48
  • Bandwidth: Single-link to 340 MHz (18 Gbps)
  • Audio Formats: LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, DTS, Dolby-AC3, DSD
  • Power Supply: 12V DC, 1A (with universal AC plug kit)
  • Max Power Consumption: 10W (Max)
  • Temperature/Humidity: Storage: -4 to +140 °F, Operating: +32 to +122 °F, Relative Humidity: 20 ~ 90%RH (Non-condensing)
  • Enclosure Type: Metal
  • ESD Protection: Human Body model:, 8kV (air-gap discharge) & 4kV (contact discharge)
  • Dimensions (W x D x H): 7.56 x 3.31 x 0.98 inch
  • Product Weight: Model - 1.0 lb, Shipping - 2.30 lbs


• Item Includes:

  • 1x SP-HD-4C HDMI Splitter unit
  • 1x 12V 1 ADC Power Supply (w/ universal AC plug kit)
  • 1x User's Manual


• GTIN:

  0608415712503
