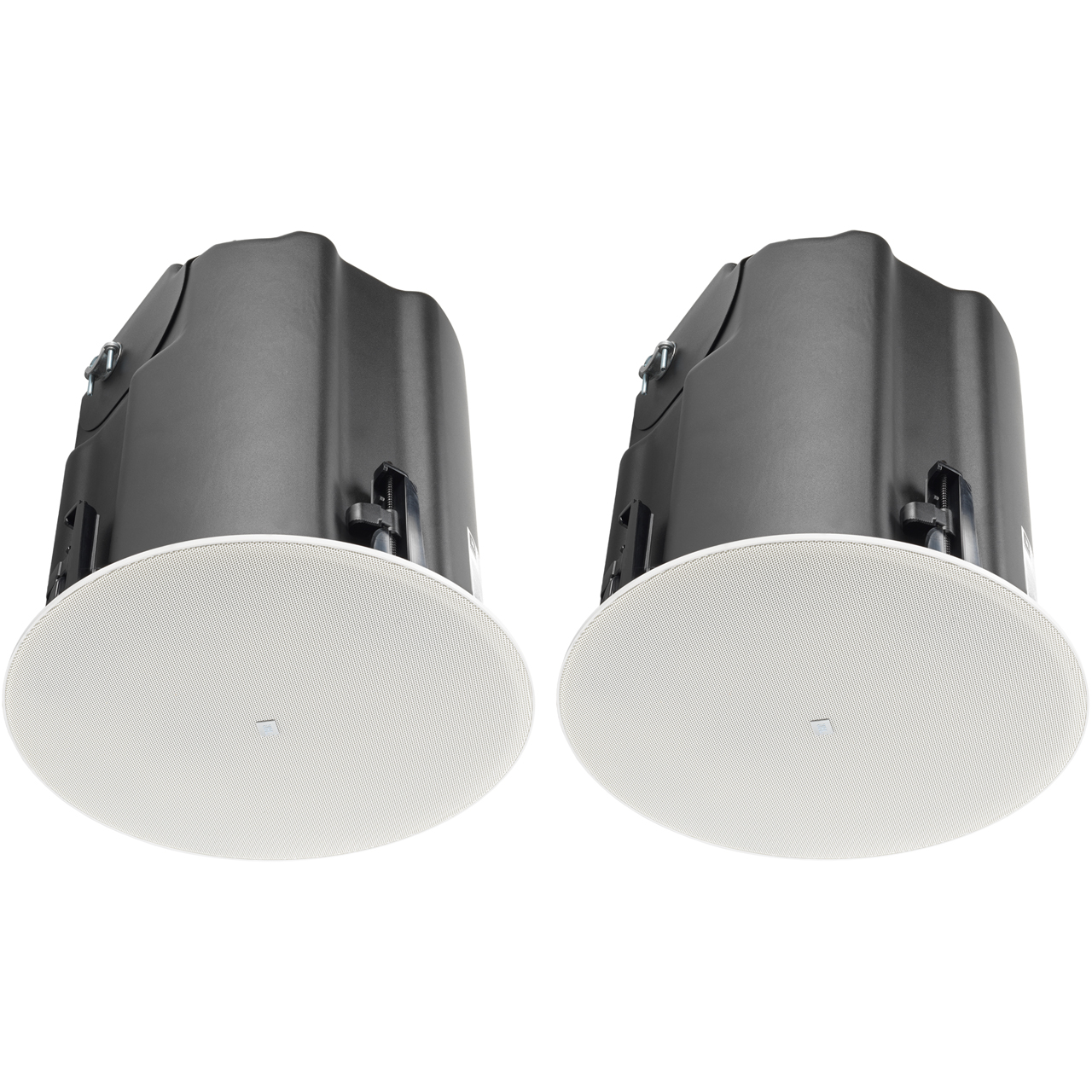

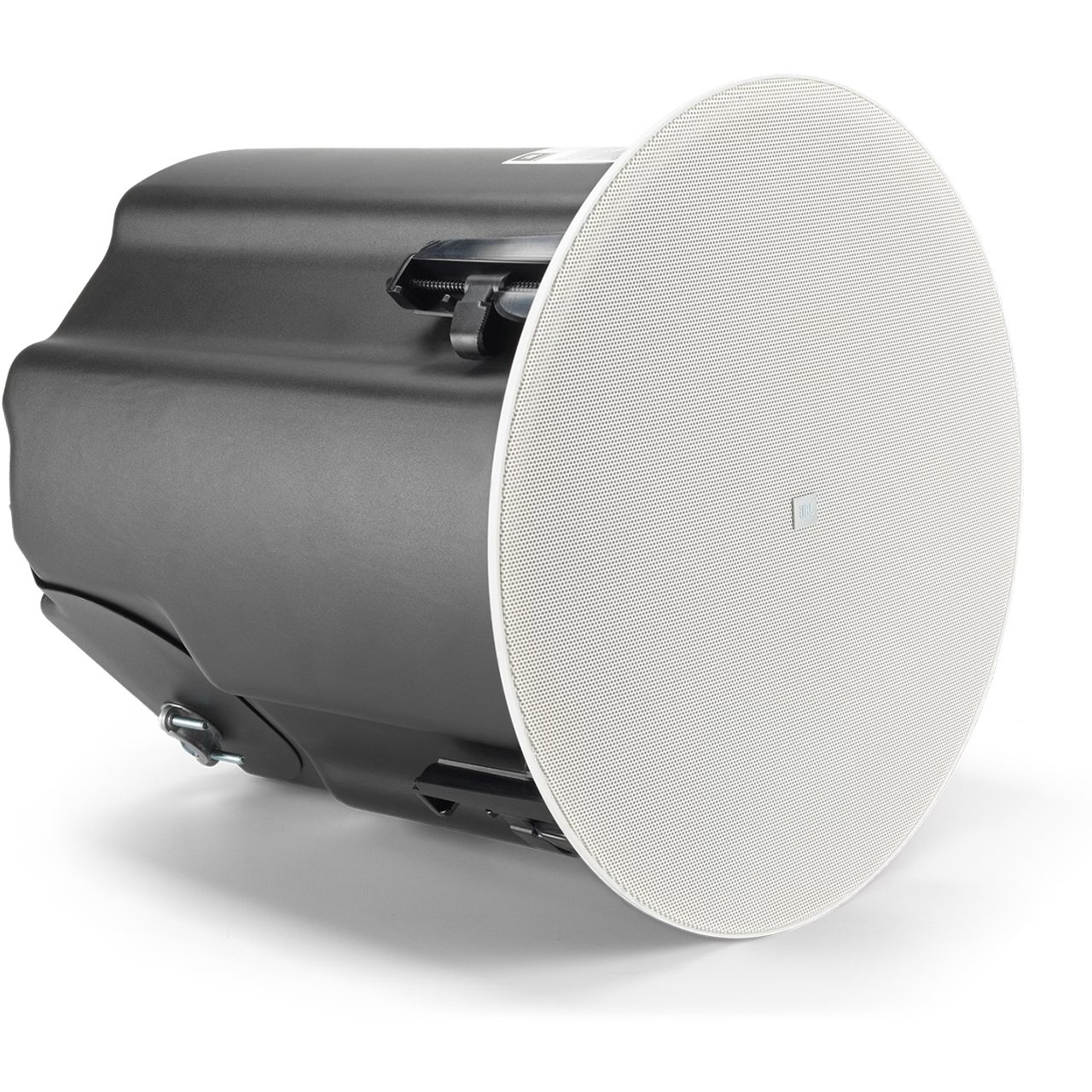

JBL Control 440CS/T 8-Inch Ceiling Subwoofer - Built-in 70V/100V Multi-tap Transformer - White - Pair

ITEM #: JBL-C440CS-T MFG #: JBL-C440CS/T PAIR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
JBL Professional
Free Shipping with $49 Minimum Order

Our Price:

$1,300.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

JBL-C440CS/T PAIR - Overview

The JBL Control 440CS/T, part of the flagship Control 400 Premium Coverage Series, is a high-power, low-distortion in-ceiling subwoofer, featuring an 8" woofer, passive crossover, and an extremely durable, reinforced enclosure.

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.

All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 440CS/T supports both 70V/100V and low impedance applications.

Efficient, Flexible Installation
Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

Refined, Modern Aesthetics
Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

  • Features:

    • 8" (200 mm) woofer with SBR surround
    • Integrated enclosure with large, tapered dual ports for warm, smooth bass response
    • Built-in passive crossover network enabling it to be used as part of a subwoofer-satellite system
    • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
    • Full-face, easily paintable magnetic grilles

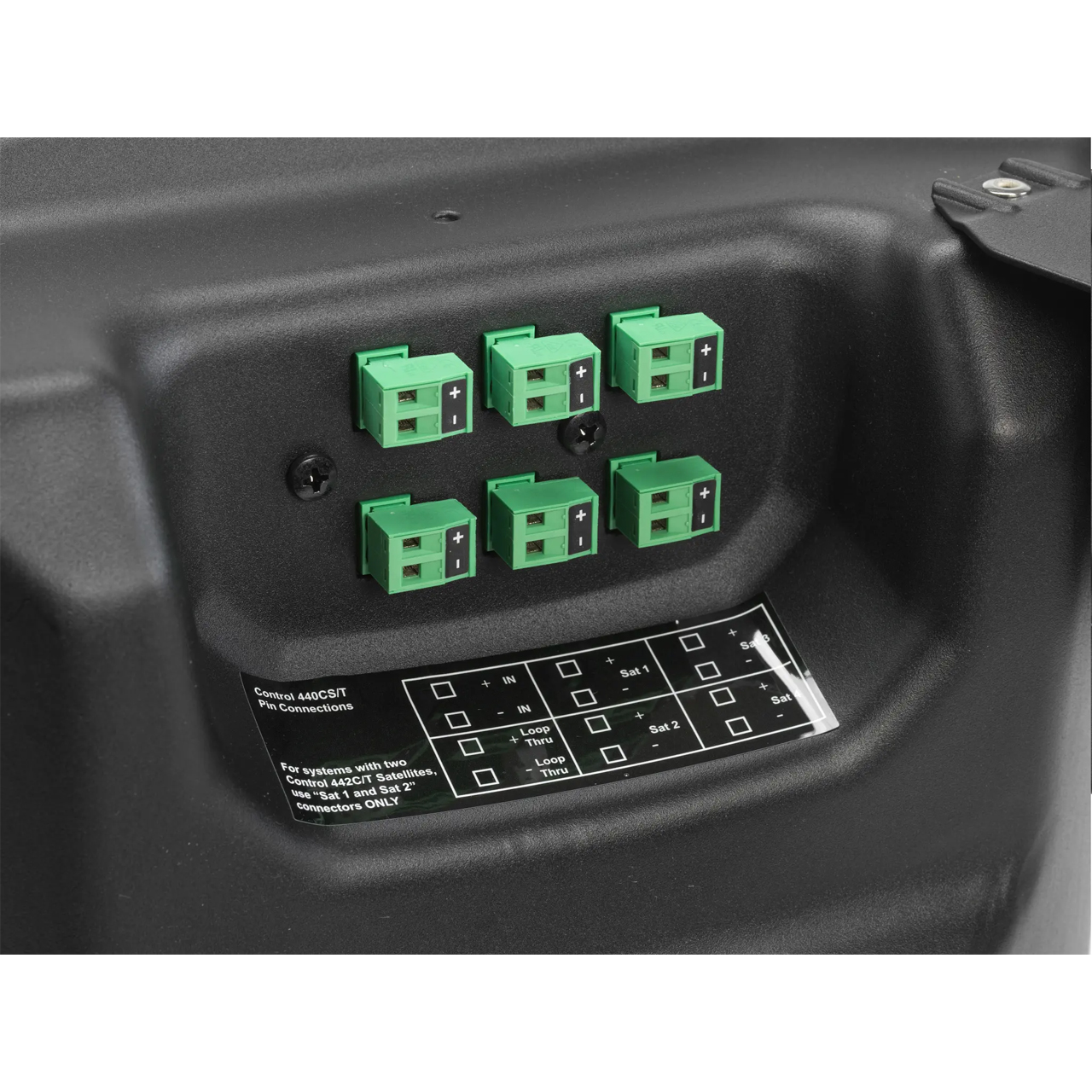

    • Top and side exit cable entry options
    • Robust and adaptable dogears for wide range of ceiling thicknesses
    • IP33 rated


  • Specifications:

    • Frequency Range (-10 dB): 32Hz - 300Hz
    • Power Capacity:
      - 150 W (600 W Peak), Cont. Pink Noise (2 hrs.)
      - 100 W (400 W Peak) Cont. Pink Noise Power (100 hrs.)
    • Sensitivity (1m/1W): 95dB in ceiling near corner (π/2 loading)
    • Maximum SPL (1m): 117 dB Cont. pink noise (123 dB peak, π/2 loading)
    • Nominal Impedance: 8Ω
    • Transformer Taps:
      - 70 V: 80 W, 40 W, 20 W & 10 W
      - 100 V: 80 W, 40 W, 20 W
    • Drivers: 8" (200 mm) treated paper cone with SBR surround and high-performance magnet
    • Ceiling Cutout Size: 12.1" (307 mm)
    • Dimensions: 13.8" (351mm) H x 13.5" (342 mm) dia. x 13.3" (337mm) from bottom of ceiling tile to top of backcan
    • Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
    • Environmental:
      - IP rating: IP33 per EN/IEC 60529
      - Operating temperature: 32° F to 113° F (0° C to 45 °C)
    • Color: Stock grille is White (RAL9003), paintable
    • Net Weight (ea): 19.22 lbs (8.72 kg)
    • Shipping Weight (pair): 55.16 lbs (25.02 kg)


  • Item Includes:

    • 1x JBL Control 440CS/T 8-Inch Ceiling Subwoofer - White - Pair


  • GTIN:

    0691991043246
