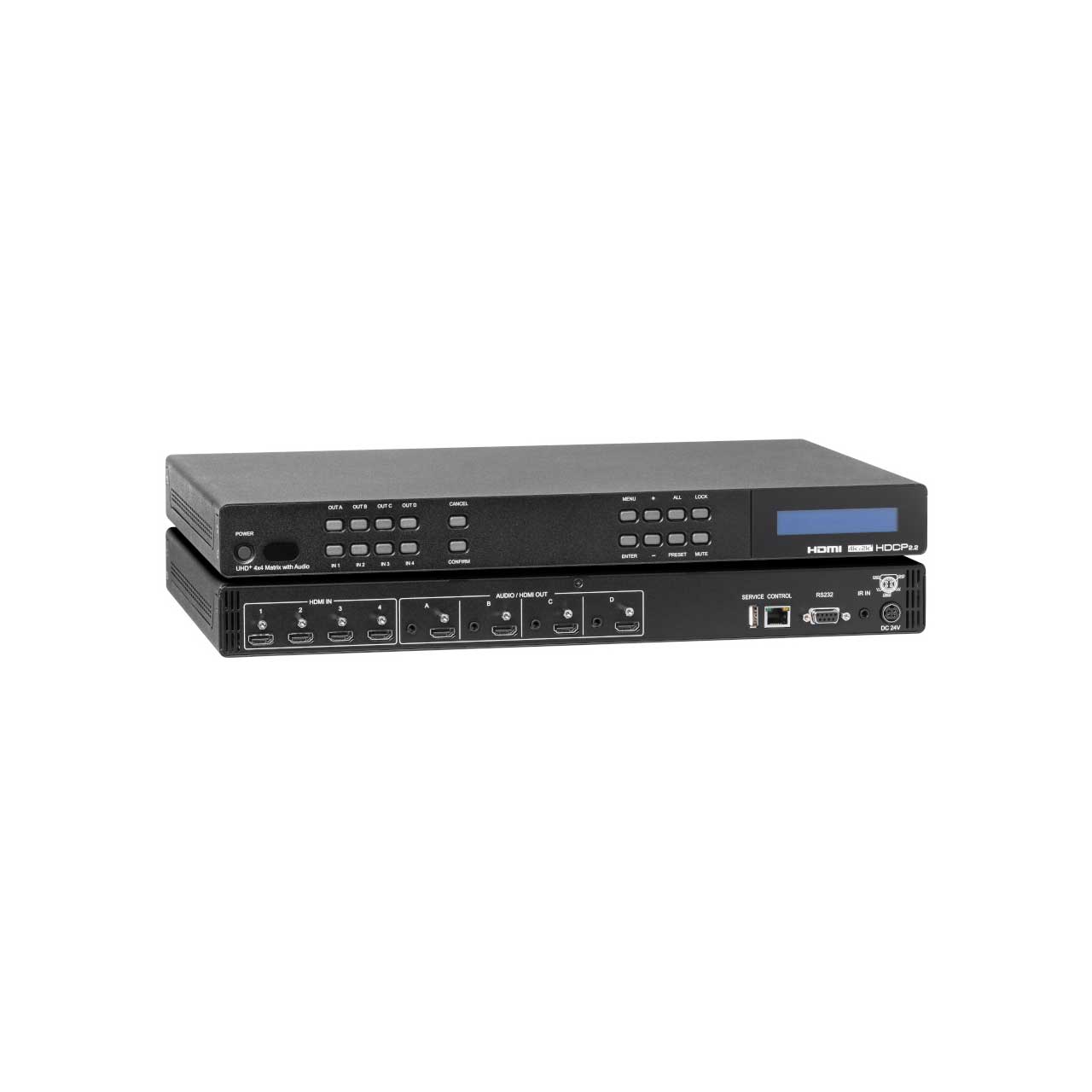

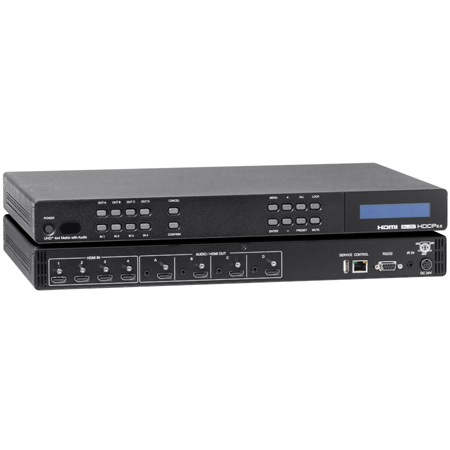

KanexPro HDMX44A-18G x4 HDMI 2.0 Matrix Switcher with Audio Outputs Supporting 4K/60Hz

ITEM #: KAN-HDMX44A-18G MFG #: HDMX44A-18G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,049.95

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    HDMX44A-18G - Overview

    The KanexPro HDMX44A-18G is a professional 4-in and 4-out HDMI matrix featuring HDCP 2.2 and the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz. Each HDMI port provisions full bandwidth of 18 Gbps with HDR and Dolby Vision pass-through. It can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix right from the computer or any 3rd party touch-panel or a control system.

    Industry Standard HDCP 2.2 & 4K/60
    HDCP 2.2 authentication is present always on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.

    Applications:
    Residential or commercial AV matrix installations
    Security systems
    Lecture halls and ballrooms
    Retail product showrooms
    Control centers

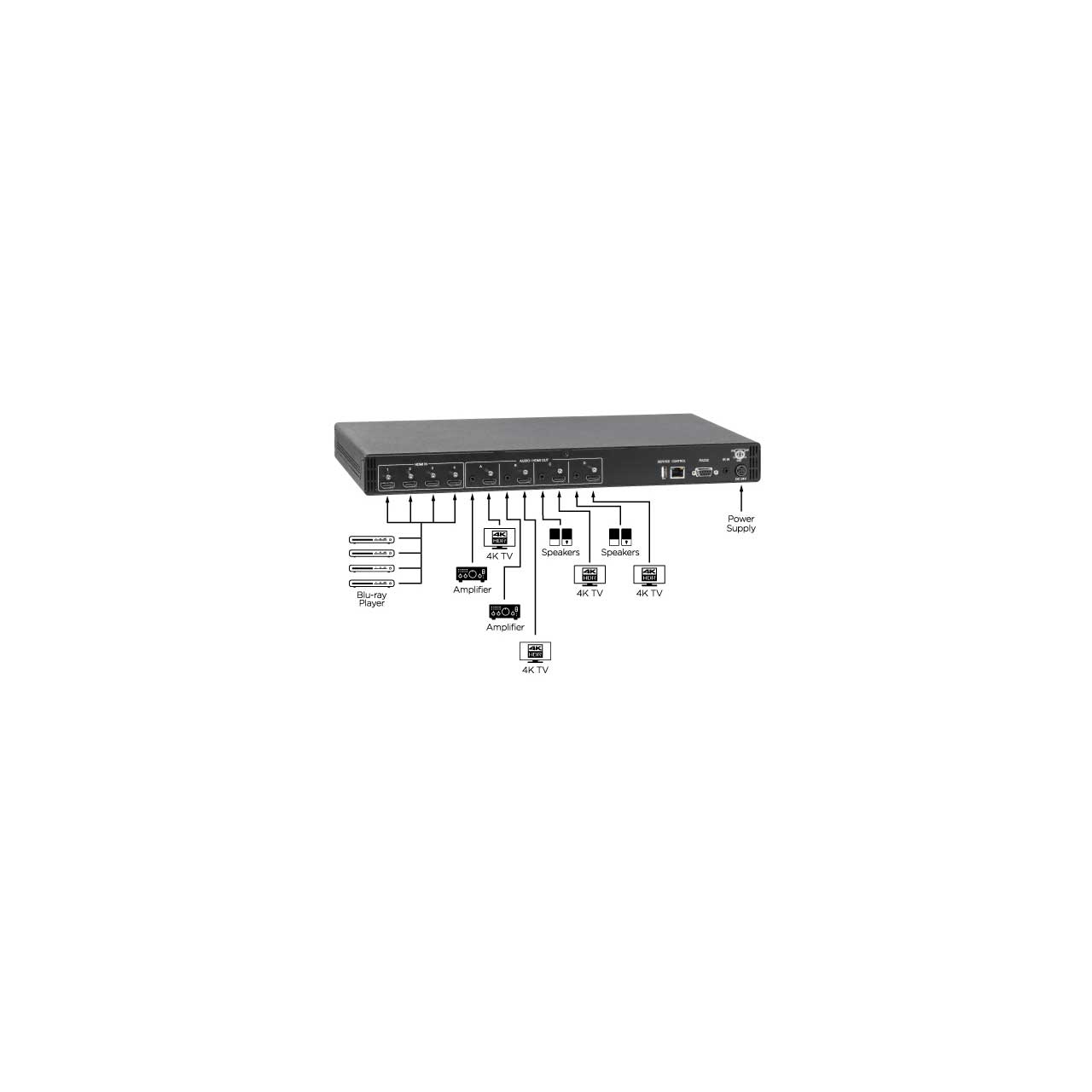

    System Requirements:
    HDMI source equipment such as media players, video game consoles or set-top boxes
    HDMI receiving equipment such as HDTVs, monitors or audio amplifiers
    The use of Premium High-Speed HDMI cables is highly recommended

    • Features:

      • Cross-switch 4 HDMI devices to 4 HDMI displays in 4K@60Hz
      • Distribute 4Kx2K@60Hz signal up to 5m over HDMI (max.)
      • 4K & UHDTV resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit)
      • 2 Channel analog audio outputs on each HDMI output channel
      • True4K @ 4096x2160@60Hz (YUV 4:4:4,8-bit)
      • Supports Dolby Vision & HDR pass-thru
      • Supports 48-bit Deep Color up to 1080p/60
      • Supports LPCM 7.1 pass-thru bit stream
      • HD bit stream audio formats over HDMI
      • HDCP 1.4 & 2.2 Compliant
      • Powerful EDID management tools with 4 slots for user-created EDIDs, and EDID bypass
      • Control via front-panel buttons, IR, RS-232 & Web based GUI
      • Front-panel LED's provides real-time I/O connection status
      • Firmware upgrade via micro USB port
      • Locking HDMI connector screws
      • Universal RS-232 code compatible with any 3rd party control systems
      • Internal Universal power for worldwide compatibility

    • Specifications:

      • Video Bandwidth: 600MHz/18Gbps
      • Input Ports:
        4x HDMI
        1x IR
        1x RS-232
        1x MiniUSB (Service) 1 xRJ45 (Control)
      • Output Ports:
        4x HDMI
        4x Analog Stereo (3.5mm)
      • Supported Resolutions:
        480i ~1080p@24/50/60Hz
        4K up to 4096x2160@60Hz (YUV 4:4:4,8-bit)
        PC resolutions: VGA~WUXGA
        IR Frequency: 30 to 50kHz
        Baud Rate: 115200bps
      • Power Supply:
        24V DC/2.7A (US/EU standards,CE/FCC/ ULcertified)
        ESD Protection
      • Human Body Model:
        ±8 kV (air-gap discharge)
        ±4 kV (contact discharge)
      • Dimensions WxHxD:
        Case Only: 17 x 1.7 x 6.2" (436 x 44 x 160mm)
        All Inclusive: 17 x 1.8 x 6.60" (436 x 48 x167.5mm)
      • Weight: 4.55Lbs (2068g)
      • Chassis Material: Metal
      • Color: Black
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Relative Humidity: 20 to 90% RH (non-condensing)
      • Power Consumption: 21 Watts
      • *Please check manual under downloads tab for more advanced spec information.

    • Item Includes:

      • 1x UHD+ 4 x 4 HDMI Matrix with Audio Output
      • 1x 24V/2.7A DC Power Adapter
      • 1x Remote Control (CR-177)
      • 1x Rackmount Ears (Set of 2)
      • 1x Shockproof Feet (Set of 4)
      • 1x Operation Manual

    • Warranty:

      • Backed by KanexPro 3 Year parts & labor warranty

    • GTIN:

      0813982022546
