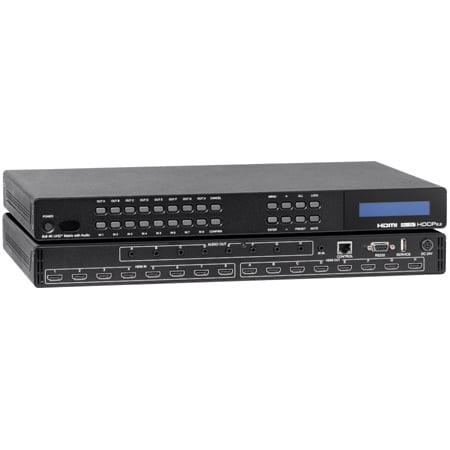

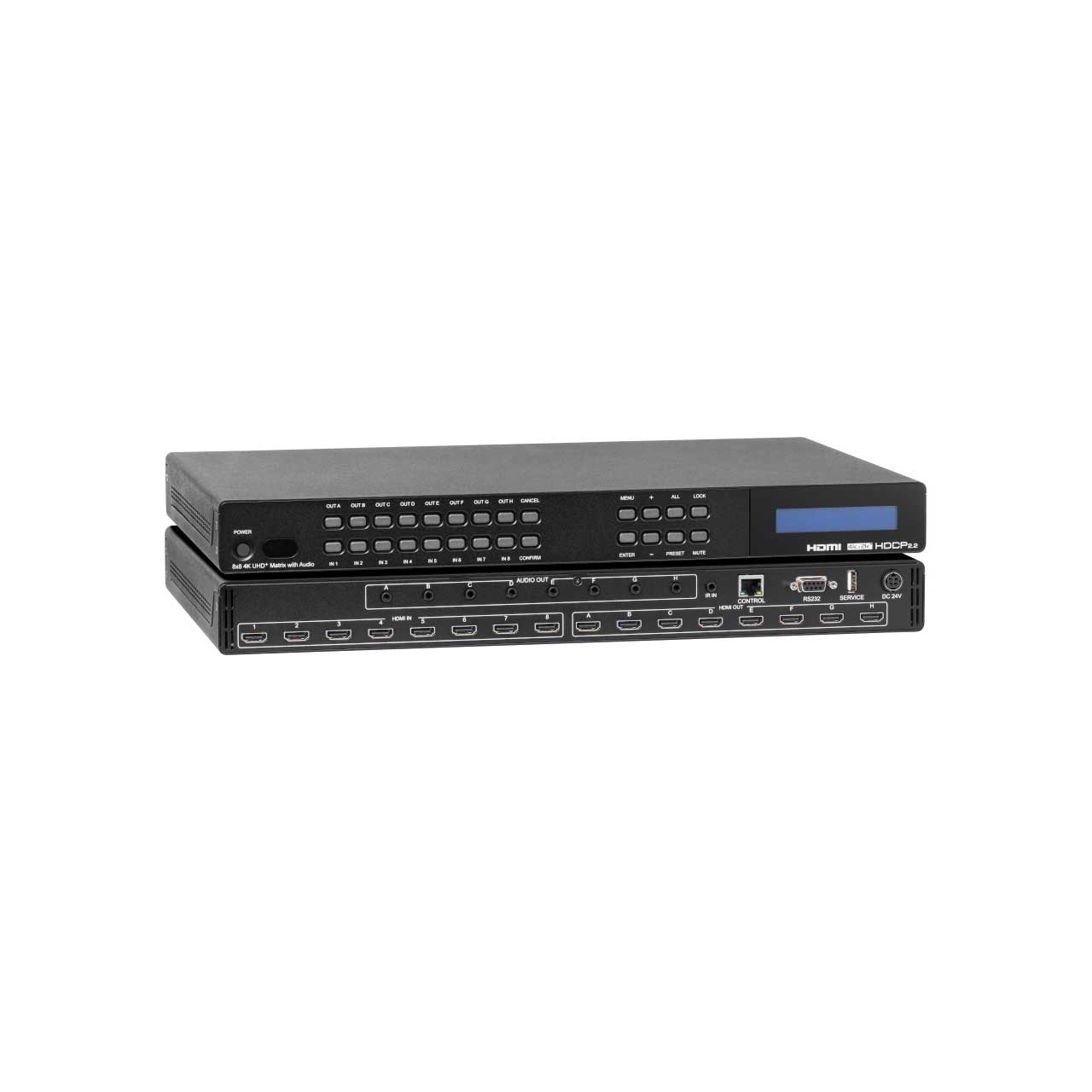

KanexPro HDMX88A-18G 8x8 HDMI 2.0 Matrix Switcher with Audio Outputs Supporting 4K/60Hz
  • KanexPro HDMX88A-18G 8x8 HDMI 2.0 Matrix Switcher with Audio Outputs Supporting 4K/60Hz
  • KanexPro HDMX88A-18G 8x8 HDMI 2.0 Matrix Switcher with Audio Outputs Supporting 4K/60Hz

Questions? Ask a Markertek Expert:
800-522-2025 Email

KanexPro HDMX88A-18G 8x8 HDMI 2.0 Matrix Switcher with Audio Outputs Supporting 4K/60Hz

Manufacturer: KanexPro

Item #: KAN-HDMX88A-18G   •   MFG #: HDMX88A-18G




Our Price:$2,999.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The KanexPro HDMX88A-18G is a professional 8-input, 8-output HDMI matrix featuring HDCP 2.2 with the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz. This matrix switcher supports switching speeds to less then 0.2 seconds. The matrix can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix using graphical and visual indicators right from the computer or touch-panel.

    Industry Standard HDCP 2.2 & 4K/60Hz
    HDCP 2.2 authentication is present at all times on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K UHD [email protected], 25,30, 50 or 60Hz and [email protected] displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.

    Applications:
    Smart Home Control
    Control Center
    Function Room
    Product Showroom
    Ballroom
    System Requirements
    HDMI source equipment such as media players, video game consoles or set-top boxes.
    HDMI receiving equipment such as HDTVs, monitors or audio amplifiers
    The use of Premium High Speed HDMI cables is highly recommended


    • Features

      • Cross-switch 8HDMI inputs to 8 HDMI outputs with 4K @60Hz
      • Distribute [email protected] signal up to 5m via HDMI port
      • Supports standard 1080p & WUXGA resolutions up to [email protected]
      • 2 Channel analog audio outputs on each HDMI output channel
      • HDR, DolbyVision & HDCP 2.2 Compliant
      • Smart EDID DIP switch for proper display output
      • Supports latest High Speed HDMI 2.0 specifications
      • Supports Dolby Digital, DTS, DTS-HD
      • Control thru front-panel keys, IR, RS-232 & Web based GUI
      • Front-panel LCD screen provides real-time I/O connection status
      • Expedient firmware upgrade thru Micro USB port
      • 1U (19") rack mountable aluminum enclosure
      • Universal RS-232 code compatible with any 3rd party control systems
      • Locking HDMI & Power supply
      • Internal Universal power for worldwide compatibility

    • Specifications

      • Video Bandwidth: 600MHz/18Gbps
      • Input Ports: 8x HDMI
      • Output Ports:
        8x HDMI
        8x Analog Stereo (3.5mm)
      • Control Interfaces: 1x IR Extender(3.5mm)1xRS-232 (9-pin D-sub) 1xIP Control(RJ45)
      • HDMI Cable Length:
        10m ([email protected], 12-bit)
        5m ([email protected], 4:4:4, 8-bit)
        IR Frequency: 30 - 50kHz (30 - 60kHz under ideal conditions)
        Baud Rate: 19200bps
      • Power Supply:
        24V/6.25A DC (US/EU standards,CE/FCC/ UL certified)
        ESD Protection
      • Human Body Model:
        ±12kV (Air Discharge)
        ±8kV (Contact Discharge)
      • Dimensions WxHxD:
        Case Only: 17.2 x 1.73 x 10.59" (438 x 44 x 269mm)
        All Inclusive: 17.2 x 1.92 x 10.78" (438 x 49 x 274mm)
      • Weight: 7.93Lbs (3600g)
      • Chassis Material: Metal
      • Silkscreen Color: Black
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Relative Humidity: 20 - 90% RH (Non-condensing)
      • Power Consumption: 110W

    • Item Includes

      • 1x UHD+ 8x8 Matrix with Audio Output
      • 1x 24V/3.75A DC Power Adapter
      • 1x Remote Control (CR-177)
      • 1x Rackmount Ears (Set of 2)
      • 1x Shockproof Feet (Set of 4)
      • 1x Operation Manual

    • GTIN:

      0813982022553
