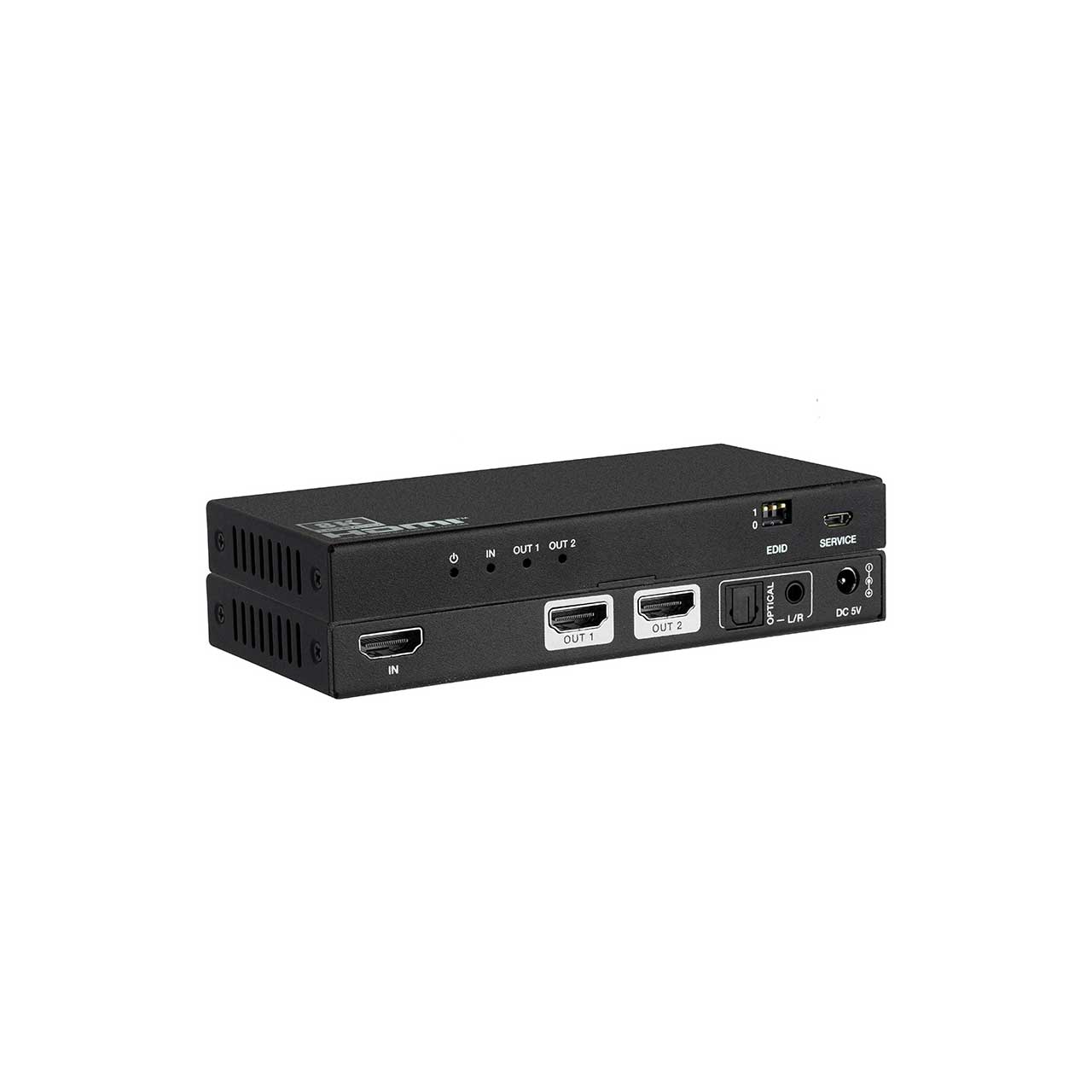

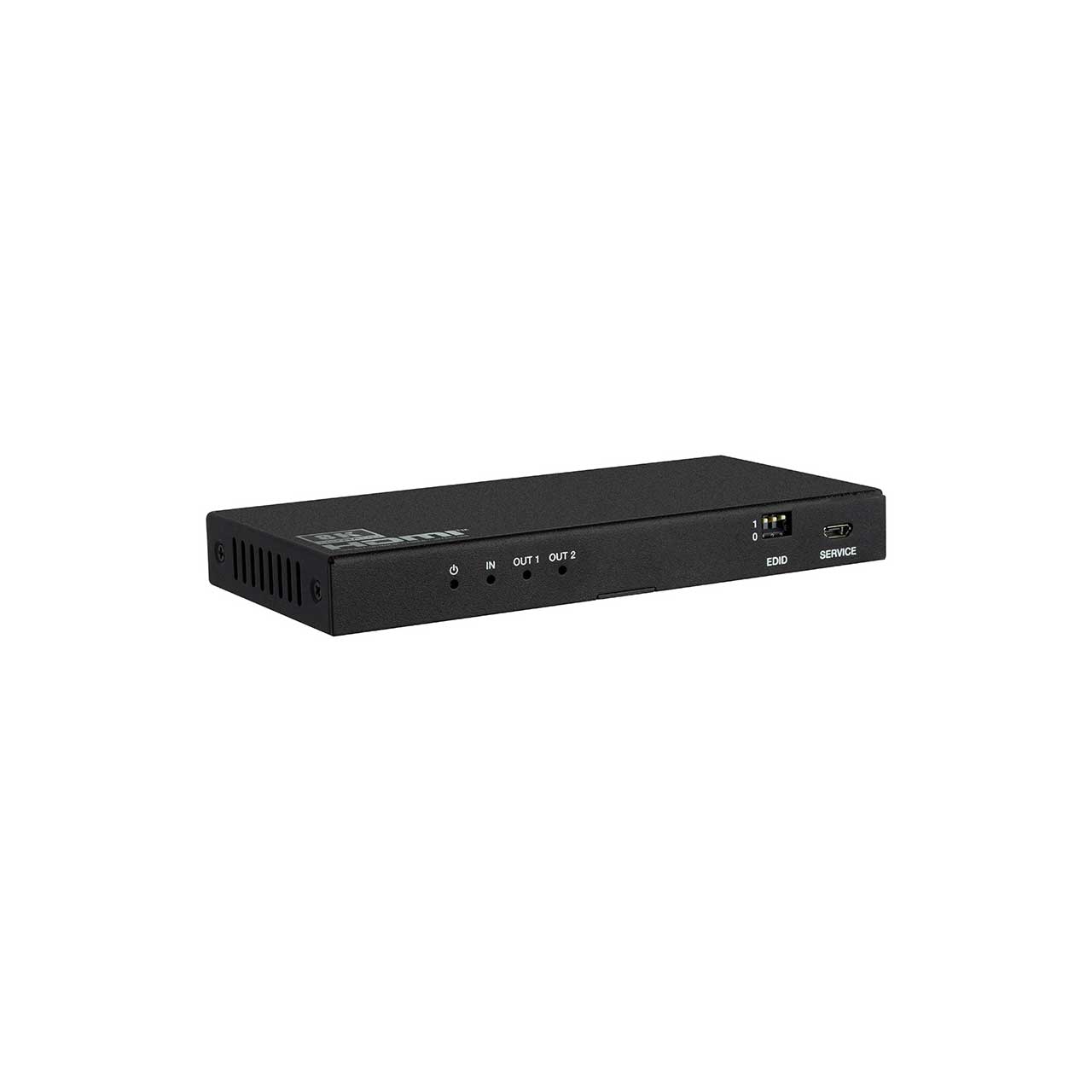

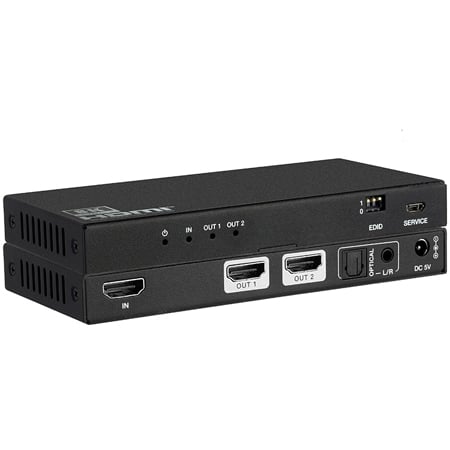

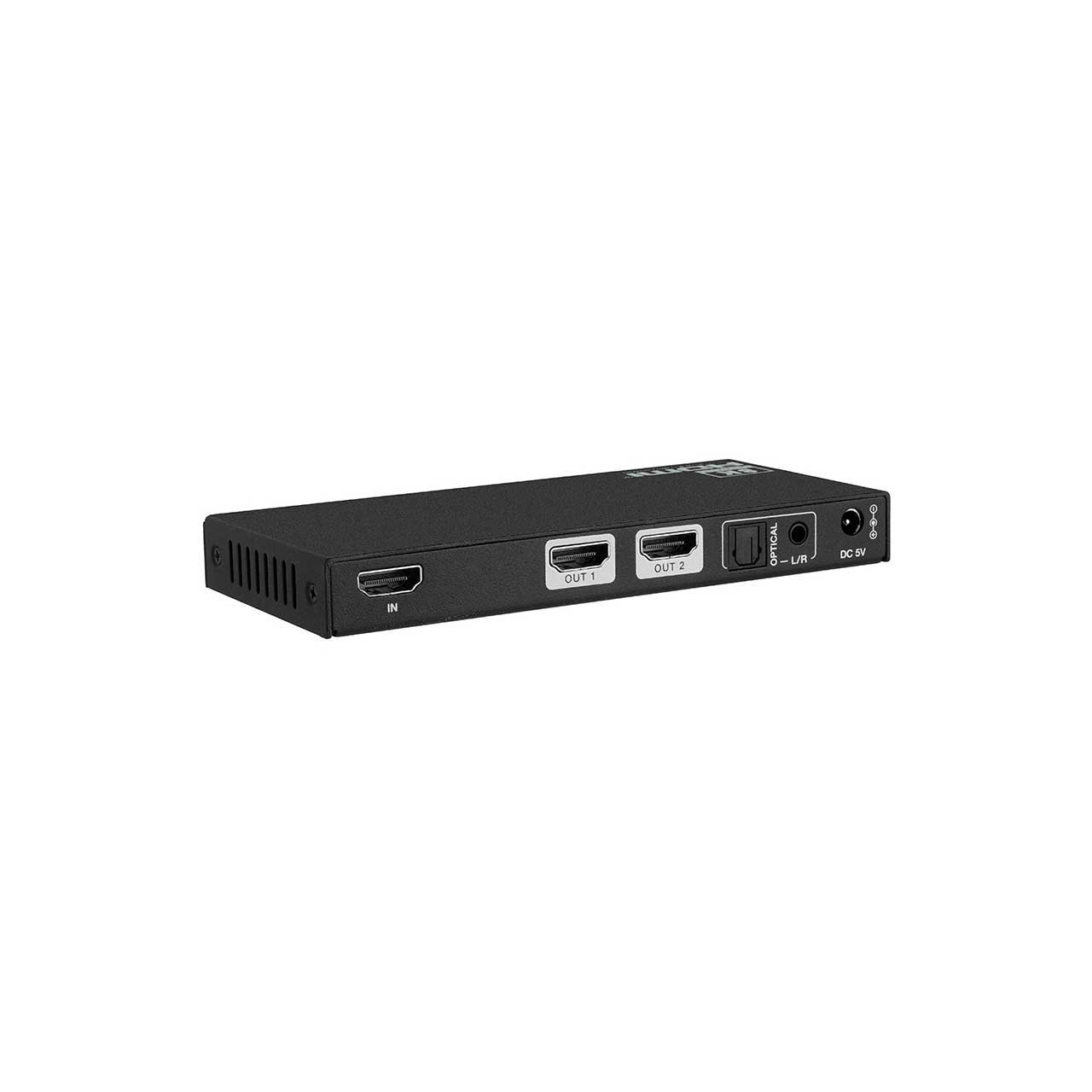

KanexPro SP-1X2A8K 8K HDMI 1x2 Splitter with Audio

SP-1X2A8K - Overview

• Features:

  • HDMI 2.1 and HDCP 2.3 compliant: HDMI 2.1 is the latest version of the HDMI specification, offering increased bandwidth and supporting advanced features. HDCP 2.3 (High-bandwidth Digital Content Protection) is the latest content protection standard for HDMI.
  • Supports 40Gbps video bandwidth: This indicates that the device can handle a video signal with a maximum bandwidth of 40 gigabits per second (Gbps). It ensures compatibility with high-resolution and high-refresh-rate content.
  • Supports video resolution: The device supports various video resolutions, including:
  • 8K@60Hz 4:2:0 10bit: This means it can handle 8K resolution at 60 frames per second (fps) with 4:2:0 chroma subsampling and 10-bit color depth.
  • 8K@30Hz 4:4:4 10bit: It can handle 8K resolution at 30 fps with 4:4:4 chroma subsampling and 10-bit color depth.
  • 4K@120Hz 4:4:4 10bit: It can handle 4K resolution at 120 fps with 4:4:4 chroma subsampling and 10-bit color depth.
  • VRR, FVA, ALLM supported: These are additional HDMI 2.1 features:
  • VRR (Variable Refresh Rate): It allows for smoother gameplay by syncing the display's refresh rate with the game's frame rate, reducing stuttering and tearing.
  • FVA (Fast Video Frame Transport): It enables quick video frame transport for reduced latency.
  • ALLM (Auto Low Latency Mode): It automatically switches the display to a low-latency mode when a compatible gaming device is detected.
  • Supports HDR and various HDR formats: HDR (High Dynamic Range) enhances the contrast and color accuracy of video content. The device supports HDR, HDR10, HDR10+, Dolby Vision, and HLG (Hybrid Log-Gamma) pass-through, allowing compatible content to be displayed in their respective HDR formats.
  • Supports HDMI audio formats: The device supports a wide range of HDMI audio formats, including LPCM (Linear Pulse Code Modulation), various Dolby formats (Dolby Digital/Plus/EX, Dolby TrueHD), various DTS formats (DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio), and DSD (Direct Stream Digital) audio.
  • Built-in Equalizer, Retiming, and Driver: These features help optimize the HDMI signal, ensuring the best possible audio and video performance over long cable runs or when connected to various devices.


• Specifications:

  • HDMI Compliance HDMI 2.1
  • HDCP Compliance HDCP 2.3
  • Video Bandwidth 40Gbps
  • Video Resolution Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • Color Depth 8/10/12-bit
  • Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
  • Audio Formats HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH; Analog: PCM 2.0
  • ESD Protection Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
  • Input 1 x HDMI IN [Type A, 19-pin female]
  • Output 2 x HDMI OUT [Type A, 19-pin female], 1 x OPTICAL [S/PDIF], 1 x L/R [3.5mm Stereo Mini-jack]
  • Control 1 x SERVICE [Micro USB, Update port]
  • Housing Metal Enclosure
  • Silkscreen Color Black
  • Dimensions 145mm (W) x 68mm (D) x 17mm (H)
  • Weight 258g
  • Power Supply Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption 4.15W (Max)
  • Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity 20~90% RH (non-condensing)


• Warranty:

  • 3 Year Limited Warranty


• GTIN:

  0813982023093
