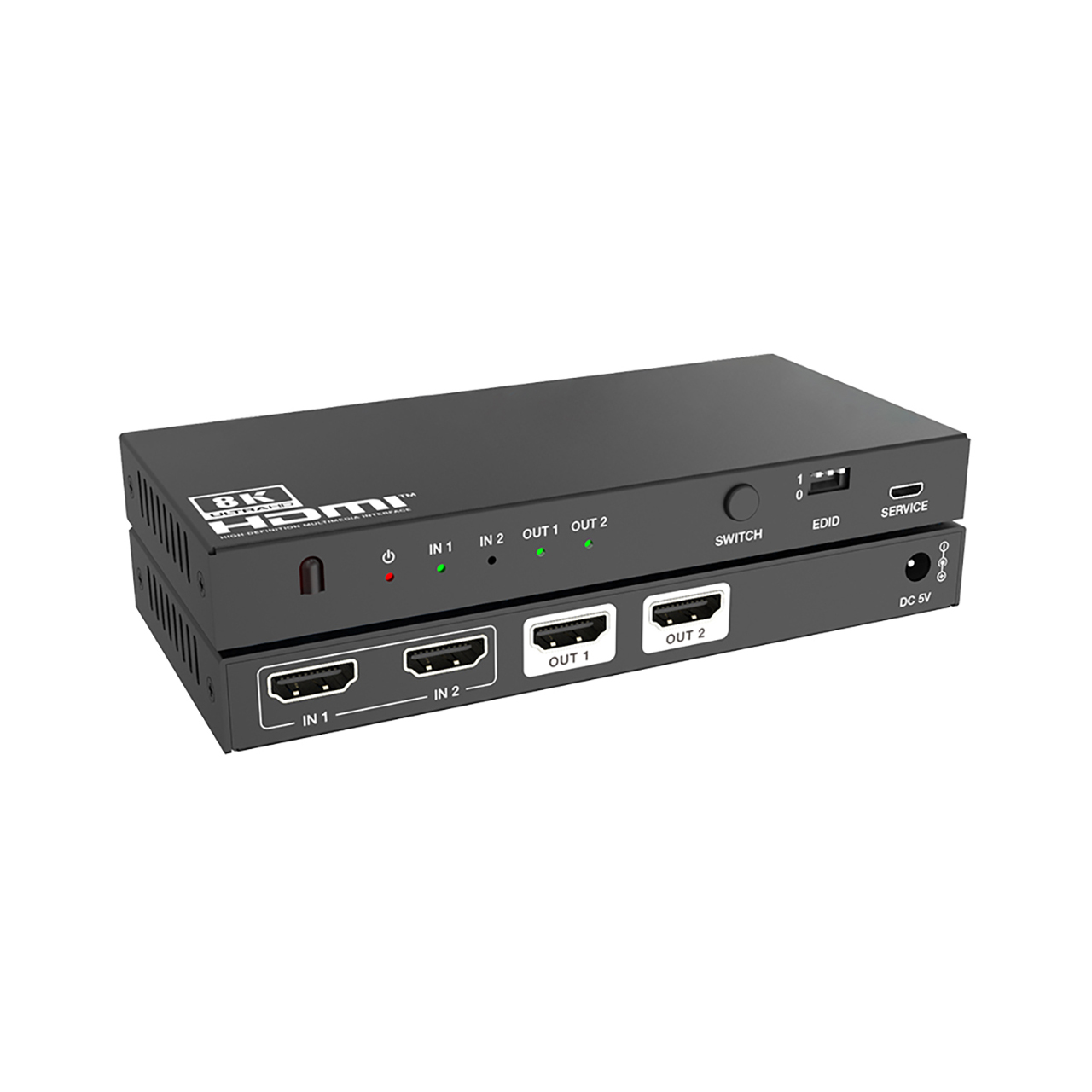

KanexPro SW-2X28K 40Gbps 8K60 2x2 HDMI Splitter with Switching and EDID Management

SW-2X28K - Overview

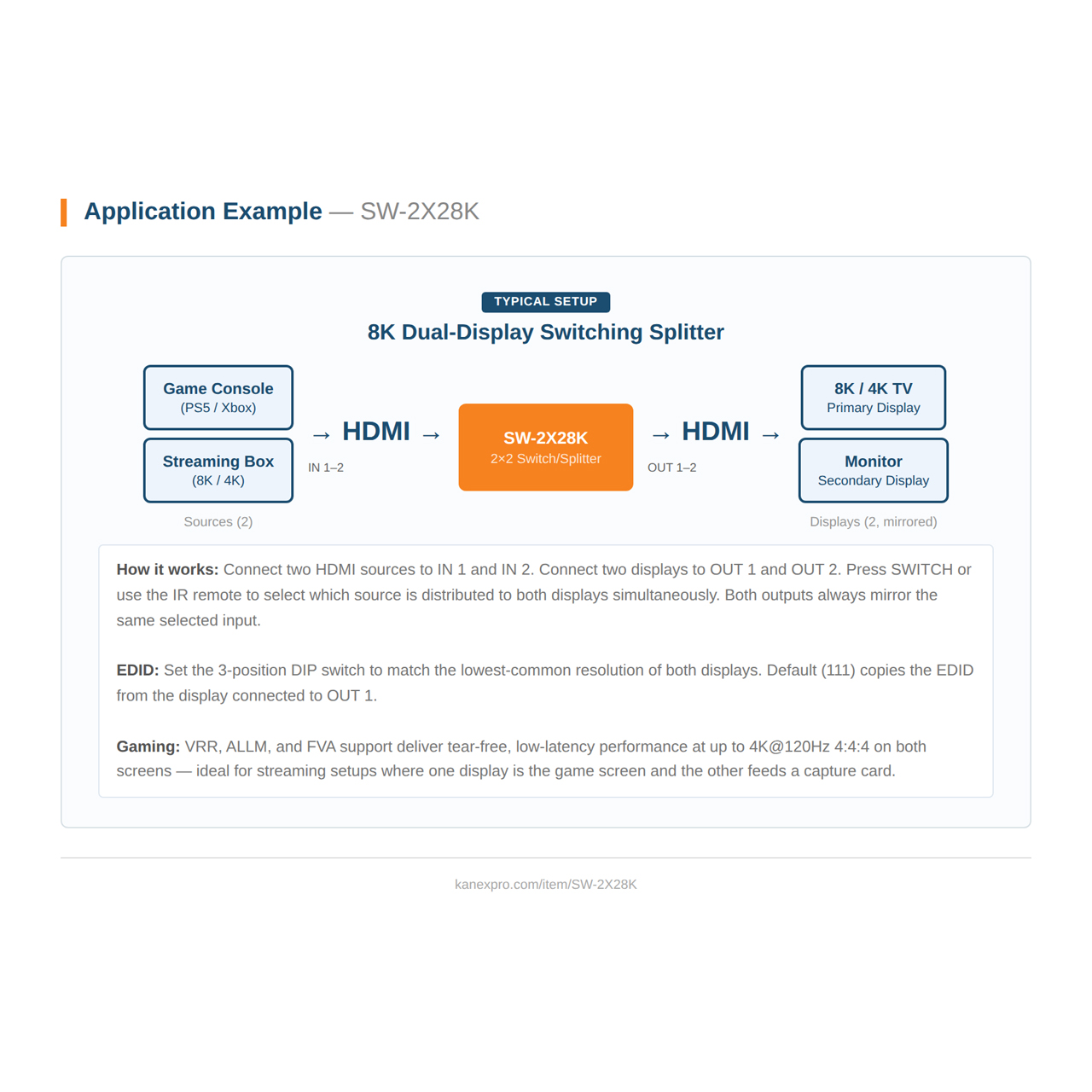

Switch between two 8K HDMI 2.1 sources and distribute the selected input to two displays simultaneously

• Features:

  • HDMI 2.1 and HDCP 2.3 compliant
  • Support 40Gbps video bandwidth
  • Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • VRR, FVA, ALLM supported
  • Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
  • Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • 2x2 Switch with Dual Output
  • Built-in Equalizer, Retiming and Driver
  • Advanced EDID management

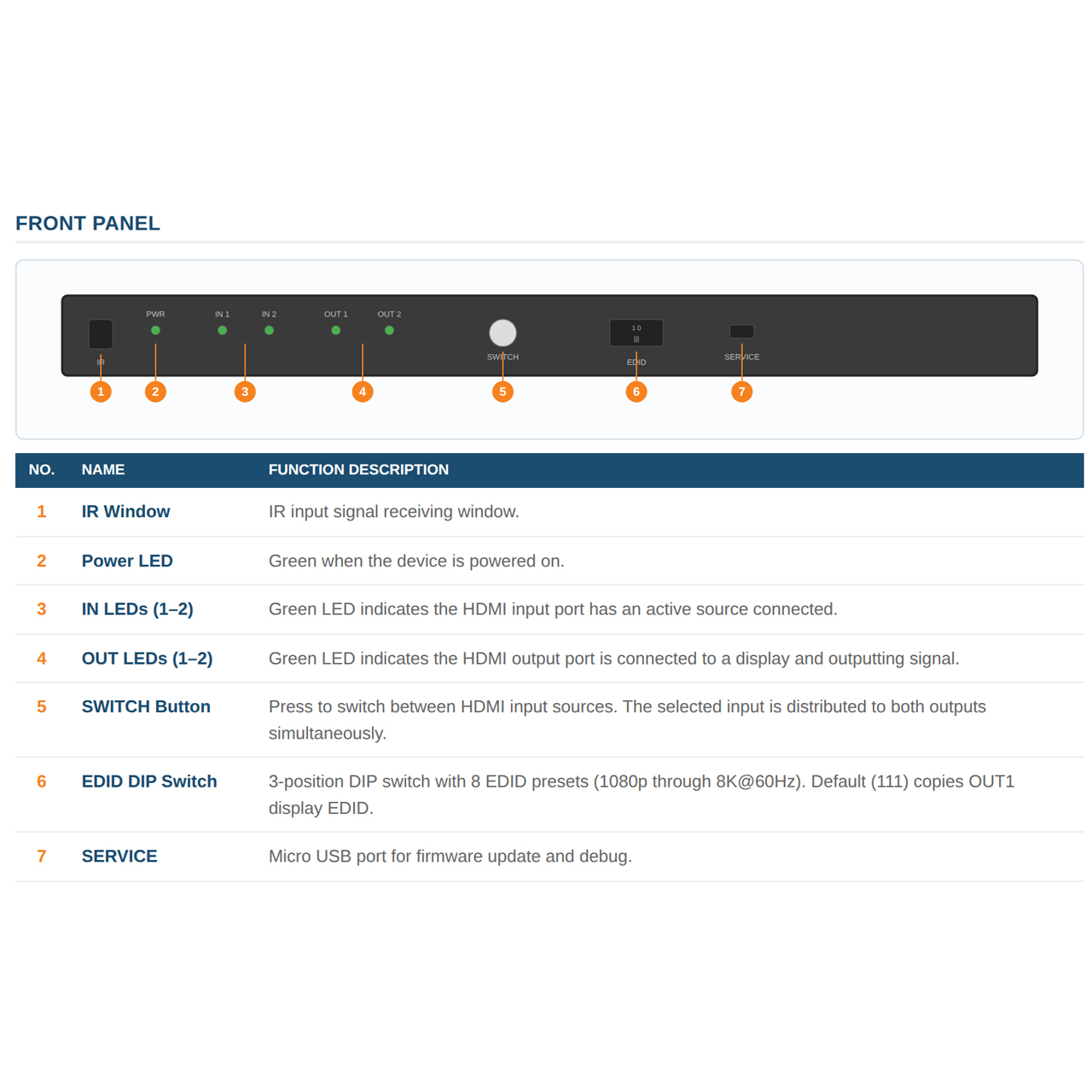

  • Support IR remote control and front panel button switching
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 40Gbps
  • Video Resolution: Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • Color Depth: 8/10/12-bit
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
  • Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • ESD Protection: ±8kV (air-gap discharge) & ±4kV (contact discharge)

    Connections

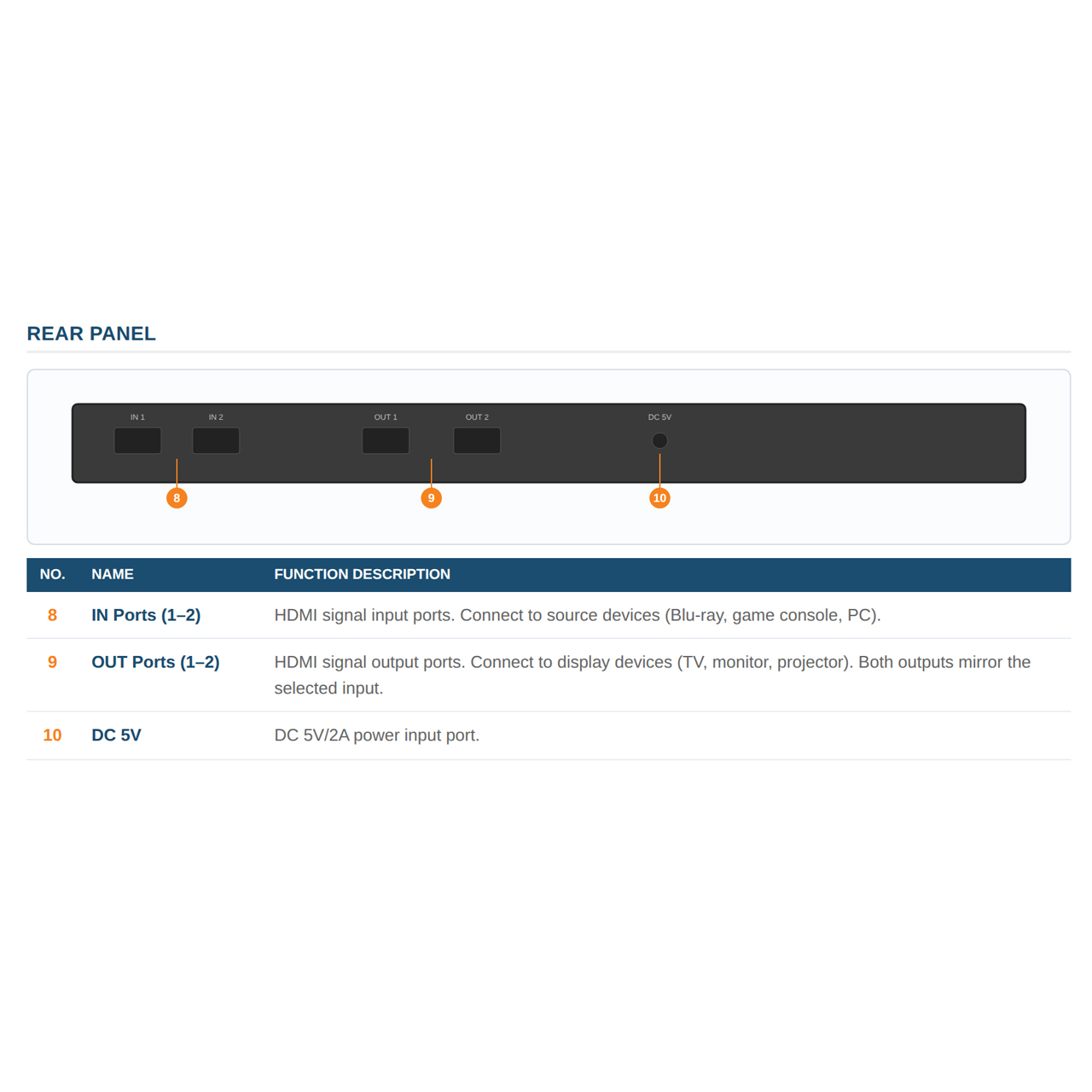

  • Input: 2x HDMI IN (Type A, 19-pin female)
  • Output: 2x HDMI OUT (Type A, 19-pin female)
  • Control Ports: 1x SERVICE (Micro USB, Update port)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 5.7" x 2.7" x 0.7" (145mm x 68mm x 17mm)
  • Weight: 0.6lbs (265g)
  • Power Supply:
    - Input: AC 100V - 240V 50/60Hz
    - Output: DC 5V/2A (CE/FCC/UL certified)
  • Power Consumption: 6.15W (Max)


• Item Includes:

  • 1x 8K 2x2 HDMI Switching Splitter
  • 1x IR Remote
  • 1x 5V/2A Multinational Power Supply
  • 1x User Manual


• Warranty:

  • 3 Year Limited Warranty


• GTIN:

  0813982023123
