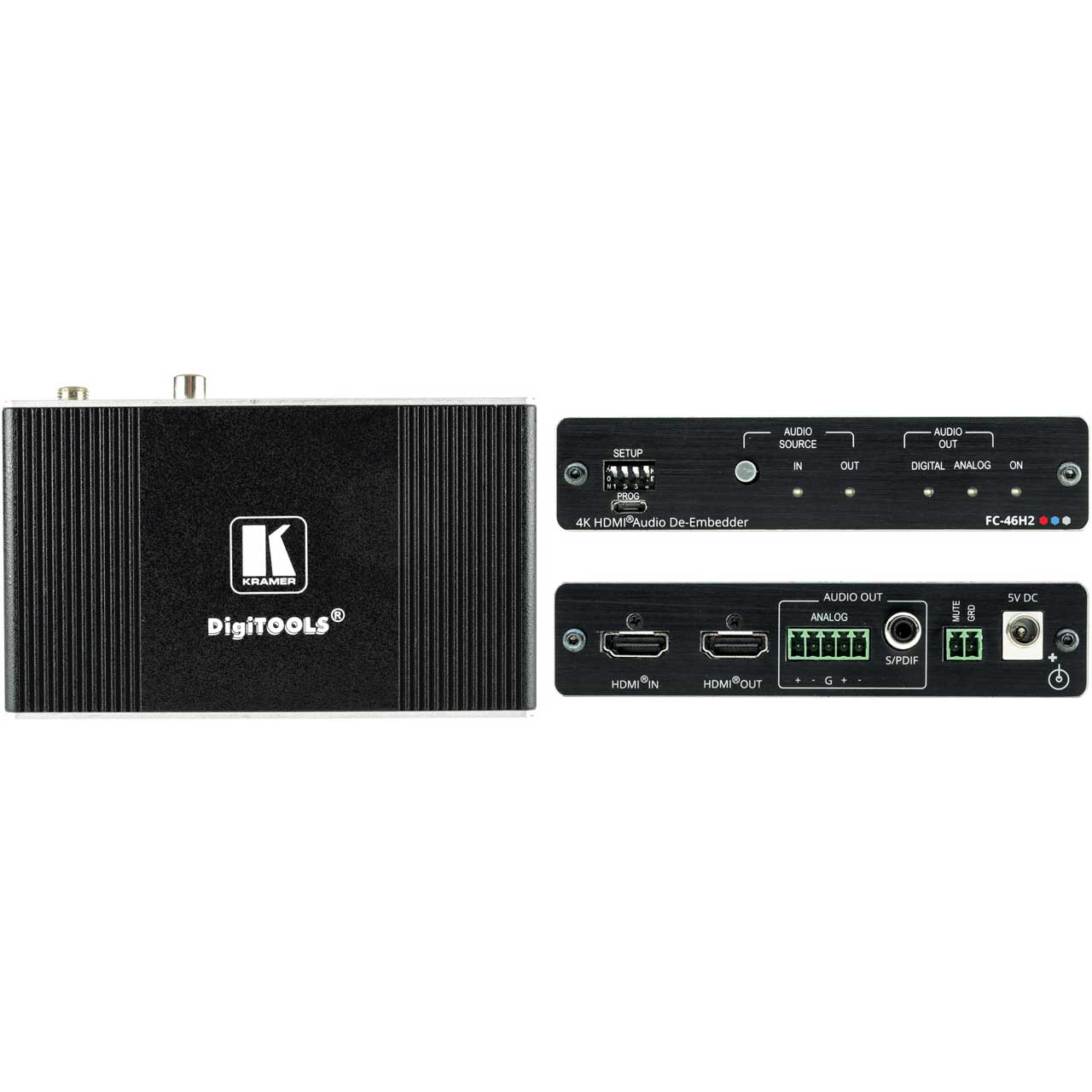

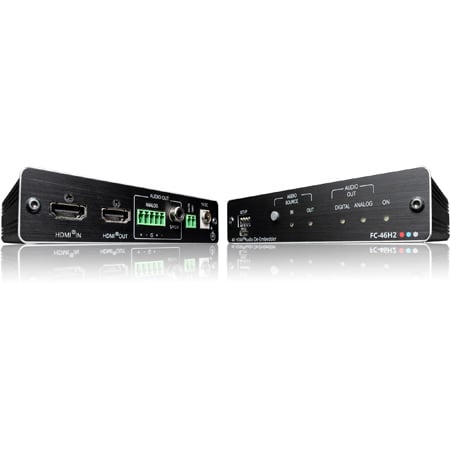

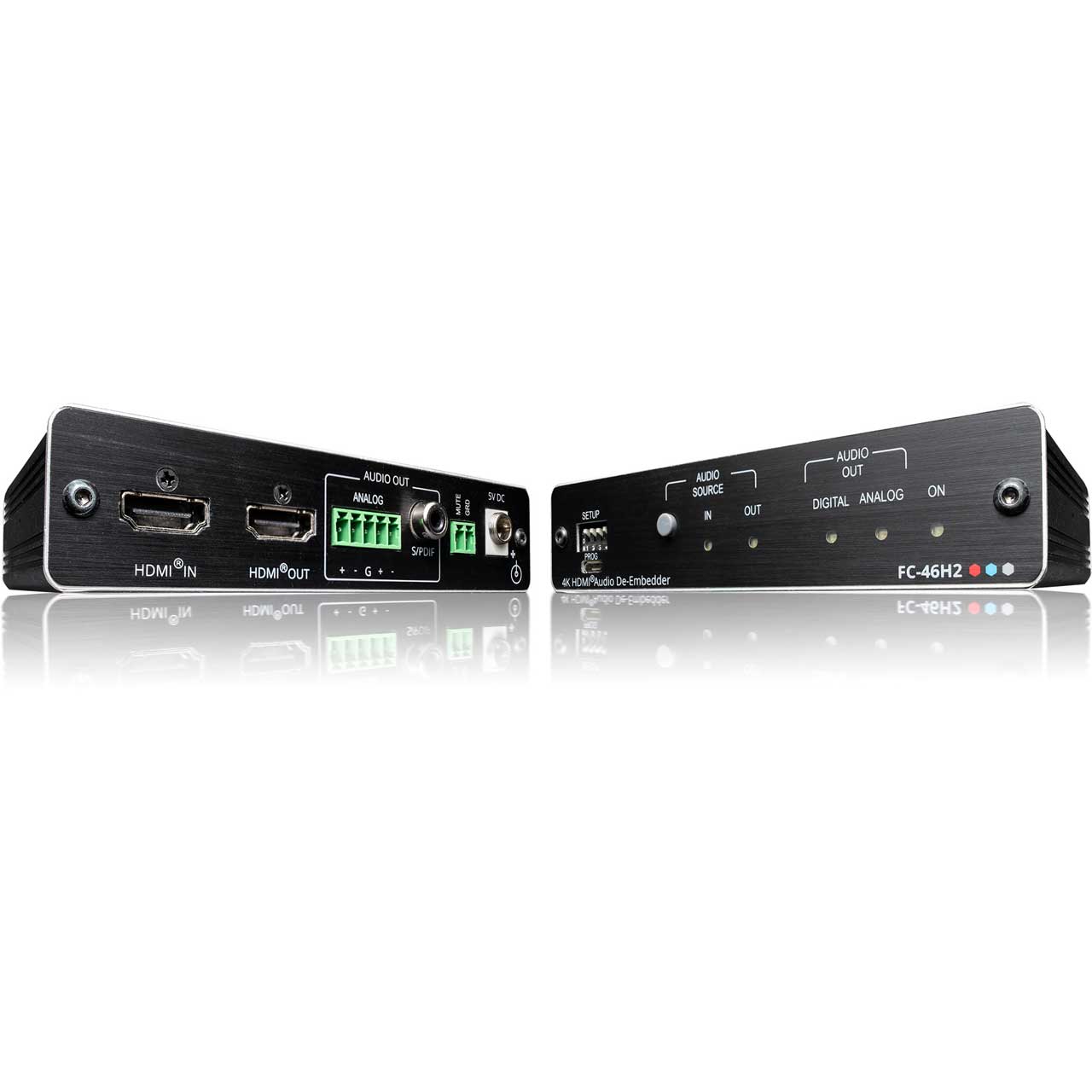

Kramer FC-46H2 4K HDR HDMI Audio De-Embedder

FC-46H2 - Overview

Professional HDMI Audio De-embedder

• Features:

  • Professional HDMI Audio De-embedder - De-embeds the audio from HDMI signals with resolution up to 4K@60Hz (4:4:4) and data rate up to 18Gbps (6Gbps per graphic channel), supporting HDR and HDCP 2.2/1.4
  • Flexible De-embedding - De-embed the audio from the HDMI input or from the HDMI output ARC (Audio Return Channel)

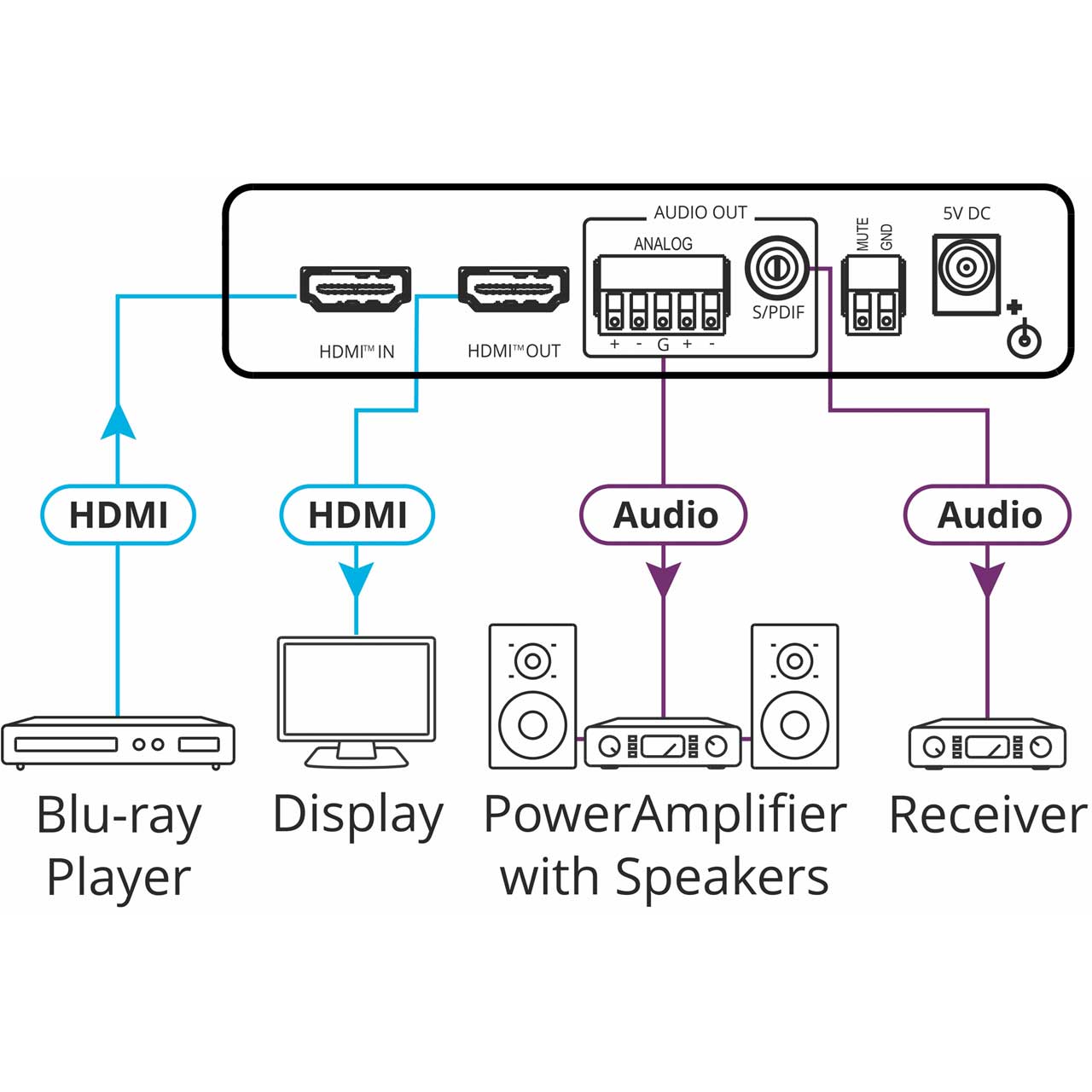

  • Varied Output Options - De-embedded audio is simultaneously output to an S/PDIF® and 5-pin balanced audio outputs
  • Smart EDID Management - Select one of the EDID management modes using the DIP-switches: pass-through, lock or force 2 channel LPCM
  • Kramer re-Klocking™ and Equalization Technology - Rebuilds the digital signal to travel longer distances
  • Convenient Control and Maintenance - Audio Source front panel button enables local switching to either the HDMI input audio or the HDMI output ARC. Audio source, audio output, and power LED indicators enable easy local maintenance and troubleshooting. Local firmware upgrade via the mini USB port ensures lasting, field-proven deployment
  • Easy Installation - Compact DigTOOLS® fan-less enclosure for surface mounting or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter


• Specifications:

  • INPUTS
  • HDMI: On a female HDMI connector

    OUTPUTS
  • HDMI: On a female HDMI connector
  • S/PDIF Digital Audio: On an RCA connector
  • Balanced Stereo Analog Audio: On a 5-pin terminal block connector

    VIDEO
  • Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
  • Max. Resolution: Up to 4K@60 (4:4:4)
  • HDMI Support: 4K@60Hz and ARC as specified in HDMI 2.0
  • Content Protection: Supports HDCP 2.2

    AUDIO
  • Frequency Response: 20Hz to 20kHz @ ±0.1dB
  • S/N Ratio: >90dB
  • THD+N: 0.004%

    USER INTERFACE
  • Control: Setup DIP-switches for EDID mode, audio settings, analog audio amplification. Contact closure switch for:output mute
  • Indicators: Audio sources (IN and OUT), Audio output (DIG and ANALOG), and ON LEDs

    POWER
  • Consumption: 5V DC, 370mA
  • Source: 5.2V DC, 4A

    ENVIORNMENTAL CONDITIONS
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -40° to 158°F (-40° to 70°C)
  • Humidity: 10 to 90%, RHL non-condensing

    REGULATORY
  • Safety: CE,
  • Environmental: RoHs, WEEE

    PHYSICAL
  • Size: Tool
  • Type: Aluminum
  • Cooling: Convection ventilation
  • Unit Dimensions (WxDxH): 4.72 x 2.81 x 0.96" (12 x 7.15 x 2.44cm)
  • Unit Weight: 0.5lbs (0.2kg) approx.
  • Shipping Dimensions: 6.18 x 4.72 x 3.43" (15.70 x 12.00 x 8.70cm)
  • Shipping Weight: 1.5lbs (0.7kg) approx.


• Item Includes:

  • FC-46H2 4K HDMI Audio De-Embedder
  • Power adapter and cord (1)
  • Bracket Set (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063086220
