Kramer UHD-IN2-F16/STANDALONE 4K HDMI Input for VS-1616D Multi Format Digital Matrix Switcher

20-70007998 - Overview

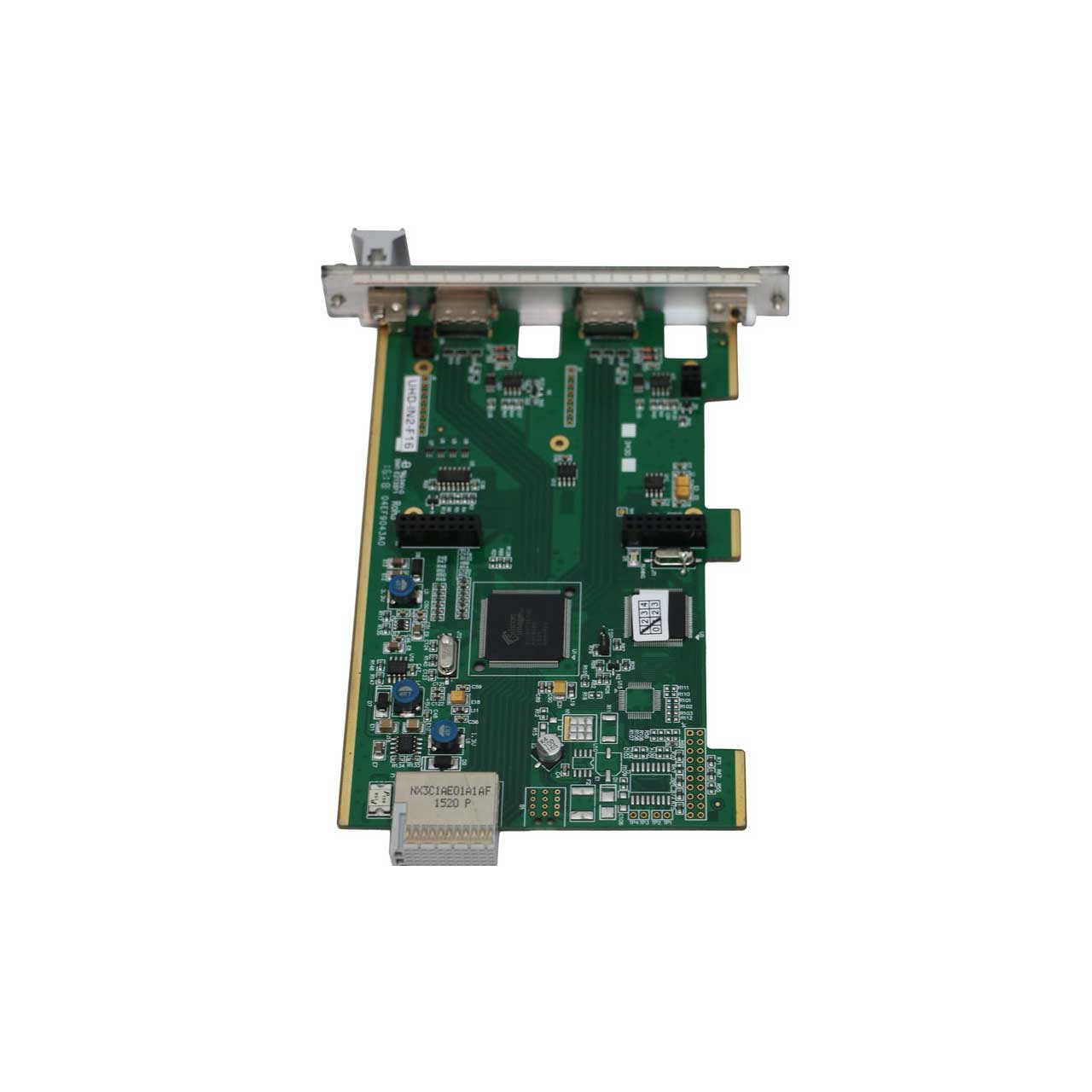

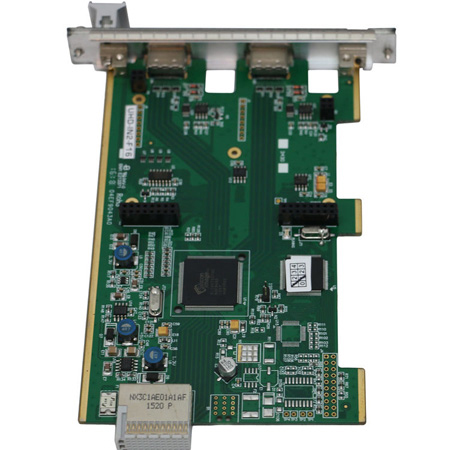

2-Channel 4K60 4:2:0 HDMI Input Card

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0).
  • HDMI Support - 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 multi-channel audio.
  • ARC Support.
  • HDTV Compatible.
  • HDCP Compliant.
  • EDID Capture - Copies and stores the EDID from a display device.
  • 3D Pass-Through.
  • Kramer Equalization and re-Klocking Technology.


• Specifications:

  • Ports
  • 2 HDMI

    Bandwidth Per Channel
  • 2.97Gbps per graphics channel

    Total Bandwidth
  • 8.91Gbps data rate

    Maximum Range
  • 10m (32ft) - 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) - 1080p 12 bit (deep color)

    3D Pass Through
  • Supported

    HDMI Support
  • 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, 7.1 multi-channel audio

    Power Consumption
  • 3.7W

    Operating Temperature
  • 0° to +40°C (32° to 104°F)

    Storage Temperature
  • -40° to +70°C (-40° to 158°F)

    Humidity
  • 10% to 90%, RHL non-condensing

    Standard Compliance
  • HDCP 1.4, HDTV compatible

    Safety Regulatory Compliance
  • CE

    Environmental Regulatory Compliance
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • UHD-IN2-F16 input card


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063078201
