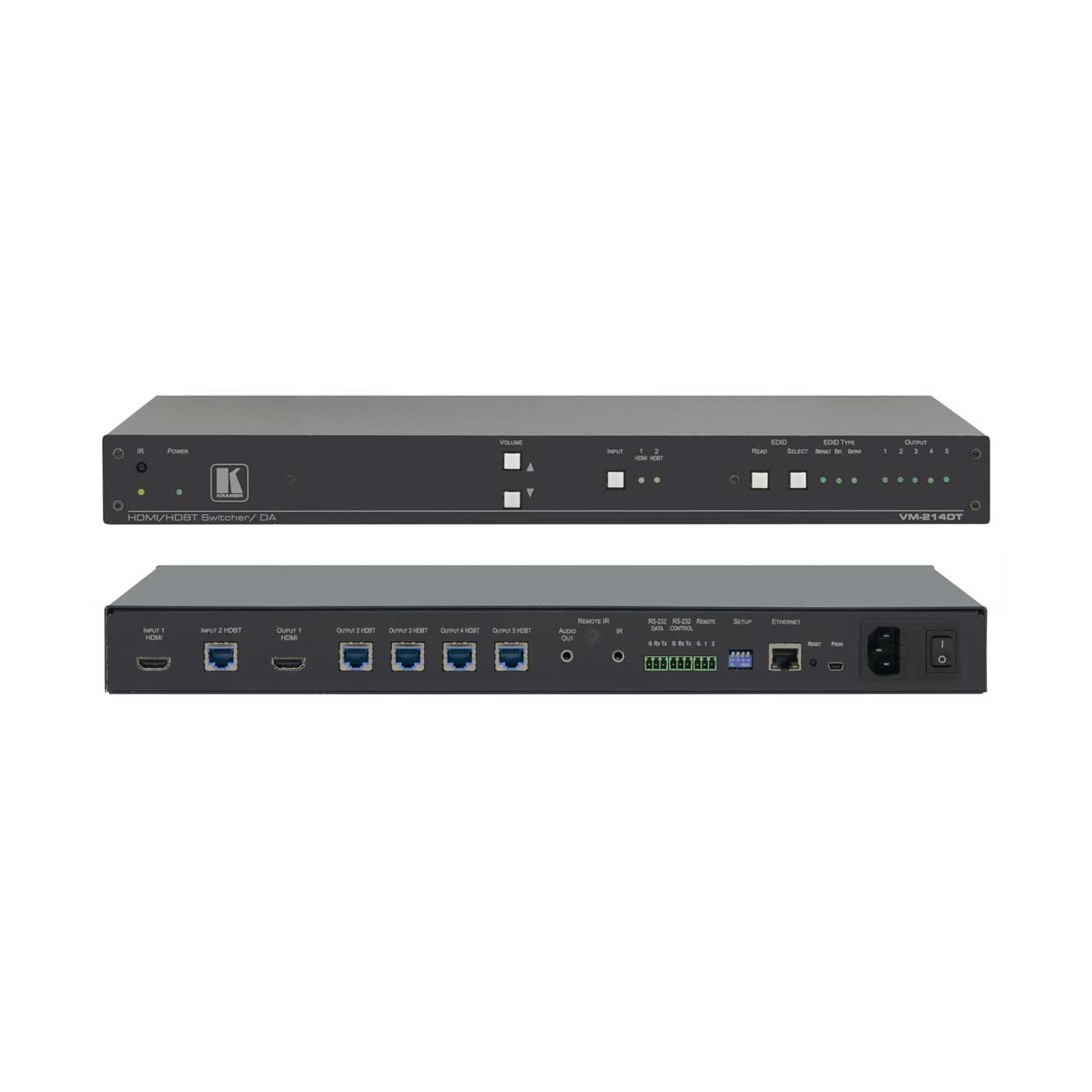

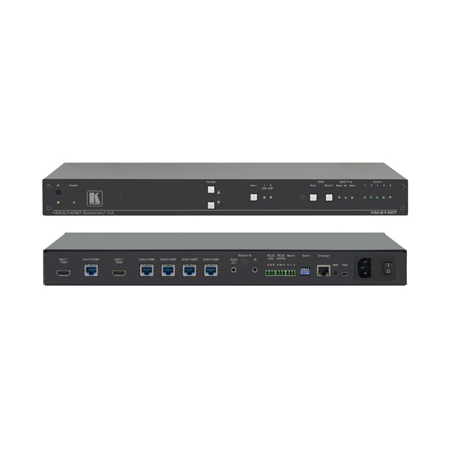

Kramer VM-214DT 2x1:4 4K60 4:2:0 HDMI & Extended-Reach HDBaseT Switchable DA with Ethernet/RS-232/IR/Stereo Audio

VM-214DT - Overview

• Features:

  • High Performance Extender Distributor - High-quality professional 1:4 distribution of native extended-reach HDBaseT signals, for deploying mid-way between an AV source and multiple remote displays and gaining extra extended-reach extension. It is coupled with both sides, input and output, extension of a maximum 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 100m (330ft) extended-reach over CAT copper cable, and even further reach for lower HD video resolution. The extender distributor is standard and capable of being connected to any market-available HDBaseT compliant extending product.
  • Cables - For optimum range and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Looping HDMI Output - Enables monitoring and cascading to additional DAs.
  • Ethernet Extension - Ethernet interface data flows in both directions, enabling extension of up to 100Mbps Ethernet connectivity for LAN communication and control of devices.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, enabling data transmission and control of devices.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, enabling remote control of peripheral devices located at either end of the extended line.
  • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports to facilitate easy local maintenance and troubleshooting. Remote IP device management via built-in web pages or RS-232 control connection. Local and remote firmware upgrade via mini-USB, control RS-232 or Ethernet connection and the K-Upload tool to ensure long field-proven deployment.
  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Rack mountable enclosure for mounting in a 1U rack space with included rack ears.


• Specifications:

  • INPUTS
  • 1 HDMI: On a female HDMI connector
  • 1 HDBT: On an RJ-45 connector


  • OUTPUTS
  • 1 HDMI: On a female HDMI connector
  • 4 HDBT: On RJ-45 connector
  • 1 Unbalanced Stereo Audio: On a 3.5mm mini jack


  • PORTS
  • 1 IR: On a 3.5mm mini jack for IR link extension via HDBT outputs
  • 1 RS-232: On a 3-pin terminal block for serial link extension via HDBT outputs
  • 1 Mini USB: On a female USB connector for firmware upgrade
  • 1 RS-232: On a 3-pin terminal block for device control
  • 1 10/100BaseT Ethernet: On an RJ-45 female connector for device control via LAN and Ethernet link extension via HDBT outputs


  • EXTENSION LINE
  • 4K @60Hz (4:2:0): Up to 100m (330ft)
  • Full HD (1080p @60Hz 36bpp): Up to 130m (430ft)
  • HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp): Up to 180m (590ft)
  • Compliance: HDBaseT 1.0


  • VIDEO
  • Max. Resolution: 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)
  • Compliance: Supports and HDCP 1.4
  • HDMI Support: Deep color, x.v.ColorT, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • ANALOG AUDIO
  • Max Level: 1 Vrms
  • THD + Noise: 0.03% @1kHz at nominal level


  • USER INTERFACE
  • Controls: Input select, volume, and EDID read/select buttons. RS-232 device control, Ethernet, and DIP-switches
  • Indicators: Input select, EDID type, outputs and IR signal LEDs


  • SUPPORTED WEB BROWSERS
  • Windows 7 and Higher - Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35
  • MAC - Chrome version 35, Chrome version 63.0.3239.84, Firefox version 30, Firefox version 57.0.2, Safari version 7
  • Minimum Browser Window Size - 1024 x 768 when in full screen mode


  • POWER
  • Consumption: 16VA
  • Source: 100-240V AC, 50/60Hz


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • STANDARDS COMPLIANCE
  • Safety: CE
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Size: 19" 1U
  • Type: Aluminum
  • Cooling: Fan Ventilation


• Item Includes:

  • VM-214DT Distribution Amp
  • Power power cord
  • Rack ears (1 set)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063069803
