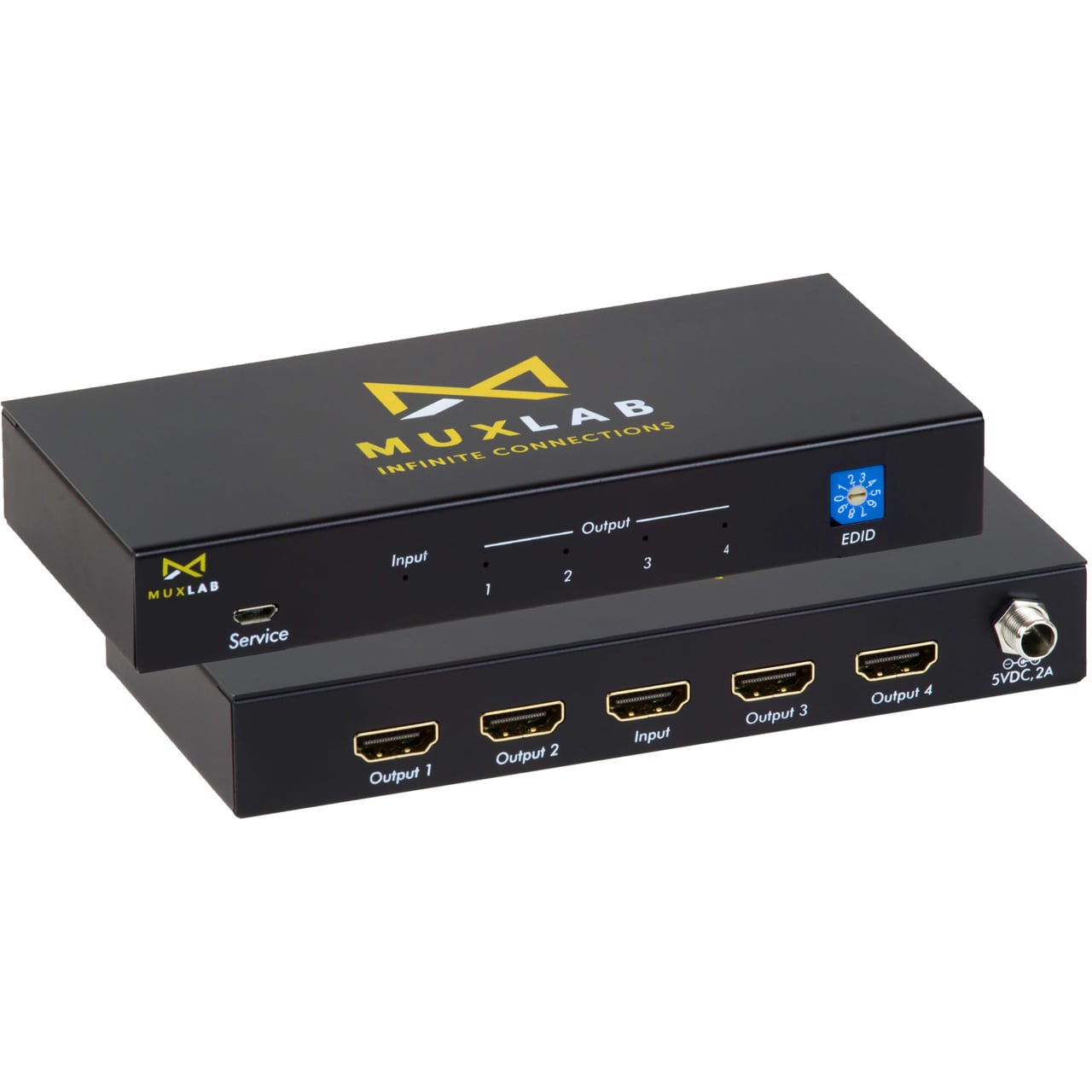

MuxLab 100506 1x4 4K60 HDMI 2.0 Splitter - HDCP 1.4 and 2.2 Compliant

100506 - Overview

Distribute one HDMI 2.0 source to four displays!

• Features:

  • Supports up to 4K @ 60Hz (4:4:4)
  • HDCP 1.4 and 2.2 compliant
  • Supports Dolby Vision, HDR and Deep Color
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
  • Supports EDID management
  • LED diagnostic


• Specifications:

  • Environment: HDMI 2.0a
  • Devices: Ultra HD Blu-Ray, projectors, monitors, TV, PC, laptops.
  • Transmission: Transparent to the user.
  • Video Bandwidth: 18Gbps
  • Frequency Range: 25MHz - 600MHz
  • Signals: HDMI 2.0a protocol.
  • HDCP: Revision 1.4 & 2.2 compliant.
  • Connectors: HDMI receptacle.
  • Rotary Switch: For setting the EDID to be sent to the source
  • LEDs:
    - Power: Blue
    - Input & Output Link: Blue
  • Resolution:
    - 480i to 1080p @ 50/60fps
    - 1080p @ 24/50/60fps
    - 3840 X 2160 @ 24/25/30/60fps
  • Color: 8, 10 & 12 bit
  • Audio:
    - LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master
    - Audio and DTS:X
  • Cable: HDMI cable of appropriate length for video resolution selected.
  • Power Supply: 1x 110V - 240V/5VDC , 1A power supply
  • Temperature:
    - Operating: 32°F - 104°F (0°C - 40°C)
    - Storage: -4°F - 140°F (-20°C - 60°C)
  • Humidity: Up to 90% non-condensing
  • Enclosure: Metal enclosure
  • Dimensions: 6.06" x 2.72" x 0.91" (155mm x 68mm x 24mm)
  • Weight: 1.1lbs (0.5kg)


• Item Includes:

  • 1x 100506 Splitter
  • 1x 110-240V/5VDC , 1A power supply


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0627699505069
