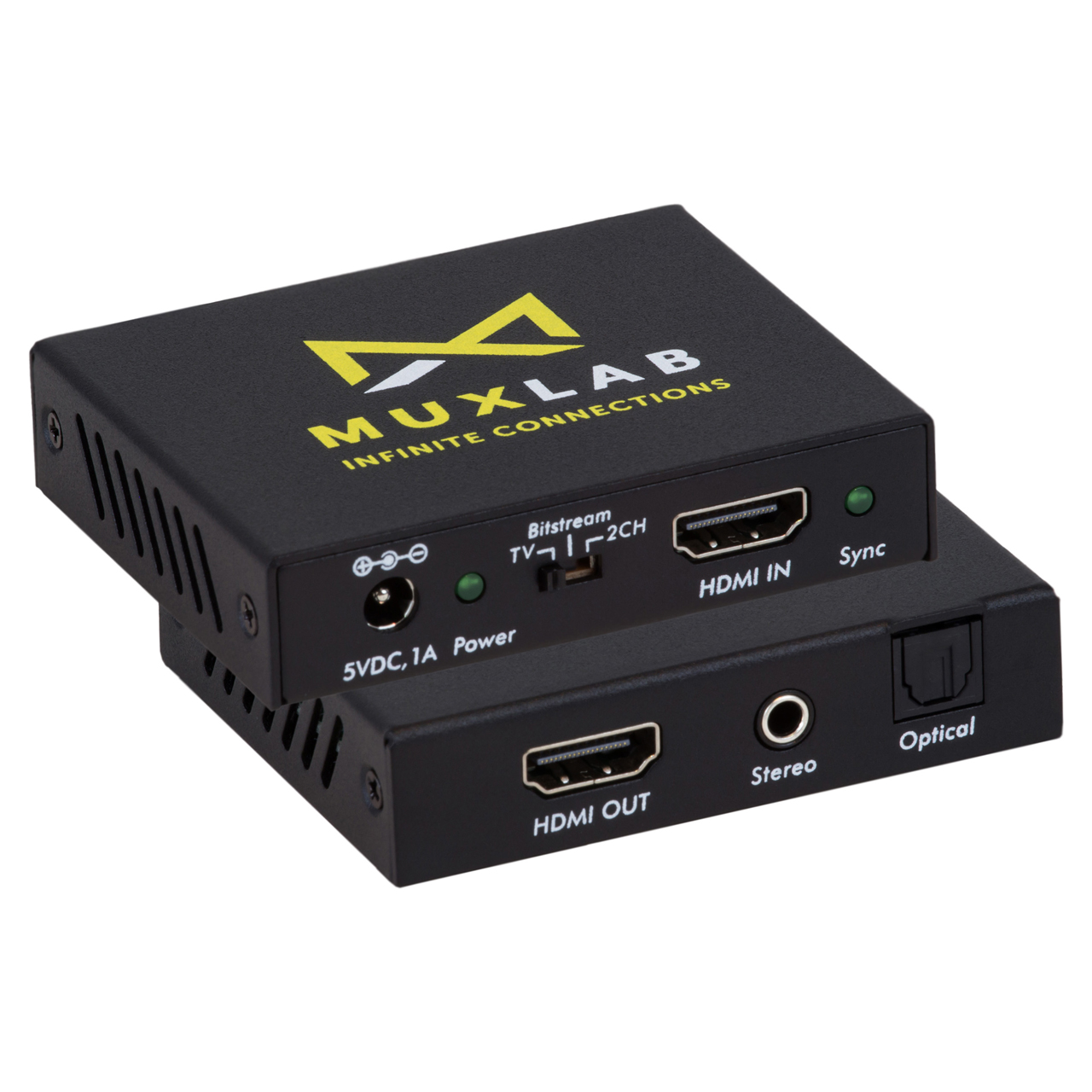

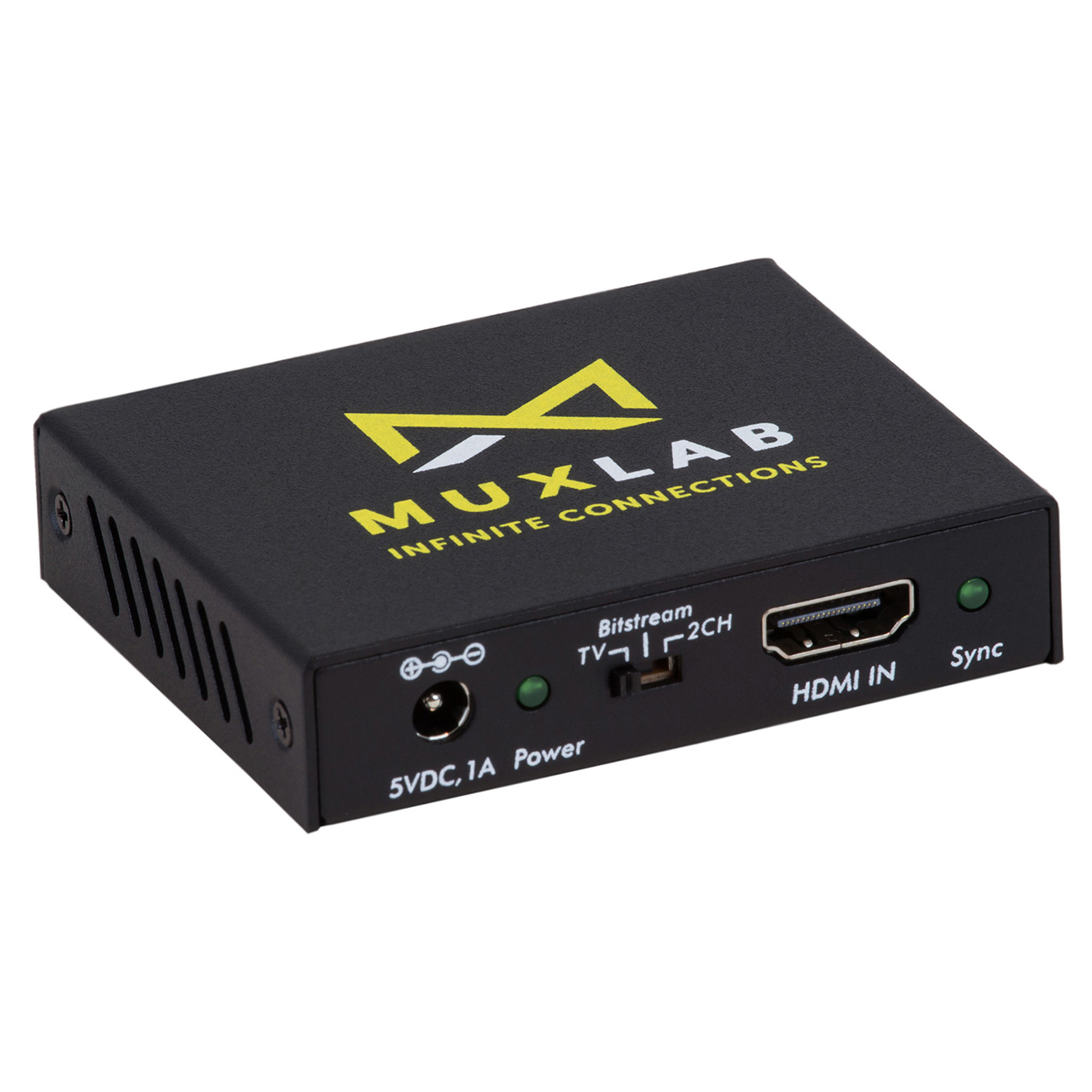

MuxLab 100528 4K60 HDMI to HDMI Distributor with Audio De-embedder

100528 - Overview

• Features:

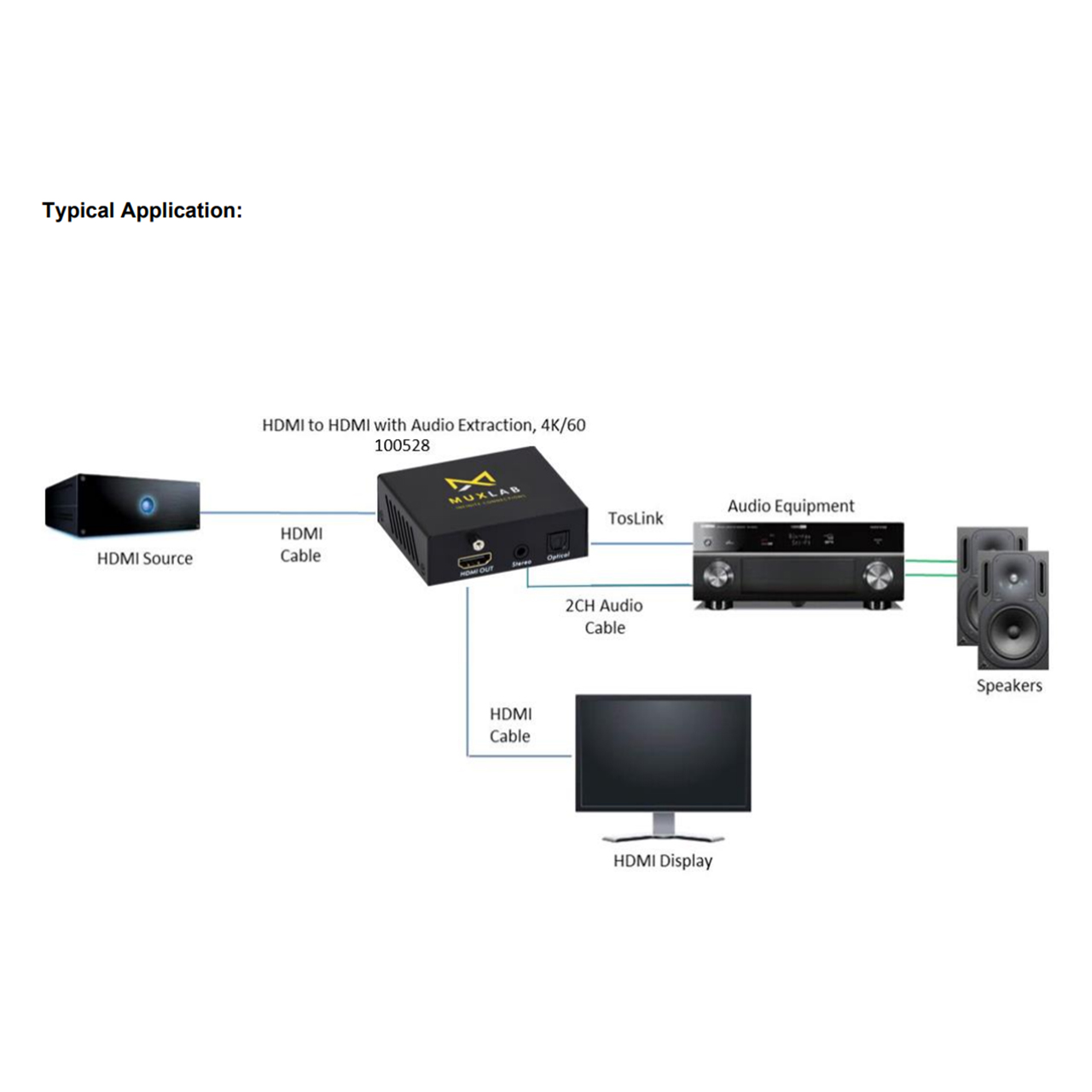

  • Allows one HDMI 2.0 source to be repeated and distributed to one HDMI display
  • HDMI supports 4K video at 60Hz, 8-bit color depth
  • HDMI supports LPCM 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD-Master Audio, and DTS:X
  • Extracts LPCM, Dolby Digital, Dolby Digital Plus, DTS, and Dolby Atmos digital audio via S/PDIF TosLink
  • Extracts 2CH analog audio via 3.5mm jack


• Specifications:

  • Environment: HDMI 2.0
  • Devices: DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
  • Transmission: Transparent to the user
  • Video Bandwidth: 18Gbps
  • Signals: HDMI 2.0 protocol

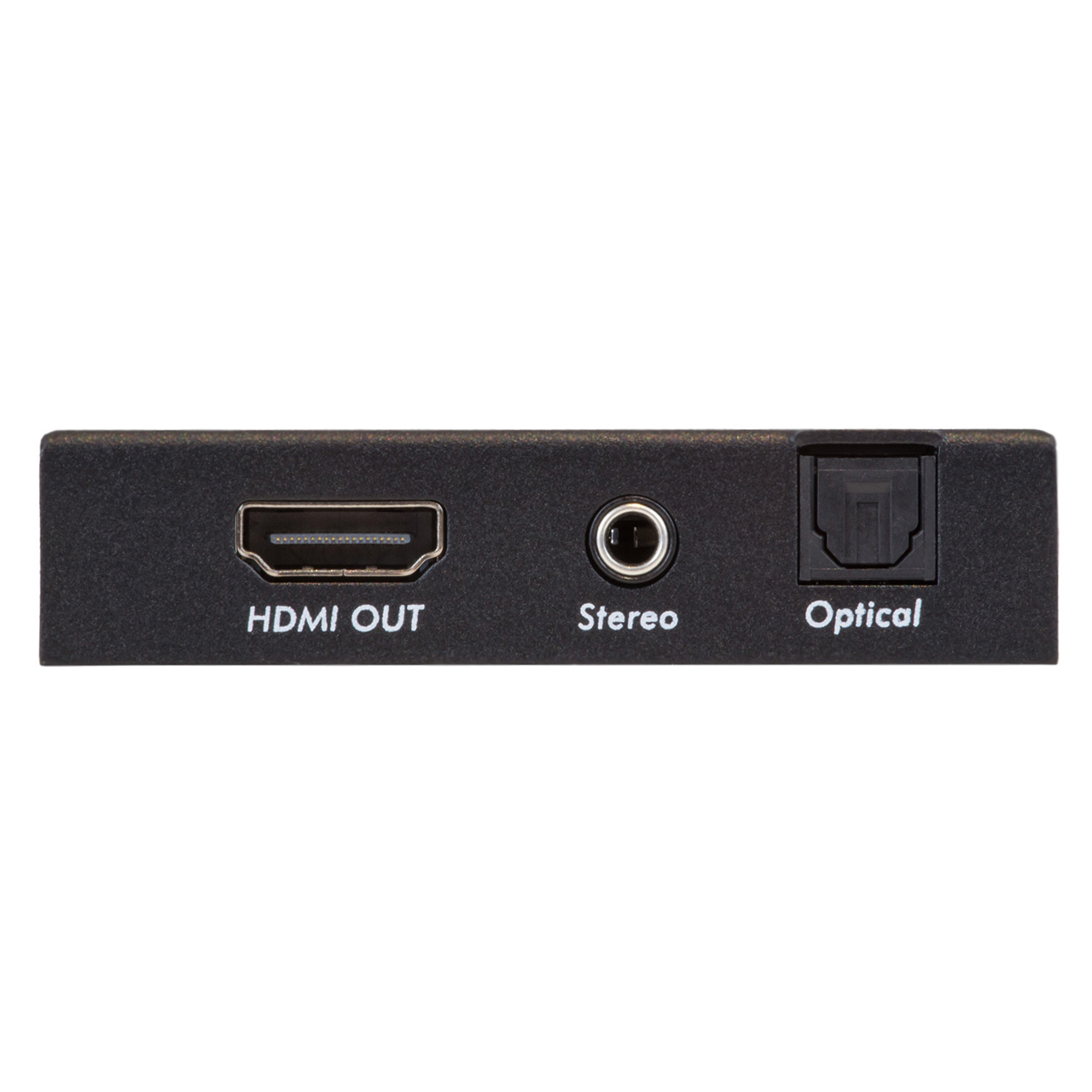

  • Connectors:
    - HDMI Type A 19-pin female
    - Toslink & 3.5mm Stereo Jack

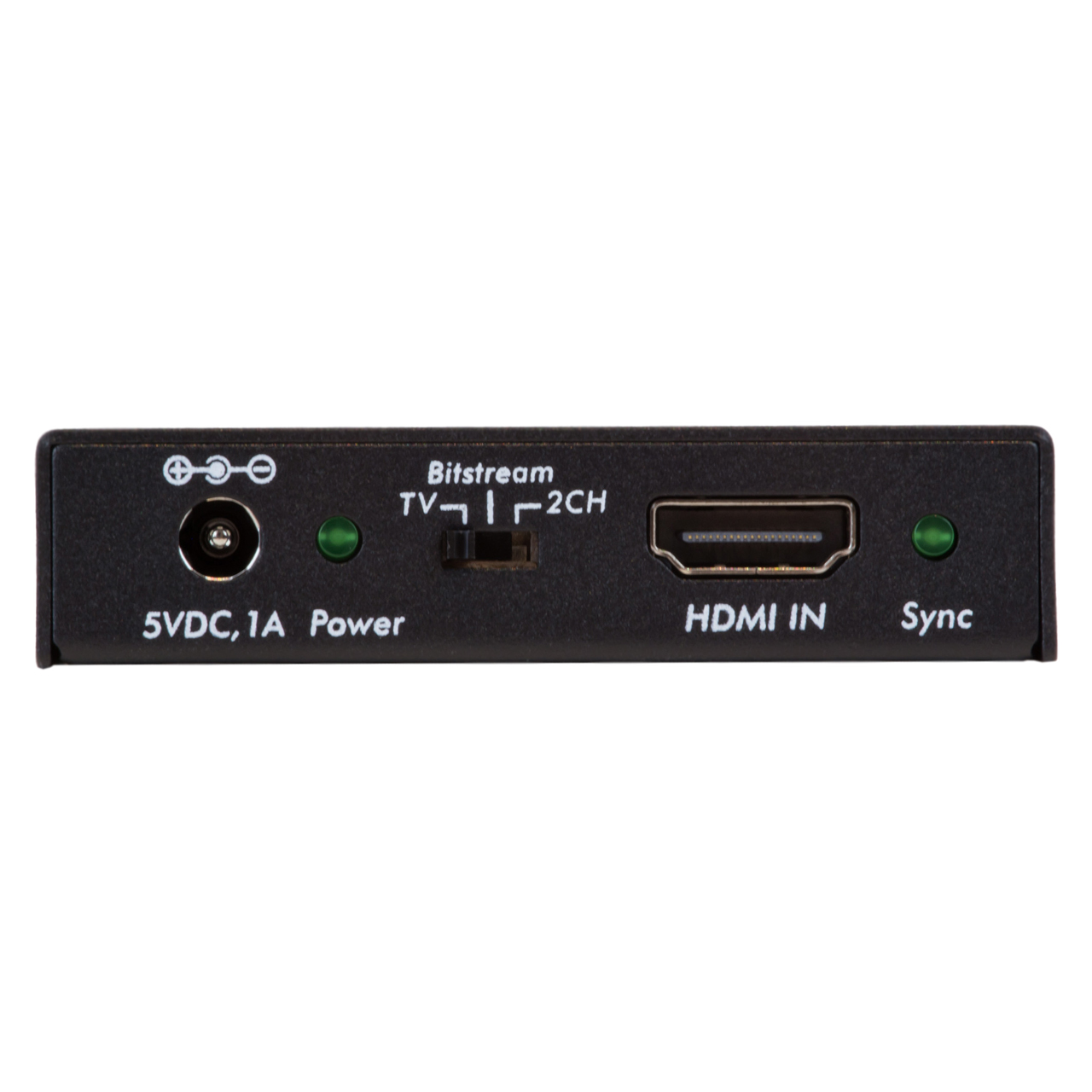

  • LEDs:
    - 1x Power: Green
    - 1x Sync: Green
  • Resolutions:
    - 480i to 1080p @ 50/60 Hz
    - 1080p @ 24/50/60 Hz
    - 3840 X 2160 @ 24/25/30/50/60 HZ
    - VGA to UXGA
  • Color: 8, 10 & 12 bit
  • Audio Formats:
    - HDMI Output: LPCM 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby, TrueHD, Dolby Atmos, DTS, DTS-HD-Master Audio, and DTS:X
    - Optical Output: LPCM, Dolby Digital, Dolby Digital Plus*, DTS, and Dolby Atmos** digital audio via S/PDIF TosLink
    - Stereo Output: 2CH analogue audio
    * For compressed Dolby Digital Plus signals only (in TV mode).
    ** For Atmos over compressed Dolby Digital Plus only (in TV mode).
  • Sampling Rate:
    - HDMI Output: 192kHz
    - Optical Output: 192kHz
    - Stereo Output: 48kHz
  • HDCP: Revision 2.2
  • Cables:
    - HDMI Cable
    - Audio Cables: Optical with TosLink and 2CH analog with 3.5mm connectors
  • Temperature:
    - Operating: 0°F - 104°F (0°C - 40°C)
    - Storage: -4°F - 140°F (-20°C - 60°C)
    - Humidity: Up to 90% non-condensing
  • Enclosure: Metal enclosure
  • Dimensions: 2.83" x 2.36" x 1.00" (72mm x 60mm x 25mm)
  • Weight: 0.73lbs (0.33kg)
  • Power Supply: 5V DC, 1A with interchangeable blade for US, UK and Euro
  • Compliance: Regulatory: FCC, CE, RoHS


• Warranty:

  • 1 year


• GTIN:

  0627699004364
