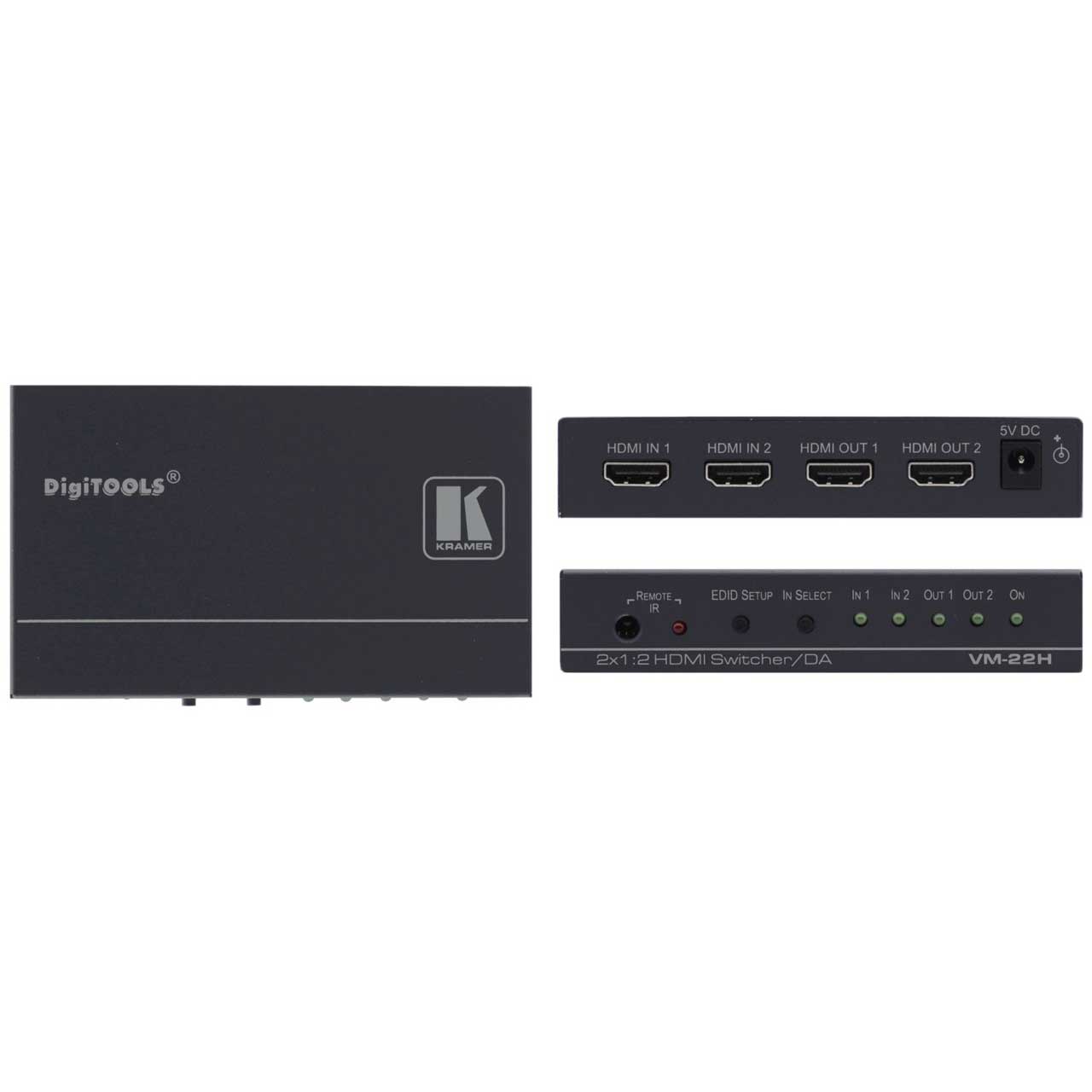

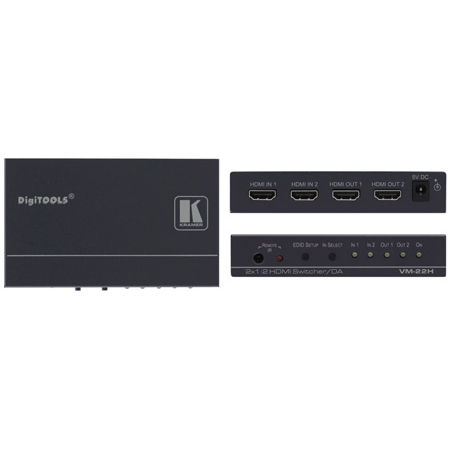

Kramer VM-22H 2x1:2 Compact Switchable HDMI Distribution Amplifier

VM-22H - Overview

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel)

• Features:

  • Max. Data Rate - 2.25Gbps.
  • HDCP Compliant.
  • HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, CEC).
  • 3D Pass-Through.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Active Output LED Indicators.
  • Control - Front panel or IR remote switching.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.


• Specifications:

  • INPUTS
  • 2 HDMI connectors


  • OUTPUTS
  • 2 HDMI connectors


  • BANDWIDTH
  • 6.75Gbps (2.25Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP


  • CONTROLS
  • EDID SETUP button, input select button, IR


  • INDICATOR LEDS
  • IN 1, IN 2, OUT 1, OUT 2, and ON LEDs


  • POWER CONSUMPTION
  • 5V DC, 910mA.


• Item Includes:

  • VM-22H
  • Power supply
  • Bracket installation kit


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063029449
