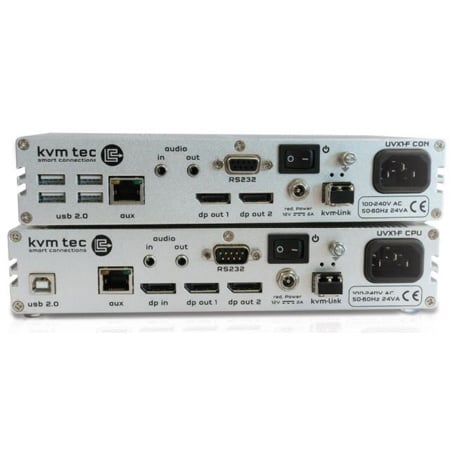

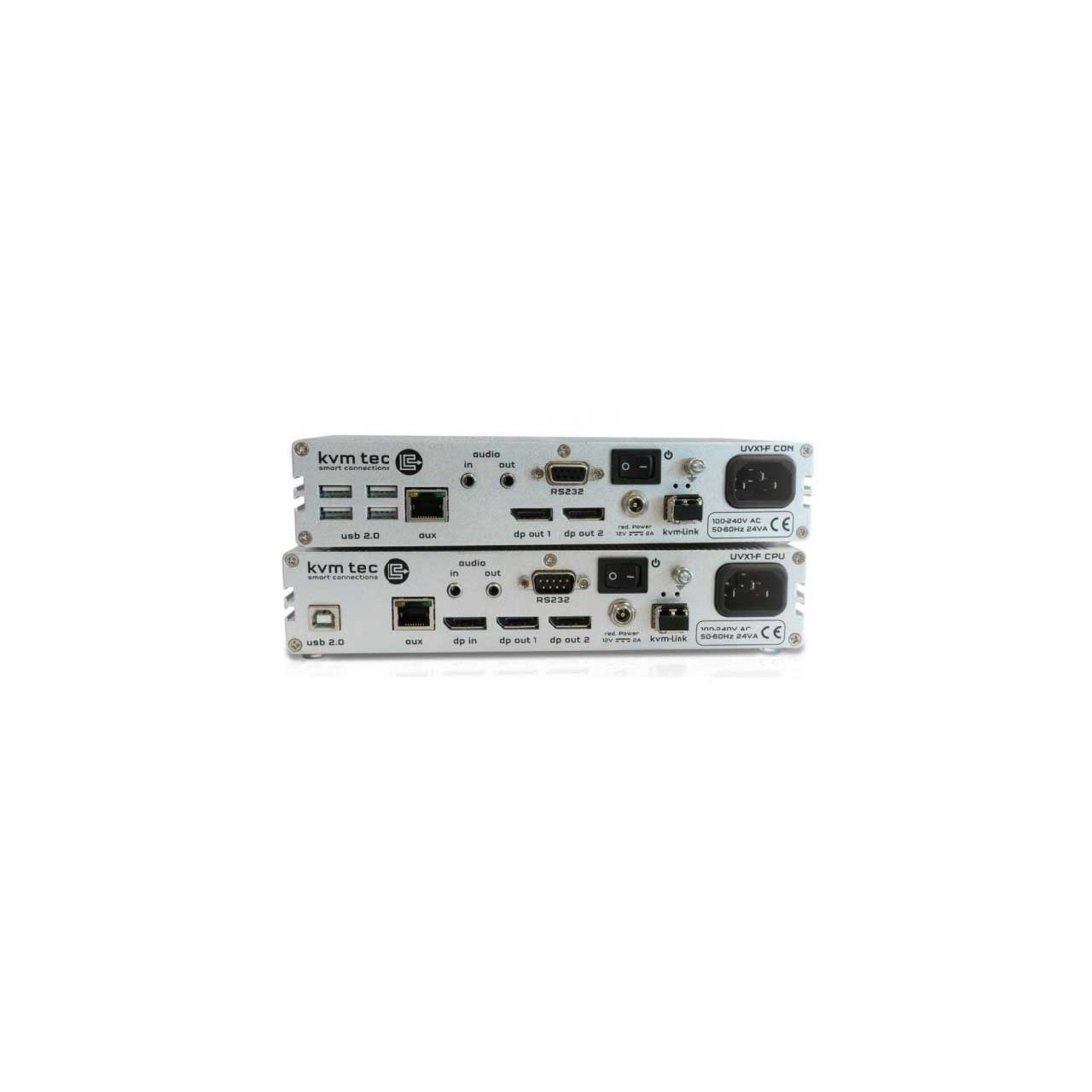

kvm-tec UVX1-F Ultraline 4k Extender Single Fiber - Local/Remote Kit

ITEM #: KVM-6902 MFG #: 6902

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Special Price:


Availability: In Stock
iAvailability Description Popup

    6902 - Overview

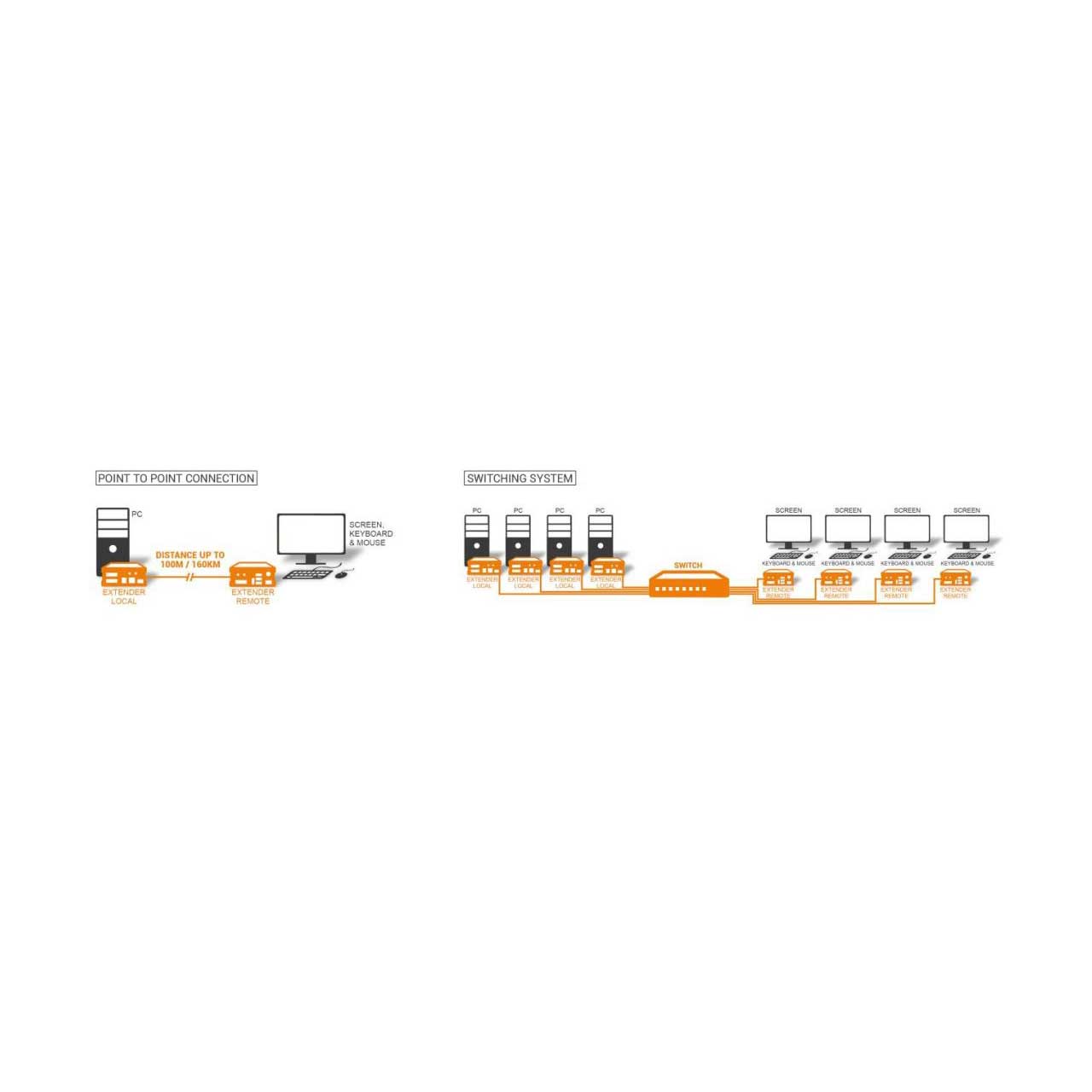

    The kvm-tec UVX1-F Ultraline 4k Extender supports transport of ultra-high resolution (up to 4096 x2160 @ 60 Hz - True 4k) over fiber optic or copper cabling. The Ultraline 4K Extender has the perfect color coding with 4:4:4 @ 8 bit per color. The Extender is optimized for all signals like DP1.2 and USB 2.0. The product is available in copper and fi ber version and can go up to distances of 100m in copper and 120km in fiber. The CPU (local) and CON (remote) parts have two local video outputs which support a MST/Hub splitter function with 4K multi-stream support at a resolution of up to 2560x1440. Additionally, the kvm-tec security feature USB save "prevents the intrusion of computer viruses ia the interface by disabling mass storage device support such as USB memory stick and external hard disk drives. With the Matrix Switching System grade code enabled, the Ultraline 4k Extender can be used with a standard 10G Network Switch to create a full KVM Matrix Switching System. There is no additional hardware needed. Aadditionally, our intelligent software, the kvm-tec Switching Manager, (available separately) provides easy and intuitive management of all KVM Extenders in the Switching System. A low cost, 5 year extended warranty is also available.

    Please Note: This Extender System REQUIRES both a SEND and RECEIVE unit in order to function. This is a kit containg both required units.

    • Features:

      • Max. 4096 x 2160 resolution @ 60Hz /4:4:4
      • Max.distance 984ft in copper
      • USB 2.0 transparent up to 480mb/sec
      • 4K videos in real time
      • RS232
      • Displayport 1.2 Extender over IP
      • USB Memory
      • Only one fiber cable for USB and video
      • Local (CPU) - remote (CON) Monitor output
      • Firmware Flash upgradeable without cable
      • Ultra compact up to 2 Extender in 19" 1RU
      • Mouse glide and Switch
      • Automatic Plug & Play installation
      • Matrix switching system up to 480 endpoints
    • Specifications:

      • Interfaces
      • Video: DP 1.2 In/Out (no HCDP)
      • USB 2.0: USB-B - PC, USB-A (devices)
      • Audio: 3.5mm jack plug (Line IN/OUT, Speaker)
      • RS232: D-Sub9 (male/female)
      • SNMP: RJ45

      • Signal Type: DP 1.2
      • Resolution (Digital): Max. 4096 x 2160 @ 60Hz
      • Color Mode: 24 bit
      • Pixel Encoding: 4:4:4

      • Type: Analog, Digital
      • Bandwith: 16 bit, 44kHz, 2ch

      • Specification: USB 2.0
      • Type: Transparent
      • Rate: Max. 480Mbit/s

        RS232 (optional)
      • Type: Transparent
      • Rate: Max. 230.400bps
      • Signals: TxD, RxD, DTR, DSR, RTS, CTS, DCD

      • Operating Temperature: 32°F - 133°F
      • Storage Temperature: -13°F - 176°F
      • Operating/Storage Humidity: <90%, non-condensing
      • Cooling: Free air convection

        Power & Physical
      • Main Power Supply: Internal Power Pack, AC 90-240V/60-50Hz
      • Redundant Power Supply: International wall power supply, 12V DC 2.5A
      • Casing Material: Anodized Aluminum
      • Dimensions (HxWxD): 1.69" x 8.58" x 4.13"
      • Weight: 23.9oz (Local), 24.9oz (Remote)
    • Item Includes:

      • 1x UVX1 Local (CPU)
      • 1x UVX1 Remote (CON)
      • 2x Power Supply C7
      • 1x DP-DP cable
      • 1x USB A-B cable
      • 1x Audio cable
      • 1x RS232 cable
      • 2x SPF Multimode Module
      • 4x rubber feet
      • 4x mounting pads
      • Quickstart Manual
    • Warranty:

      • 2 years
    • GTIN:
