Lectrosonics TM400 Test and Measurement System - Use with Calibrated Test Mics and Analysis Software - Block 21

ITEM #: LEC-TM400-BLK21 MFG #: TM400-BLOCK21

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    TM400-BLOCK21 - Overview

    The Lectrosonics TM400 system was designed to provide the ideal link between calibrated test microphones and measurement equipment such as SIM®, SIA SMAART Live®, TEF® or other systems. By using a radio link, long cables can be eliminated thus saving time and providing opportunities for additional measurements to increase accuracy. The microphone can even be moved around in the venue while the audience is present - something that is impossible with a cabled measurement microphone.

    Lectrosonics Digital Hybrid Wireless™ (U.S. Patent Pending) uses a proprietary algorithm to encode the digital audio information into an analog format which can be transmitted in a robust manner over an analog FM wireless link. This combination offers the superb audio quality of a pure digital system and the outstanding operating range of the finest FM wireless systems. The digital audio chain eliminates compandor artifacts, and provides audio frequency response flat to 20 kHz. The RF link takes advantage of the spectral efficiency characteristics of an aggressively optimized FM radio system.

    This digital/analog hybrid technique has some very beneficial properties. Because the information being transmitted is digitally encoded, useable dynamic range is much higher than a compandor can offer and there is no compandor in the audio signal to interfere with your measurements.

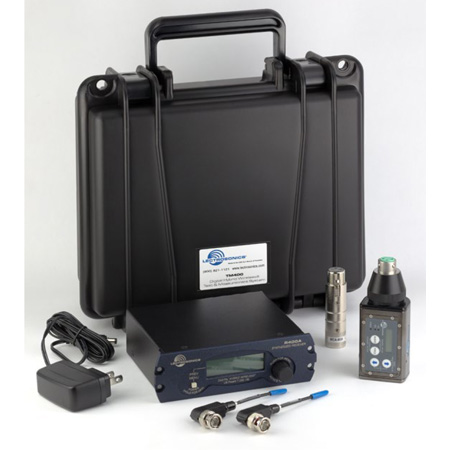

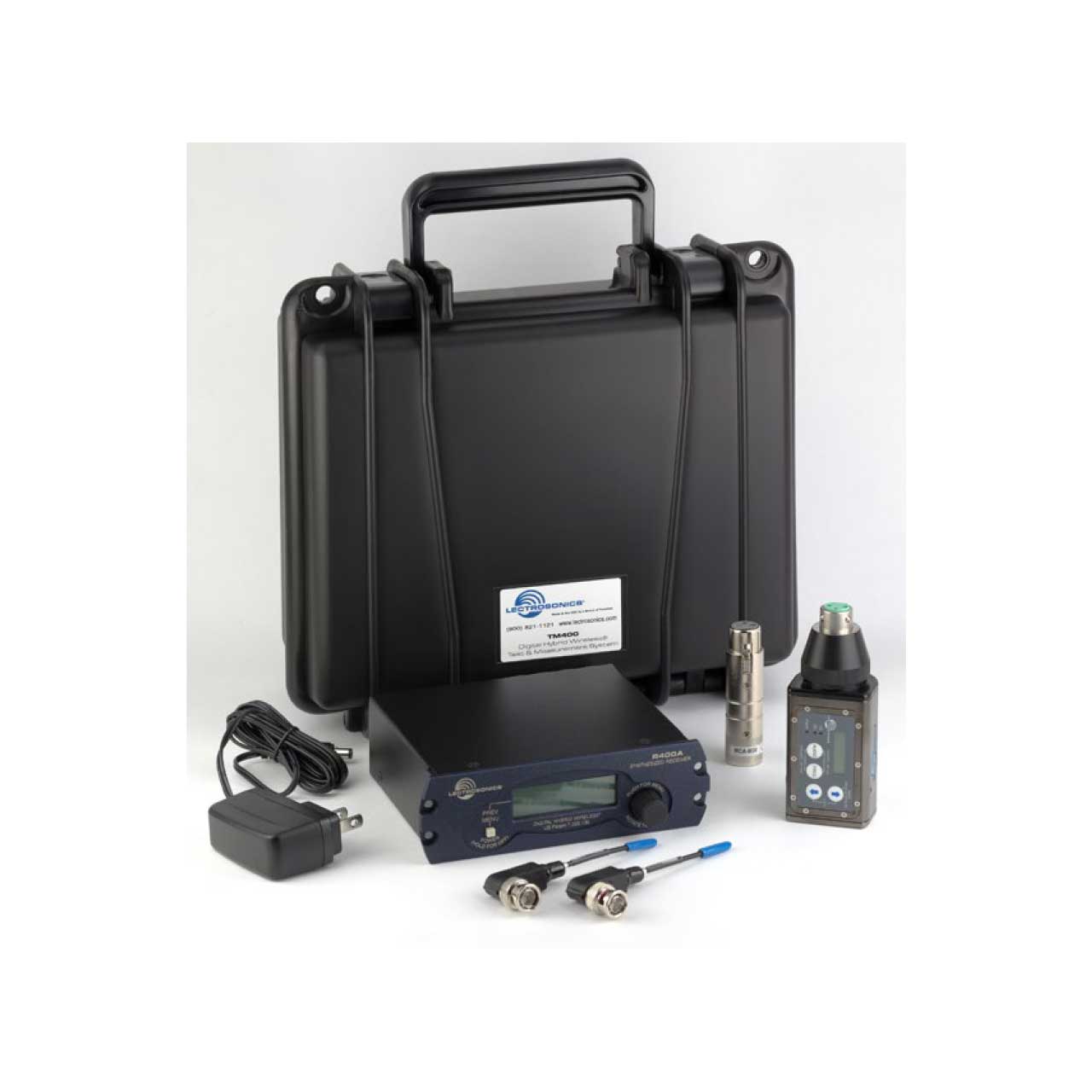

    The TM400 system comes standard with the HMa transmitter, R400A receiver, and CCTM400 water-resistant case. However, the components can be ordered separately. Also, the R400A receiver can be ordered with a rack-mount front panel, at an additional cost.

    Please Note: *System does not include microphone

    • Features:

      • Replaces long cable between calibrated microphone and test equipment
      • 24-bit, 88.2 kHz digital signal handling for compandor-free audio
      • 256 synthesized UHF frequencies for wide choice of tunings to avoid interference
      • Rugged all-metal construction
      • Low noise, robust RF front end

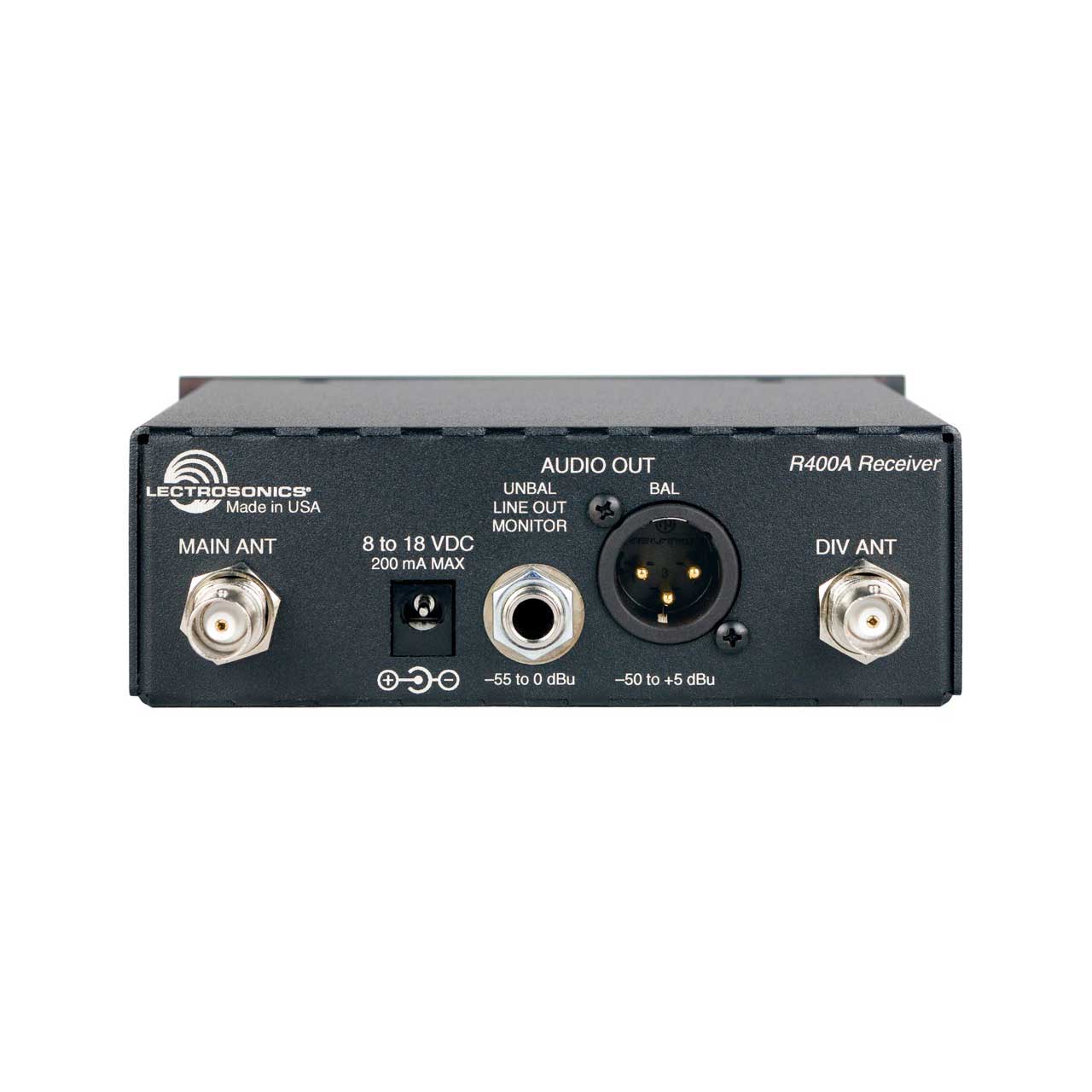

      • Balanced XLR audio output
      • SmartTuning with graphic display for easy selection of clear RF frequencies
      • Converts microphones with XLR jacks to wireless operation
      • Selectable 5, 18, 48 Volt powering
      • 100 mW RF output power for long range
      • Membrane switch control panel with LCD display
    • Item Includes:

      • 2x HMa AA Alkaline Batteries
      • 1x HMa HM Pouch (Part #PHTRAN3)
      • 1x HMa Quickstart Guide
      • 1x R400a Power Supply (Part #DCR12/A4U)
      • 2x R400a Antennas (Part #A500RAXX)
      • 4x R400a Rubber Feet (Part #35664)
      • 1x R400a Manual
