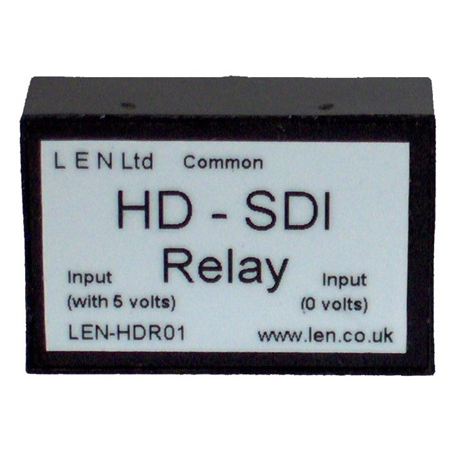

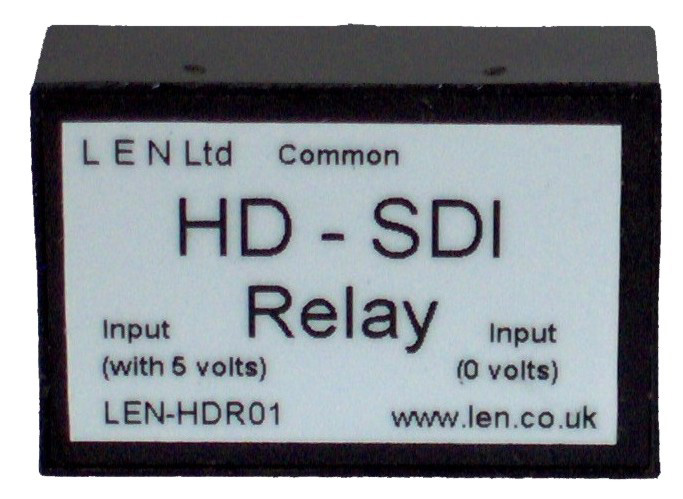

LEN LHDR01 Passive HD-SDI Single Channel HD Serial Digital Video Relay

ITEM #: LEN-HDR01 MFG #: HDR01

free ship

List Price:

$195.00

Our Price:

$185.00

Availability: In Stock
iAvailability Description Popup


    HDR01 - Overview

    The LEN LHDR01 serial digital video relay full broadcast quality switching, for all data rates up to 1485 MBitHD-SDI.

    It is ideal for applications such as power failure switching, where a local HD-SDI source is automatically switched in on failure of an incoming HD-SDI signal from a remote source.

    • Features:

      • Two way HD-SDI digital video signal relay
      • Transparent to all HD-SDI and SD formats with data rates up to 1485 MBit
      • Size 45 x 30 x 15 millimeters
      • Optional rack frame to hold eight relays

    • Specifications:

      • Impedance: 75 Ohms
      • Insertion Loss: < 0.4 dB from DC to 360 MHz
      • Amplitude roll-off: < 0.2 dB from 360 to 540 MHz, < 0.3 dB from 360 to 1485 MHz
      • Return Loss: > 15 dB 0.1 to 1485 MHz
      • Control Voltage: 5 volts DC (via mounting screws)
      • Enclosure: ABS box, 45 x 30 x 15 mm (excluding connectors)
      • Weight: 32 gm
      • Connectors: BNC Female
      • RoHS compliant: Yes

    • Item Includes:

      • 1x LEN LHDR01 Passive HD-SDI Single Channel HD Serial Digital Video Relay
