LYNX Technik OTT-1412 Dual Channel 12G SDI to Fiber Optic Transmitter

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

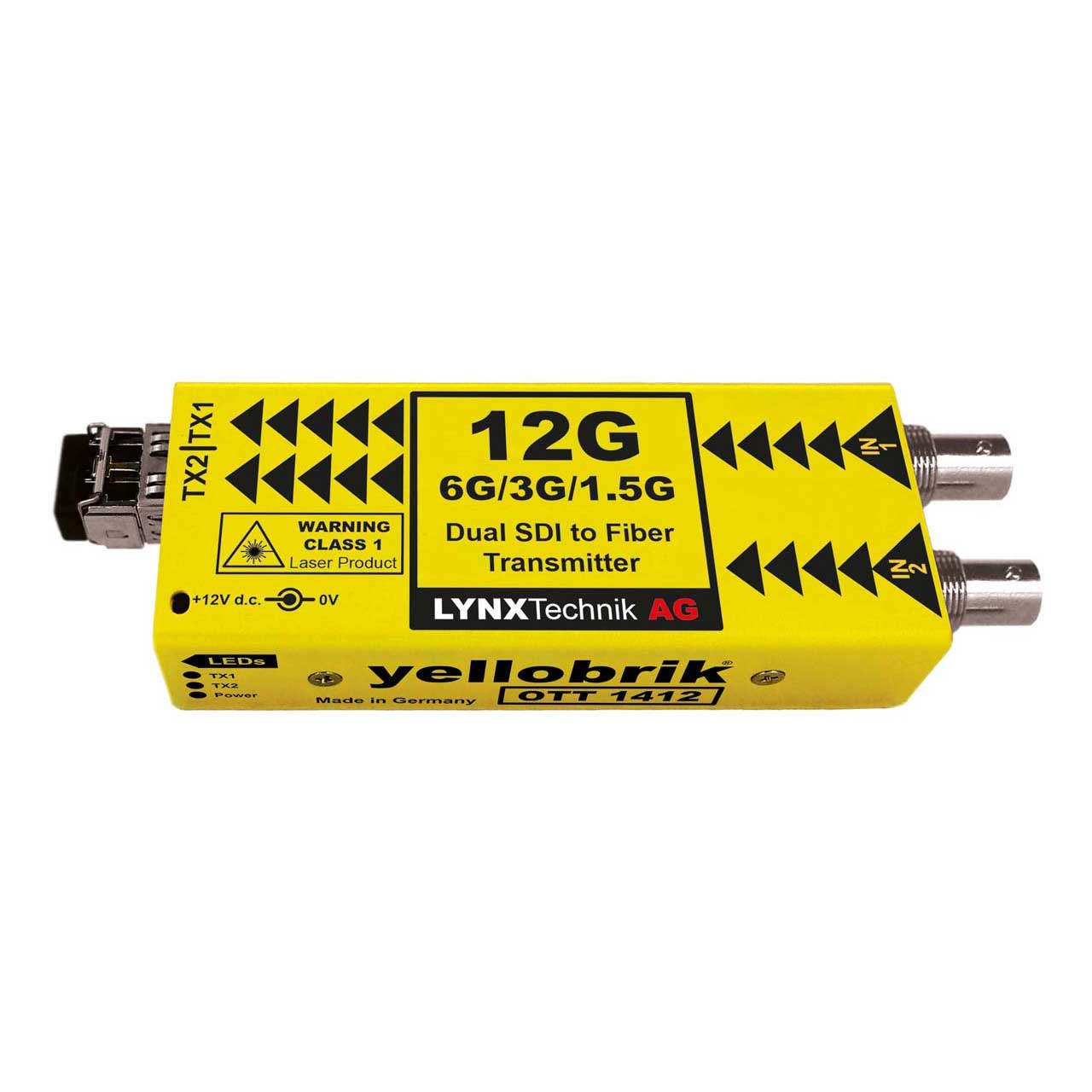

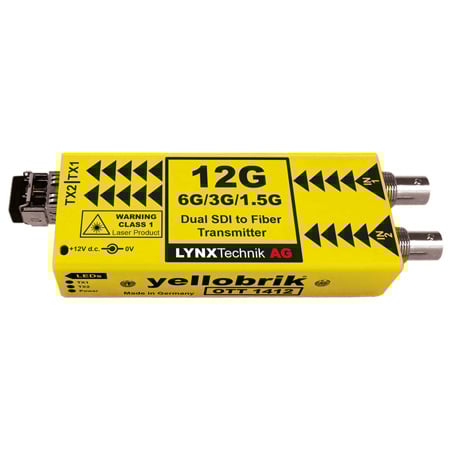

    LYNX Technik OTT-1412 Dual Channel 12G SDI to Fiber Optic Transmitter

    Manufacturer: LYNX Technik Inc

    Item #: LNX-OTT-1412   •   MFG #: OTT-1412



    List Price:$1,299.00
    Our Price:$1,234.05

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The LYNX Technik OTT 1412 is a compact dual channel SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

      When paired with the dual channel fiber optic to SDI receiver (e.g. yellobrik ORR 1402) you have a very cost-effective dual channel optical transmission/receiver system for signals up to 12Gbit/s (4096x2160 @ 60Hz) , while preserving full uncompressed quality.

      The OTT 1412 has two completely independent channels and each will auto-detect and re-clock any 1.5Gbit, 3Gbit, 6Gbit or 12Gbit SDI source prior to optical transmission. The module is fully compatible with 3Gbit Level A and Level B formats.


      • Features

        • Dual channel
        • Supports 12G, 6G, 3G, and 1.5G SDI video inputs
        • 3Gbit Level A and Level B support (all formats)
        • Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
        • Error free optical transmission
        • Up to 10km (6.2 miles) @ 12Gbit/s (singlemode)
        • Duplex LC/PC singlemode optical connection
        • Supports hot swapping and hot plugging

      • Specifications

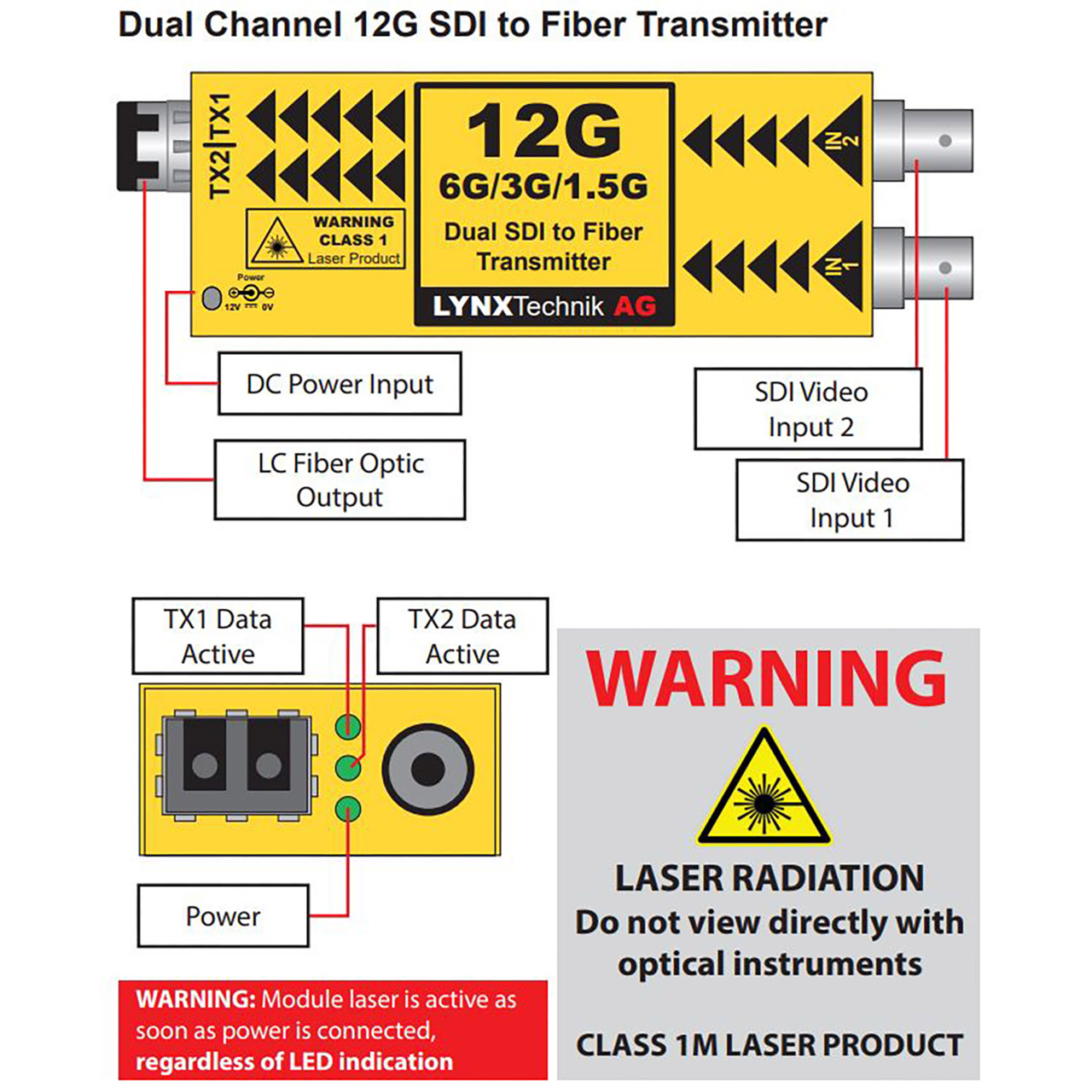

        • Input
        • 2 x SDI video on 75 Ohm BNC connector (two independent channels)
          SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
          Multi-standard operation from 1.5Gbit/s to 12Gbit/s
          Multirate reclocking:1.5Gbit -3Gbit -6Gbit - 12Gbit
          Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
          Automatic cable EQ
          245m @ 1.5Gbit/s, 145m @ 3Gbit/s (Belden 1694A cable)
          85m @ 12Gbit/s, 6Gbit/s (Belden 4794R cable)
        • Optical Outputs
          2 x fiber optic outputs (one for each channel)
          Duplex (single mode) using LC/PC Connections
          SMPTE 297M - 2006
          Wavelength 1310nm (each channel)
          Optical power -5.5dBm - 0.5dBm (each channel)
          TX active LEDs on side of module
          Max. distance approx. 10km (6.2 miles) @ 12Gbit/s (Singlemode)
        • Power: +12VDC @ 2.5W nominal - (supports 7 - 24VDC input range)
        • Physical Size: 5.51 x 1.65 x 0.86" (140 x 42 x 22mm) including connectors
        • Weight: 0.27Lbs (125g)
        • Ambient: 41° to 104°F (5° to 40°C) 90% Humidity (non condensing)

      • Item Includes

        • 1x OTT 1412 Module
        • 1x AC power supply
