The LYNX Technik RFR 6000 greenMachine is ideally suited for standalone "desktop" applications. However, rack mounting preferred in some situations. For larger permanent system installations where multiple greenMachines are used, rack mounting is essential.

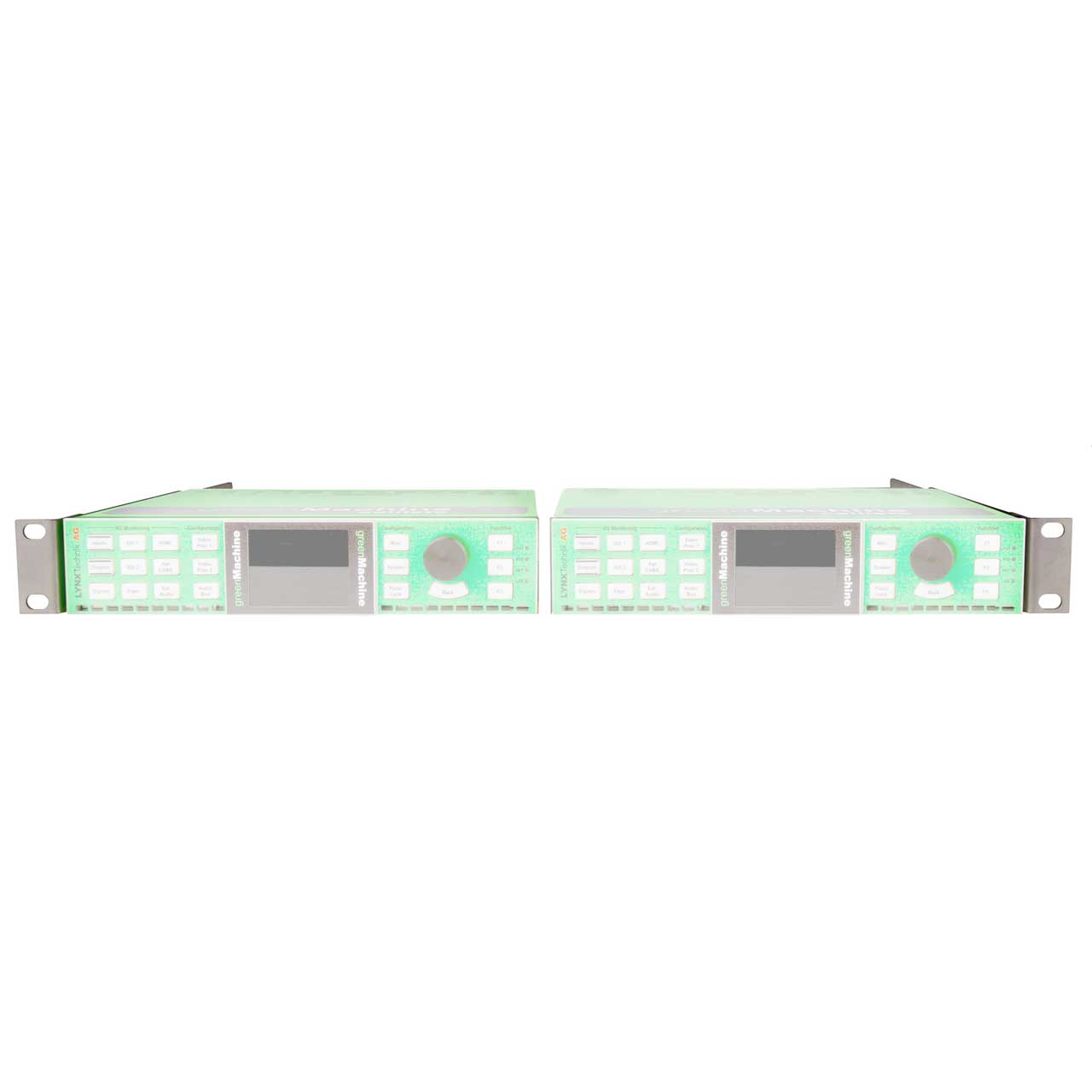

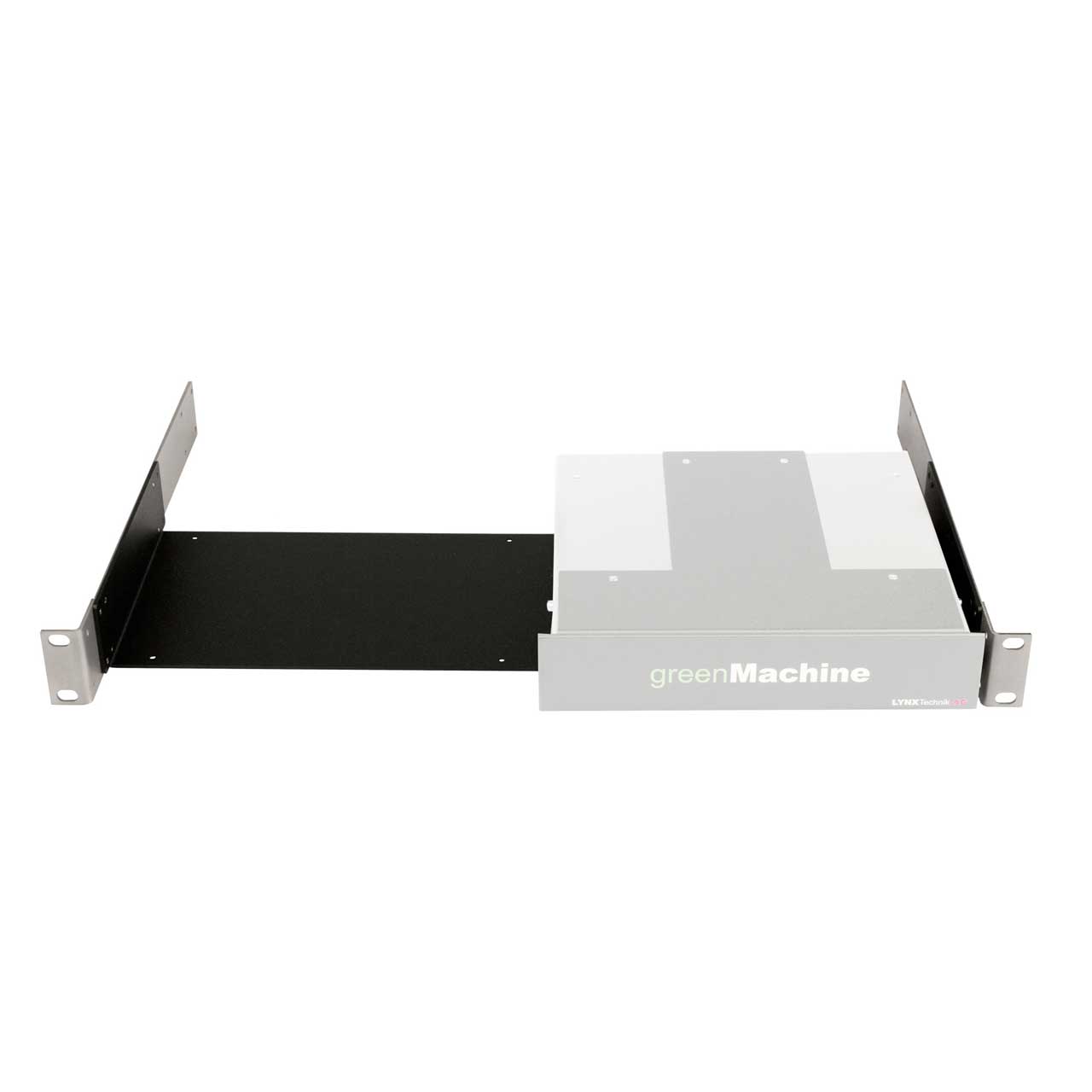

The RFR 6000 is a compact 19" rack mounting solution occupying 1RU of vertical rack space. It has can be configured to accommodate one or two greenMachines. In either configuration the RFR 6000 also provides innovative mounting options for one or two of the external RPS 6120 "brick" power supplies both of which can be securely mounted within the 19" 1RU footprint.
The RPB 6000 power bridge cable is available for the greenMachine callisto. This cable provides power redundancy when the frame is configured for two greenMachine callisto using dual power supplies. Simply cross connect the power connections of both greenMachine callisto with the power bridge cable and each greenMachine shares the two power supplies for primary and redundant power protection.
Power Supply Mounting
The greenMachine includes the RPS 6120 primary power supply, which is an external desktop "brick" style power supply. An optional second power supply can be added for redundant protection. When installing the greenMachine into the RFR 6000 rack frame we have provided two separate power supply "caddies" each of which can securely accommodate an RPS 6120 brick power supply.
Installation is simple and requires no tools and provides easy access should the power supply need to be removed or replaced. The power supply caddies can be relocated to the rear of the frame when two greenMachines are installed.
Note: Some assembly is required.
