Luminex GigaCore 12 Rackmount Touring 12-Port EtherCON Gigabit Ethernet Switch | Dante Switch | AES67 Switch

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

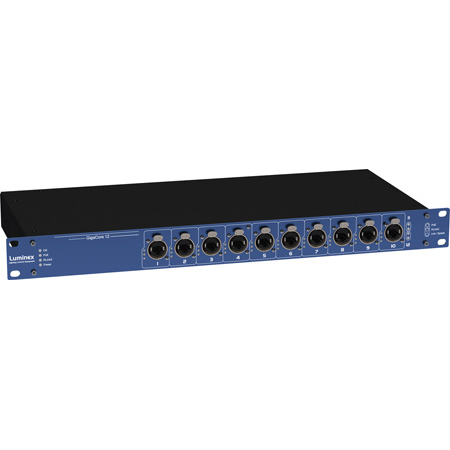

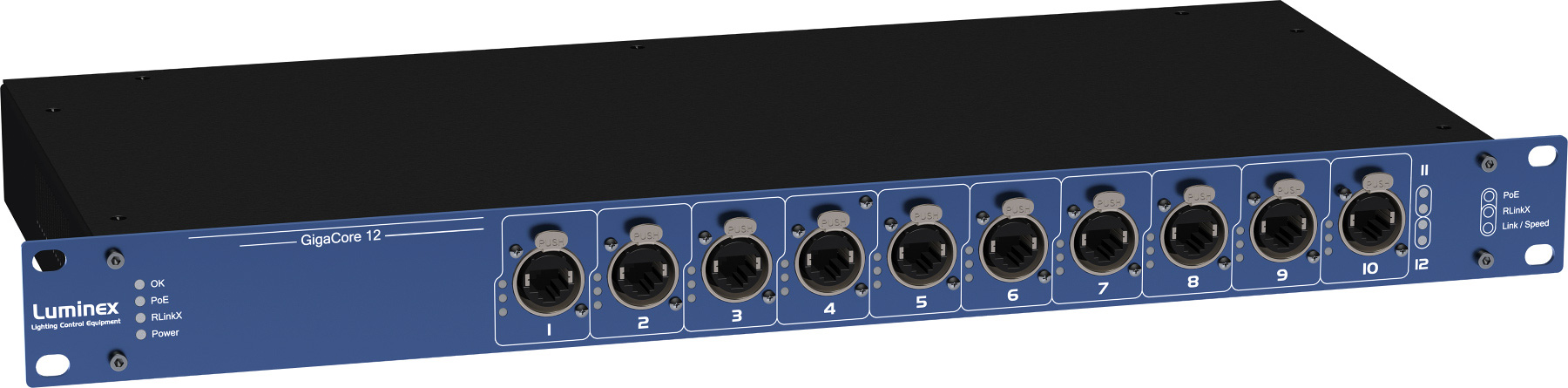

    Luminex GigaCore 12 Rackmount Touring 12-Port EtherCON Gigabit Ethernet Switch | Dante Switch | AES67 Switch

    Manufacturer: Luminex

    Item #: LUM-GC-12   •   MFG #: LU 01 00036



    List Price:$1,800.00
    Our Price:$1,620.00

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Setup a Pro AV Network Without any IT Knowledge!

      The GigaCore 12 is a managed Gigabit Ethernet switch designed to setup professional lighting and AV networks, but in a truly user friendly way. The unit offers 12 Gigabit ports on shielded Neutrik Ethercon ports, making the product a hard environment friendly device. All configurations are done through the industry oriented web interface.

      Focus on being creative again.
      Stop wasting time on programming your network or spending money on IT consultants to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!

      Free software included
      LumiNet Monitor is a free software pack that will increase the comfort of working with Luminex equipment and together with the easy-to-use web interface for GigaCore’s, it adds high value to your project monitoring and preparation.


      • Features

        • Tailored for AV industry: Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.
        • Easy set-up: Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).
        • Touring approved: Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.
        • Converged networking: Transfer multiple protocols (Dante™, RAVENNA/AES67, ArtNet, MANet 1&2, sACN,Q-LAN …)
        • Ultimate link redundancy: RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.

      • Specifications

        • Most suitable applications: Touring and live events
        • RLinkX (Link redundancy): Yes
        • Groups (VLAN segmentation): Yes
        • MultiLinkX (Link aggregation): Yes
        • Profile manager: Yes
        • Memory: 4Mb
        • MAC adress table: 8192 Entries
        • Address learning / Aging: Self learning, Auto aging
        • Switching throughput: 32Gbps
        • IGMP support: Yes (V1/V2/V3)
        • IGMP snooping: Yes, enabled by default
        • Port sensing: Auto negotiation
        • Auto crossover: MDI / MDIX
        • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
        • Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
        • Fiber connectivity: None
        • Ethernet port speed: 1Gbps
        • Serial: None
        • Power connectivity: 1 x IEC inlet with fuse holder
        • Power input: 100-240VAC, 50-60Hz
        • Power consumption: Maximum 30W (maximum 180W with PoE Supply Unit)
        • Fuse: 3.15A 250V Slow Blow
        • Backup power input: None
        • Backup PoE power input: None
        • Display and jog: None
        • Configuration: Through the built-in web server
        • Status LEDs:
        • Global status LEDs: Device, power, PoE power, RLinkX
        • Port status LEDs: PoE, RLinkX, link/activity and port speed
        • Colored RGB LEDs: No
        • Mounting: Rack
        • Enclosure: Robust metal housing
        • Dimensions (W x D x H): 482 x 204,3 x 44 mm (19" x 8.04" x 1.73")
        • Weight: 2.8 kg
        • Packaging: 545 x 335 x 80 mm (21.5" x 13.2" x 3.15")
        • Environment:
        • Operating temperature: 0 to +50 °C
        • Storage temperature: -10 to +70 °C
        • Humidity (non condensing): 5 to 95% RH
        • Certificates/Approvals: CE
        • Standards: EN 60950-1, EN 55022, EN 55024

      • Supported Protocols & Compliance

        • Supported protocols: Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
        • Sound protocol compliance: Yes (low jitter)
        • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
