LevelOne GSW-0807 8-Port Gigabit Switch

ITEM #: LVL1-GSW-0807 MFG #: GSW-0807

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LVL1-GSW-0807

GSW-0807 - Overview

The LevelOne GSW-0807 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption.

Power Saving Features
The GSW-0807 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections.

Compact and Stylish Design
The stylish, compact wall-mountable housing of GSW-0807 fits any working environment. It comes
with 8 10/100/1000Mbps ports to meet SOHO and home network expansion needs.

Easy to Use
The GSW-0807 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.

  • Features:

    • 9K jumbo frames to increase data transfer rates
    • 8 Gigabit Ethernet ports
    • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
    • Supports 8K MAC address auto-learning and auto-aging
    • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
    • Provides wall or desktop mounting
    • Quick and easy installation
    • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

  • Specifications:

    • Standards:
      IEEE 802.3 10-BASE-T, Ethernet
      IEEE 802.3u 100-BASE-TX, Fast Ethernet
      IEEE 802.3ab 1000-BASE-T, Gigabit Ethernet
      IEEE 802.3x Flow Control (full-duplex flow control)
      IEEE 802.3az Energy Efficient Technology
    • Buffer Memory: 1024KB

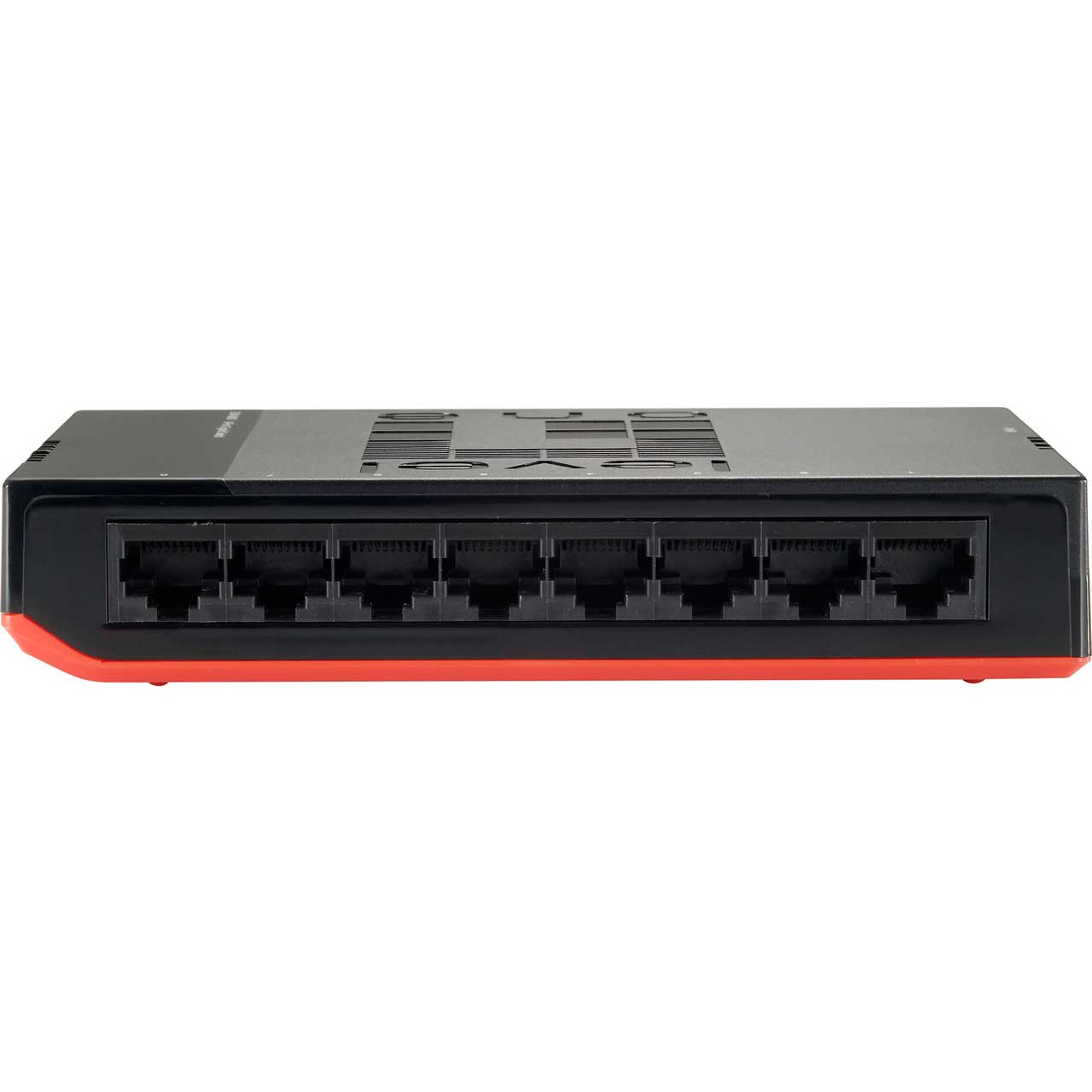

    • Port: 8 x 10/100/1000Base-T RJ-45 Port
    • Indicator: Power; Link/Active
    • Transmission Method: Store-and-Forward
    • Power Input: DC 5V, 1A, External Power Adapter
    • Power Consumption: < 3W
    • Backplane (Gbps): 16Gbps
    • MAC Address Table: 8K
    • Power Saving: IEEE 802.3az Energy Efficient Technology: Active Link Detection; Cable Length Detection; Sleep Mode
    • Operating Temp: 0°C to 40°C
    • Humidity: 10 to 90% (non-condensing)
    • Storage Temp: - 40°C to 70°C
    • Humidity: 5 to 90% (non-condensing)
    • Mount: Desktop and wall-mountable
    • Packet Forwarding Rate:
      1000Mbps port - 1,488,000pps
      100Mbps port - 148,000pps
      10Mbps port - 14,880pps
    • Jumbo Frame (K): 9K
    • Dimensions (WxDxH): 149.5 x 89 x 27 mm
    • Weight: (192g)
    • Approval and Compliance: EMI/EMS: CE, RoHS, FCC

  • Item Includes:

    • x1 GSW-0807
    • x1 Power Adapter
    • x1 Quick Installation Guide

  • GTIN:

    0878742003654
