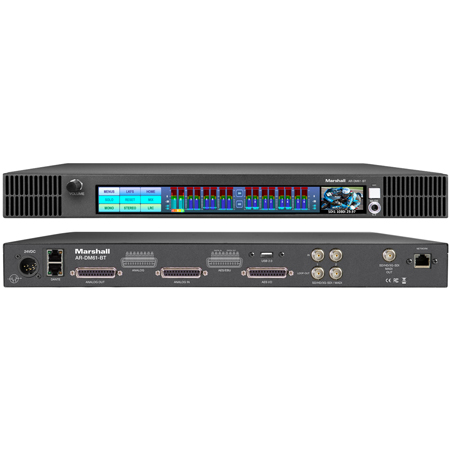

Marshall AR-DM61-BT Multi-Channel Digital Audio Monitor with Built-In Live Video Preview Confidence Screen

ITEM #: MAR-AR-DM61-BT MFG #: AR-DM61-BT

free ship

List Price:

$3,461.33

Our Price:

$3,115.20

Special Price:

$2,995.00

Availability: In Stock
iAvailability Description Popup


    AR-DM61-BT - Overview

    Experience versatile audio analysis functions, flexible matrix conversion tools and a pair of powerful speakers packed into 1 RU with the new Marshall AR-DM61-BT Multi-Channel Digital Audio Monitor. The AR-DM61-BT is a powerful audio/video QC solution designed specifically for TV stations, broadcast trucks, transfer stations and house of worship facilities.

    Marshall consulted directly with broadcast engineers and systems integrators to develop a practical and flexible solution that packs versatile audio analysis functions, flexible matrix conversion tools and a pair of powerful (~100 dB) speakers into a single rack unit (1 RU). The first audio rack unit with an intuitive 10" wide LCD touchscreen in the industry, the AR-DM61-BT can display up to 64 audio channels from multiple signal types and includes a built-in live video preview confidence monitor.

    The AR-DM61-BT supports four dedicated 3GSDI inputs with loop-through (one MADI compatible), one HDMI input, eight balanced analog audio inputs, four stereo AES inputs and eight channels RCA output. Cleverly designed sealed speaker enclosures maximize output in a small form factor for use in noisy control room environments where economic use of rack space is crucial.

    Planned software upgrades and optional hardware extension ports enable the AR-DM61-BT to serve as a "future proof" solution that will evolve with the ever-changing requirements of the broadcast A/V industry. Additional features include support for the latest Dolby formats, Dante networked audio technology and a built-in web server for storing and retrieving presets.

    • Features:

      • 10-inch LCD Intuitive Touchscreen Panel displays up to 64 channels vertical or 2 detailed channels horizontal with LKFS bars and peak indicators
      • Built-in live video preview monitor
      • Accepts inputs from multiple signal types with matrix conversion
      • High-powered stereo speakers (up to 100 dB output)
      • Push-to-mute functionality
      • Slim 1 RU Design
      • Support for all current Dolby formats including 7.1 Surround Sound
      • Optional Dante Networked Audio module
      • Store and retrieve saved presets via web server
      • Software upgradeable "Future-proof" platform
      • AES 67 Compliant

    • Specifications:

      • Inputs and Outputs
      • Four dedicated 3GSDI inputs with loop through (1 MADI compatible), and one additional HDMI input
      • 8 balanced analog inputs on Phoenix connectors (-20 through +60 dBV gain)
      • 4 stereo AES inputs on Phoenix connectors
      • 8 channels RCA output (-10 dB or +4 dB switchable)
      • Dolby/Dante optional modules
      • Ethernet (RJ45) with IP addressing
      • Front-facing headphone jack (1/4")

    • GTIN:

      0801813189827
