Marshall CV344 Compact HD Camera (3G/HD-SDI) - RS485 Adjustable and Audio - with CS Lens Mount (sold separately)

ITEM #: MAR-CV344 MFG #: CV344

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    CV344 - Overview

    The Marshall CV344 Full-HD Miniature Camera offers performance, flexibility, and value in a compact form factor. Built around a next generation 2.5-Megapixel, 1/2.8-inch sensor, the CV344 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps.

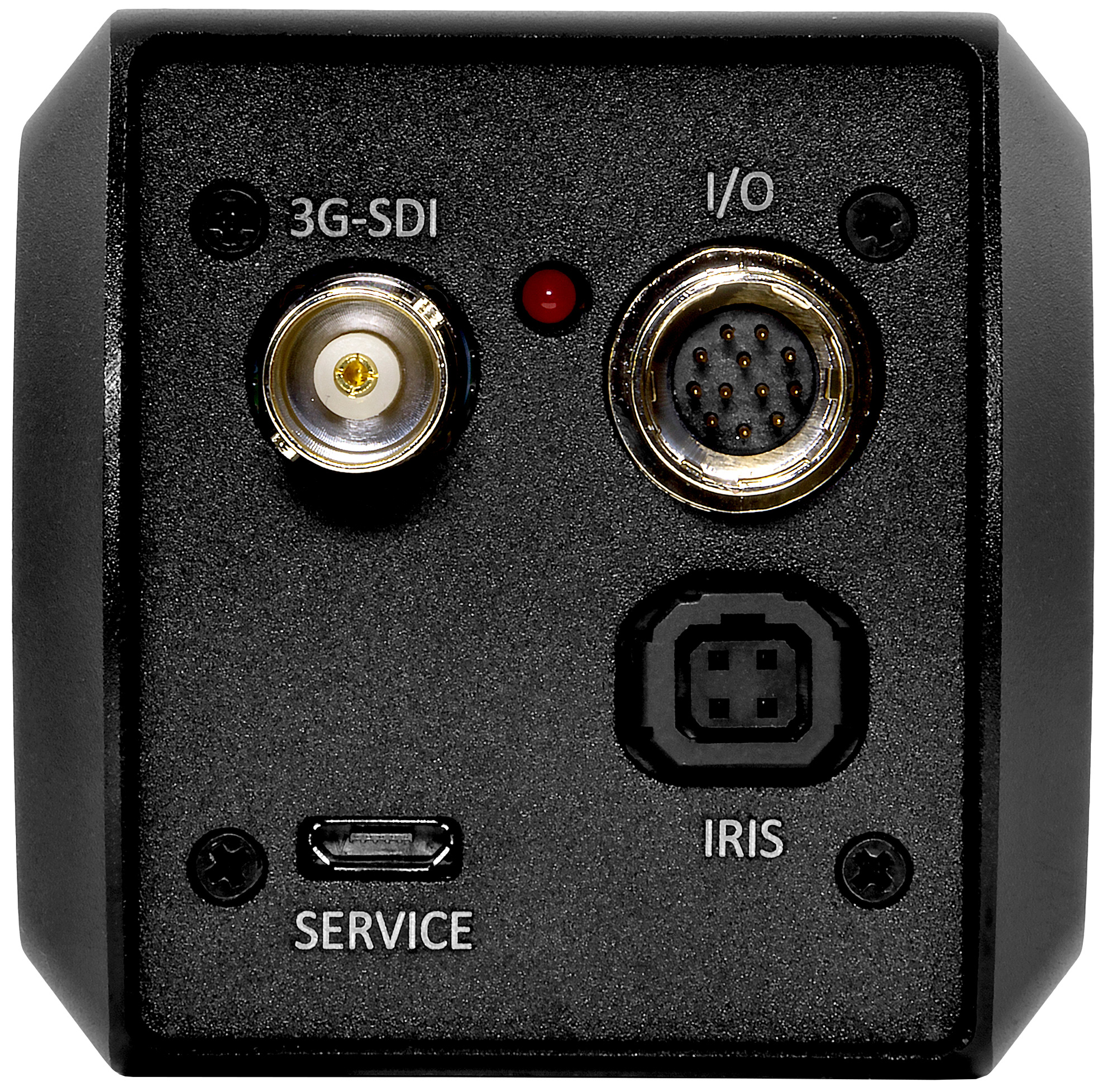

    The CV344 utilizes a full-sized BNC (3G/HDSDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G/HDSDI output). The CV344's CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.

    The CV344 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

    Hirose Breakout Cable

  • 1. RS-485 wire (+/-) Input
  • 2. 12V Power 2.1 mm Plug (Center Contact)
  • 3. Hirose connector plugs into camera
  • 4. OSD Menu Control
  • 5. TRS Audio Mic/Line-level input
  • CV344 applications:
    The CV344 is suitable for use in Full-HD broadcast and Pro AV workflows including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

    Please note! Lens is not included and are sold separately.

    • Features:

      • 3G/HDSDI output
      • 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
      • Interchangeable CS/C lens mount (sold separately)
      • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
      • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
      • Remote adjust through RS485 (Visca) or OSD menu joystick
      • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
      • Includes 12V power supply in box

        Compatible Lenses
      • VS-M226-A 3MP 2.2~6mm
      • S-M226-M-IRIS 3MP 2.2~6mm
      • VS-M288-M-IRIS 3MP 2.8~8mm
      • VS-M2812-2 3MP 2.8~12mm
      • VS-M419-6MP 6MP 4.1~9mm
      • VS-M550-4 3MP 5~50mm
      • VS-M1550-A 3MP 15~50mm
      • VS-M880-A 3MP 8~80mm
      • V-553.9-5MP-VIS-IR 1/2 5MP 3.9mm
      • V-555.0-5MP-VIS-IR 1/2 5MP 5.0mm
      • V-557.6-5MP-VIS-IR 1/2 5MP 7.6mm
    • Item Includes:

      • 12V power supply
