Marshall CV503 Miniature HD Camera for video capture (3G/HD-SDI) - RS485 Adjustable and Audio Embedding Ability

Manufacturer: Marshall Electronics

Item #: MAR-CV503   •   MFG #: CV503



List Price:$549.99
Our Price:$499.99

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

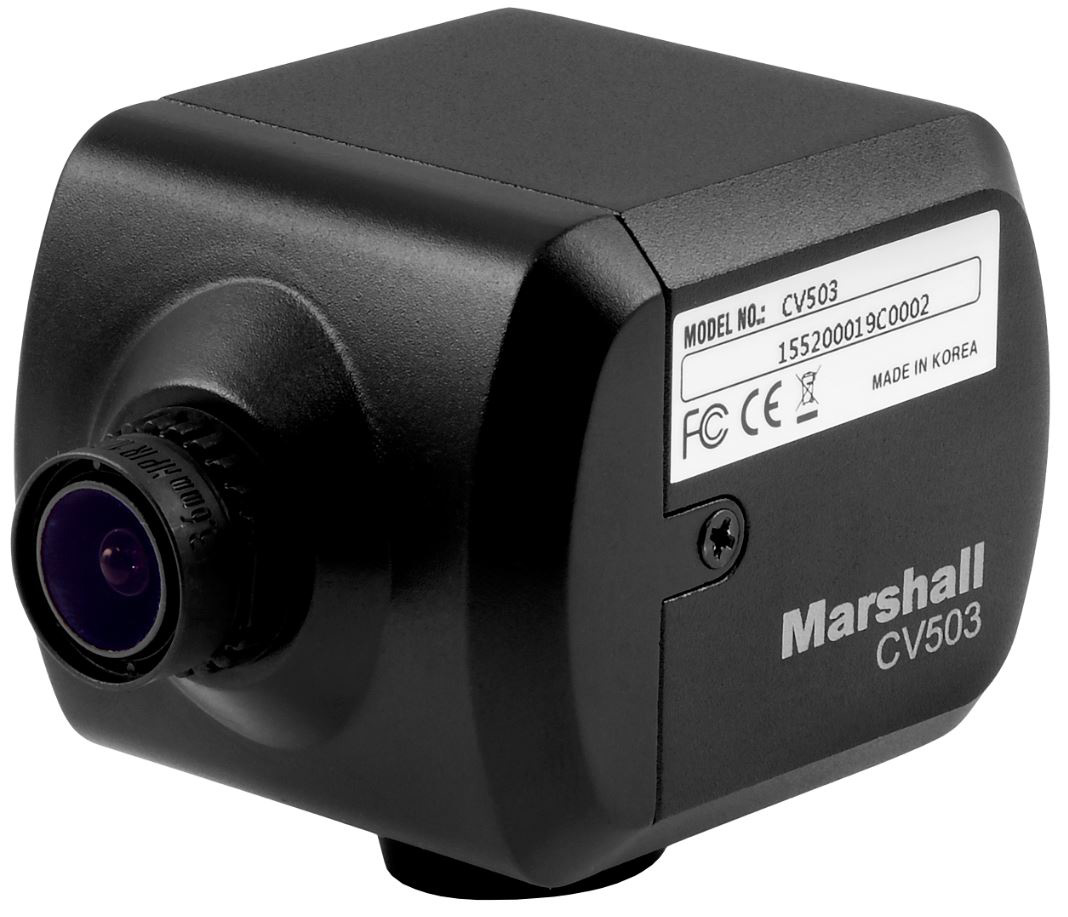

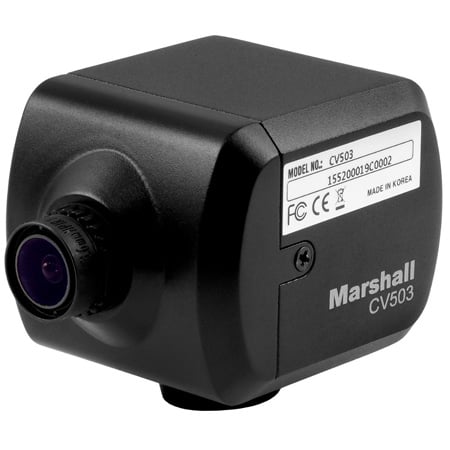

    The Marshall CV503 Full-HD Miniature Camera offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.5-Megapixel, 1/2.86-inch sensor, the CV503 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps.

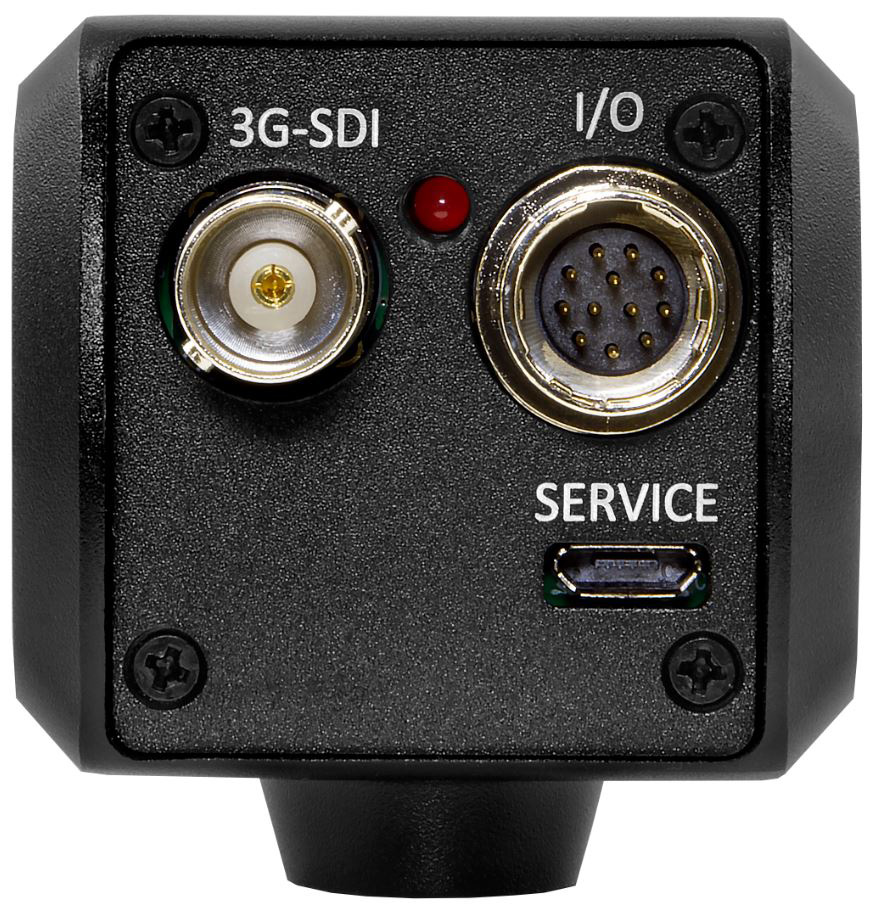

    The CV503 utilizes a full-sized BNC (3G/HDSDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV503's threaded M12 lens mount offers a wide range of prime and varifocal lens options.

    The CV503 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

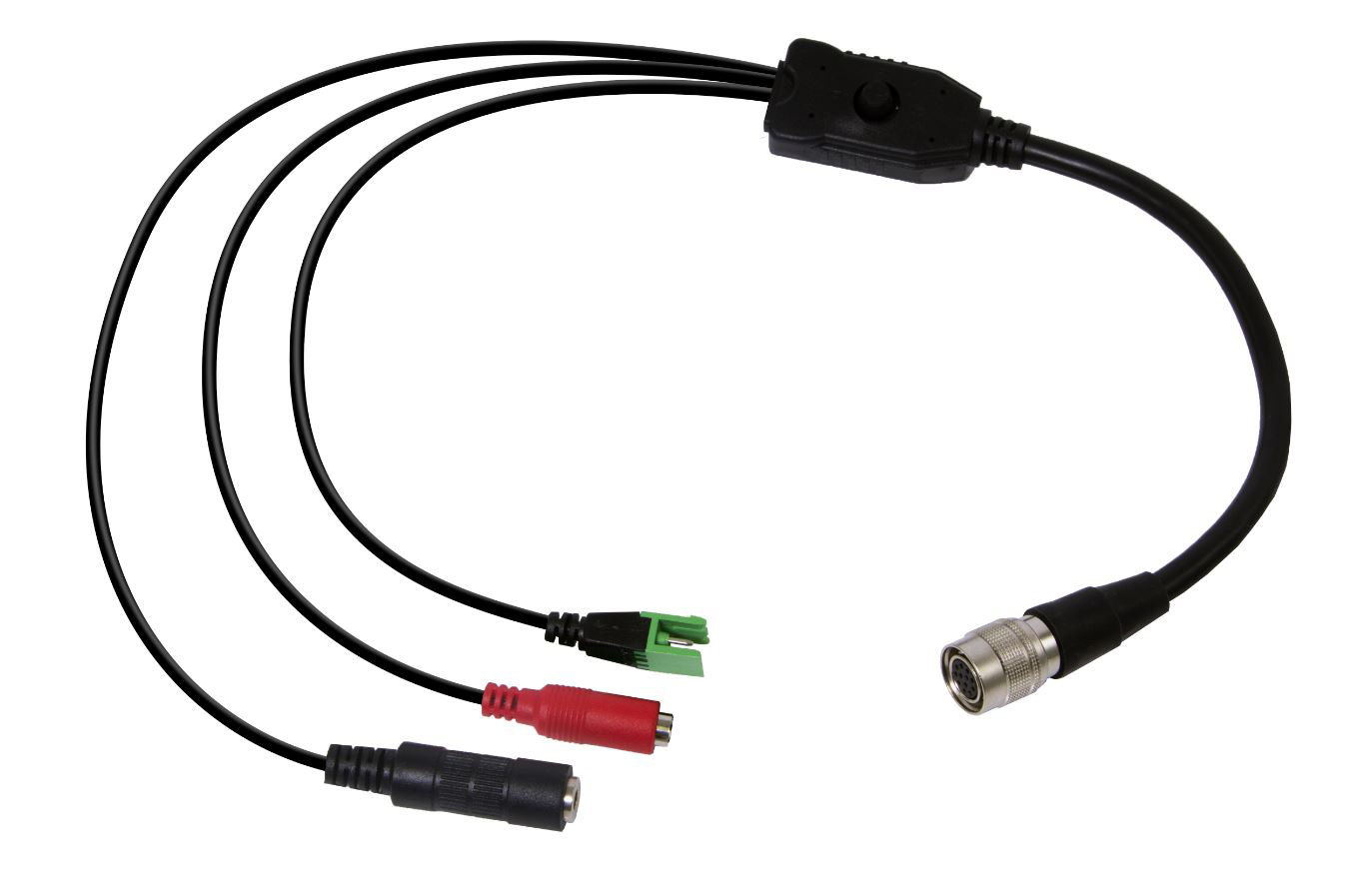

    Hirose Breakout Cable

  • 1. RS-485 wire (+/-) Input
  • 2. 12V Power 2.1 mm Plug (Center Contact)
  • 3. Hirose connector plugs into camera
  • 4. OSD Menu Control
  • 5. TRS Audio Mic/Line-level input
  • CV503 Applications:
    The CV503 is suitable for use in full-HD broadcast and Pro AV workflows including live broadcast productions, sportscast, newscast, reality television, concerts, corporate, government, courtroom, house of worship, and many more.


    • Features

      • 3G/HDSDI output
      • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
      • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV))
      • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
      • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
      • Remote adjust through RS485 (Visca) or OSD menu joystick
      • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
      • Compatible with Marshall RCP Controll Unit, p/n: CV-RCP-V2
      • Includes 12V power supply in box

        Compatible Lenses
      • CV-4702.3-3MP - 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
      • CV-4702.8-3MP-IR - 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
      • CV-4703.6-3MP - 3.6mm, F2.0 3MP M12 lens (stock); Horiz AOV = 72°
      • CV-4706-3MP-IR - 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
      • CV-4708.0-3MP - 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
      • CV-4712.0-3MP - 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
      • CV-4716.0-2MP - 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°
      • V-553.9-5MP-VIS-IR M12 - 3.9mm F2.0 5MP M12 Lens - 80° (1/3"), 96° (1/2.5"), 125° (1/1.7")
      • V-555.0-5MP-VIS-IR M12 - 5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
      • V-557.6-5MP-VIS-IR M12 - 7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")
      • CV-2812-3MP - 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 108~30°
      • CV-0622-5MP - 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°

    • Item Includes

      • 12V power supply

    • GTIN:

      0801813194098
