Magenta Research MG-AOC-662-20 HDMI 2.0 Active Optical Plenum Cable - 66 Foot (20 Meter)

ITEM #: MGE-MG-AOC662-20 MFG #: MG-AOC-662-20

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Magenta Research
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$371.25

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MG-AOC-662-20 - Overview

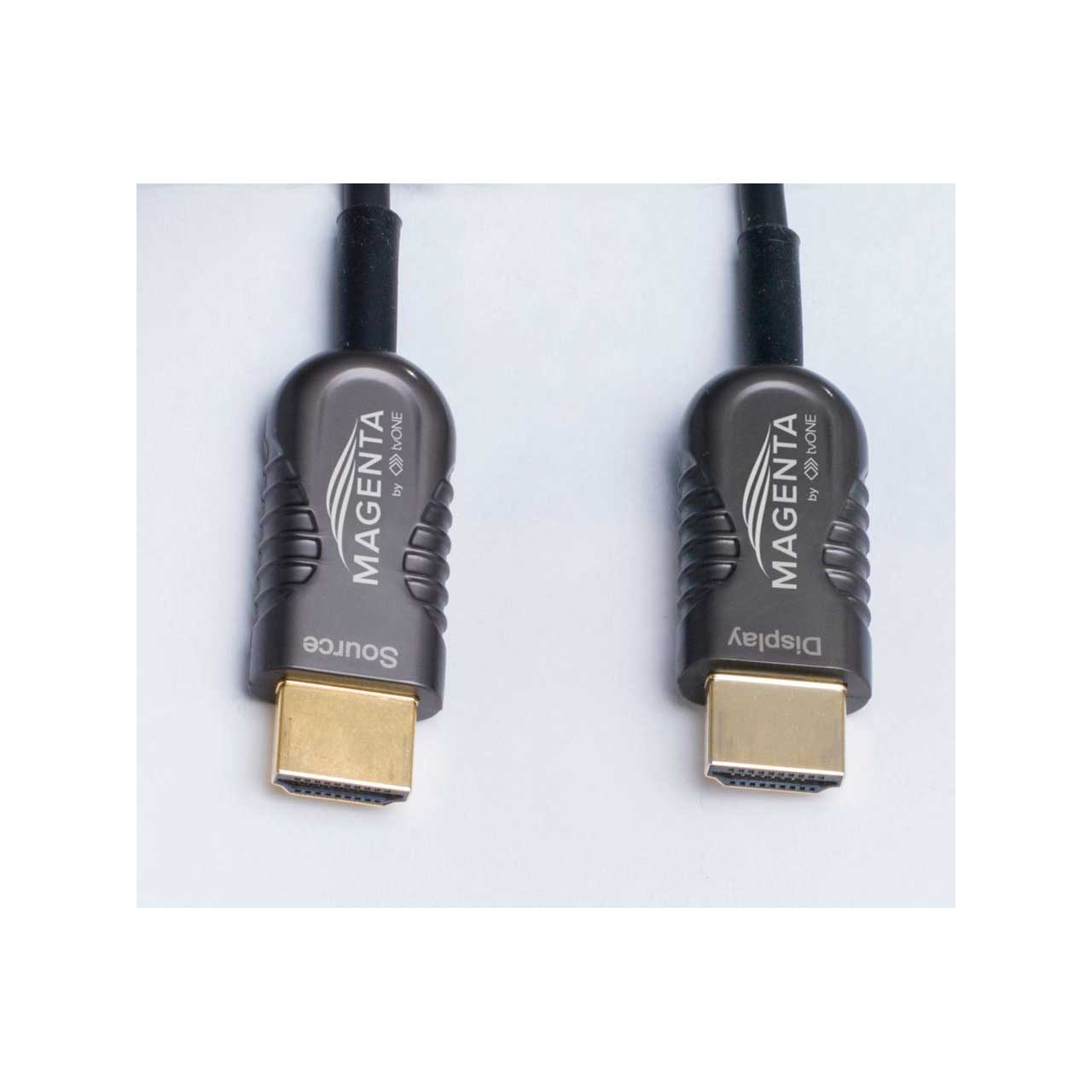

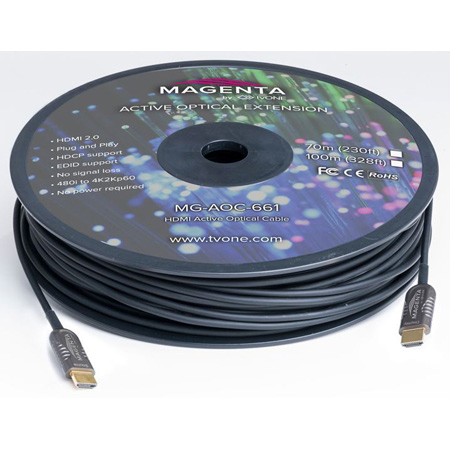

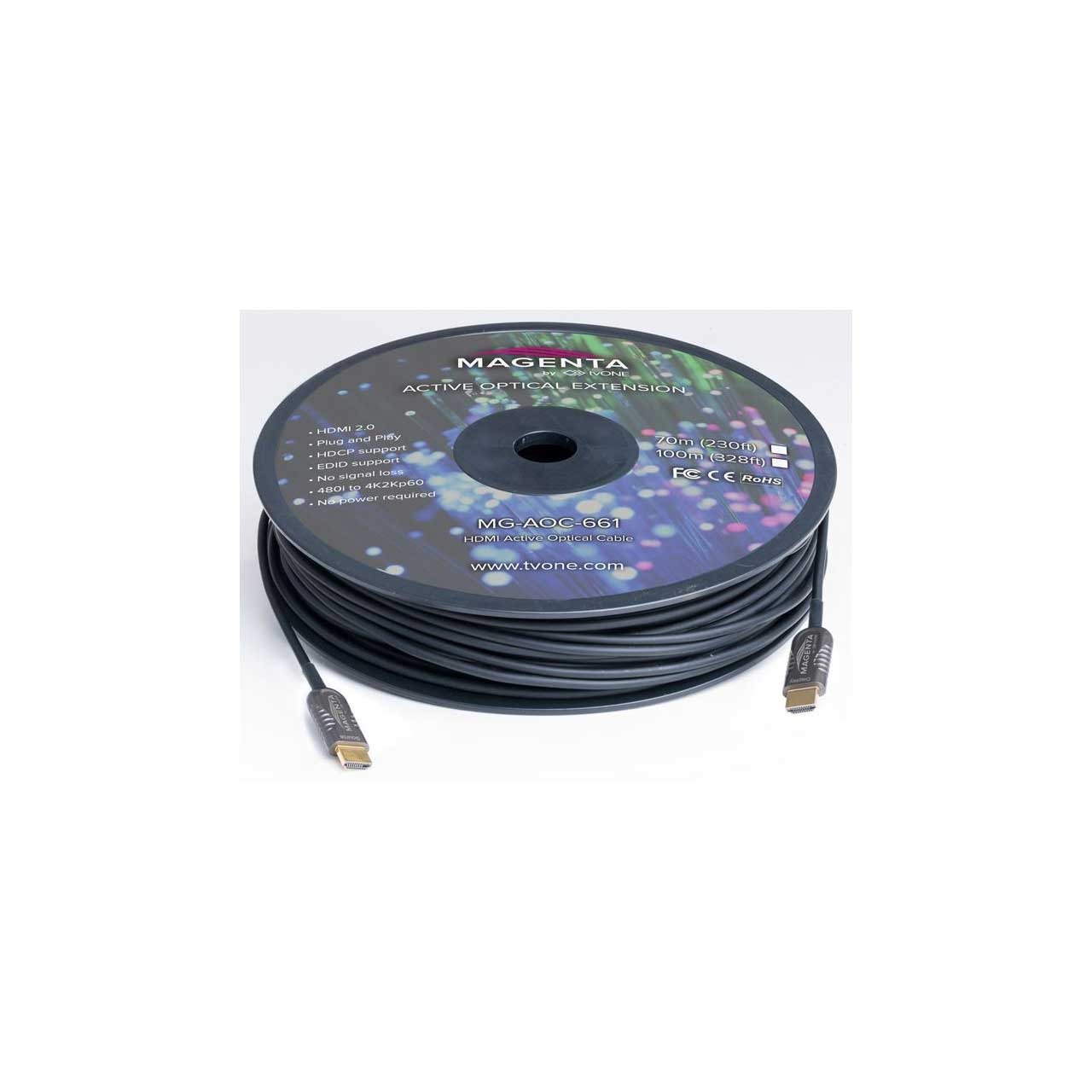

The Magenta AOC-662 Active Optical Cable provides a simple yet powerful solution for extending high resolution over long distances. This plug and play HDMI 2.0 cable supports up to 4K60 4:4:4 with no compression or latency up to 328ft (100m) and without the need for external power. The AOC-662 features HDCP and EDID support.

  • Features:

    • Up to 328ft (100m)
    • No external power required
    • Plug and Play
    • HDMI 2.0
    • HDCP support
    • EDID support
    • No signal loss
    • 4K2Kp60 down to 480i supported


  • Specifications:

    • Units: Transmitter (Source); Receiver (Sink)
    • HDCP & DDC: HDCP 2.2 Fully Supports bi-directional EDID and HDCP communication
    • Video Bandwidth: 6 Gbps/x3Channel (max)+ Clock
    • Supported Resolutions & Distance PC: WUXGA 1920 x 1200 up to 100 meters, HDTV: 480p, 720p, 1080i and 1080p deep color, 4K(60P), 3DFull HD 1920 x 1080 up to 100 meters
    • O/E Converter: 4 channel 850 nm VCSEL array; 4 CH GaAs PD array
    • Connector Type: HDMI 2.0 type A
    • Cable Type: Hybrid type with OM3 fiber and copper wire
    • Cable Length 20 meters/66 feet (with +/-30cm tolerance)
    • Cable Outer Diameter: 4.5mm
    • Jacket Outer Material: Plenum
    • Cable Weight: TBD
    • Cable Color: Black
    • Maximum Tensile Load: 15kg
    • Minimum Bend Radius: 20mm
    • Differential Input: 100 ohm (typical)
    • Power Consumption: 250mW (max)
    • Power Supply: No external power required
