Magewell 11020 Pro Capture AIO 1-Channel PCIe 2.0 Capture Card for SDI/HDMI/VGA/Component/Composite/S-Video w/ Audio

ITEM #: MGW-11020 MFG #: 11020

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$479.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    11020 - Overview

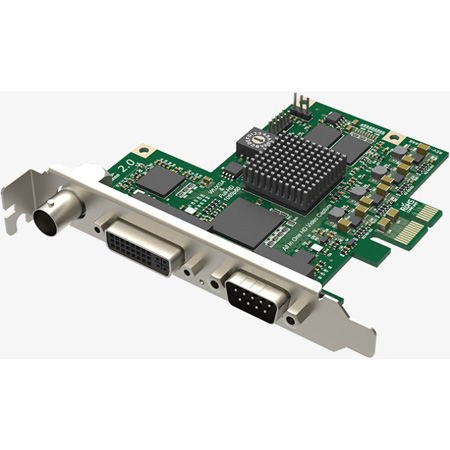

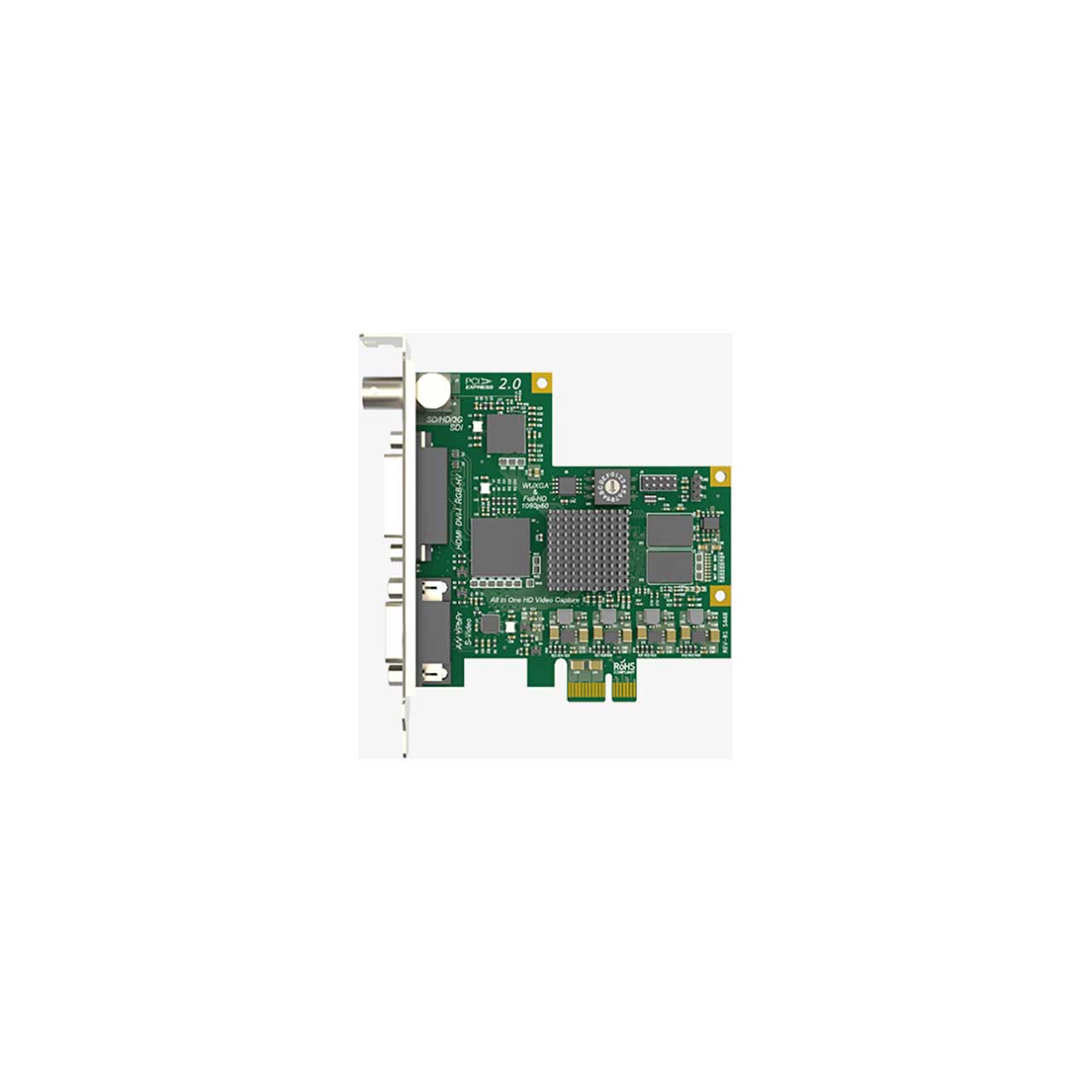

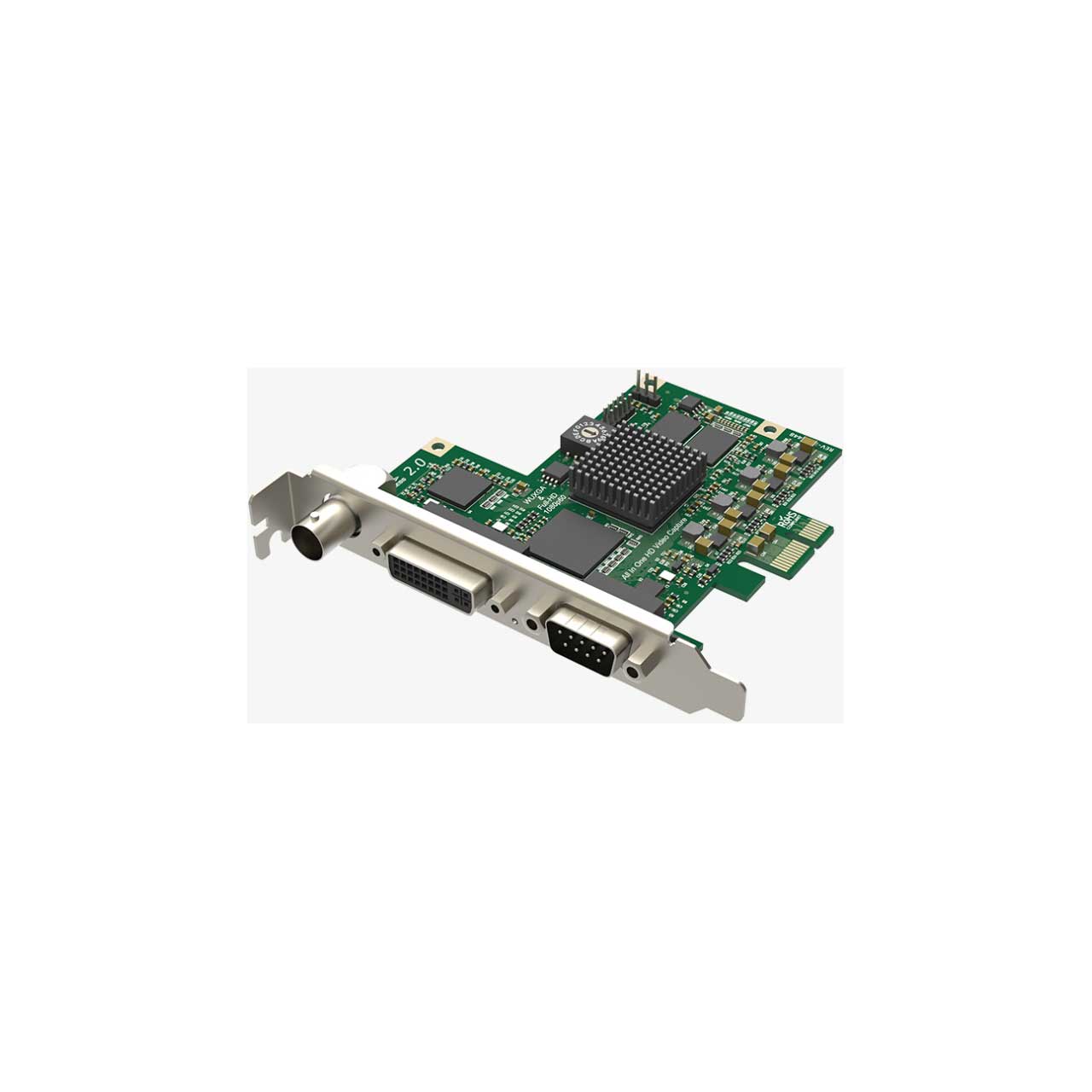

    Magewell's 11020 One-Channel PCIe Pro AIO 2.0 Capture Card is a professional All-In-One capture card for SDI, HDMI, VGA, Component, Composite and S-video with audio. This card captures the following video signals via the included breakout cables: SDI + Embedded Audio + Analog Audio, HDMI + Embedded Audio + Analog Audio, DVI + Audio, VGA + Audio, Component + Audio, Composite + Audio and S-video + Audio.

    This card has support for multiple cards plugged in to one system. With an on-board rotary switch, you can set the card number with 16 positions from 0 to F. The video and audio device names will be displayed in your software and will include the card number set by the rotary switch. You can also have unlimited capture streams for any one input channel. It allows for independent cropping, aspect ratio, color format, resolution, framet rate, de-interlacing and color adjustment settings for each individual stream.

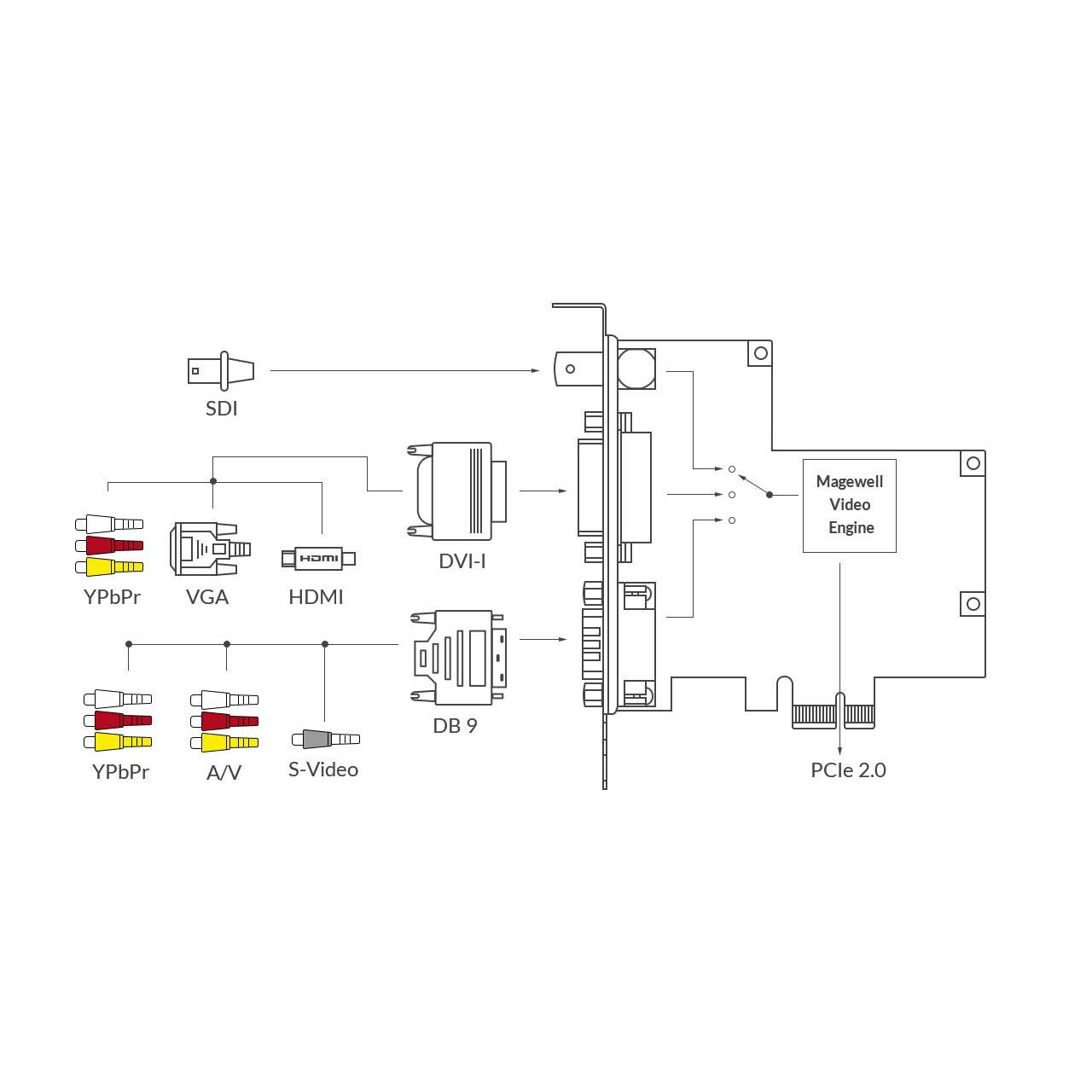

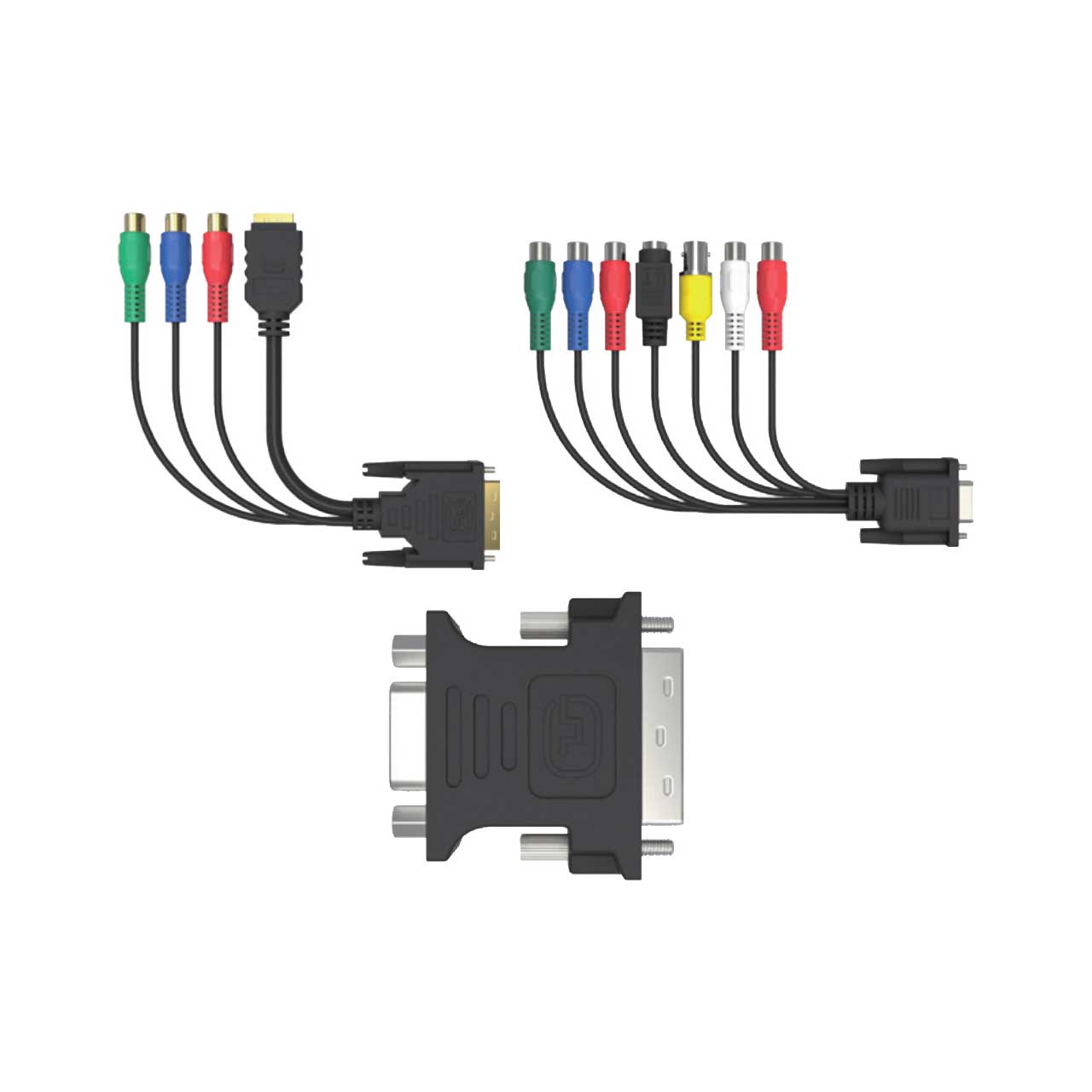

    All I/O's are provided via the additional breakout cables shown above which include: DVI to VGA connector, DB9 to YC + Composite + Analog Audio + Component breakout and DVI-I to HDMI + Component breakout. Get it done and get it done right the first time. These cards will become the Swiss Army Knife of your edit bay or workstation. Be ready to grab any signal that comes your way.

    • Features:

      • VGA & Component
      • 12-bit ADC
      • Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
      • Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT officially supported)
      • Auto detection of RGB & YCbCr color formats
      • Auto or manual sampling phase adjustment
      • Auto horizontal alignment

        HDMI
      • 225MHz HDMI receiver
      • Adaptive HDMI equalizer support for cables lengths up to 30M
      • Full colorimetry support

        SDI
      • Integrated cable equalizer supporting cable lengths up to 230M for HD signals

        YC & Composite
      • 12-bit ADC
      • Support for NTSC, PAL and SECAM standards
      • Auto detection of video input standard

      • Ultra Low Latency Mode
      • High-Speed Memory
      • LED Status Indicator
      • Rotary Switch
      • Auto scan of video input sources when there is no signal input to the currently selected input source
      • Manual selection of video input source
      • Auto selection of linked (embedded) audio input source when the video input source changes
      • Manual selection of audio input source
      • Support for standard crossbar based on video input source selection
      • Support for input video resolutions up to 2048x2048 pixels
      • Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
      • Full 10-bit video processing
      • Video cropping, scaling, de-interlacing, aspect ratio and color format conversion, frame rate conversion and OSD composition

    • Specifications:

      • Supported OS
        Windows
      • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
        Linux (support x86, x64 & ARM architecture)
      • Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
      • CentOS 6.5/7 (x86 & x64)
      • Fedora 25/26/27 (x86 & x64)
      • Red hat 6.5 and above (x86 & x64)
      • Other Linux OS with kernel version 2.6.35 and above
        Mac
      • OS X 10.9/10.10/10.11
      • macOS 10.12/10.13

        Supported APIs
        Windows
      • DirectShow
      • DirectKS
      • Wave API/DirectSound/WASAPI
        Linux
      • V4L2
      • ALSA

        Supported Software
      • VLC
      • VirtualDub
      • OBS
      • XSplit
      • vMix
      • VidBlaster
      • Wirecast
      • Microsoft Media Encoder
      • Adobe Flash Media Encoder
      • Any other DirectShow/V4L2 encoding/streaming software

        Input Interfaces

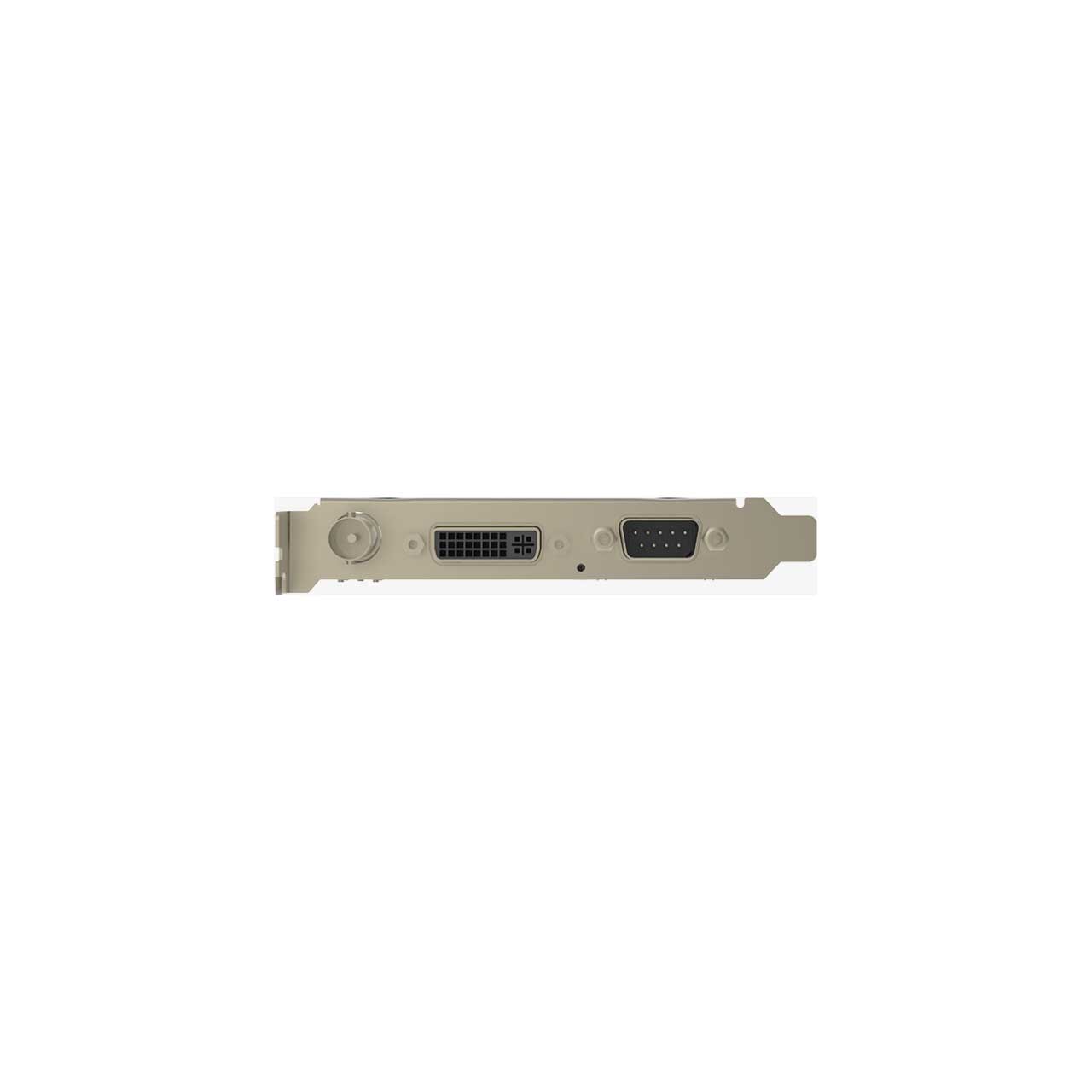

      • DVI-I: DVI 1.0, HDMI 1.4a (via breakout cable), VGA (via DVI2VGA connector), Component (via breakout cable)
      • DB9: YC (S-Video), Composite video, Analog audio (L+R), Component video
      • BNC: SD/HD/3G SDI
      • Host Interfaces: PCIe Gen2 x1

        Video Engine
      • 10-bit video processing
      • Deinterlace
      • Cropping
      • Color Adjustment
      • Hardware Timestamp
      • Color Space Conversion
      • Up/down Conversion
      • Aspect Ratio Conversion
      • OSD
      • SG-DMA Transmission mode

        Video Capture Formats
      • Support for capture image resolutions up to 2048 x 2048 pixels
      • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280 x 1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920 x 1080 = ~80fps)
      • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
      • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
      • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
      • Support for 4:4:4 10-bit capture formats: V410, Y410
      • More capture formats are supported via Magewell Capture SDK for DirectKS

        Video Capture SG-DMA
      • ~400MB/s per channel DMA bandwidth in PCIe 2.x system
      • ~200MB/s per channel DMA bandwidth in PCIe 1.x system
      • Support for auto detection of Intel tiled GPU surface
      • Support for DirectGMA for AMD video adapter chipsets
      • Support for GPUDirect for Nvidia video adapter chipsets

        SDK
      • Magewell Capture SDK for DirectShow for easy integration (Windows)
      • Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)

        Physical & Power
      • Form Factor: Normal profile PCIe x1 Add-on Card; 92.76mm x 96.24mm (without PCI bracket)
      • Max Current @ 12V: ~0.39A
      • Max Current @ 3.3V: ~0.2A
      • Max Power Consumption: ~5.03W
      • Operating Temperature: 32°F - 104°F
      • Storage Temperature: -4°F - 158°F
      • Relative Humidity: 5% - 90% non-condensing

    • Item Includes:

      • Magewell Pro Capture All-In-One 1-Channel HD Capture Card
      • DVI to VGA connector
      • DB9 to YC + Composite + Analog Audio + Component breakout cable
      • DVI-I to HDMI + Component breakout cable

    • Warranty:

      • 2 year

    • GTIN:

      8143950200280
