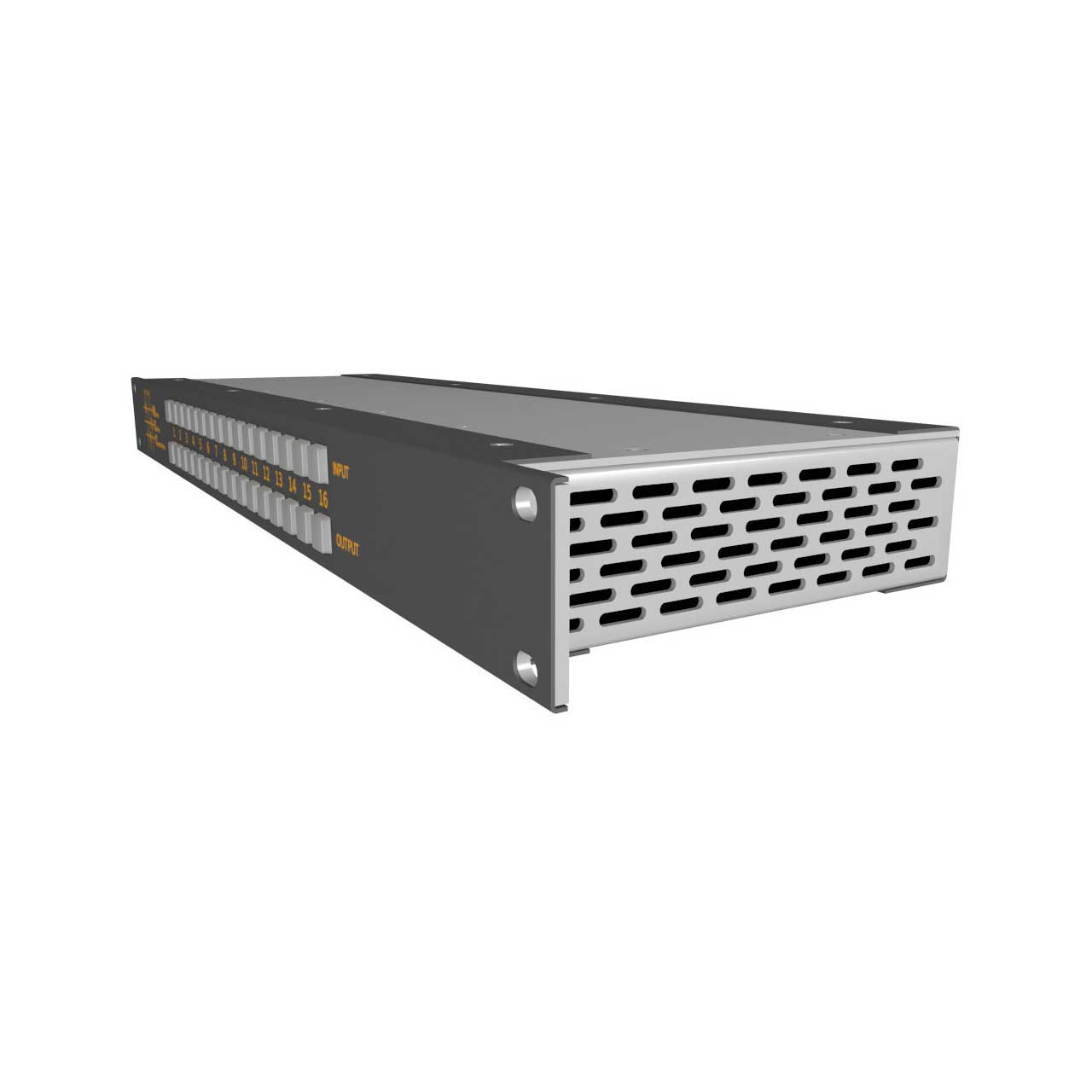

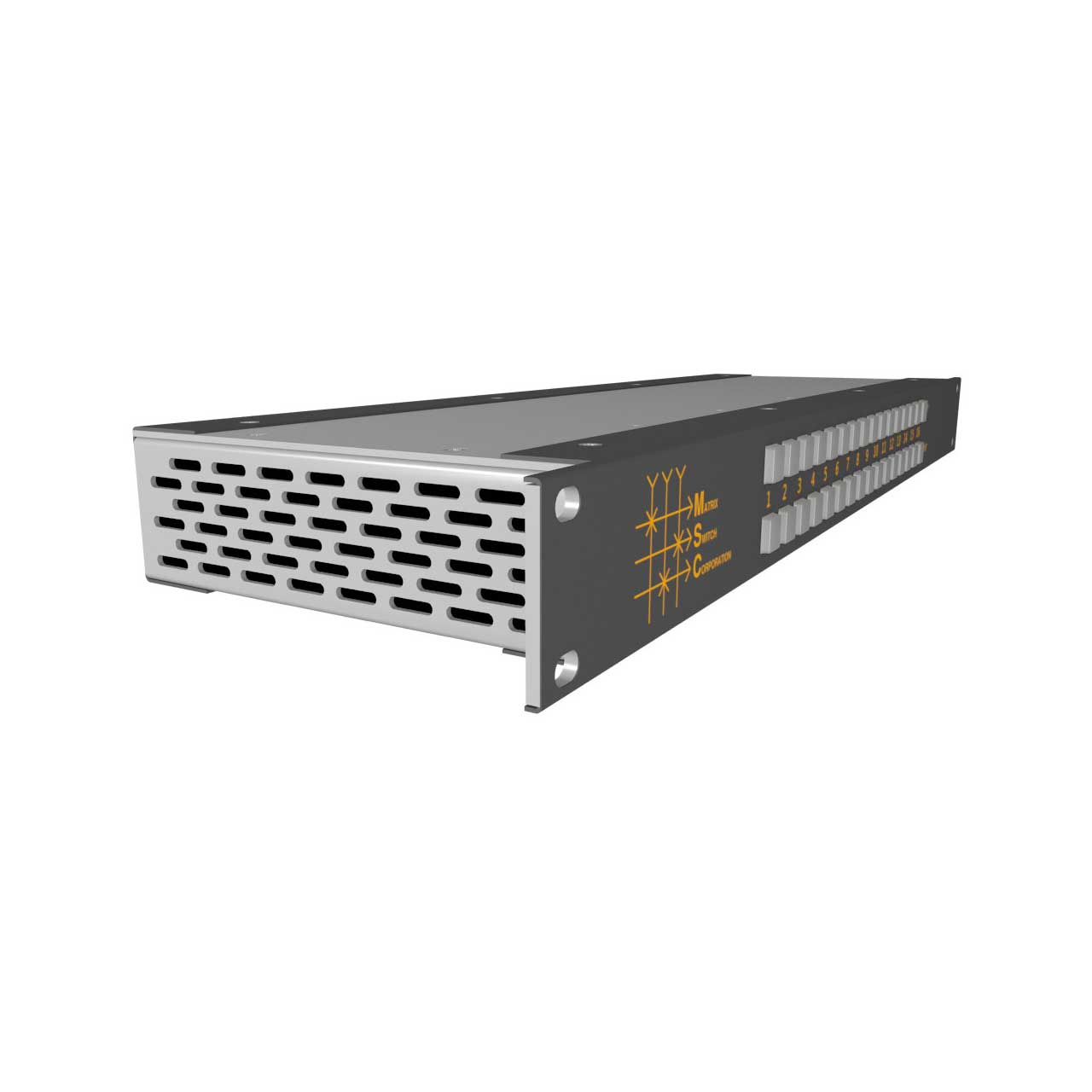

Matrix Switch MSC-XE1616L 16 Input 16 Output AES Audio Router with Button Panel

ITEM #: MSC-XE1616L MFG #: MSC-XE1616L

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Matrix Switch
Free Shipping with $49 Minimum Order
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MSC-XE1616L - Overview

The Matrix Switch MSC-XE1616L uses the AES-3id standard which defines a 75-ohm BNC electrical variant of AES3. This can use the same cabling, patching and infrastructure as analog video, or it can be digital switcher designed for AES data rates and a 700mv to 1V input output interconnect. The AES-3id standard is also sometimes referred to as SMPTE 276M.

Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device. In addition to the powerful yet easy to use MASCOT protocol, there is also support for some common 3rd party protocols. Additional control interfaces on this router include: RS-485, RS-232, AUX GPIO, and TCP/IP over the Ethernet interface. Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP. The built-in button panel provides an additional interface for directly changing the matrix routing state.

Made in USA.

  • Features:

    • Supports all AES audio rates up to 192 KHz
    • Additional audio level can be connected to DB25 connector with break away support
    • Inputs can be switched to multiple outputs without restriction
    • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
    • Store and recall up to 10 preset salvos

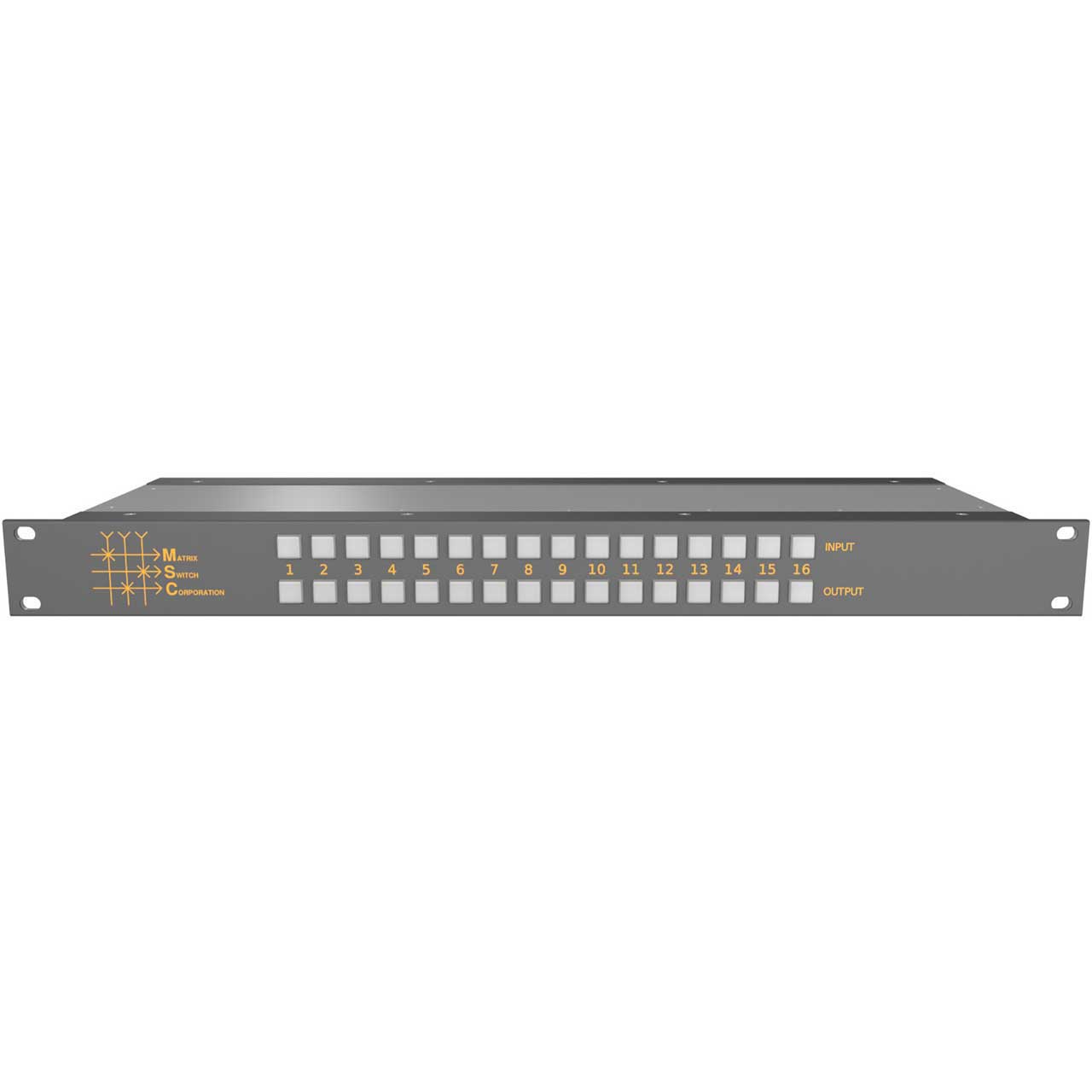

    • Includes button control panel interface
    • Supports Matrix Switch Corporation Remote Panels
    • Ethernet port for control via built in web page interface or TCP/IP ports
    • Interactive web page interface
    • Serial control via RS-232 port
    • RS-485 port for an additional high speed long distance capable control interface
    • Support for some common 3rd party protocols for added integration flexibility
    • Auxiliary port for external status and control signaling
    • Real Time Operating System (RTOS) with 32 bit ARM processor
    • System software updates from webpage interface
    • External DC power supply
    • Redundant power supply included
    • Complies with all relevant FCC, U/L, CE, and RoHS requirements


  • Specifications:

    • General
    • Inputs: 16
    • Outputs: 16
    • Enclosure Type: 1RU
    • Size: 19" x 1.75" x 6"
    • Weight: 5.0 lbs
    • Power: 12 VDC 5A Adapter
    • Power Connector: D9 Male
    • Panel Type: Buttons
    • Ethernet: 10/100 Base-T Auto MDIX
    • Made in: USA
    • Operating Temp.: 0 - 70C
    • Storage Temp.: -10 - 90C
    • MTBF: 50,000+ Hours
    • MTTR: < 48 Hours

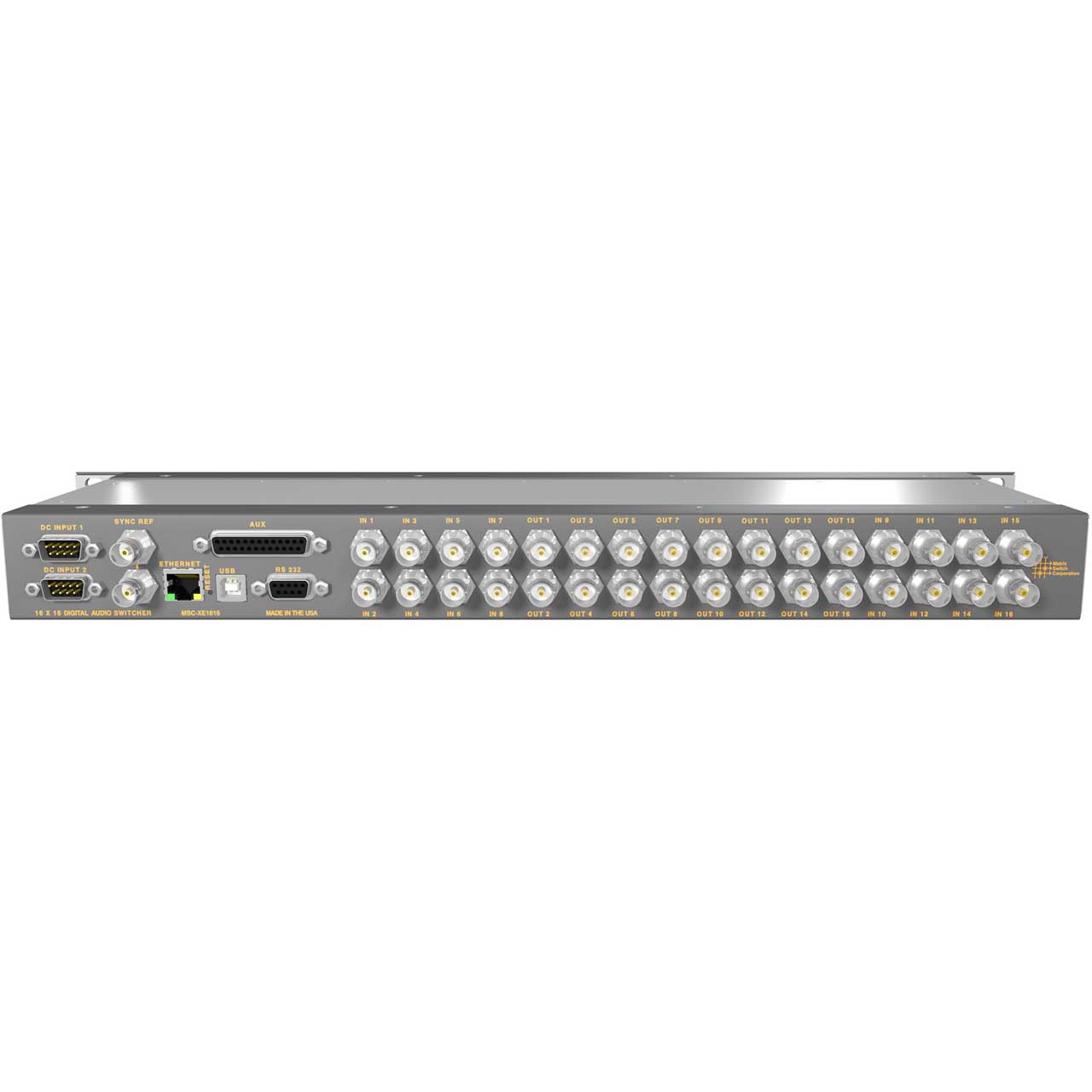

      AES Audio
    • Connector Type: BNC
    • Input Level: 200mV to 5V P-P
    • Input/Output Impedance: 75 Ohm +/- 1%
    • Output Level: 1V P-P
    • Output Impedance: 75 Ohm 1%
    • Standard: AES-3id (AES/EBU)


  • Item Includes:

    • 1x Matrix Switch MSC-XE1616L 16 Input 16 Output AES Audio Router with Button Panel
    • 1x Redundant power supply


  • Warranty:

    • 2 year manufacturer parts and labor
