Matrix Switch MSC-XE6416S 64 Input 16 Output AES Audio Router with Status Panel

ITEM #: MSC-XE6416S MFG #: MSC-XE6416S

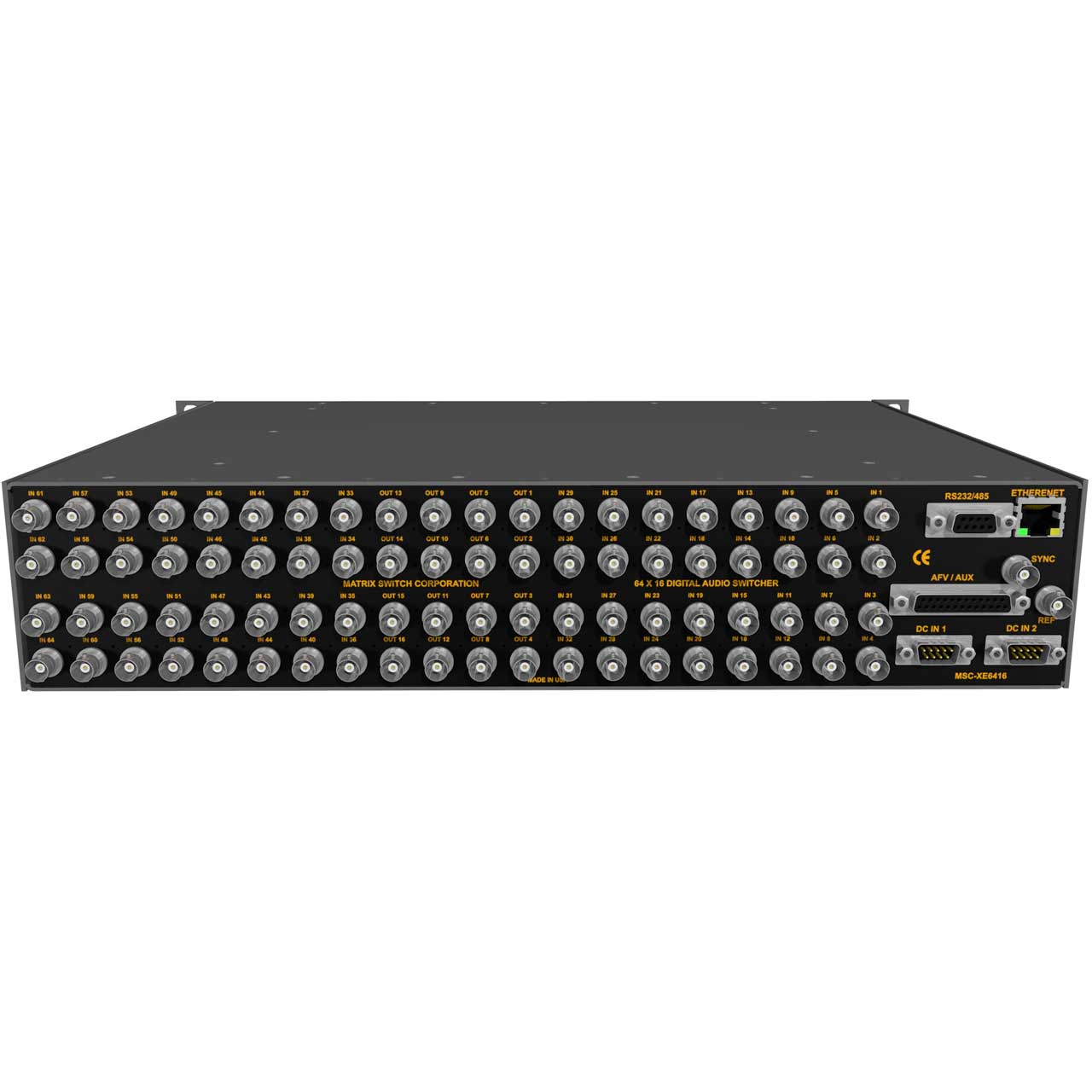

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Matrix Switch
Free Shipping with $49 Minimum Order
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    MSC-XE6416S - Overview

    The Matrix Switch MSC-XE6416S uses the AES-3id standard which defines a 75-ohm BNC electrical variant of AES3. This can use the same cabling, patching and infrastructure as analog video, or it can be digital switcher designed for AES data rates and a 700mv to 1V input output interconnect. The AES-3id standard is also sometimes referred to as SMPTE 276M.

    Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device. In addition to the powerful yet easy to use MASCOT protocol, there is also support for some common 3rd party protocols. Additional control interfaces on this router include: RS-485, RS-232, AUX GPIO, and TCP/IP over the Ethernet interface. Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP.

    Made in USA.

    • Features:

      • Supports all AES audio rates up to 192 KHz
      • Additional audio level can be connected to DB25 connector with break away support
      • Inputs can be switched to multiple outputs without restriction
      • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
      • Store and recall up to 10 preset salvos

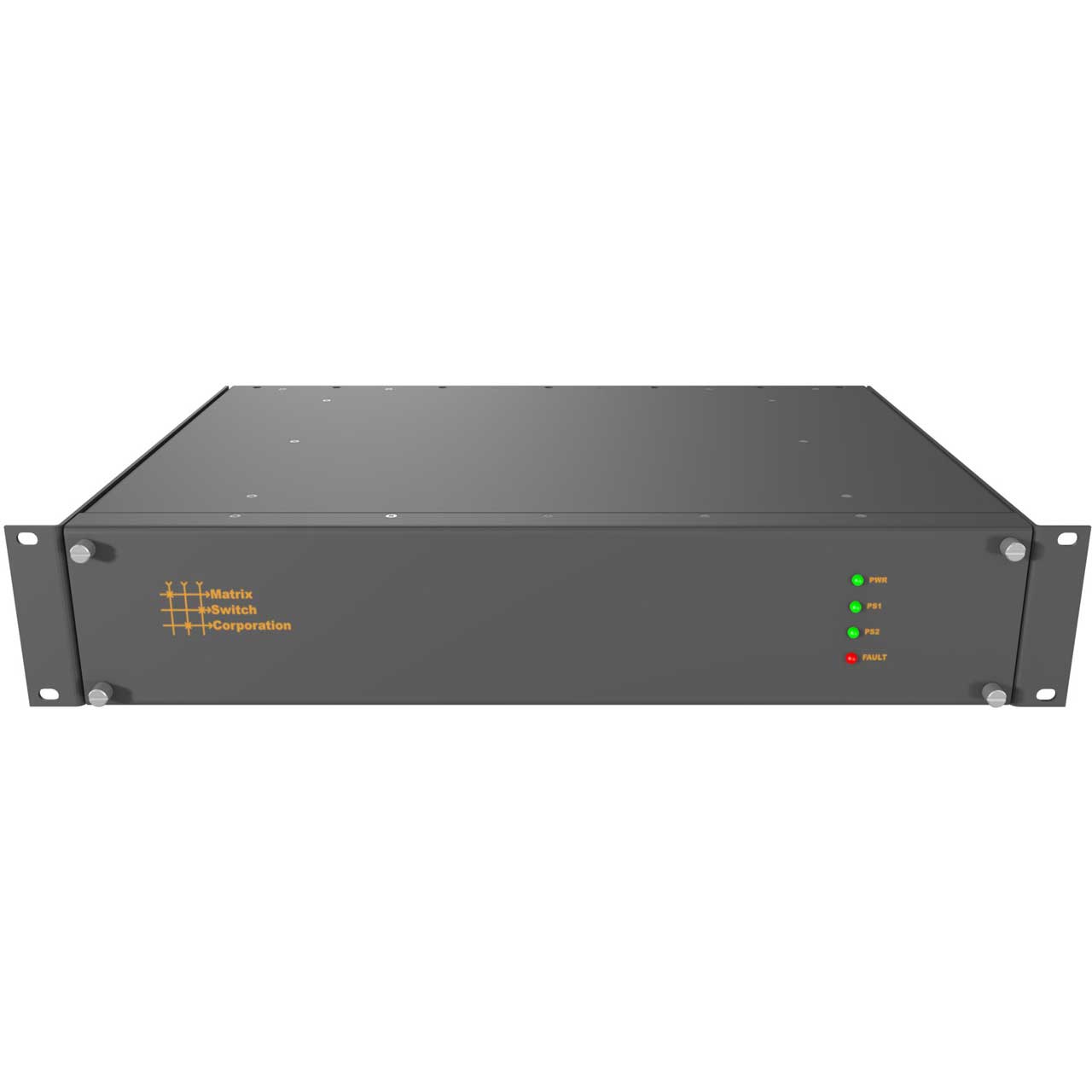

      • Includes panel with status lights
      • Supports Matrix Switch Corporation Remote Panels
      • Ethernet port for control via built in web page interface or TCP/IP ports
      • Interactive web page interface
      • Serial control via RS-232 port
      • RS-485 port for an additional high speed long distance capable control interface
      • Support for some common 3rd party protocols for added integration flexibility
      • Auxiliary port for external status and control signaling
      • Real Time Operating System (RTOS) with 32 bit ARM processor
      • System software updates from webpage interface
      • External DC power supply
      • Redundant power supply included
      • Complies with all relevant FCC, U/L, CE, and RoHS requirements


    • Specifications:

      • General
      • Inputs: 64
      • Outputs: 16
      • Enclosure Type: 2RU
      • Size: 19" x 3.50" x 11"
      • Weight: 12.0 lbs
      • Power: 12 VDC 5A Adapter
      • Power Connector: D9 Male
      • Panel Type: Status
      • Ethernet: 10/100 Base-T Auto MDIX
      • Made in: USA
      • Operating Temp.: 0 - 70C
      • Storage Temp.: -10 - 90C
      • MTBF: 50,000+ Hours
      • MTTR: < 48 Hours

        AES Audio
      • Connector Type: BNC
      • Input Level: 200mV to 5V P-P
      • Input/Output Impedance: 75 Ohm +/- 1%
      • Output Level: 1V P-P
      • Output Impedance: 75 Ohm 1%
      • Standard: AES-3id (AES/EBU)


    • Item Includes:

      • 1x Matrix Switch MSC-XE6416S 64 Input 16 Output AES Audio Router with Status Panel
      • 1x Redundant power supply


    • Warranty:

      • 2 year manufacturer parts and labor
