Muxlab 500390 DVI/Audio Extender Kit

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

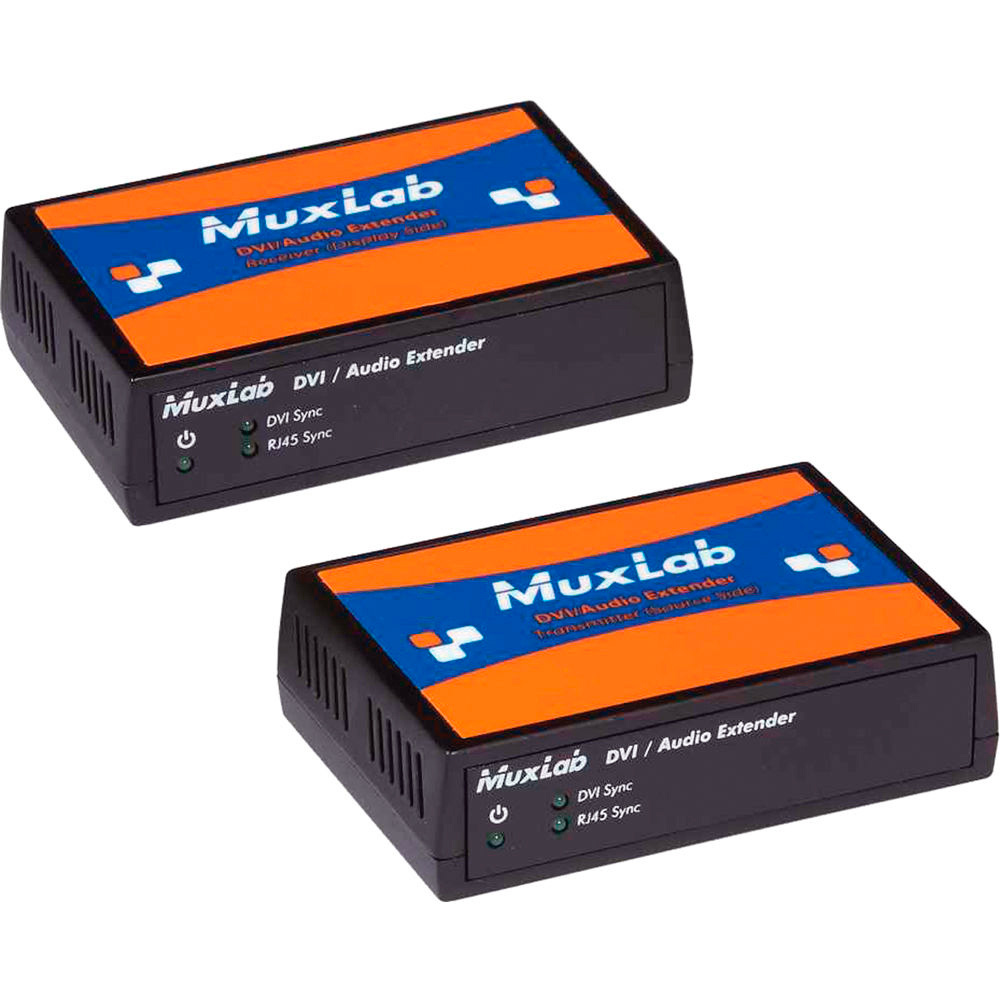

    Muxlab 500390 DVI/Audio Extender Kit

    Manufacturer: MuxLab Inc

    Item #: MUX-500390   •   MFG #: 500390



    List Price:$484.00
    Our Price:$331.00

    free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The DVI/Audio Extender Kit allows one DVI channel and one line level stereo audio audio channel to be transmitted to 230 ft (70 m) at all resolutions up to 1080p via one (1) Cat 5e/6 cable in a point-to-point configuration.



      • Features

        • Extends DVI and line level stereo audio via Cat5e/6 cable
        • Up to 230 ft (70m) at all resolutions up to 1080p via one Cat5e/6
        • HDBaseT Technology
        • Supports up to 1920 x 1200 resolution
        • Supports 4K up to 115 ft (35m)


      • Specifications

        • Environment DVI 1.0 (Single Channel), HDBaseT technology
        • Devices DVD, plasma, projectors, monitors, TV, PC, laptops
        • Transmission Transparent to the user
        • Bandwidth 340 MHz
        • Signals DVI 1.0 protocol
        • Audio Does not embed or de-embed audio over DVI. Transmits audio in common mode over UTP and completely isolated from the DVI signal.
        • Connectors: One (1) DVI-D receptacle, One (1) RJ45S for Cat5e/6 link, One (1) 3.5mm jack for line level stereo audio, Note: DVI and audio cables not included.
        • Max. Distance via Cat5e/6 (Based on a maximum length of
        • 6.6 ft (2m) of DVI cable per end): All resolutions up to 1920x1200: 230 ft (70 m)< 4K: (3840 X 2160/24,25,30 Hz): 115 ft (35m)
        • When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
        • Cable One (1) Cat5e/6 or better twisted pair cable required.
        • Power Supply Two (2) 110-240V/5VDC power supply with interchangeable blades included
        • Power Consumption Transmitter: 1.6 Watt Receiver: 3.2 Watt
        • Temperature Operating: 0§ to 40§ C. Storage:-20§ to 85§ C. Humidity: up to 95% non-condensing.
        • Enclosure Aluminum
        • Dimensions 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
        • Weight 2.6 lb (1.2 kg)
        • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
        • Warranty 2 years
        • Order Information 500390 DVI/Audio Extender Kit


      • Warranty

        • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products


      • GTIN:

        0627699003909




      Add Accessories for your 500390:



      See Muxlab INC 500390 Manual/Specs (PDF)
      See Muxlab INC 500390 Specifications (PDF)
