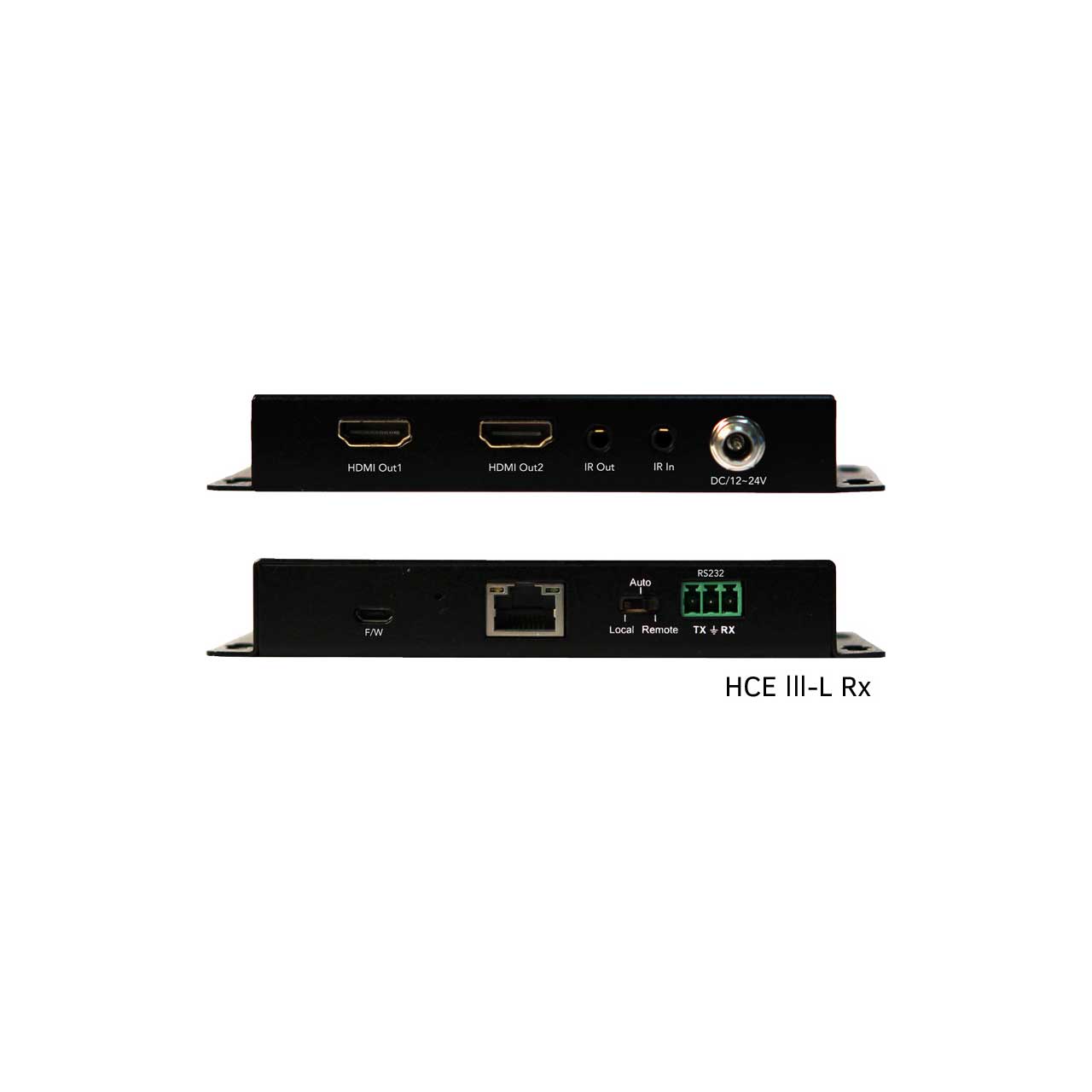

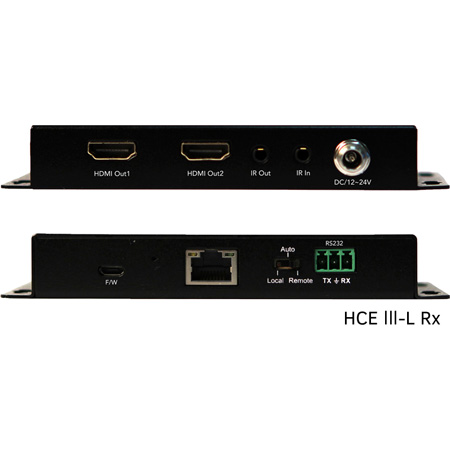

PureLink HCE-III-L-RX 4K HDMI over HDBaseT Extender w/Loop Out Receiver

Name: PureLink HCE-III-L-RX 4K HDMI over HDBaseT Extender w/Loop Out Receiver
Brand: PureLink
SKU: PLK-HCE-III-L-RX
Price: 442.75 USD
Availability: PreSale

ITEM #: PLK-HCE-III-L-RX MFG #: HCE-III-L-RX

PureLink

Our Price:

$442.75

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Required Accessories

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

HCE-III-L-RX - Overview

The PureLink HCE III-L RX is a premium HDMI 2.0 HDBaseT™ Extension System for Ultra HD/4K and HDR formats featuring an HDMI loop out on the transmitter for preview monitoring, as well as an additional output on the receiver for local distribution. The HCE III-L Tx/Rx supports 4K@60Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps with HDCP 2.2 compliance.

The HCE III can transmit Ultra HD/4K signals to distances up to 130 feet (40 meters) and 1080p to distances up to 230 ft. (70 meters) over a single category cable with embedded multi-channel audio, CEC pass-through, bi-directional RS-232 and IR control, and PoE

Features:
- Supports resolutions up to 4K@60Hz (4:4:4)
- Supports data rates up to 18 Gbps
- HDCP 2.2/ HDCP 1.4 Compliant
- Transmits Ultra HD/4K signals up to 130 ft. (40m)
- Supports HDR10 and Full 3D
- HDMI loop-put on transmitter and additional HDMI output on receiver
- Bi-directional IR and RS-232 extension
- Bi-directional PoE (Rx powered by Tx or Tx powered by Rx)
- EDID selector (auto, local, remote)
Specifications:
- Hardware
- Audio: Support DTS-HD, Dolby-HD
- Input Signal Type(s): (1) HDBaseT [RJ45], (1) USB [firmware]
- Output Signal Type(s): (2) HDMI Type A

  Performance
- Supported Distance: Ultra HD/4K up to 130ft. (40m), 1080p up to 230 ft. (70m)
- Supported Resolutions: 4K@60Hz (4:4:4), 1080p, 1080i, 720p(50Hz), 576p, 480p, 576i, 480i
- Video Bandwidth: up to 18 Gbps
- Compliance: HDMI 2.0, HDCP 2.2, HDCP 1.4
- RS-232: (1) RS-232 [3-pin phoenix]
- IR Extension: (1) x IR input [3.5mm stereo mini-jack]; 1 x IR output [3.5mm stereo mini-jack]
- Power Supply: DC 24V/1A
- Operating Temperature: 32° to 117° F (0° to 47° C)
- Storage Temperature: -40° to 158° F (-40° to 70° C)
- Relative Humidity: 0 to 90% non-condensing
- MTBF: 50,000 hours
- Rack Mounting Option: Standard 19 inch rack-mountable design

  Enclosure
- Rack Mounting Option: Standard 19 inch rack-mountable design
- Product Dimensions: 5.5 x 2.6 x 0.8" (139.4 x 66.8 x 20mm)
- Product Weight: 1.19 lbs. (0.54kg)
