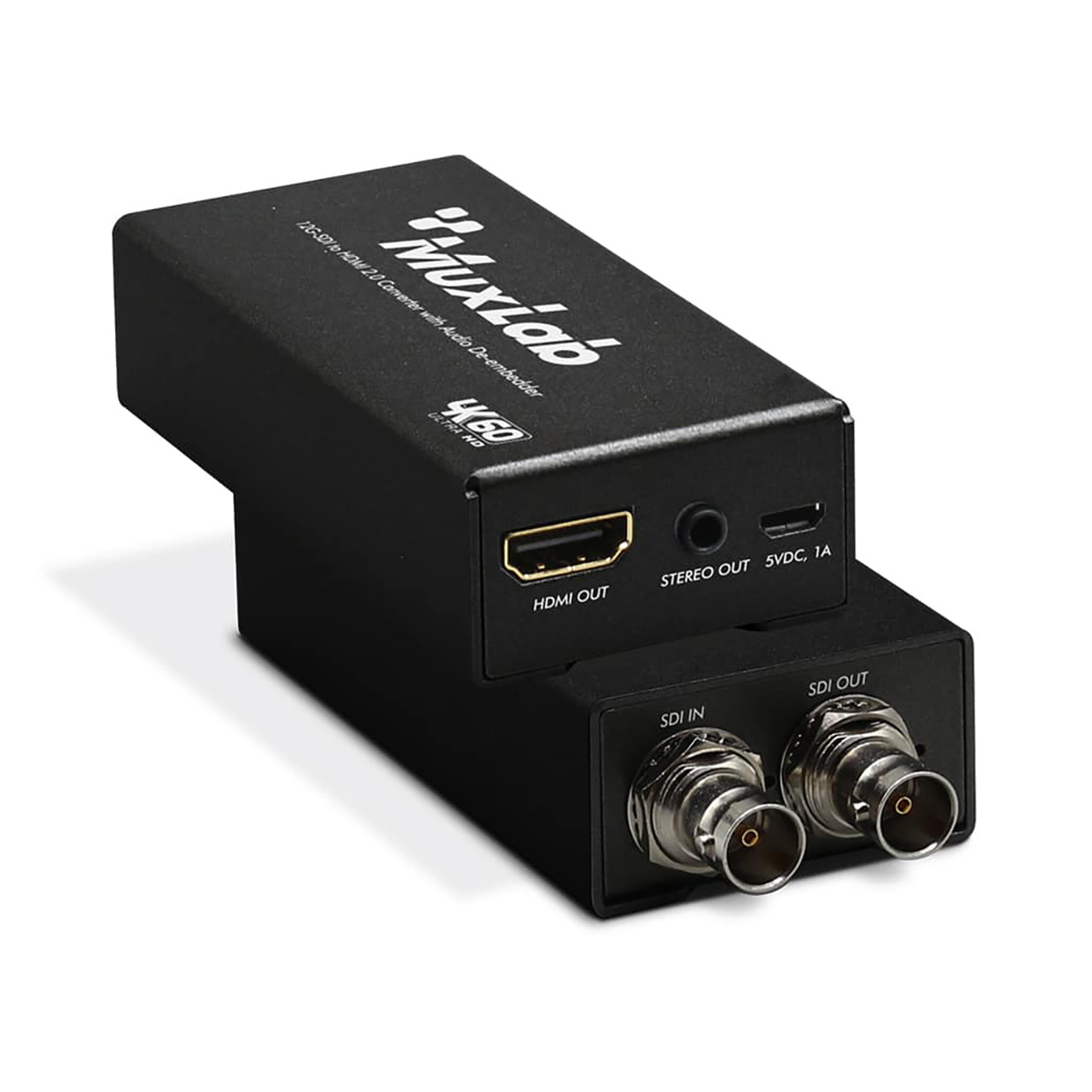

MuxLab 500744 12G-SDI to HDMI 2.0 Converter with Audio Extension - Supports up to 8-Channel Audio

ITEM #: MUX-500744 MFG #: 500744

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$785.00

Our Price:

$628.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


500744 - Overview

The MuxLab 500744 12G-SDI to HDMI 2.0 converter with audio extension provides a cost-effective way to convert 12G/6G/3G/HD-SDI signals to HDMI 2.0 compatible format. The conversion between SDI and HDMI is purely digital and guarantees a lossless transformation for both audio and video. The device supports up to 8-channel audio and also provides a low-jitter SDI local loop and high-quality analog stereo output to provide flexibility to users.

Applications:
- Video production & Broadcasting
- Studio-to-studio & Post production
- Outside broadcasting vehicle
- Mobile video & Live events
- SDI Camcorders
- Medical imaging

  • Features:

    • Supported high-definition (HD) formats
    • Auto 12G/6G/3G/HD-SDI detection
    • Support HDMI 2.0 & below
    • Supports stereo audio output

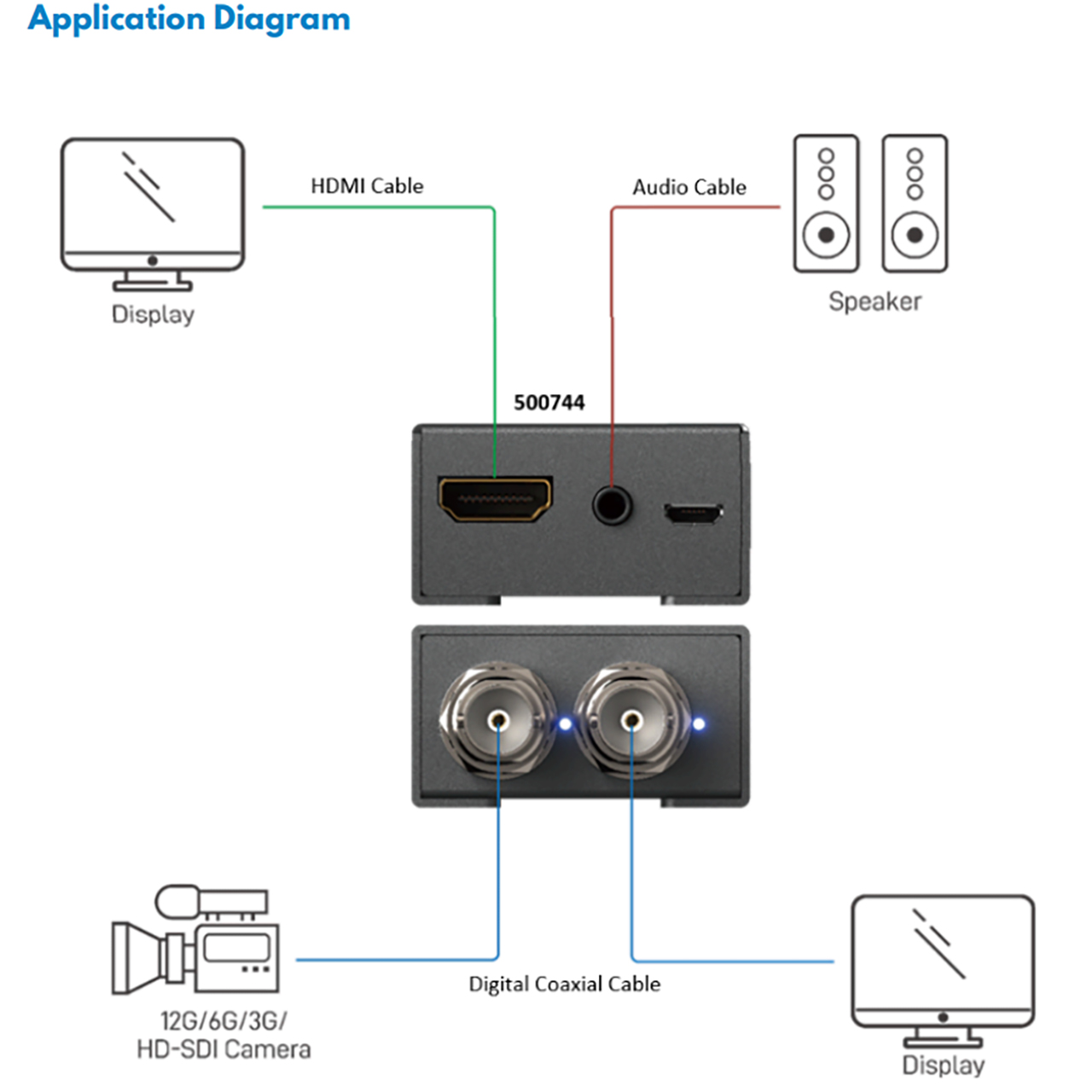

    • Supports one SDI compliant input, one HDMI compliant output & one SDI loopout

  • Specifications:

    • SDI Standards: 12G/6G/3G/HD-SDI
    • HDMI Standards: HDMI 2.0
    • Auto 12G/6G/3G/HD-SDI Detection: Yes
    • Video Bandwidth:
      - SDI: 11.88 Gbps, 11.88/1.001 Gbps
      - HDMI: Up to 18Gbps
    • Video Support:
      - 12G: 4K2K/50/59.94/60Hz
      - 6G: 4K2K/23.98/24, 25, 29.97, 30Hz
      - 3G: 1080p50/59.94/60
      - HD: 720p/50/59.94/60Hz, 1080i/50/59.94/60Hz, 1080p/23.98/24/25/29.97/30Hz
    • Input Signal: 1x SDI
    • Output Signal:
      - 1x HDMI
      - 1x SDI
      - 1x 3.5mm (Audio)
    • Output Impedance (SDI): 75Ω
    • Synchronization Mode: Internal synchronization or external synchronization
    • Eye Pattern Characteristics:
      - 12G-SDI: Timing jitter: 0.29 UI, Alignment jitter: 0.13 UI
      - 6G-SDI: Timing jitter: 0.18 UI, Alignment jitter: 0.06 UI
      - 3G-SDI: Timing jitter: 0.09 UI, Alignment jitter: 0.03 UI
    • Cable Equalization:
      - 12G-SDI: Up to 80m
      - 6G-SDI: Up to 100m
      - 3G-SDI: Up to 190m
      - HD-SDI: Up to 300m
    • Audio Support:
      - [Analog] Supports 2ch
      - SDI: Surround sound (up to 7.1ch)
    • Input: 1x BNC (SDI)
    • Output:
      - 1x HDMI
      - 1x BNC (SDI)
      - 1x 3.5mm
    • BNC Connector: 75Ω inter-locked socket
    • HDMI Connector: Type A (19-pin female)
    • Housing: Metal enclosure
    • Dimensions (LxWxH): 3.7" x 1.8" x 0.9" (92mm x 45mm x 23mm)
    • Weight: 6.2oz (175g)
    • Power Supply: 5V DC
    • Power Consumption: 4 Watts (max)
    • Operation Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensation)

  • Item Includes:

    • 1x 12G-SDI to HDMI 2.0 Converter with Audio Extension

  • Warranty:

    • 2 Year

  • GTIN:

    0627699007446
