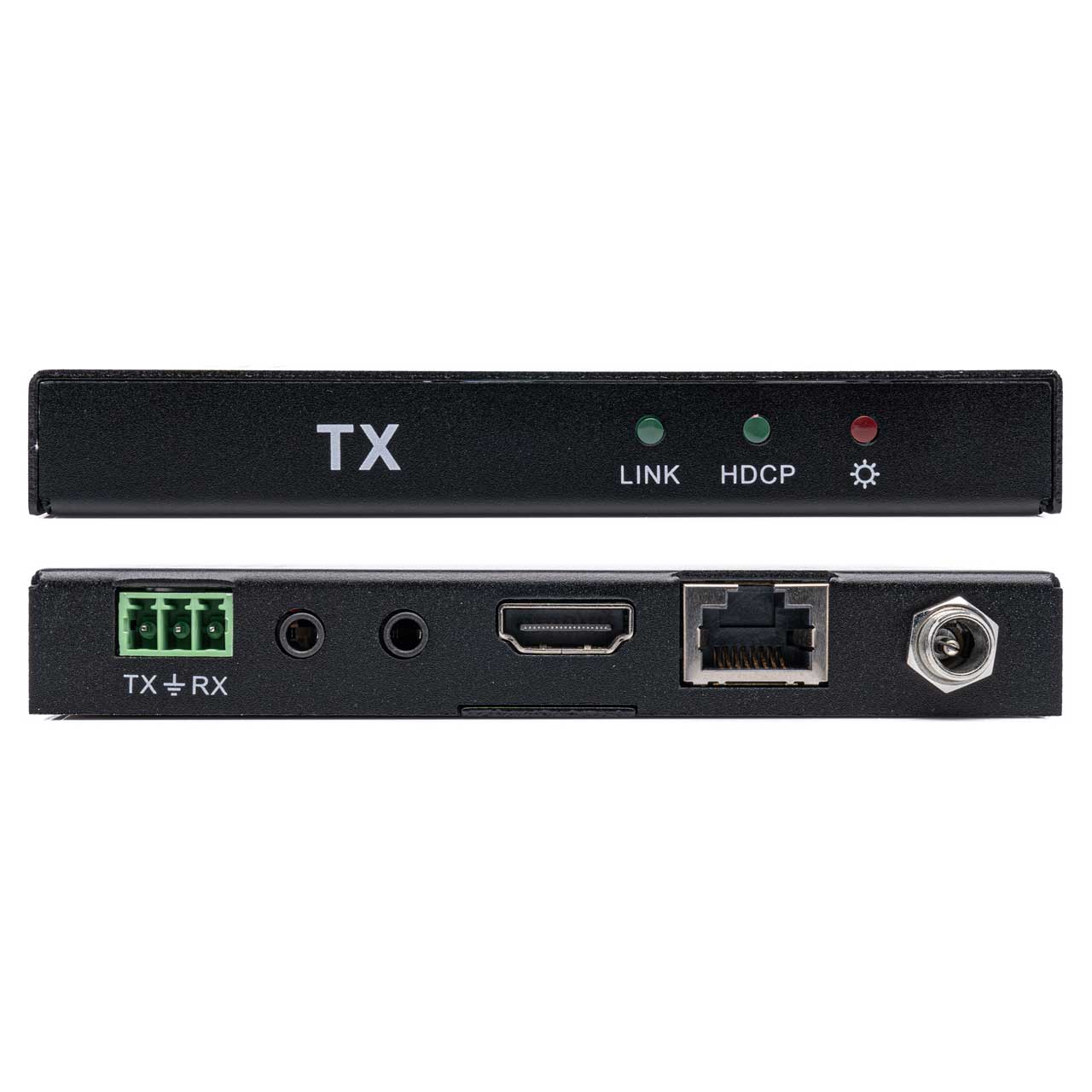

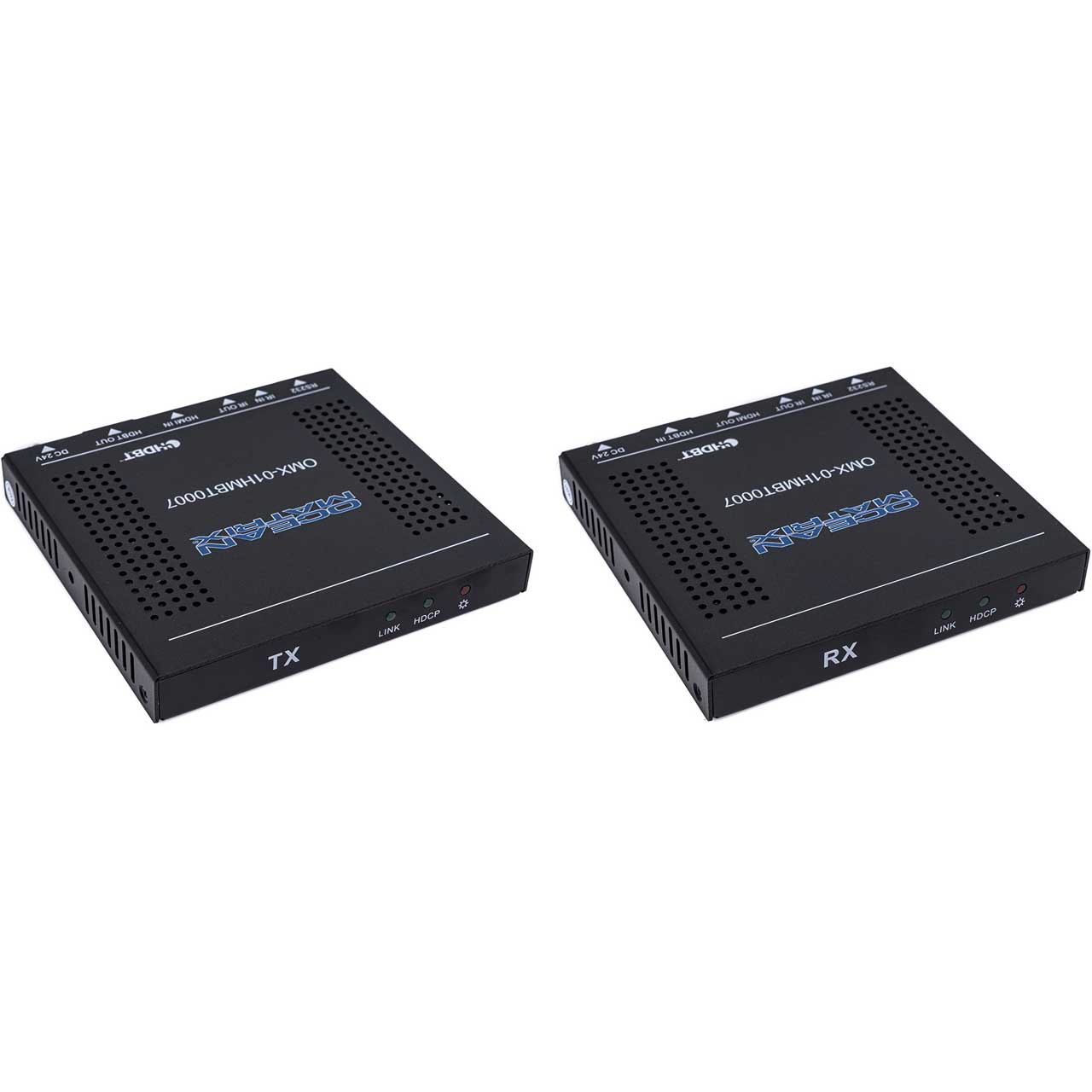

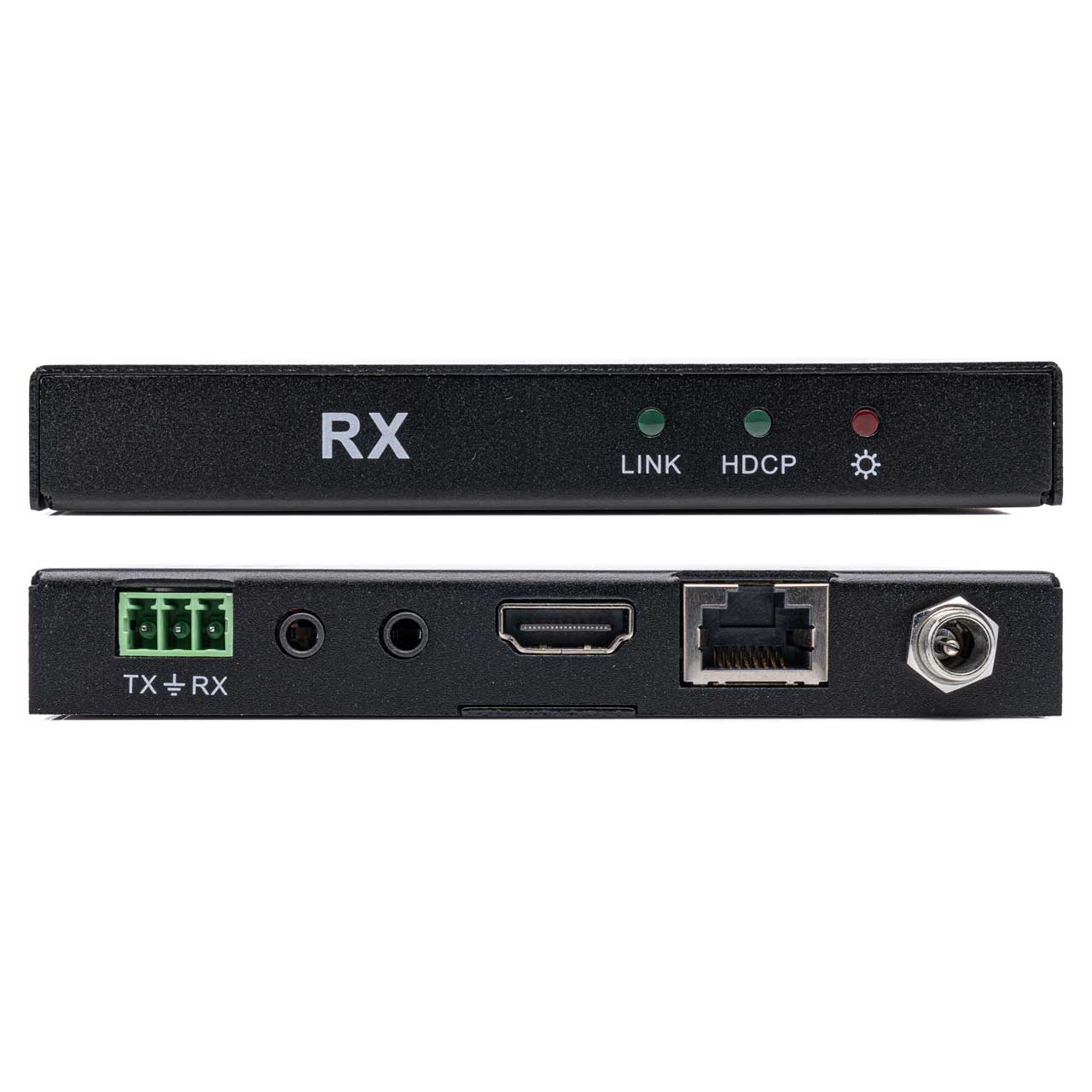

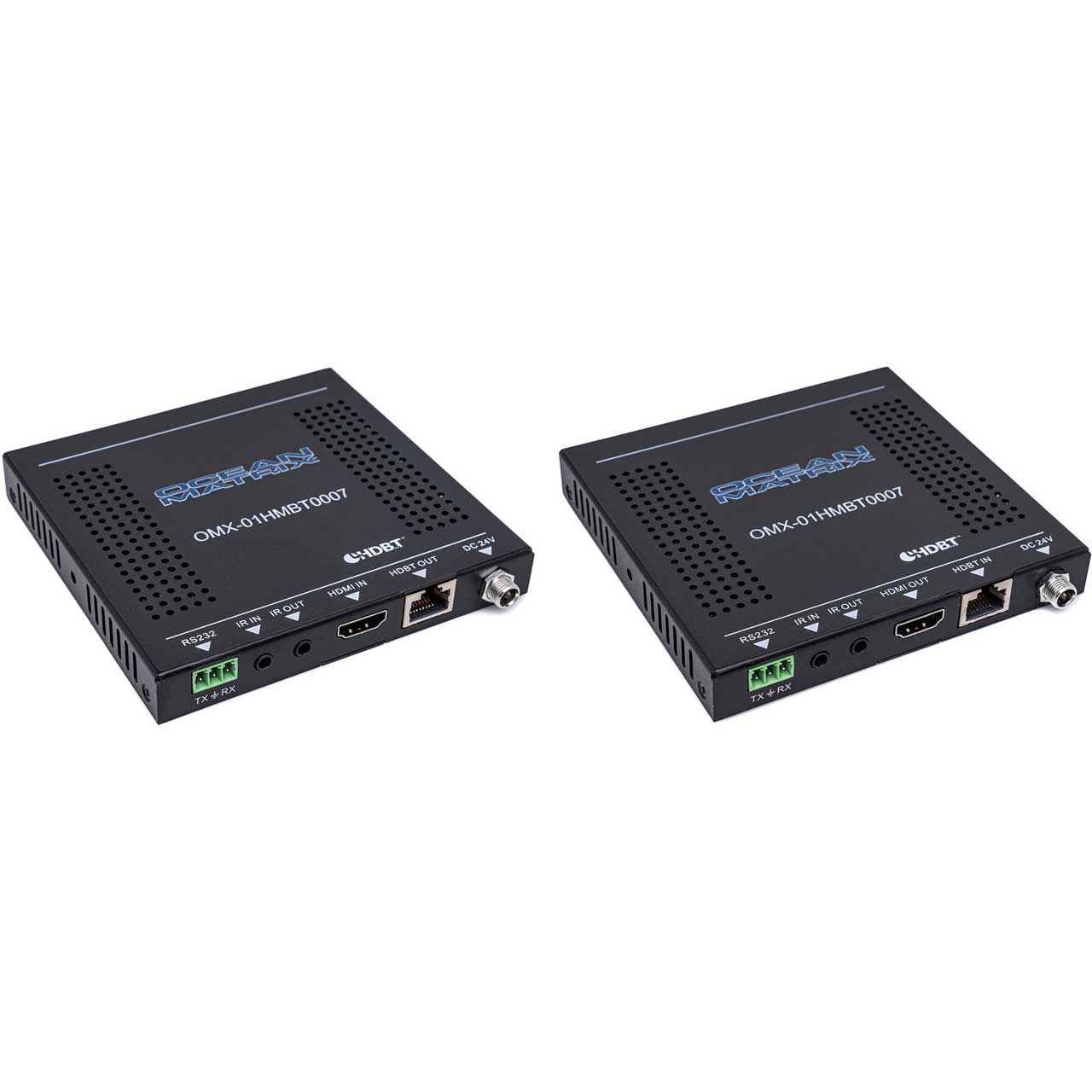

Ocean Matrix OMX-01HMBT0007 HDBaseT 4K HDMI Extender Set with CEC - RS232 - Two-Way IR - Two-Way PoH

OMX-01HMBT0007 - Overview

• Features:

  • Extends Two-Way IR Signals
  • RS232 Control Signal Transmission
  • Transmission Distance: 1080P up to 230 Feet, 4K up to 131 Feet
  • Two-Way 24V PoH
  • CEC Pass Through
  • Compact Design in a Rugged Black Powder-Coated Metal Enclosure
  • CE, FCC Certified


• Specifications:

  • Compliance: HDMI 1.4, HDCP 2.2
  • Bandwidth: 10.2Gbs
  • Resolution Range: 640x480@60Hz to 4Kx2K@30Hz
  • Supports Digital & embedded audio formats
  • Impedance: 75 Ohm
  • Power Consumption: 14W
  • Power Input: 100-240VAC, 50/60Hz
  • Dimensions (HxWxD): 0.64 x 4.5 x 4.3 in
  • Weight: TX 6.8 oz, RX 6.9 oz


• Item Includes:

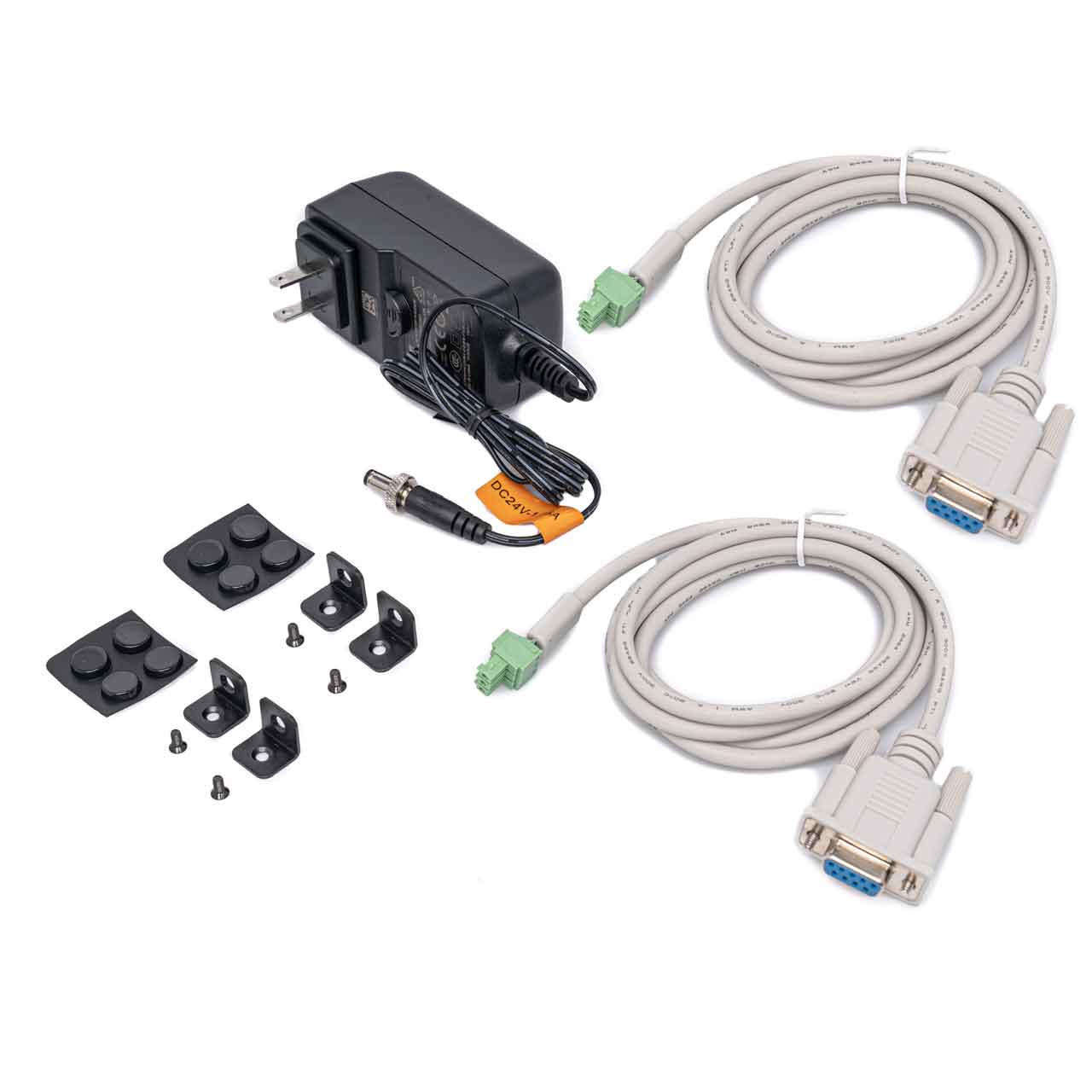

  • 4 Mounting Ears & 4 Screws, 2-RS232 Cables, 1-24V/1.25A power supply


• Warranty:

  • 1 Year
