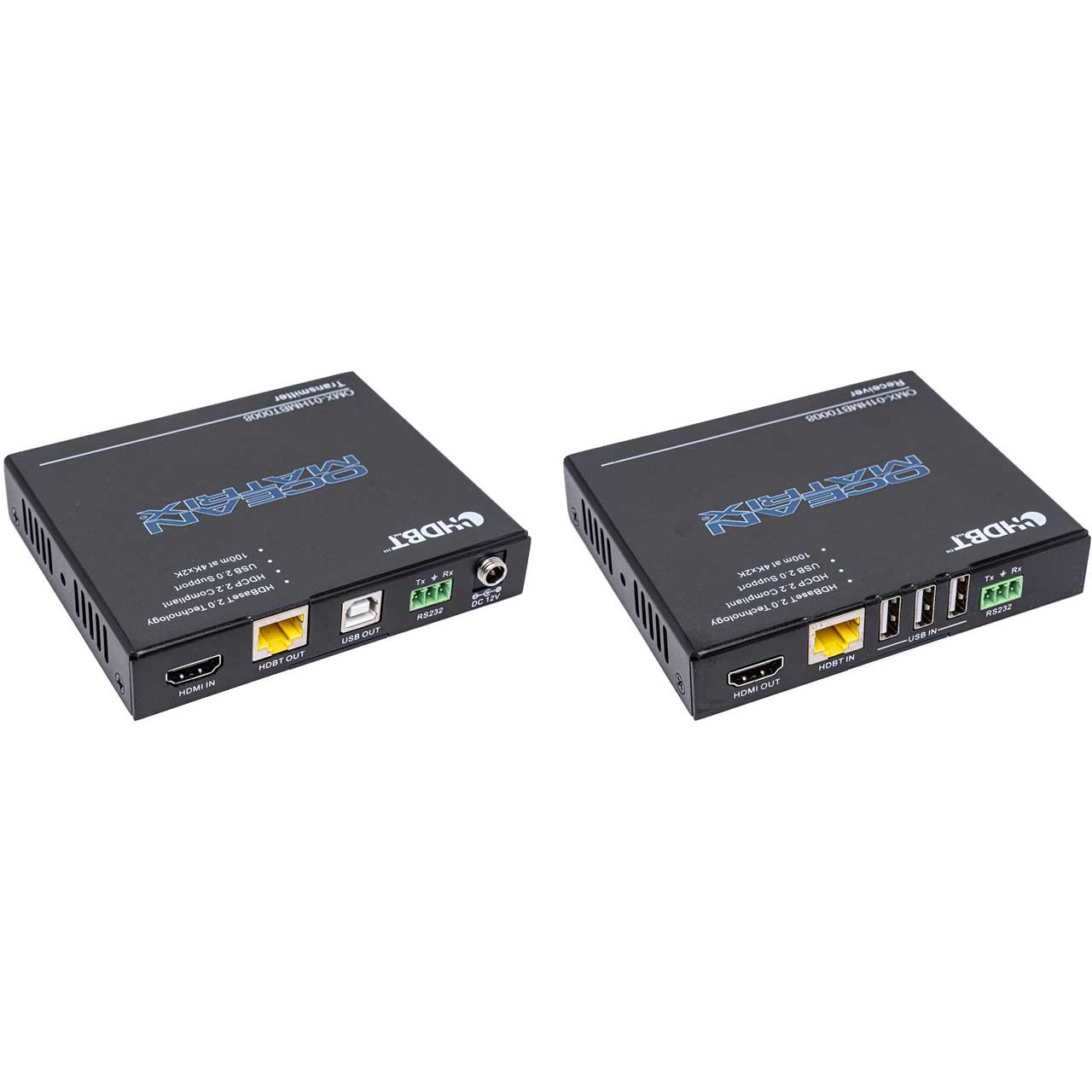

Ocean Matrix OMX-01HMBT0008 HDBaseT 4K HDMI Extender Set with KVM - EDID Pass Through - RS232 - PoC

ITEM #: OMX-01HMBT0008 MFG #: OMX-01HMBT0008

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMX-01HMBT0008

OMX-01HMBT0008 - Overview

The Ocean Matrix OMX-01HMBT0008 HDMI extender meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6a cable up to328 feet. This extender supports video resolutions up to 4Kx2K@60Hz 4:2:0 and features USB 2.0 KVM, EDID pass through, RS232, and 12V PoC.

  • Features:

    • RS232 Control Signal Transmission
    • USB 2.0 KVM & EDID Pass Through
    • Transmission Distance: 1080P/4Kx2K up to 328 Feet
    • 12V PoC, Receiver can be Powered by the Transmitter
    • Rugged Black Powder-Coated Metal Enclosure
    • CE, FCC Certified


  • Specifications:

    • Compliance: HDMI 1.4, HDCP 2.2
    • Bandwidth: 10.2Gbs
    • Video Resolution: up to 4Kx2K@60Hz 4:2:0 / 3D
    • HDMI Embedded Audio: PCM, Dolby Digital, DTS, DTS-HD
    • Power Consumption: 18W
    • Power Input: 100-240VAC
    • Dimensions (HxWxD): 0.86 x 4.5 x 3.74 in
    • Weight: TX 6.9 oz, RX 6.9 oz


  • Item Includes:

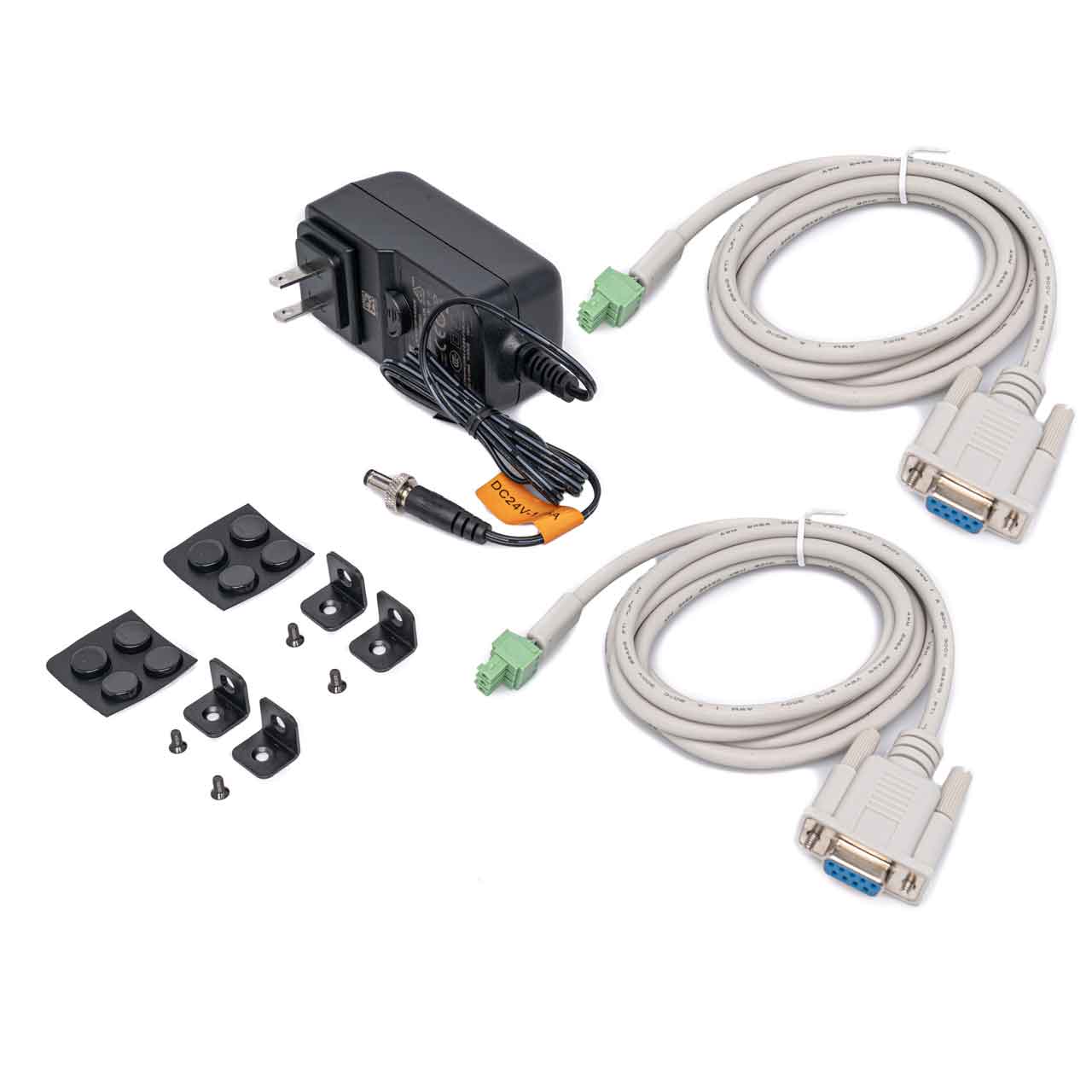

    • 4 Mounting Ears & 4 Screws, 2-RS232 Cables (Phoenix to 9Pin DSub), 1-12V/2A power supply


  • Warranty:

    • 1 Year
