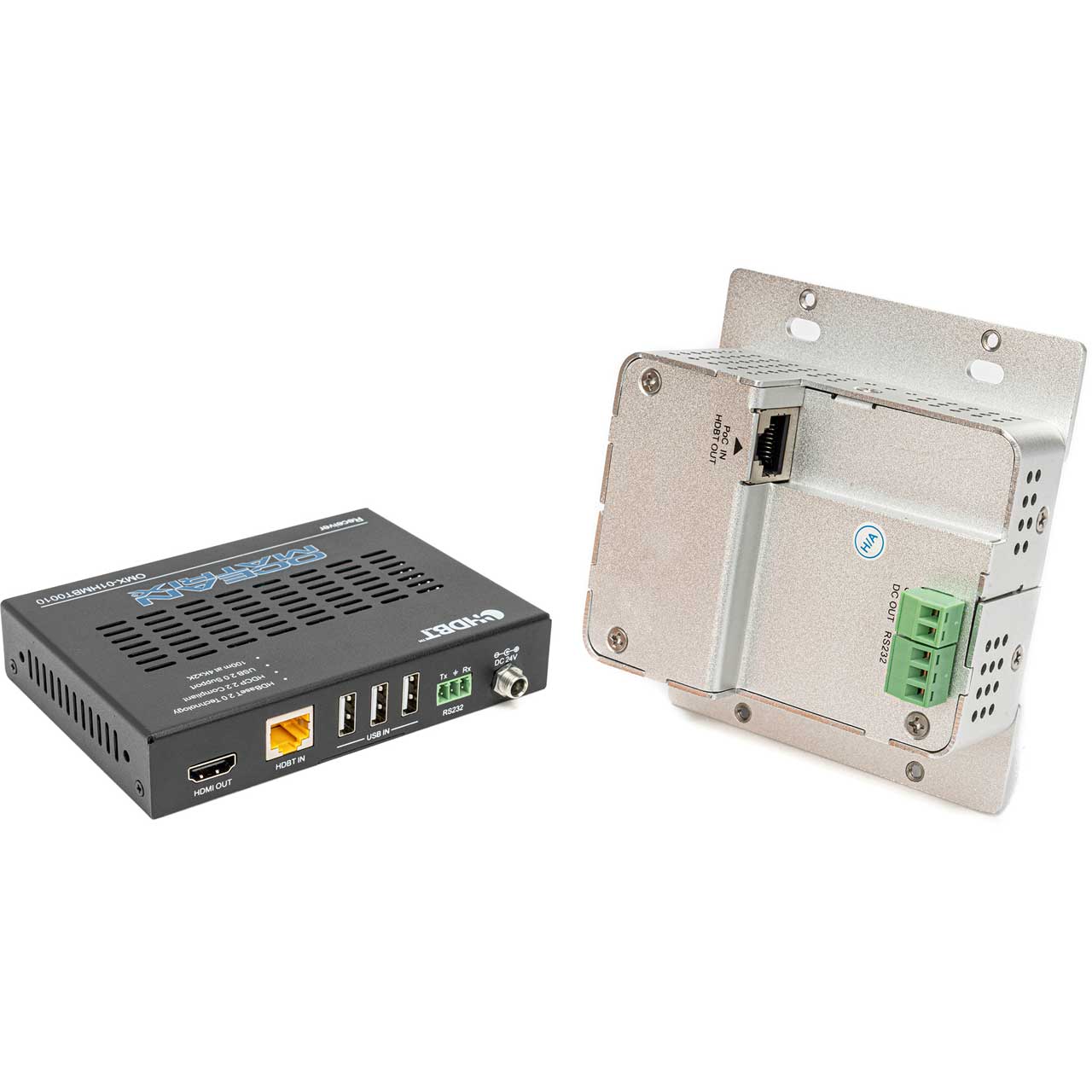

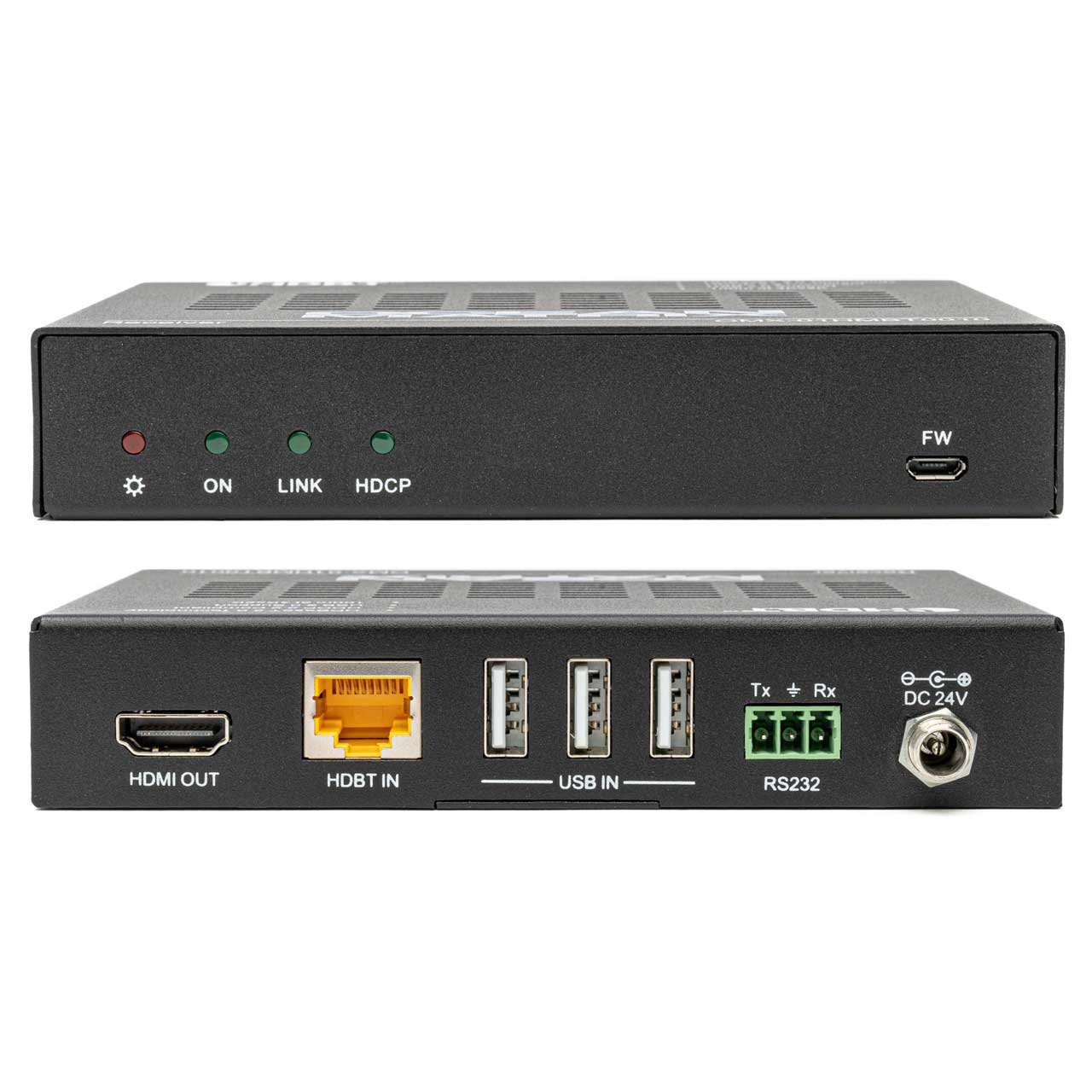

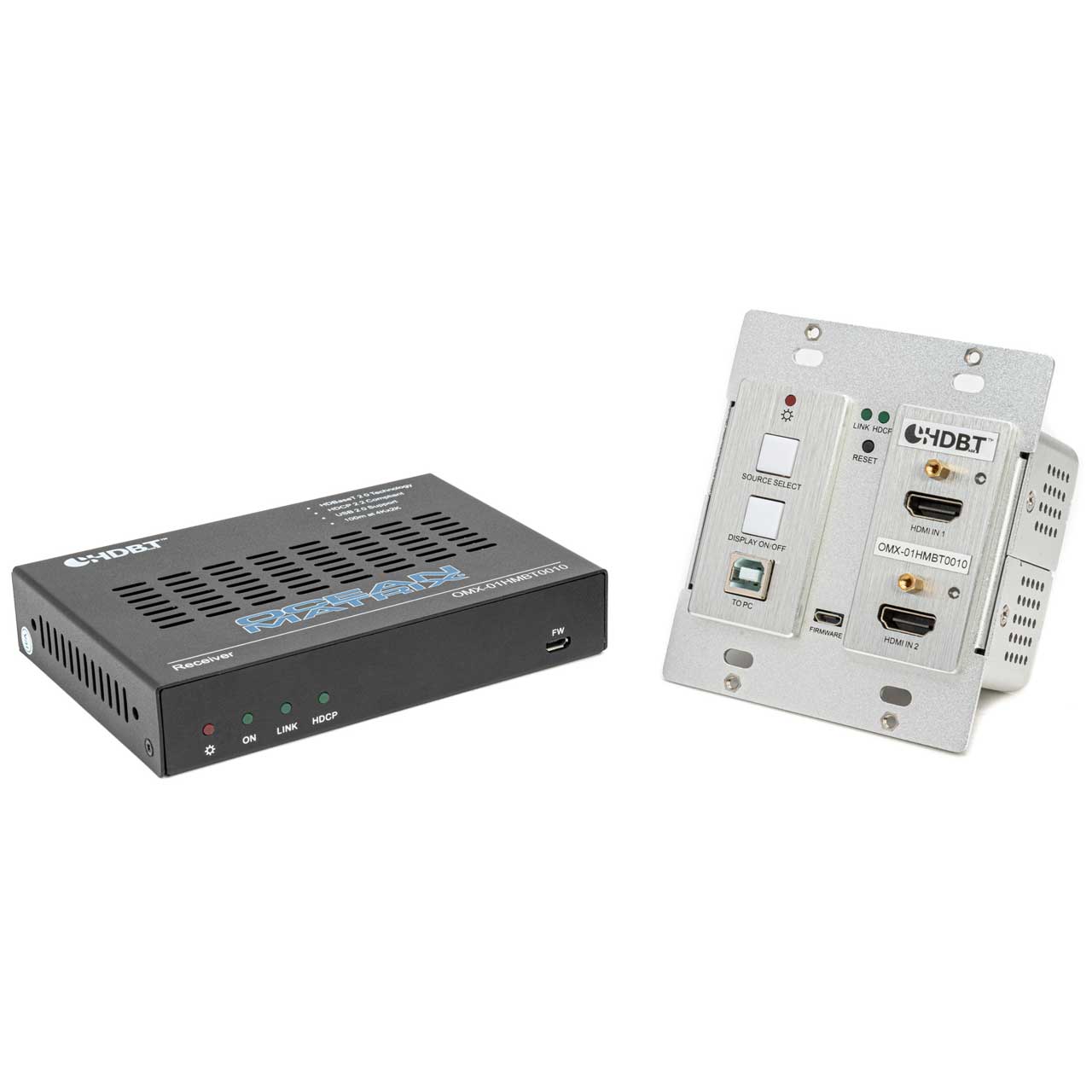

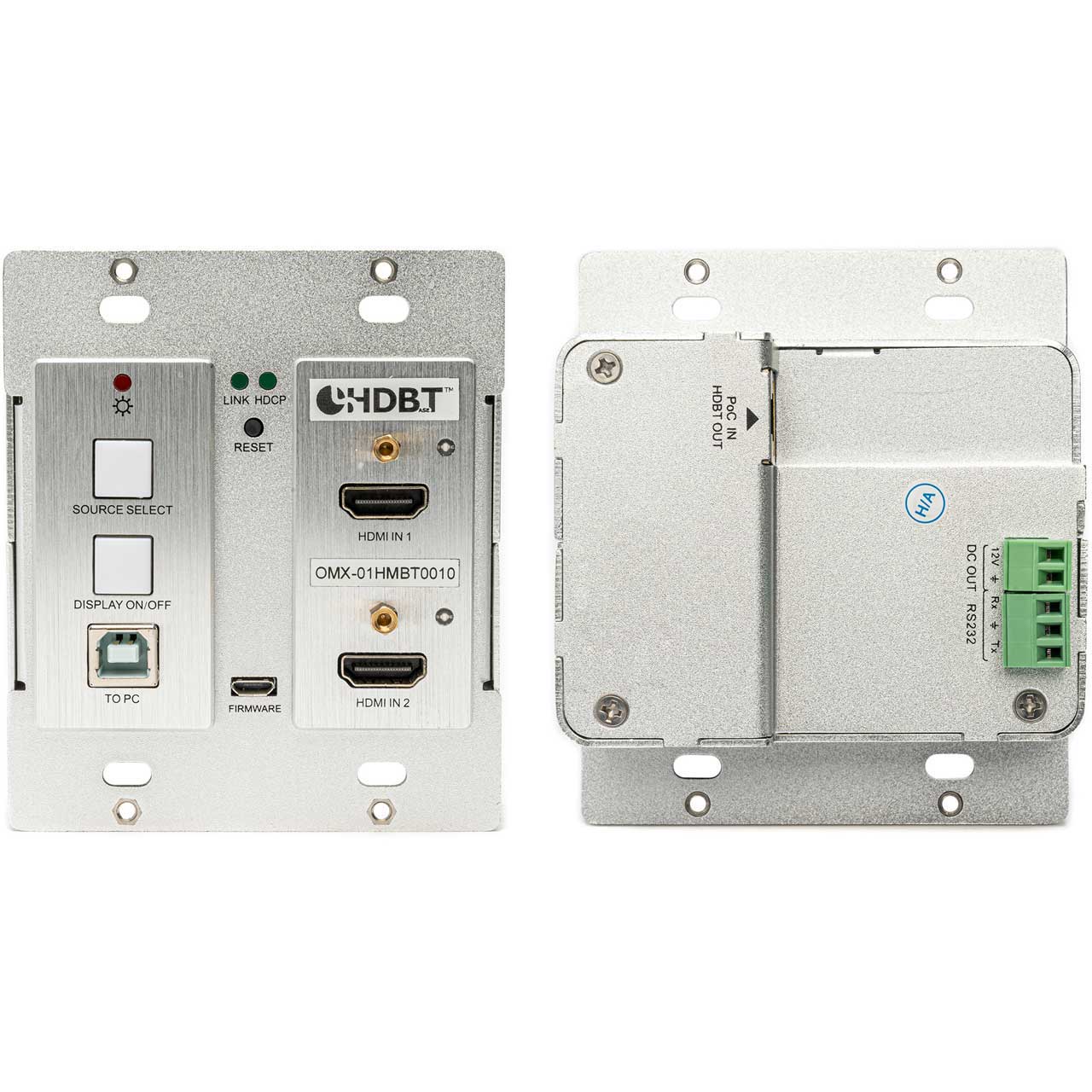

Ocean Matrix OMX-01HMBT0010 HDBaseT 4K HDMI 2-Gang Wall Plate Extender Set with RS232 - KVM - CEC - PoC

ITEM #: OMX-01HMBT0010 MFG #: OMX-01HMBT0010

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$437.49

Our Price:

$406.49

Special Price:

$355.49

Availability: In Stock
iAvailability Description Popup


    OMX-01HMBT0010 - Overview

    The Ocean Matrix OMX-01HMBT0010 HDMI extender meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6a cable up to 328 feet. Supporting video resolutions up to 4K2K@60Hz 4:2:0, this extender features RS232, USB 2.0 KVM, and 24V PoC. EDID passthrough helps to ensure compatibility between the HDMI source and the display. Displays can be turned off or on via the CEC function or RS232 command. With 2 HDMI inputs, a Source Select button allows for auto-switching between the two inputs. This extender set provides easy control from head end.

    • Features:

      • Two-Way RS232 Control Signal Transmission
      • Transmission Distance: 1080P/4Kx2K up to 328 Feet
      • Supports CEC for Display On/Off
      • One-Way 24V PoC from Rx to Tx
      • Rugged Black Powder-Coated Metal Enclosure
      • CE, FCC Certified

    • Specifications:

      • Compliance: HDMI 1.4, HDCP 2.2
      • Bandwidth: 10.2Gbs
      • Video Resolution: up to 4Kx2K@60Hz 4:2:0
      • Power Consumption: 23W
      • Power Input: 100-240VAC
      • Dimensions (HxWxD): 4.1 x 3.5 x 1.7 in
      • Weight: 8.8 oz

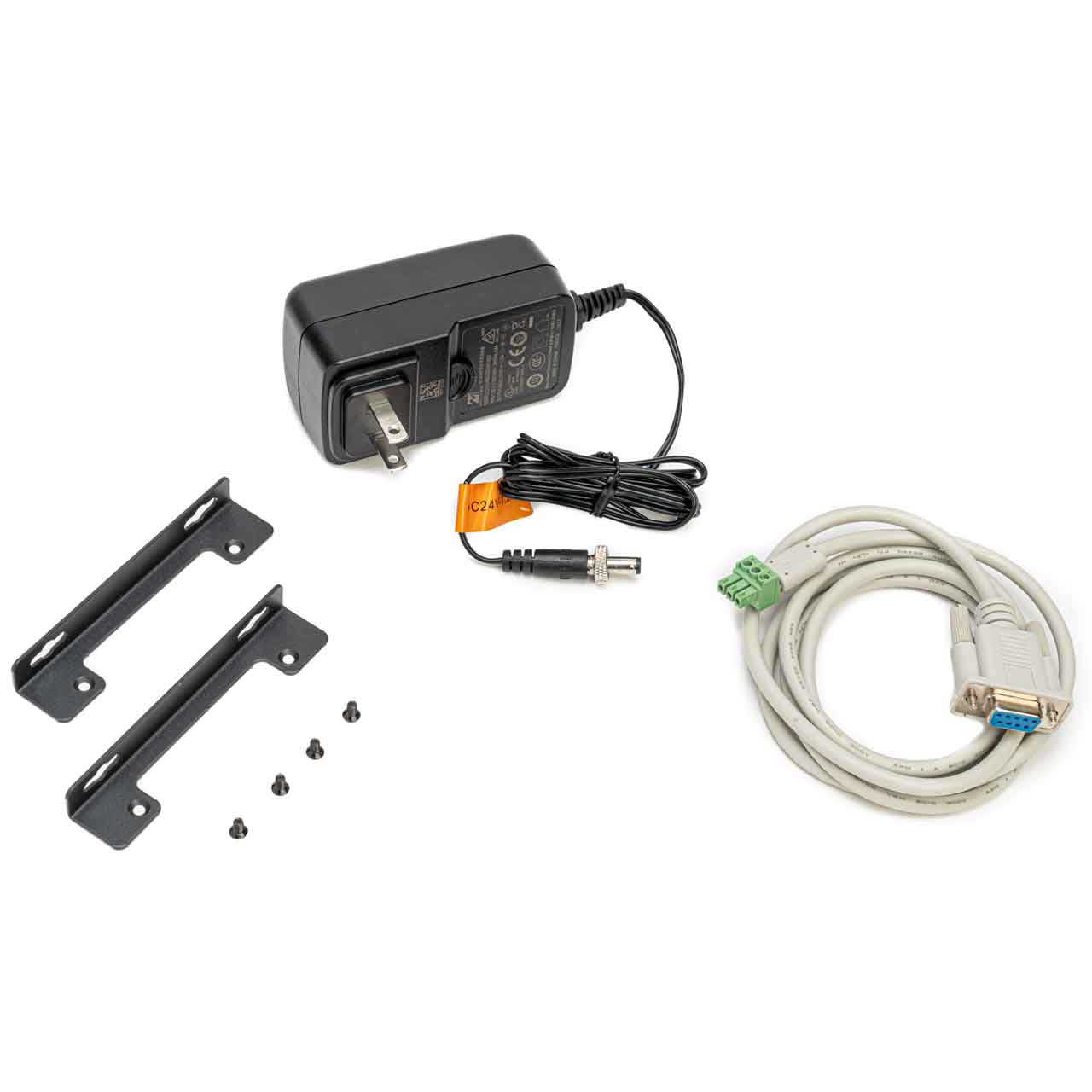

    • Item Includes:

      • TX: 4 Mounting Screws, 1-2Pin Terminal Block, 1-3Pin Terminal Block.
      • RX: 2 Mounting Ears & 4 Screws, 1-RS232 Cable (3Pin to DB9), 1-24V/1.25A power supply

    • Warranty:

      • 1 Year
