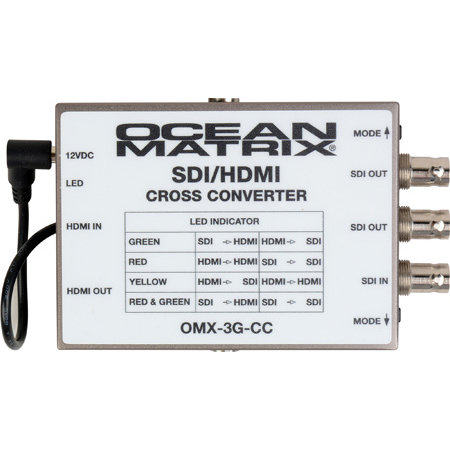

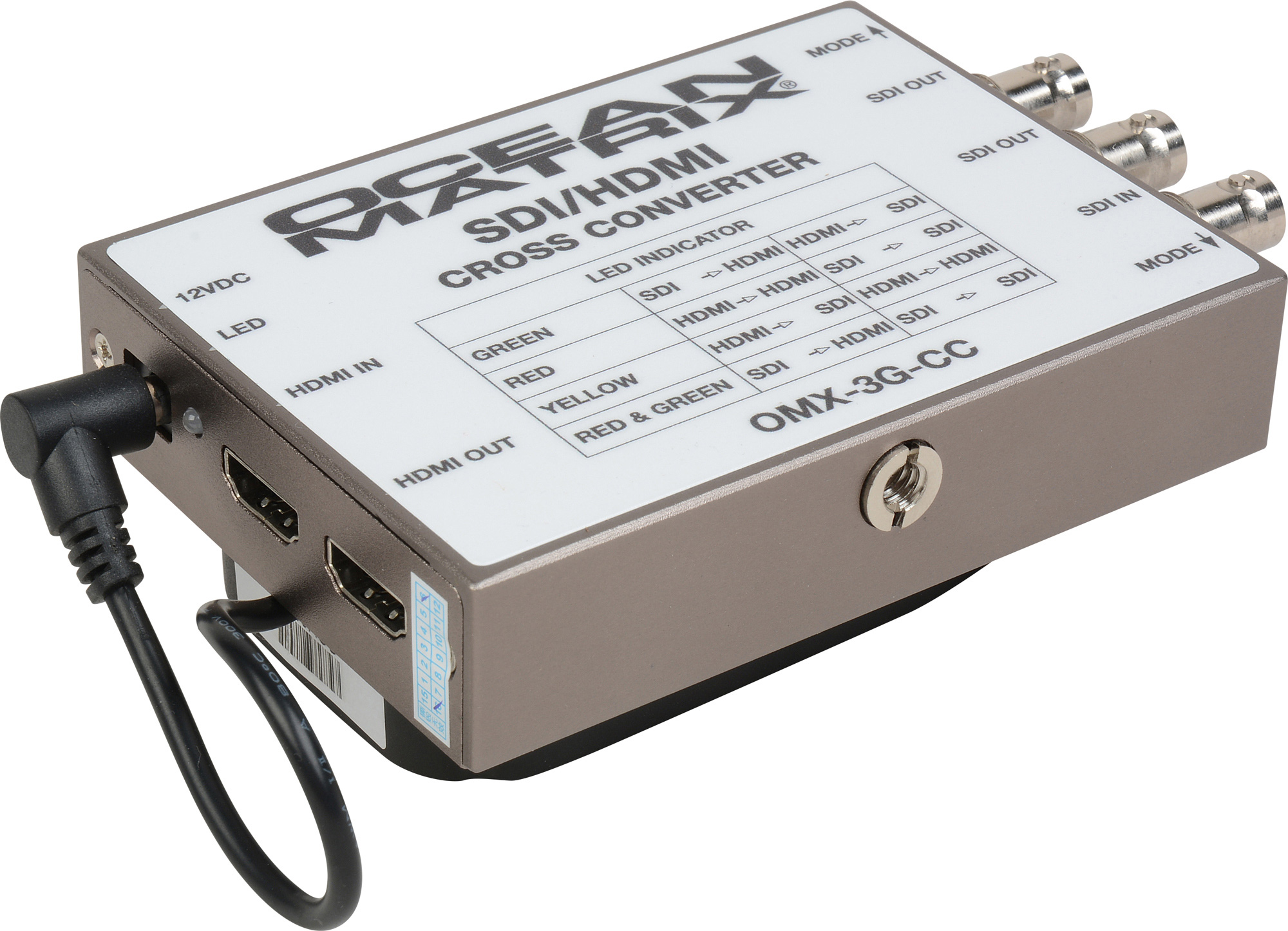

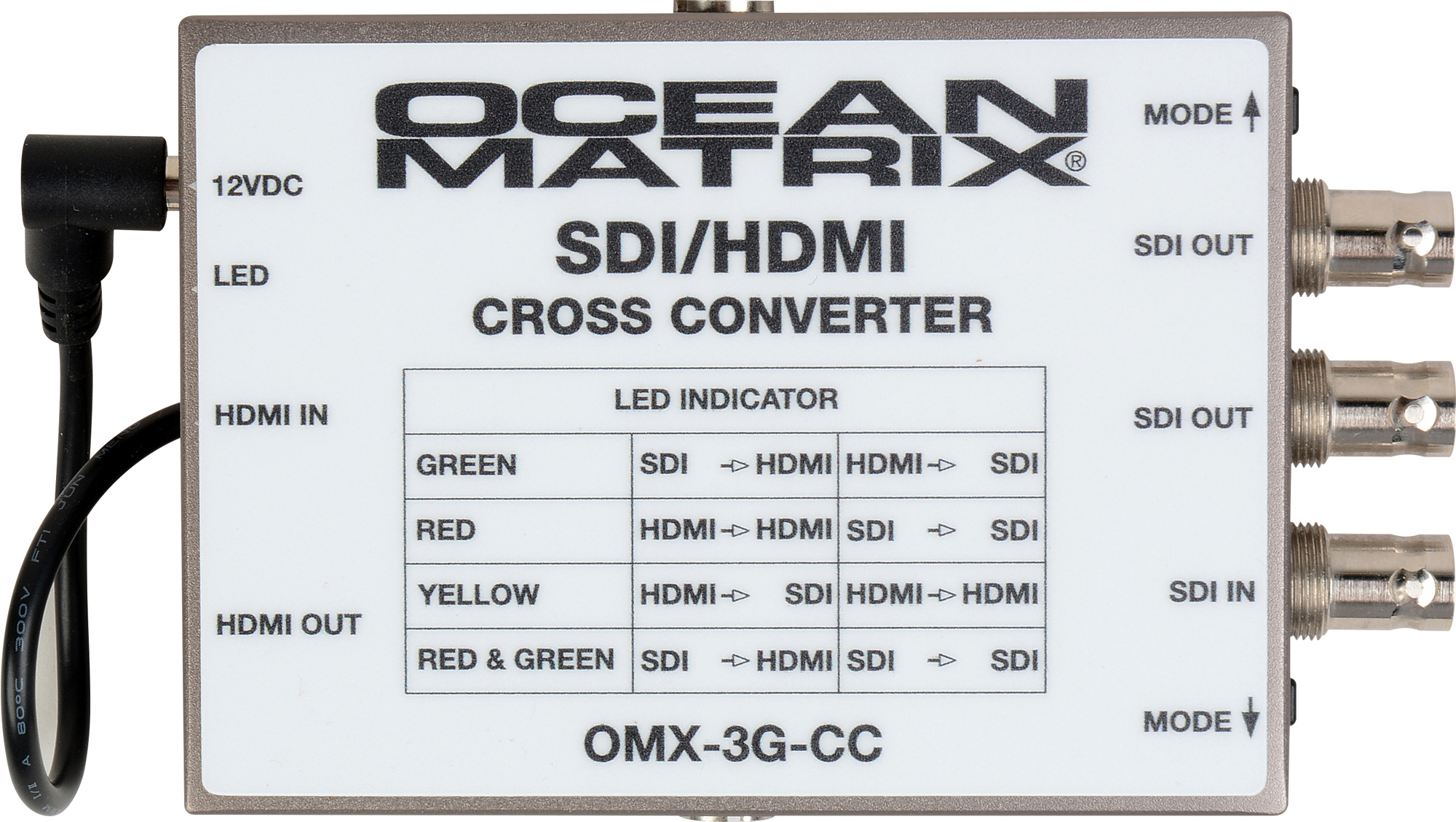

Ocean Matrix OMX-3G-CC 3G SDI-HDMI Multiformat Cross Converter

ITEM #: OMX-3G-CC MFG #: OMX-3G-CC

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$150.49

Our Price:

$138.95

Availability: In Stock
iAvailability Description Popup


    OMX-3G-CC - Overview

    The Ocean Matrix OMX-3G-CC is a unique broadcast quality cross converter perfect for any multiformat field and studio tool kit. Whether you need to convert a 3G-SDI output to feed your HDMI camera top monitor or convert your HDMI feed to match your 3G-SDI production switcher, the OMX-3G-CC is your all-in-one solution.

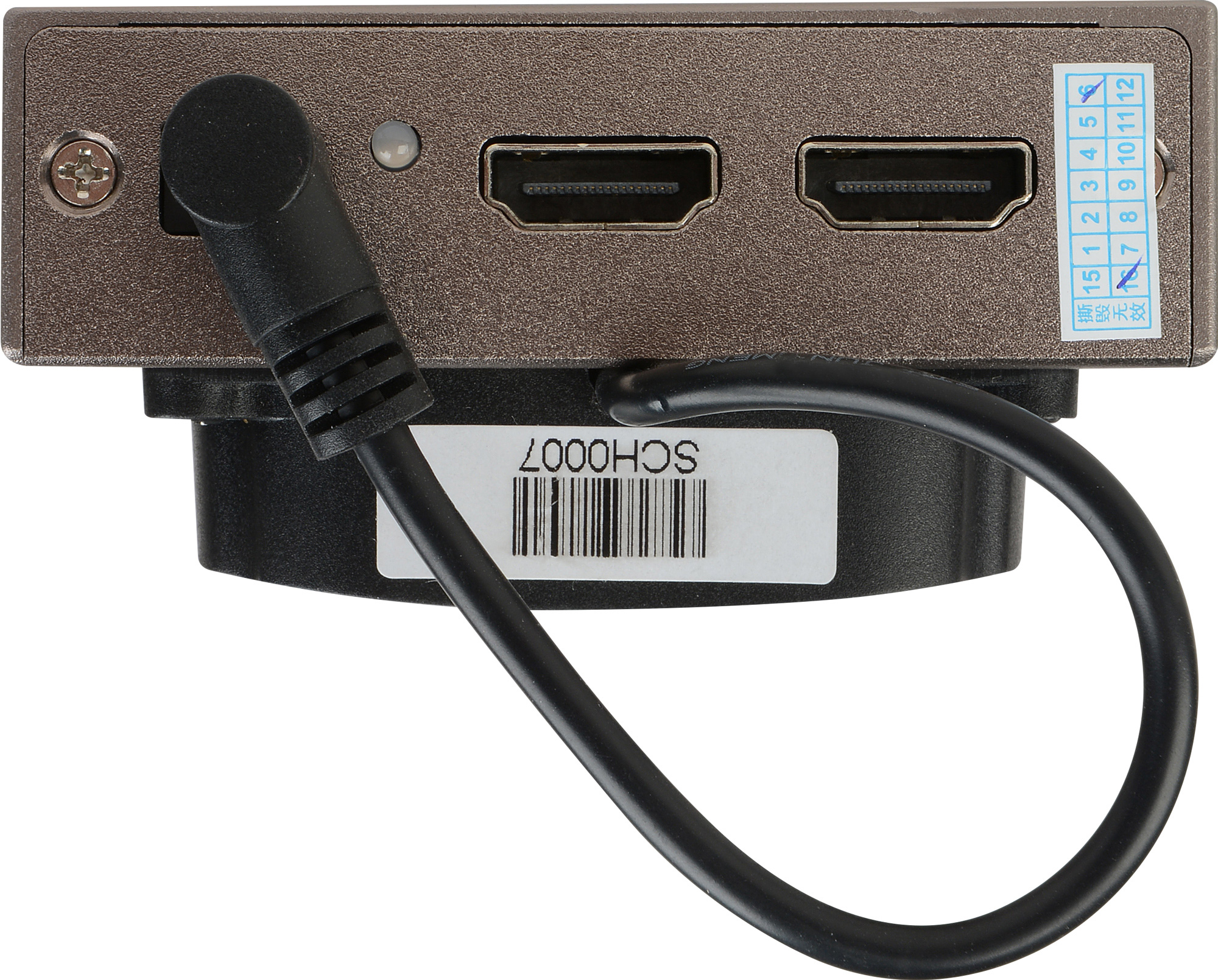

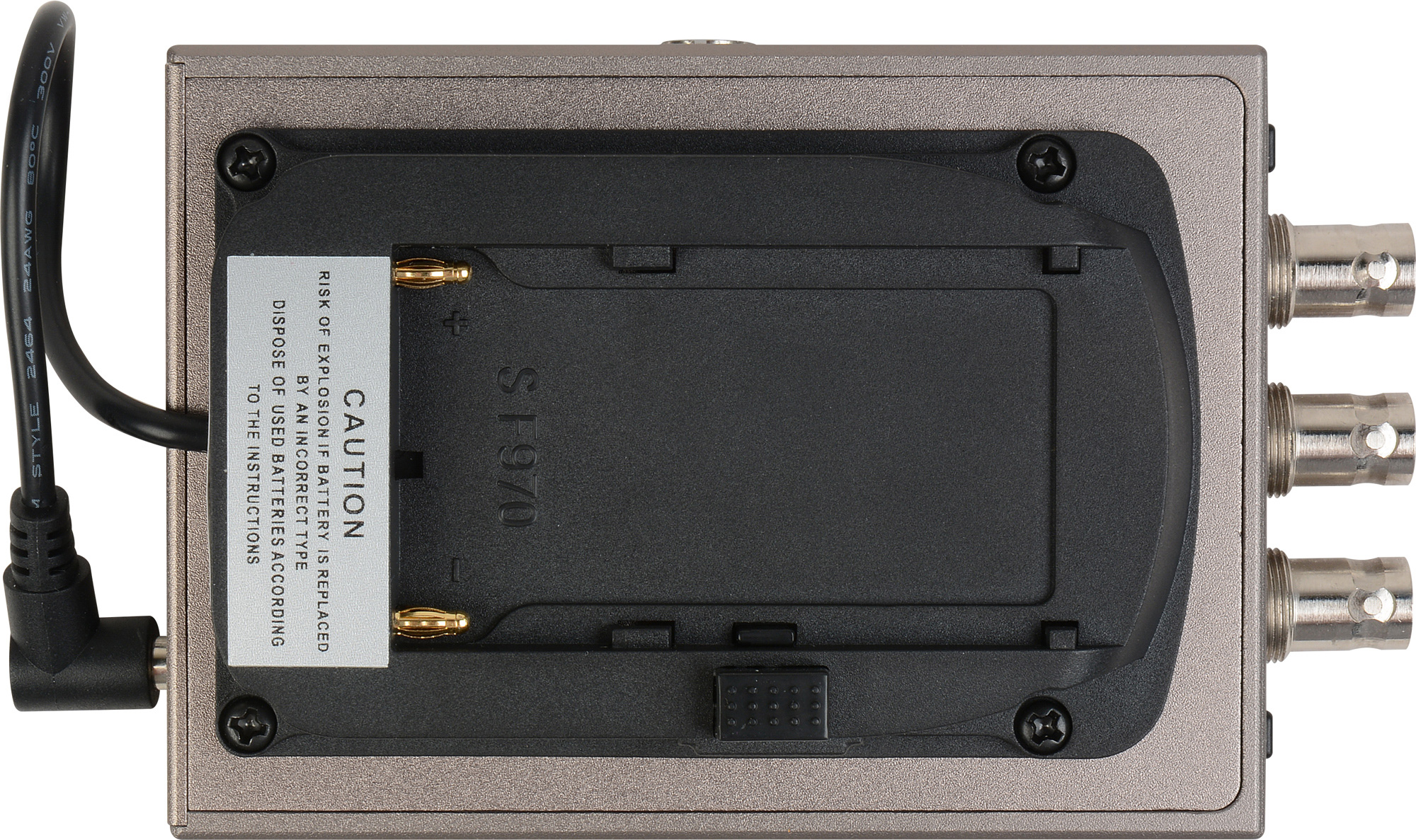

    Supporting a wide range of formats, the unit not only converts 3G/HD/SD-SDI to HDMI or HDMI to 3G/HD/SD-SDI but features dual powering capability and convenient mounting options. The back of the OMX-3G-CC has a built in Sony NP F970 type mounting plate with a power plug tether. So if you're out in the field on a shoot you'll always have an option to power your converter. Simply detach the power tether in place of a standard power supply when standard AC power is available. And its 1/4-20 threaded top and bottom mounting holes mean you can position it wherever it's convenient.

    For true field reliability, the unit is housed in a super rugged metal shell and has the muscle to send 3G-SDI signals up to 100 meters.

    NOTE: The output resolution, frame rate, and frequency will be the same as the input resolution.

    • Features:

      • Enhanced HD Signal Processing Technology
      • SDI Input, 2 SDI Outputs, and 1 HDMI Input, 1 HDMI Output
      • Complies with SMPTE 424M, SMPTE 292M, SMPTE 259M Standards
      • 100 Meter 3G-SDI Transmission on SDI Output
      • Supports wide range input voltage from 5V - 24V
      • Dual Power Capability - DC adapter or Sony NP F970 Lithium Battery
      • Top & Bottom 1/4-20 Threads Convenient Mounting Option
      • Power I/O Status Indicator
      • Super Rugged Housing
      • Embedded Audio Compatible
      • SDI and HDMI Looping Outputs (All Outputs are Active)

    • Specifications:

      • Power Consumption: =4.2W
      • Input Voltage: DC 5~24V
      • Connector: DC 12V
      • Battery Plate: Sony NP F970 type; D28S, E6 (optional)
      • WorkingTemperature: -17°C~55°C
      • Storage Temperature: -30°C~65°C
      • Dimensions (LHD):4.27x 3.07x0.93in (108.5x78x23.5mm)
      • Weight:8.96/ 9.89 oz with F970 Plate (254g/ 280g)

        Inputs
      • 1x HDMI

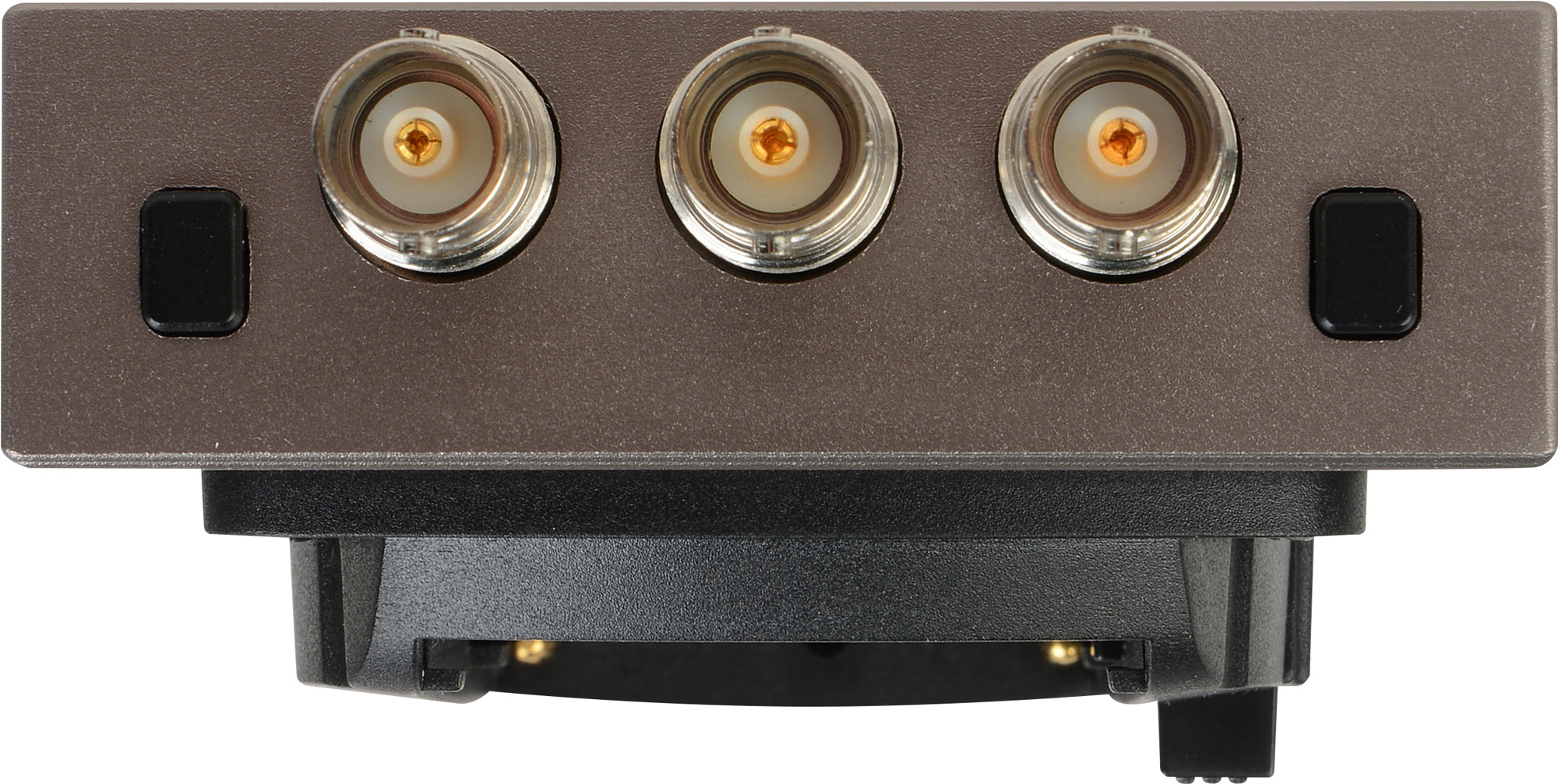

      • 1x BNC 3G/HD/SD-SDI

        Outputs
      • 2x BNC 3G/HD/SD-SDI
      • 1x HDMI

        Supported SDI Formats
      • 3G-SDI:1080P(60/59.94/59/50)
      • HD-SDI:1080P(30/29.97/29/25/24)
      • 1080I(60/59.94/50)
      • 1080PsF24
      • 720P(60/59.94/50)
      • SD-SDI:576I,480I(60/59.94)

        Supported HDMI Formats
      • 1080P(60/59.94/59/50/30/29.97/29/25/24)
      • 1080I(60/59.94/50)
      • 1080psf24
      • 720P(60/59.94/50)
      • 576I,480I(60/59.94)

    • Item Includes:

      • 12V/1.2A Power Adapter
      • F970 Battery Plate
