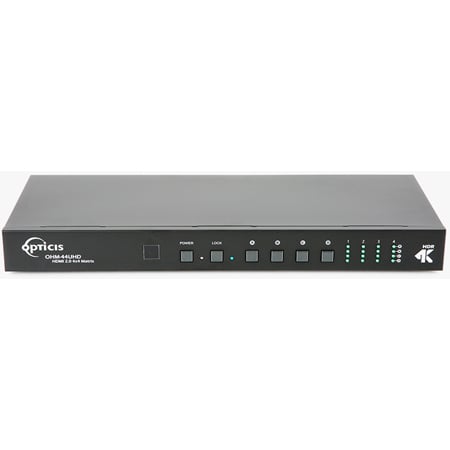

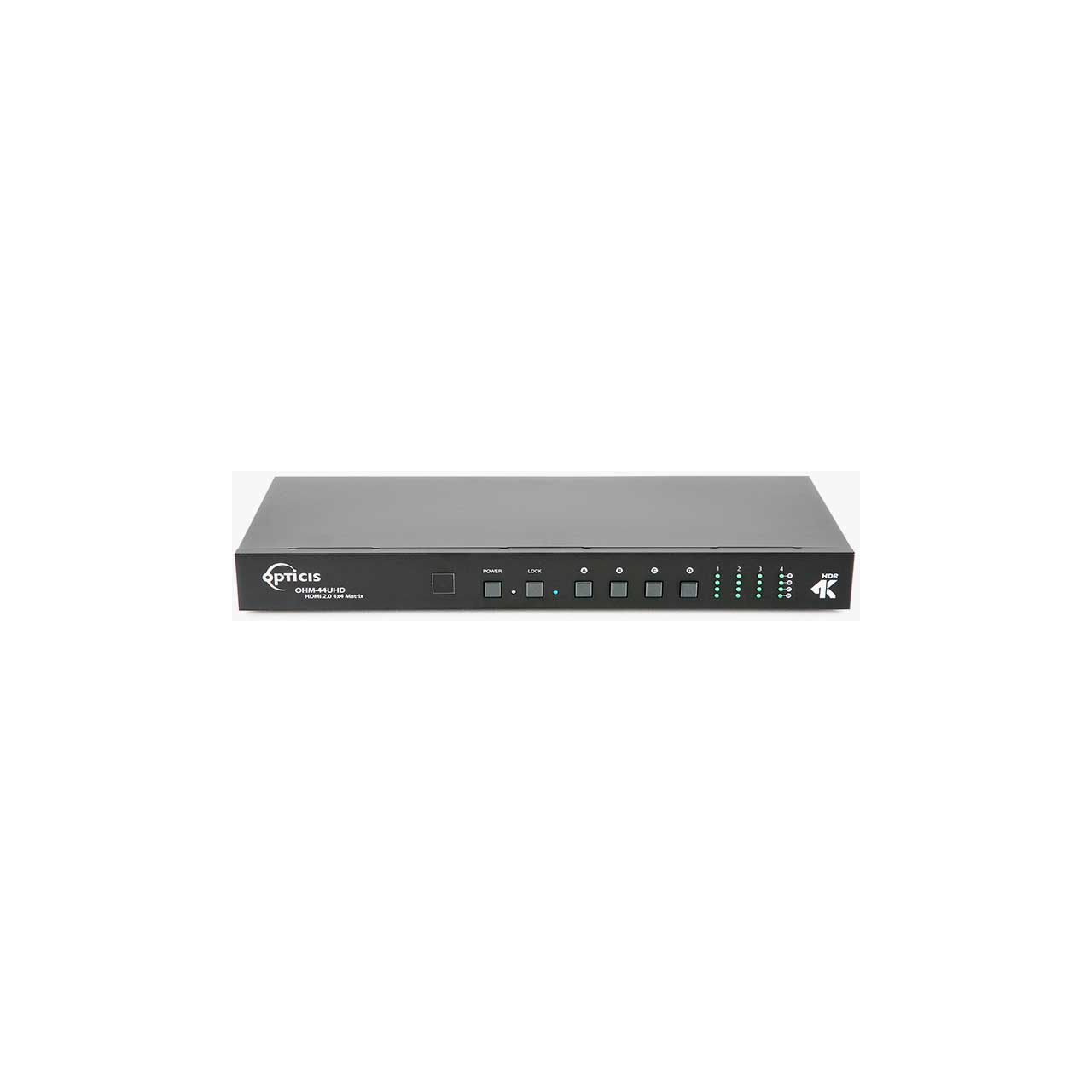

Opticis OHM-44UHD HDMI 2.0 4x4 Matrix Switch - 4096x2160@60Hz (RGB & YCbCr 4:4:4)

ITEM #: OPTI-OHM-44UHD MFG #: OHM-44UHD

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Opticis
Free Shipping with $49 Minimum Order

Our Price:

$700.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OHM-44UHD - Overview

    Opticis OHM-44UHD HDMI 2.0 4 x 4 Matrix Switch enables to make cross-switch between one of 8 HDMI or OHM-44UHD provides a high level of audio and video performance with support for resolutions up to 4K @60Hz (RGB & YCbCr : 4:4:4). It also supports HDR (High Dynamic Range) to deliver more realistic and objective video signal as well as pass-through support of digital audio formats to bring lossless sound.

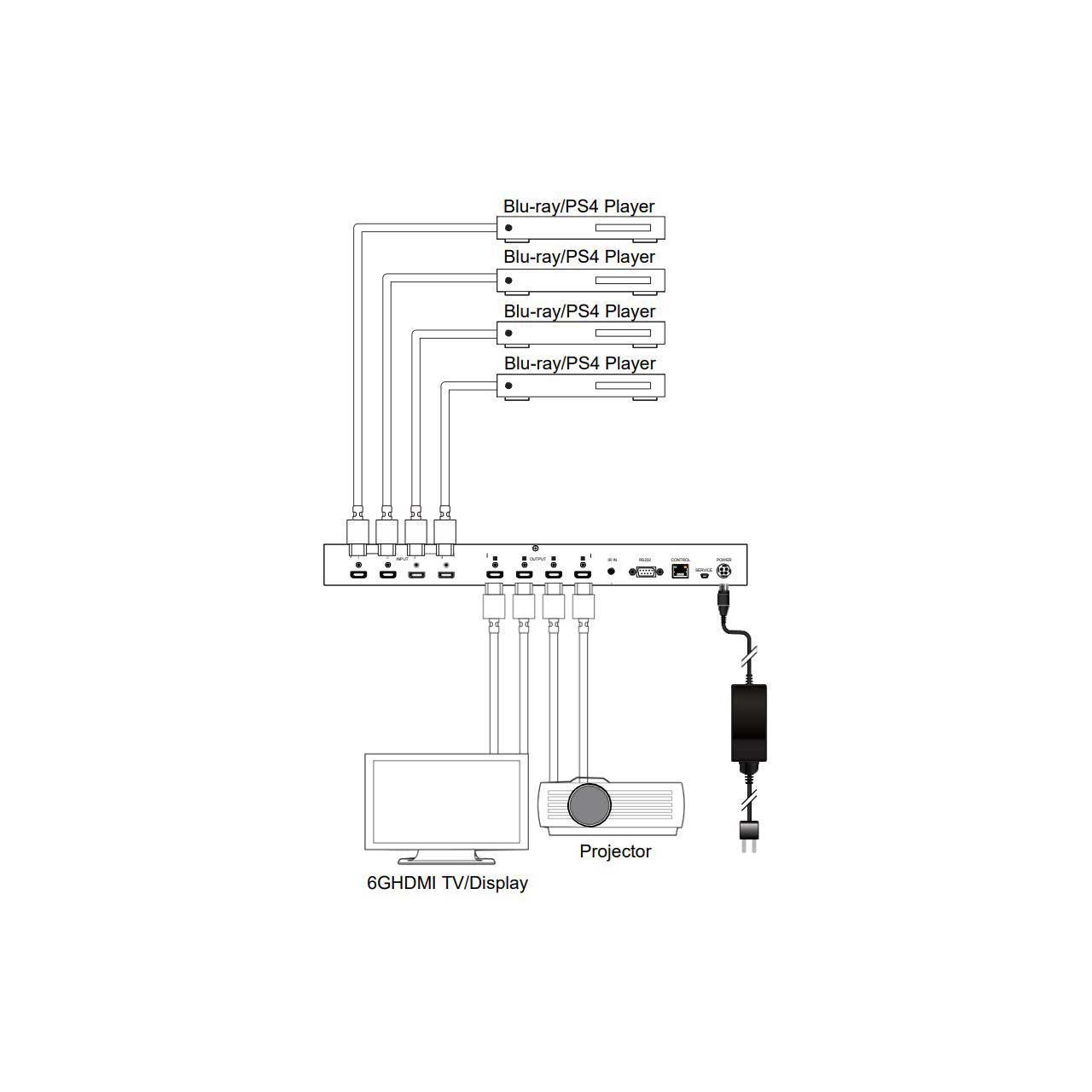

    The four (4) HDMI inputs and four (4) HDMI outputs support full matrix switching function with various control methods such as front panel buttons, RS-232, telnet, Web GUI and IR remote. User-friendly WebGUI interface supports storing and recalling up to four routing presets, making remote control and configuration of the unit conveniently. Built in EDID management support allows the users to choose and select from multiple built-in EDIDs as well as to upload custom EDID files and download the EDID from connected displays.

    Applications:
    Medical Imaging System
    Video Wall System
    Control Room and Conference Room
    Military, Aerospace, and education
    Digital Signage

    • Features:

      • Supports HDMI 2.0 Standards; resolution up to 4K (4096 x 2160) @60Hz (RGB & YCbCr : 4:4:4)
      • Provides user-friendly EDID management tools with 4 slots for user-created EDIDs, and EDID bypass support
      • Supports storing and recalling of up to four routing presets
      • Controllable via front-panel buttons, RS-232, telnet, WebGUI, and IR remote
      • HDCP 2.2 compliant
      • Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps
      • Supports 3D content transmission
      • Supports pass-through of LPCM 7.1, bit and HD bit audio formats over HDMI
      • Certifies for FCC and CE standards


    • Specifications:

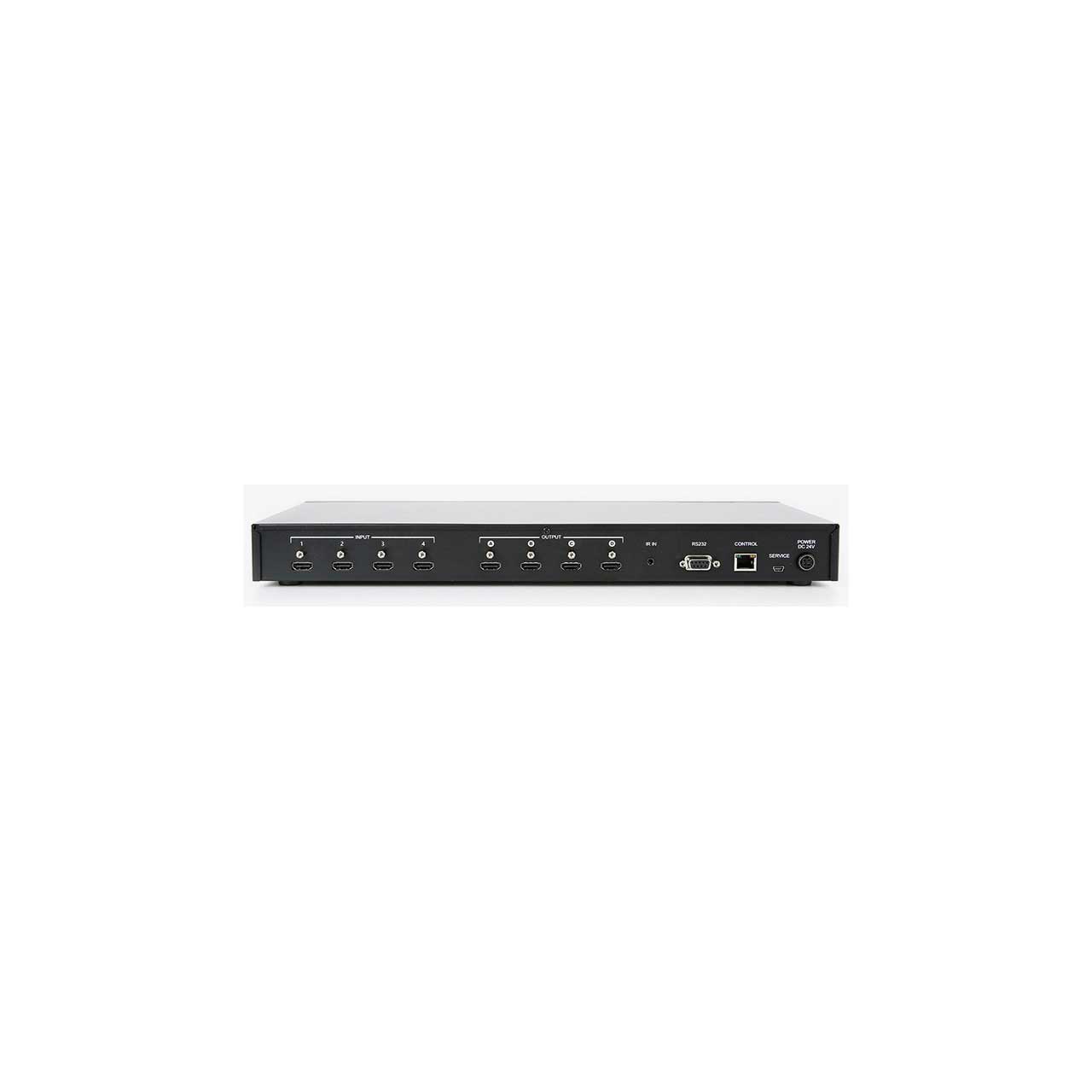

      • Input Ports: 4 x HDMI, 1 x IR, 1 x RS-232, 1 x Mini USB (Service), 1 x RJ45 (Control)
      • Output Ports: 4 x HDMI
      • Resolutions: 480i~1080p @24/50/60Hz, Up to 4K, (4096 x 2160) @60Hz (RGB & YCbCr: 4:4:4), VGA~WUXGA
      • IR Frequency: 30~50kHz
      • Baud Rate: 115200 bps
      • Power Supply: 24VDS / 2.7A
      • Certifications: US/EU standards, CE/FCC/UL certified
      • ESD Protection (Human body model): ±8 kV (air-gap discharge), ±4 kV (contact discharge)
      • Dimensions (W x H x D): 17.2" x 1.7" x 6.3" (case only), 17.2" x 1.9" x 6.6" (all inclusive)
      • Weight: 4.6 lbs
      • Operating Temperature: 0°C~40°C / 32°F~104°F
      • Storage Temperature: -20°C~60°C / -4°F~140°F
      • Relative Humidity: 20~90% RF (non-condensing)
      • Power Consumption: 21W


    • Item Includes:

      • 1x OHM-44UDS Matrix
      • 1x IR Extender
      • 1x OTG USB converter
      • 1x 24V/2.7A DC Power Adaptor

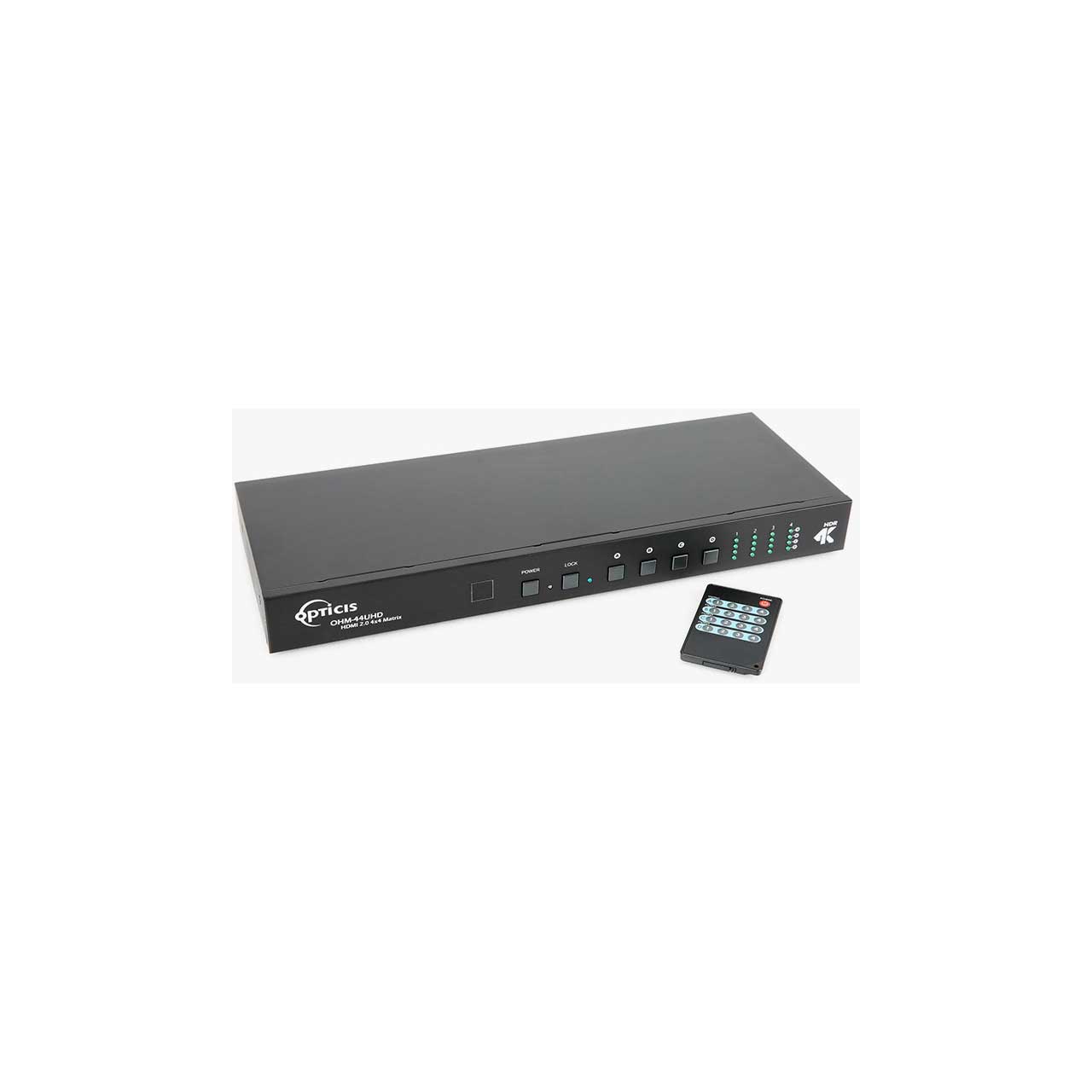

      • 1x IR Remote Control with Battery
      • 1x Power Cord
      • 1x User Manual
