Osprey SHCA-1 3G-SDI to HDMI Converter with Audio de-embedding

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

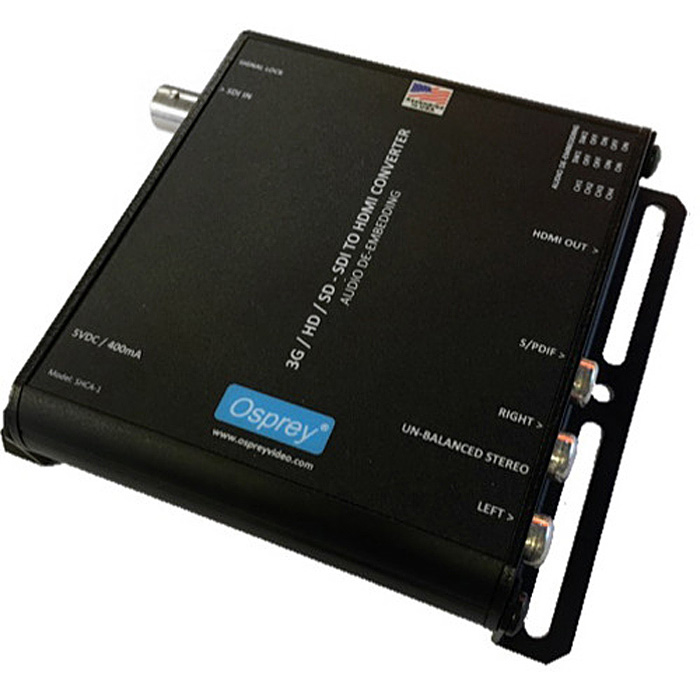

    Osprey SHCA-1 3G-SDI to HDMI Converter with Audio de-embedding

    Manufacturer: Osprey Video

    Item #: OSP-SHCA-1   •   MFG #: 97-21211




    Our Price:$195.00

    free ship


    Availability:
    Direct Ship from manufacturer, contact us for availability
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      This non-scaling Osprey SDI to HDMI Converter with Automatic Input Detection will accept any single link SDI input up to 3G and passes it to an HDMI 1.4 Output while preserving four channels of Embedded Audio. As an added feature the SHCA-1 can de-embed one Stereo Pair of unbalanced or S/PDIF Audio Powered by USB via a locking connector the SHCA-1 is perfect for streaming workflows


      • Features

        • SDI to HDMI Converter
        • 3G/HD/SD
        • Dip Switch for Selection of Audio de-embedding
        • LED indication for Power and SDI Signal Lock
        • Included Accessories: Lockable USB Power Cable, Mounting Brackets, USB Power Supply
        • Size: 100x95mm (including BNC's)
        • 5V Power Consumption ~ 2W

      • Specifications

        • Standards Compliance: SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M
        • Video Inputs: 1x 3G / HD / SD SDI, (BNC) w/ embedded audio (up to 4 stereo pairs)
        • Video Output: 1x HDMI 1.4 with embedded Audio (Type A – Full Size)
        • Audio Outputs: 1x Unbalanced Stereo (RCA); 1x S/PDIF (RCA)
        • Cable Equalization (Belden 1694A): 100m at 3G, 200m at HD, 400m at SD
        • Supported Resolutions: 3G-SDI: 1080p:60, 59.94, 50; HD-SDI: 1080p: 30, 29.97, 25, 24, 23.98, 1080i: 60, 59.94, 50, 720p: 60, 59.94, 50; SD-SDI: NTSC 480i, PAL 576i
        • LED indicators: Power, SDI Signal lock
        • Power Connector: Locking Mini B USB
        • Power: +5 VDC @ ~2W, May be powered by USB charger, PC or portable battery pack
        • Warranty: 1 year limited hardware warranty

      • Item Includes

        • SDI to HDMI Converter
        • USB Wall Power Supply
        • Mounting brackets
        • Locking USB cable

      • Warranty

        • 1 Year

      • GTIN:

        0850189006535
