Phabrix PHQX01-IP Qx 1U 1/2 rack UHDTV Rasterizer with 3G IP/SDI Analyzer (SMPTE 2022-6)
  • Phabrix PHQX01-IP Qx 1U 1/2 rack UHDTV Rasterizer with 3G IP/SDI Analyzer (SMPTE 2022-6)
  • Phabrix PHQX01-IP Qx 1U 1/2 rack UHDTV Rasterizer with 3G IP/SDI Analyzer (SMPTE 2022-6)

Questions? Ask a Markertek Expert:
800-522-2025 Email

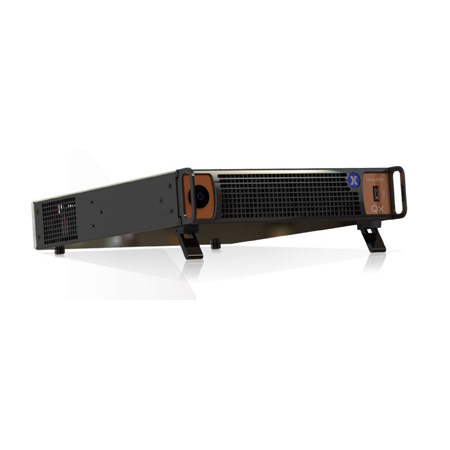

Phabrix PHQX01-IP Qx 1U 1/2 rack UHDTV Rasterizer with 3G IP/SDI Analyzer (SMPTE 2022-6)

Manufacturer: Phabrix

Item #: PHABRIX-QX01-IP   •   MFG #: PHQX01-IP




Our Price:$12,944.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The Qx range brings together all the essential tools for product development, infrastructure compliance testing and 4K/UHD content monitoring using the next generation of IP and SDI video formats. The affordable, Qx IP delivers all the key tools for hybrid IP, 3G-SDI and HDR broadcast environments, and it's ideal for infrastructure compliance testing and content monitoring.

Single, hybrid device for IP, 3G/HD & HDR
With Qx IP, you no longer need multiple test & measurement devices for SMPTE 2022-6 IP, SDI and HDR / WCG. A single Qx IP can perform signal generation, analysis and monitoring across all these important formats. TR03, AES67 and PTP (ST 2059-2), as defined in the draft SMPTE 2110 specification, will be supported with upcoming software releases.

Ideal for live production
Highly compact and ultra-quiet, Qx IP weighs less than 2Kg and uses just 50W. This makes it well suited to live production applications. A flexible, easy to use control interface provides unlimited instrument layering, and is designed for fast moving operation. For challenging environments, Qx IP can be fitted with a replaceable air filter.


  • Features

    • SPMTE ST 2022-6 encapsulation/de-encapsulation
    • Inter Packet Arrival Time Analysis for monitoring network congestion
    • Simultaneous generation and analysis
    • Waveform monitoring for YRGB/YUV monitoring
    • HDR Heat-map highlights signals beyond SDR
    • HDR test pattern generator
    • TCP/IP based control
    • Automation port for remote control and automated testing
    • Compact 1/2 RU
    • 32 channel audio monitoring
    • 12-bit processing
    • Magnification (0.5x to 4x)

  • Specifications

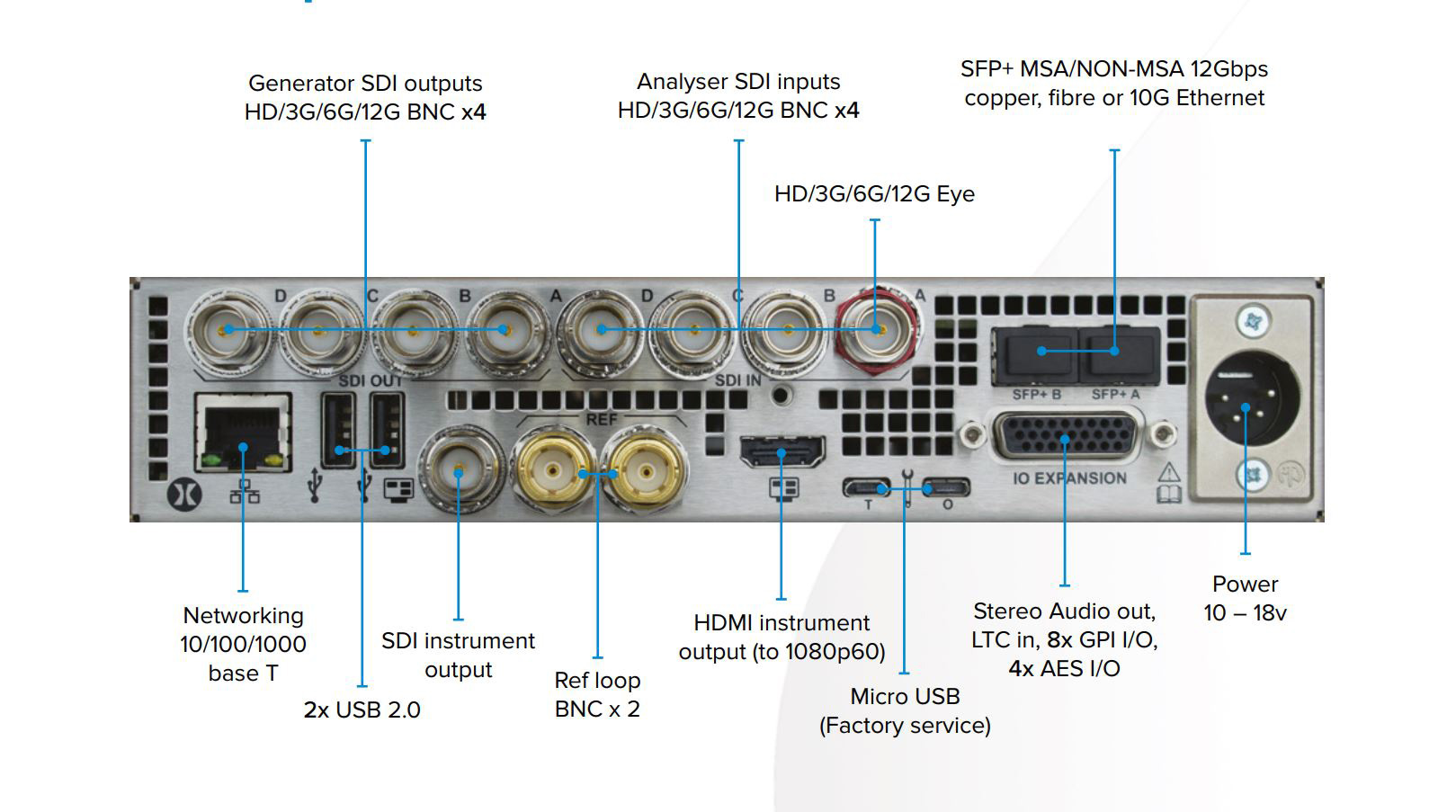

    • Analyzer Inputs (BNC x 4 12G)
    • Label: A,B,C,D
    • Supported standards: 12G/6G/3G/1.5G
    • See all video formats: Support
    • Input Impedance: 75 Ohm
    • Maxi Input Voltage: +/- 2V
    • Eye pattern: Single BNC 12G/6G/3G/1.5G

      Generator/Gearbox/Loop Outputs (BNC x 4 12G)
    • Label: A, B, C, D
    • Supported standards: 12G/6G/3G/1.5G
    • See all video formats: Support
    • Output Impedance: 75 Ohm terminated
    • Output Level: 800mV +/-10%

      Locking Reference Loop Through (BNC x 2)
    • Label: REF LOOP
    • Input Signal: Tri-level or black burst) syncs 50/59.94/60Hz
    • Input Impedance: 75 Ohm loop through
    • Input Return Loss: >40dB to 6MHz (typical)
    • Max Input voltage: +/- 2V
    • Specification: Tri-level syncs 600 mV pk-pk PAL, NTSC, Black Burst 1V pk-pk

      HDMI Instrument Output (TYPE A)
    • Label: HDMI out
    • Video Format: 1920 x 1080 RGB 4:4:4
    • Audio Format: 8 x PCM audio at 48 KHz

      SDI Instrument Output (BNC)
    • Label: SDI out
    • Input Impedance: 75 ohm terminated
    • Output Level: 800mV +/- 10%

      Physical
    • Networking (RJ-45): Ethernet IEEE 802.3 10/100/1000Mbps (10/100/1000-base-T connection)
    • User Interface Control (USB 2 Type A): 3 (1 x front, 2 x rear)
    • Power consumption: 30W typical - 70W 4 Pin XLR power connector, 12V nominal (10V-18V) AC Power adapter (included), 90-264VAC, 120W
    • Chassis Dimensions: 9.64" x 1.73" x 8.03"
    • Weight: 4.18 lbs

  • Warranty

    • 1 Year
