Phabrix PHRX500AG Rx500 1U 1/2 Rack 2-Channel Rasterizer - 1x Analyzer/Generator Module
  • Phabrix PHRX500AG Rx500 1U 1/2 Rack 2-Channel Rasterizer - 1x Analyzer/Generator Module
  • Phabrix PHRX500AG Rx500 1U 1/2 Rack 2-Channel Rasterizer - 1x Analyzer/Generator Module
Questions? Ask a Markertek Expert:
800-522-2025 Email

Phabrix PHRX500AG Rx500 1U 1/2 Rack 2-Channel Rasterizer - 1x Analyzer/Generator Module

Manufacturer: Phabrix Limited

Item #: PHRX500AG   •   MFG #: PHRX500AG


List Price:$6,760.00
Our Price:$6,422.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -

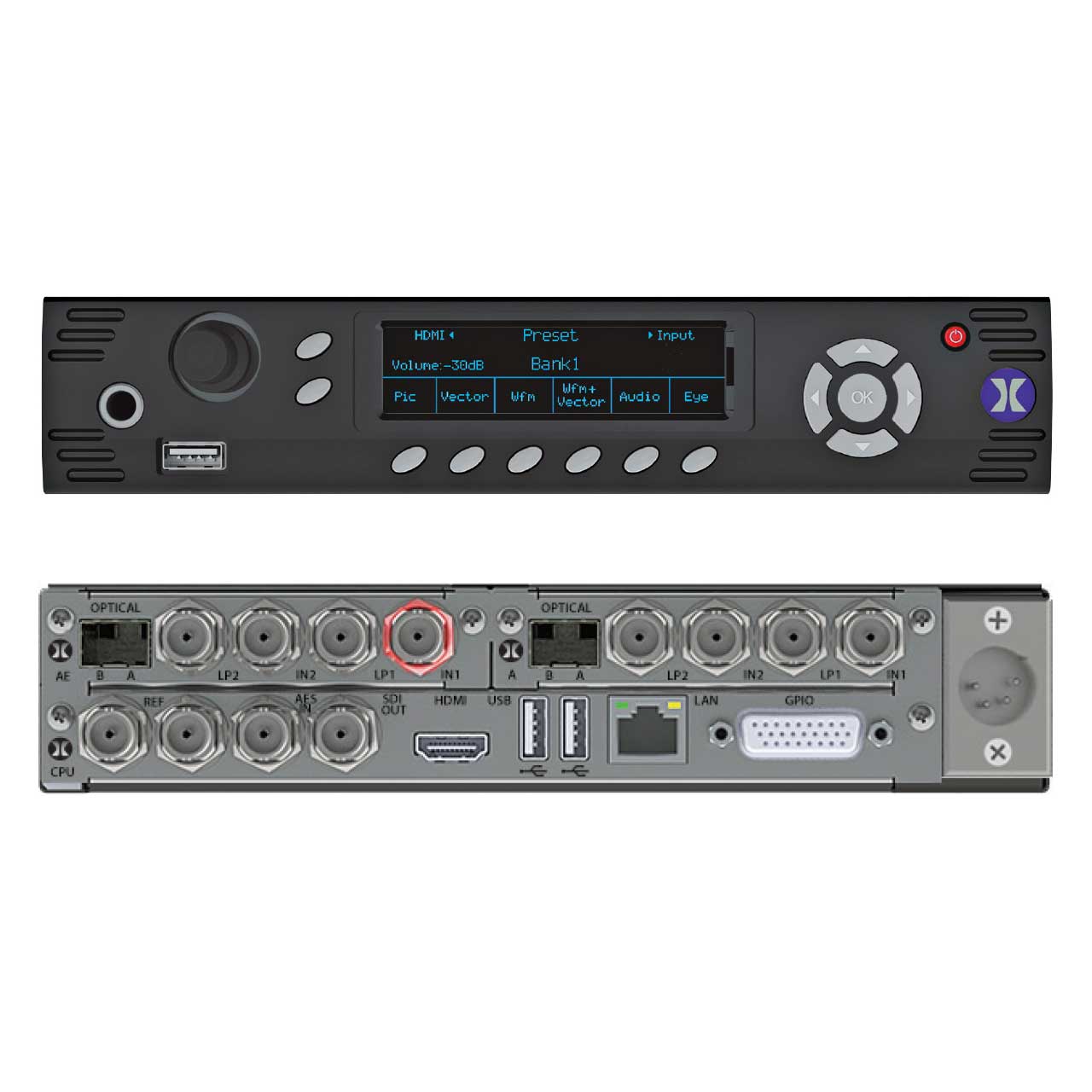

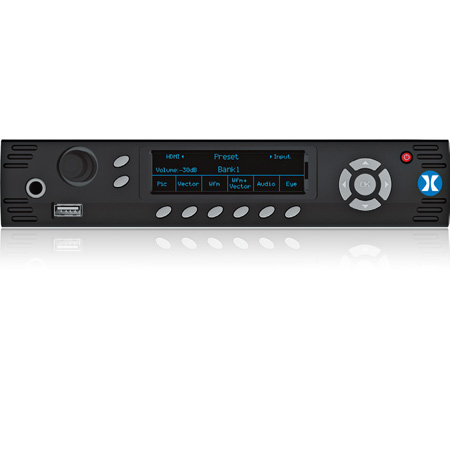

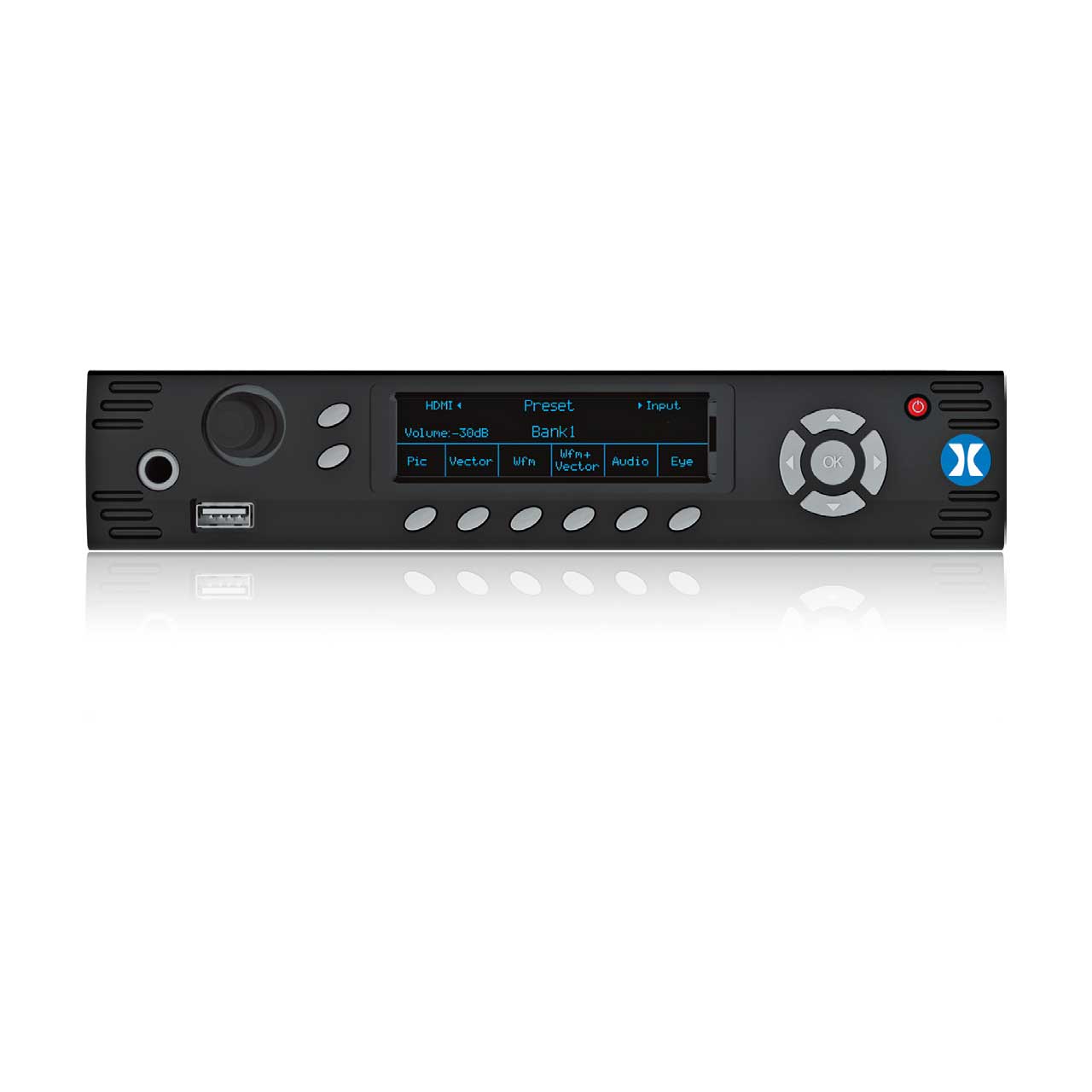

    Ideal for Quality Control applications, the Rx500AG is a dual channel 2K/3G/HD/SD-SDI video/audio analyzer and monitoring solution in a very compact 1/2 RU frame (dual inputs per analyzer). It supports dual inputs per analyzer and can also provide signal generation for video and audio. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing. The Rx 500 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis

    Up To 99 Configurable Presets
    Monitoring configurations can be built to suit individual operators and key applications, with rapid recall of layout presets for fast turnaround of screen layouts eg. Video or Audio focus. Up to 99 presets are available to suit even the largest facility.

    Video Capture & Remote Access
    To speed fault finding, the Rx Series offers video and audio capture to help diagnose problems. The capture can be triggered automatically when faults are identified by the analyzer, according to user-defined criteria. Monitor and analyze video via a web browser from any location.

    Four Channel Eye & Jitter Analysis
    Advanced diagnostic tools include up to four simultaneous Real-Time EyeT and Jitter physical layer analysis instruments plus closed caption, loudness and Dolbyr monitoring. This makes the Rx Series ideal for OB trucks, broadcast facilities and video technology manufacturers.

    AV Delay Generation And Analysis
    AV Delay measures the audio-video delay through a broadcast workflow. Features include; a realtime update of the differential delay between the video and up to 8 audio channel pairs, plus support for EBU Tech 3305 and LAWO V_line AV Sync test patterns.

    • Features

      • UP to 99 configurable presets
      • Video capture & remote access
      • Four channel eye & jitter analysis
      • AV delay generation and analysis
      • Extensive video toolset
      • Multi-channel audio analysis
      • Front panel backlit navigation keypad
      • Front panel volume/gain control
      • Front panel headphone connector 6.3mm (1/4 inch) Stereo jack
      • Front panel USB 2.0 host port type A socket + 2 rear panel USB 2.0 ports
      • Basic SDI generator included as standard (replaces instrument output)
      • 8 channel 48kHz PCM audio on HDMI and SDI Instrument outputs
      • Reference/VITC input, passive loop through, BNC 75 Ohm compensated
      • AES input AES 3-ID, SMPTE 276M-1995, 75 Ohm BNC
      • LTC input (via 26 pin high density 'D' Type socket)
      • 8x GPI I/O (via 26 pin high density 'D' Type socket)
      • Stereo analog audio output, (via 26 pin high density 'D' Type socket)
      • Calibrated stereo balanced analog audio output (option module)
      • Ethernet remote control via browser, RJ45 connector, 10/100Base-T
      • IP sockets based remote control as standard
      • FPGA firmware/software upgrade via Ethernet/USB
      • Viewing angle tilt mechanism
    • Specifications

      • Standard: SD-SDI, HD-SDI
      • Screen: Dual 16:9, 24 bit, 4.3" TFT, 480 x 272 pixels
      • Internal loudspeaker: 2x7W wide range
      • I/O Module Slots (each supporting a range of audio/video modules): 4
      • DMI Instrument Output: 1920 x 1080, 4:4:4 RGB, Type A
      • SDI Instrument Output: 1920 x 1080, 4:2:2 YUV, BNC 75 Ohm
      • 19" Rack-Mount Kit: 2U (stnd)
      • Whisper Quiet Temp Controlled Fan: 1 x 60mm external
      • Power Consumption (variable on modules inserted): 27W typical 80W max
      • Power Connector: 4 Pin XLR, 12V nominal (9V-18V)
      • AC Power Adaptor (incl): 90-264VAC, 120W
      • Dimensions (w x h x d) Excl Ears & Projections: 440x88x 150mm
      • Weight (Chassis with CPU mOdule and 1x AG oPtion Module Fitted): 2.3lb
    • Item Includes

      • 1x Phabrix PHRX500AG Rx500 1U 1/2 Rack 2-Channel Rasterizer - 1x Analyzer/Generator Module
    • Warranty

      • 1 year manufacturers warranty
