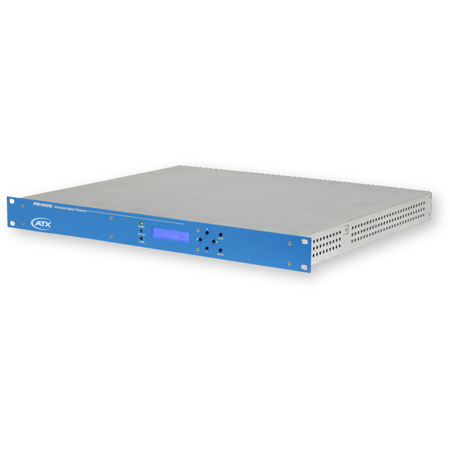

ATX Networks PD1000-4 4 Channel HD/SD Encoder (1xPD1000 2xEM-2HD 1xOM14)

Manufacturer: ATX Networks

Item #: PICO-PD1000-4   •   MFG #: PD1000-4


List Price:$5,550.00
Our Price:$3,195.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -


    The professional-grade PD1000-4 HD Encoder Modulation System from ATX Network allows users to encode HD, SD, and HD-SDI signals in MPEG-2 or H.264 formats, all in a single rack space. The unit supports real-time encoding, while offering the flexibility of two, four, six, or eight HDMI (in the clear), HD-SDI, component, and composite (closed captioning) inputs. The HD encoder offers simultaneous QAM and IP outputs. This model, the PD1000-4, is a 4 Channel HD/SD Encoder (1xPD1000 2xEM-2HD 1xOM4).

    The PD1000 enables remote control and monitoring via an intuitive Web interface, provides virtual channel mapping, and supports Dolby Digital audio encoding. The HD encoder is ideal for commercial residential properties, academic and medical facilities, local area network applications for both CATV and broadcast, as well as the hospitality industry.

    • Features

      • Platform-based encoder with up to four field upgradeable dual channel encoder modules
      • Upgradeable software for new future-proof features
      • Supports 480i to 1080p real-time encoding and up to 8 HD video channels in MPEG-2 or H.264 formats, all in 1RU
      • MPEG audio encoding plus optional Dolby Digital Stereo Creator Technology (One audio pair per video)
      • No change of resolution between input and output
      • Inputs per EM-2HD dual encoder module: component, HDMI (Clear), and composite/closed caption
      • Inputs per EM-HD-SDI dual encode module: HD-SDI (BNC)
      • Integrated support for Emergency Alert System (EAS)
      • Automatic detection of input type and format
      • Outputs four consecutive QAM channels
      • IP output: Unicast/Multicast, RTP/UDP/IP, RTSP and SPTS
      • Simultaneous QAM/IP output
      • PSIP tables allow users to configure virtual channel maps for each channel
      • High output power with 60 dbmV max., pre-combined
      • Secure management and configuration via an easy-to use to use web browser
      • External DC backup power supply
    • Specifications

      • Audio/Video Inputs (Per Encoder Module)
      • HDMI: Dual Type A v1.4 (Clear)
      • Component: Dual YPrPb (YPrPB), (RCA)
      • Audio: Dual Stereo (RCA)
      • Composite/Closed Caption: Dual CVBS (RCA)
        Audio/Video Inputs (Per EM-HD-SDI encoder module)
      • SDI: Dual 3G/HD/SD (BNC)
        Video Formats
      • In/Out Line Rates: 1080p/1080i/720p/480p/576i/480i
      • Frame Rates: 25/29.97/30/50/59.94/60
        Video/Audio Compression
      • Video Codecs: HD and SD MPEG-2/H.264
      • Audio Codecs: Layer II, Dolby Digital Stereo Creator (One audio pair per video)
        QAM/RF Output
      • Frequency Range: 50 MHz to 1002 MHz
      • RF Channel Count: 4
      • Modulation Modes: QAM 64/256
      • QAM Type: Annex A/B
      • MER: > 40 dB
      • RF Level (pre-combined): > 60 dBmV
      • RF Level Adjustment Range (Combined): 38 dBmV to 53 dBmV
      • Spurious: > 60 dBc
      • I/Q Amplitude Imbalance: < 1 %
      • I/Q Phase Error: < 1°
      • Frequency Accuracy: ± 100 Hertz
      • Phase Noise: 100 dBc @ 10 Khz offset
      • Amplitude Flatness: ± 0.25 dB (over 24-MHz bandwidth)
      • Output Connector: F-Female, 75 Ω
        IP Output (optional)
      • Connection: RJ45, GbE, Full Duplex, Auto-Neg
      • Addressing: Unicast, Multicast
      • Transport Protocol: RTP/UDP/IP, RTSP
      • Transport Format: SPTS
      • Connection: RJ-45, GbE, Full Duplex, Auto-Neg
      • Protocols: HTTP
      • User Interface: Web Browser
      • Browser Support: IE9 or later, Firefox, and Chrome
        EAS Inputs
      • Video: CVBS (RCA)
      • Audio: Stereo (RCA)
      • Trigger: Terminals
        Internal AC Power Supply
      • Line Voltage: 93 VAC to 254 VAC, 47 Hz to 63 Hz
      • Power Consumption: up to 130 Watts
        External DC Power Backup
      • Voltage: + 12 VDC ± 5 % VAC
      • Current: < 10 Amps
      • Operating Temperature: 0 °C to 50 °C
      • Dimensions: 19"(L) x 16"(D) x 1.75"(H)
