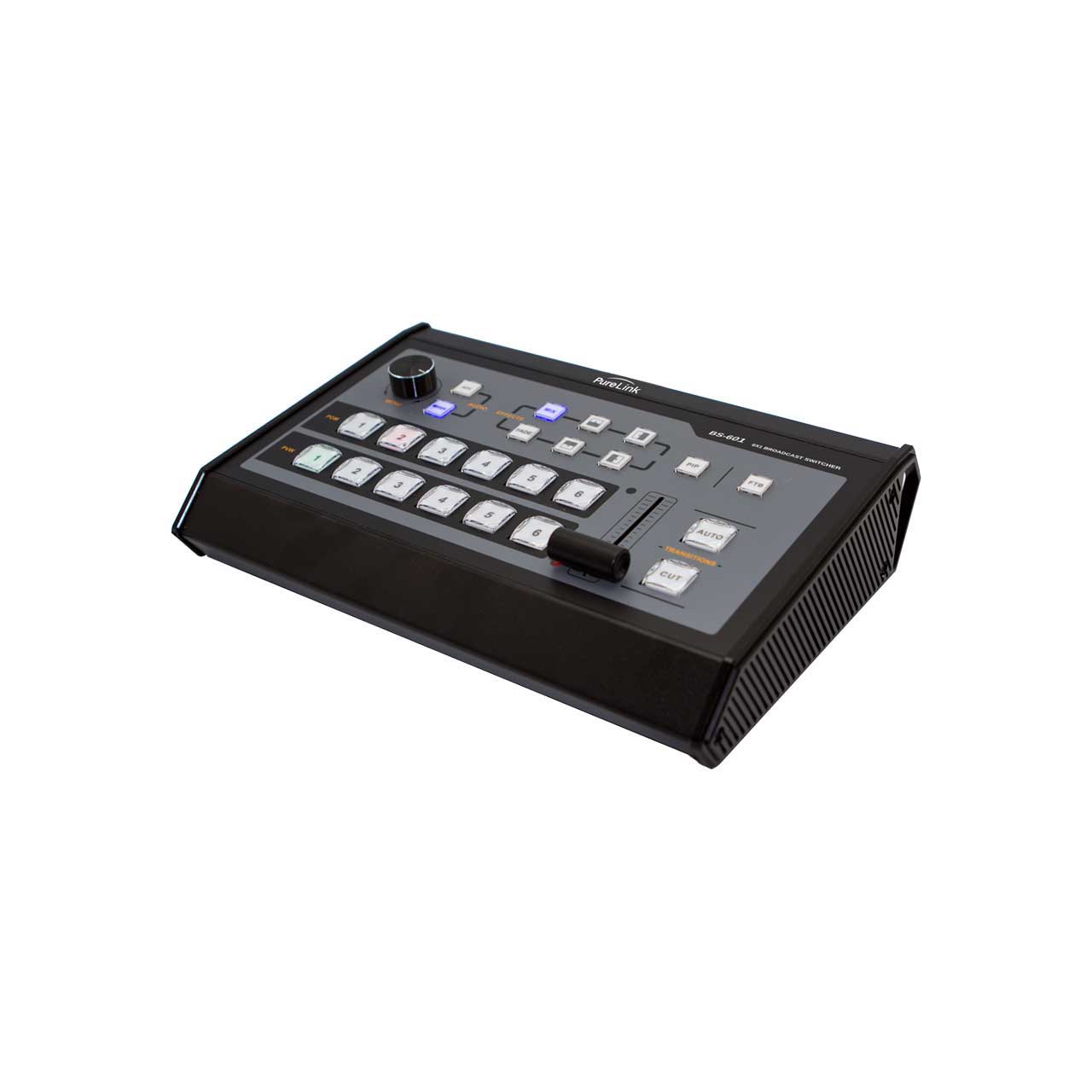

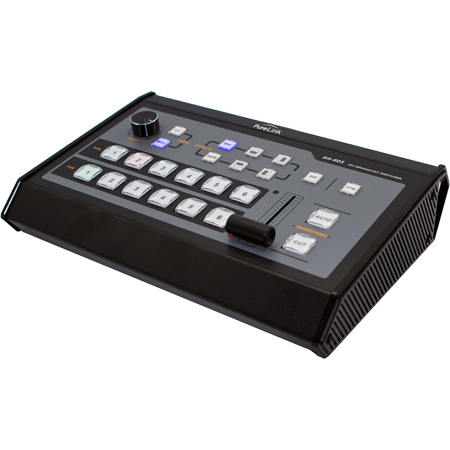

PureLink BS-601 Production Switcher - 4 3G-SDI & 2 HDMI In/Program Out/Multiview/Preview Out/Cut/CrossFade/Wipe/PIP/POP

ITEM #: PLK-BS-601 MFG #: BS-601

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$3,299.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    BS-601 - Overview

    The Purelink BS-601 high-performance broadcast switcher features (2) HDMI inputs, (4) 3G-SDI inputs, audio inputs and outputs, special effect transitions, Multiview preview output, and HDMI program output. With its compact design and robust feature set, the simple to use BS-601 is ideal for production and broadcast applications such as house of worship, conferences, rental, trade shows, concerts, training seminars, medical training, and many more.

    • Features:

      • Supports up 1080p60 resolutions
      • Supports up to (4) 3G-SDI and (2) HDMI inputs
      • 3.5mm analog audio input and output
      • 2-CH RCA audio input and output
      • Program output: (1) 3G- SDI and (1) HDMI
      • Multiview preview output: (1) HDMI and (1) 3G-SDI
      • Supports special effects switching such as MIX / FADE / CUT / WIPE
      • Supports hard CUT mode for AUTO and FTB
      • Supports RS232/Tally/network remote control
      • Built-in temperature detection and an intelligent fan control system

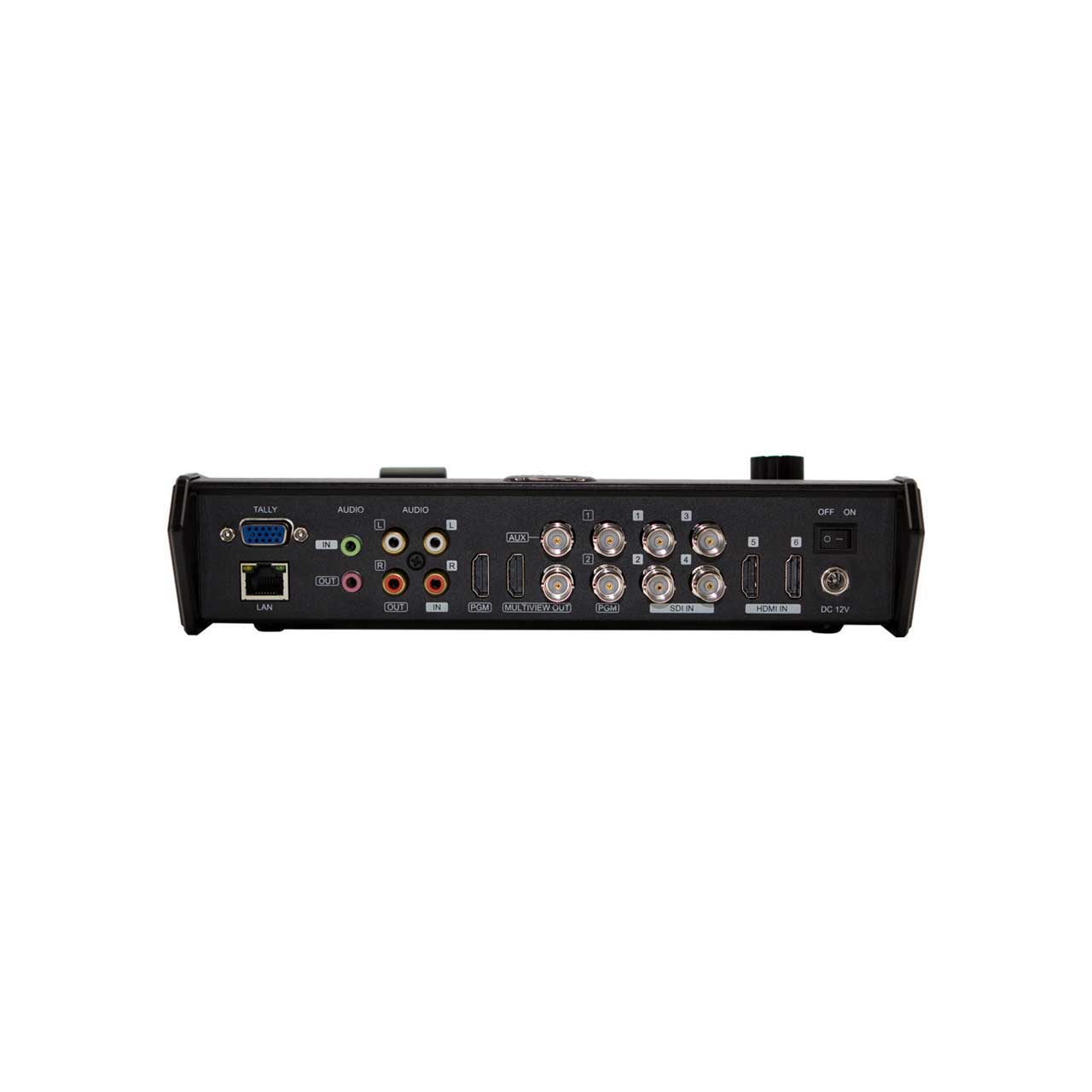

    • Specifications:

      • Hardware
      • Input Signal Types:
        (1) 3G-SDI
        (1) HDMI (Female Type A)
        (1) AUX output (Female BNC)
        (1) 3.5mm audio out
        (1) L/R RCA audio in
      • Output Signal Types:
        (1) 3G-SDI
        (1) HDMI (Female Type A)
        (1) AUX output (Female BNC)
        (1) 3.5mm audio out
        (1) L/R RCA audio in

        Performance
      • Supported Resolutions: 480i/576i,480p/576p,720p,1080i,1080p60, 1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x768, 1360x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600
